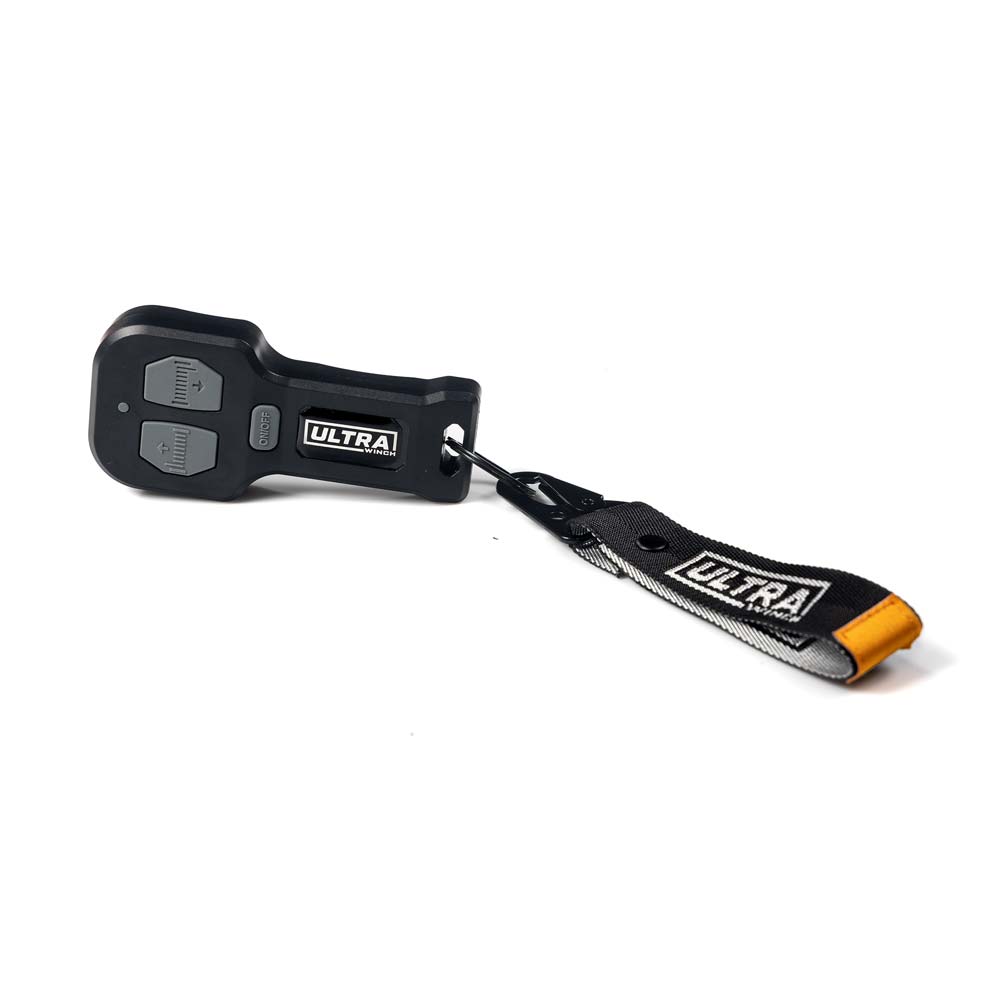

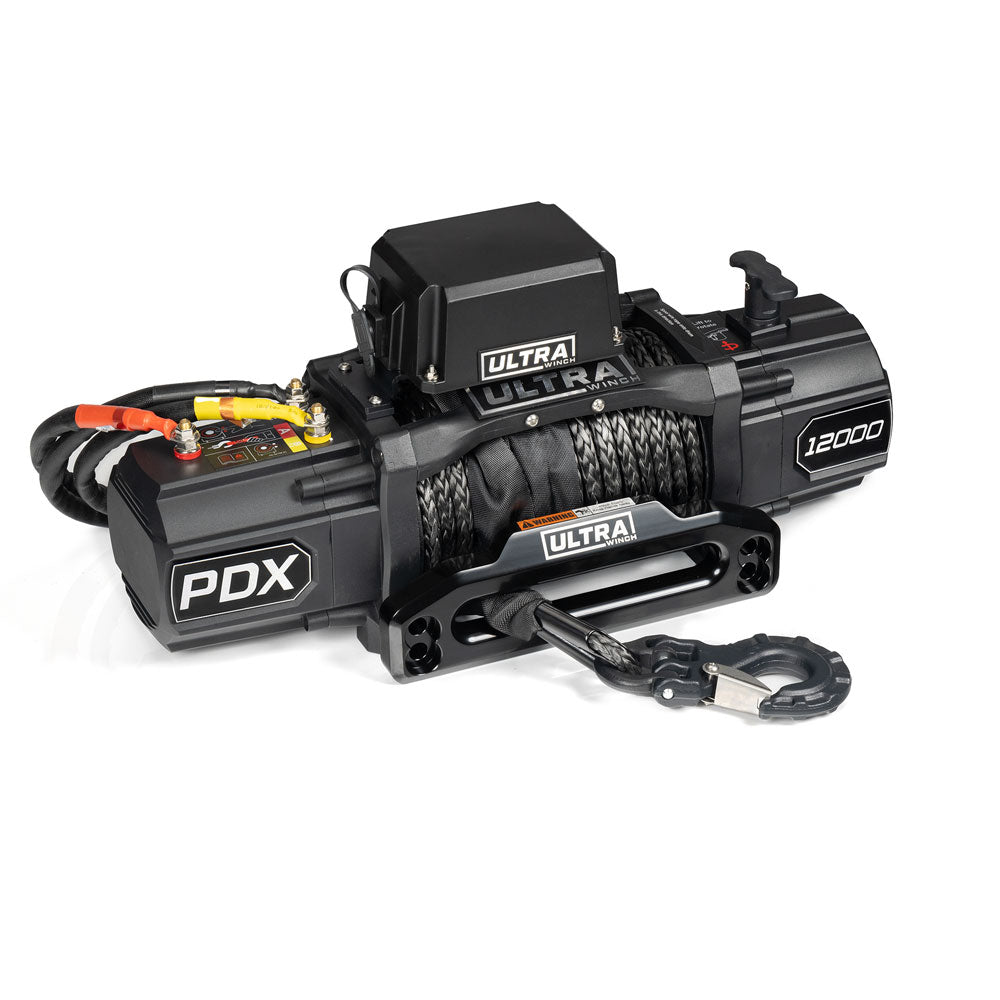

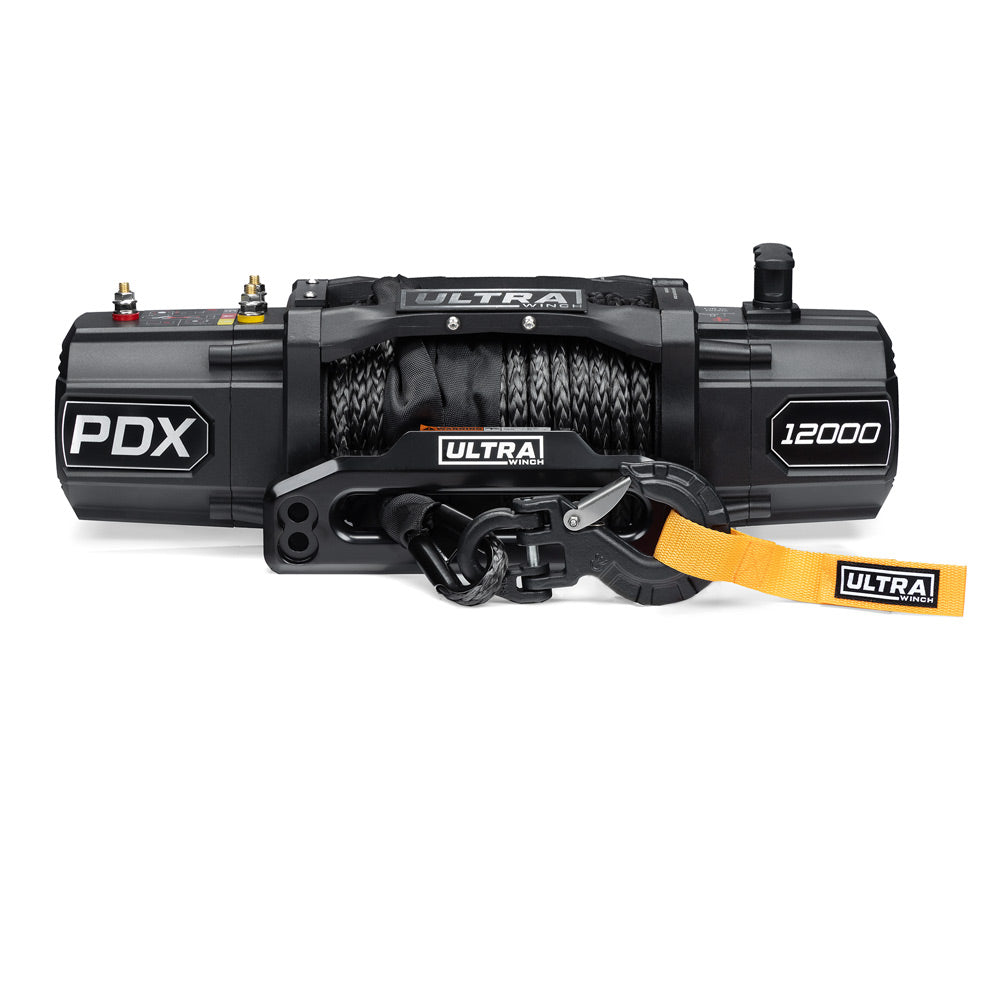

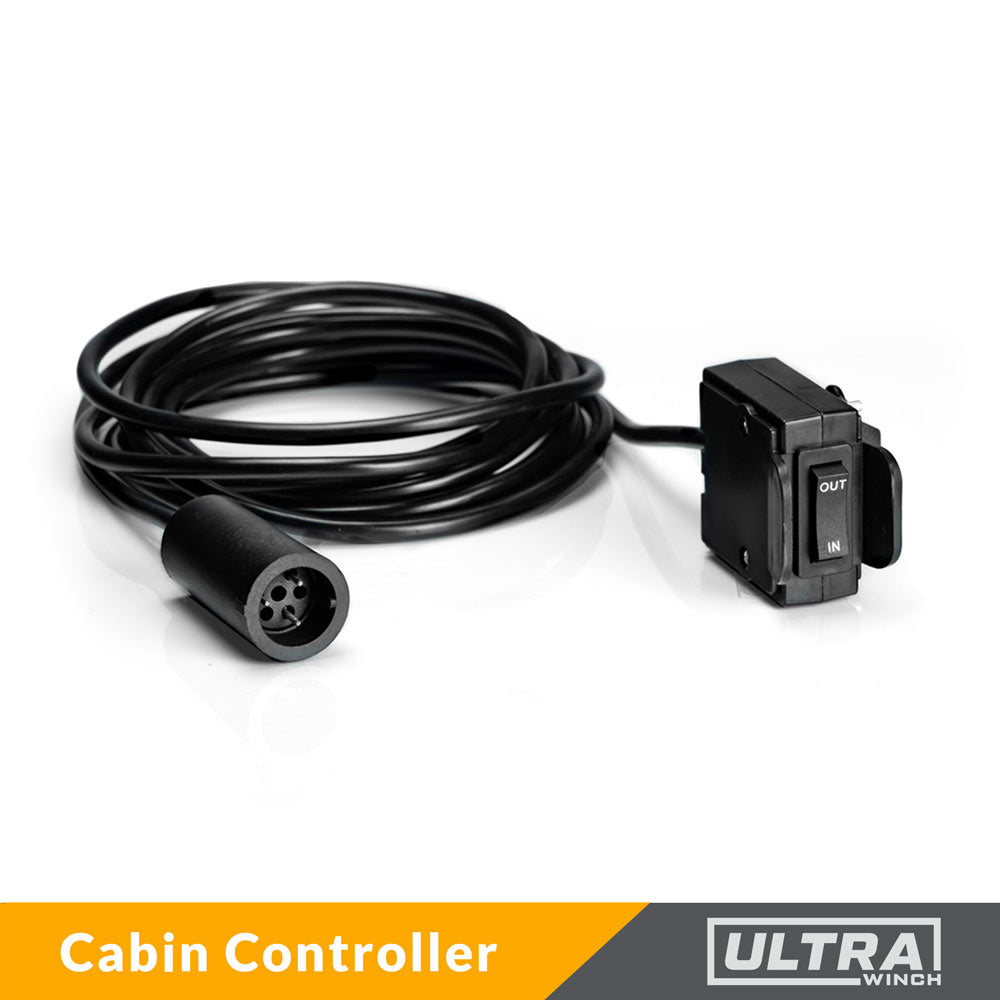

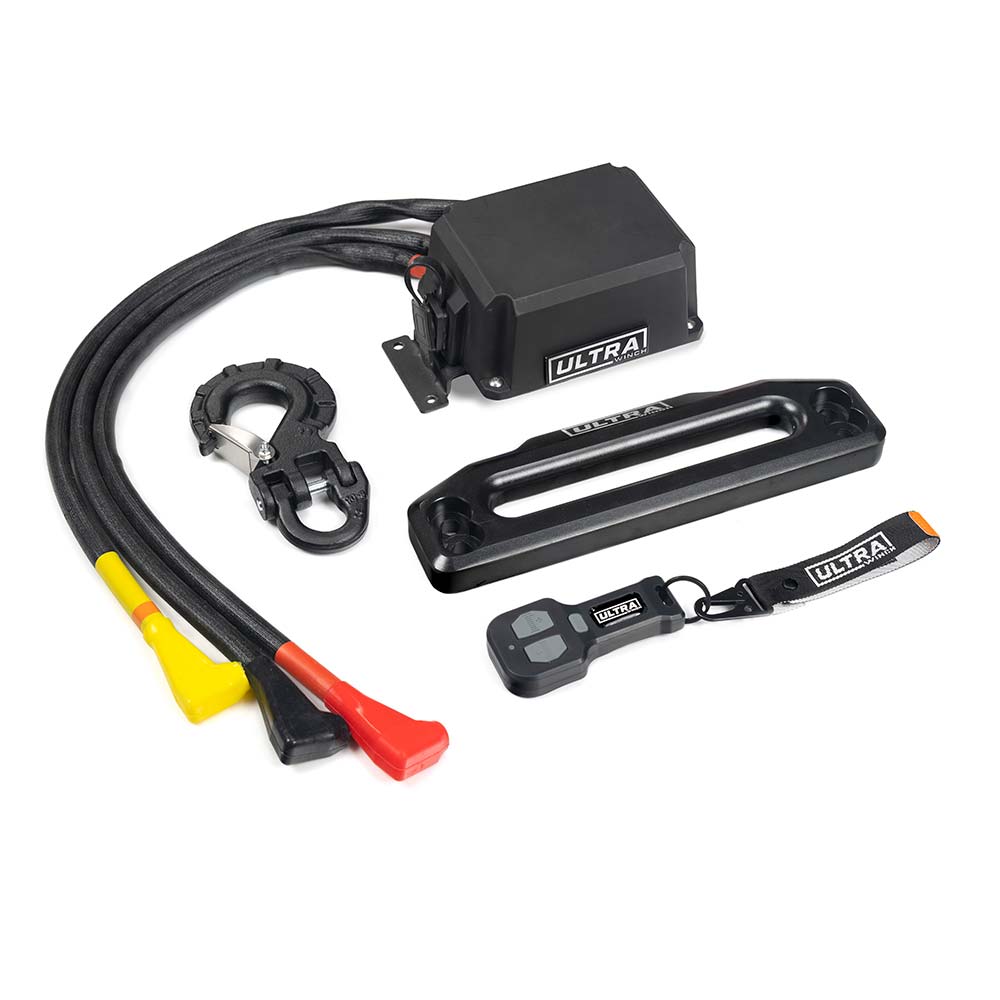

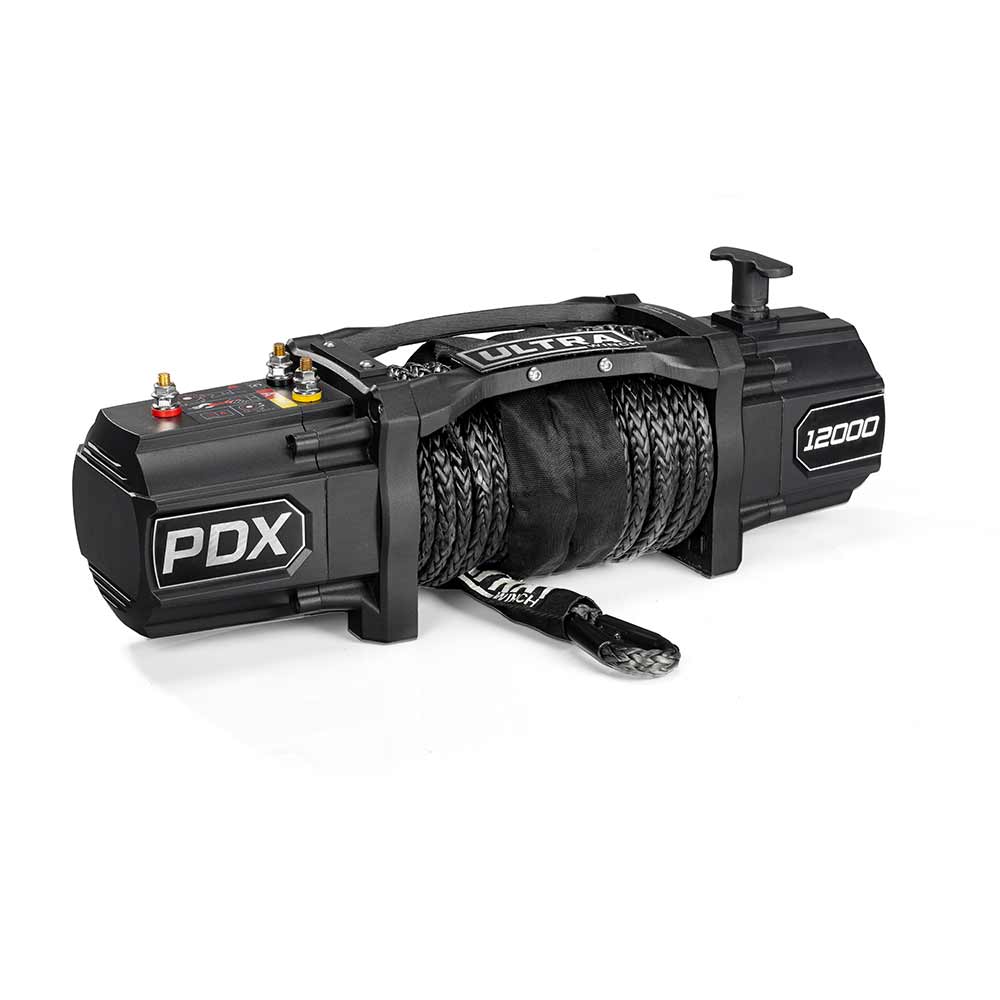

The Ultra PDX MK4 is a 12V electric winch available in 9,500lb and 12,000lb versions. Both use the same sealed 6.5HP (4.8kW) motor; the difference is the gearing, so you choose more line speed or more pulling force. It has heavy 50mm² wiring, a 600A solenoid, a mechanical brake and a breather kit that relieves pressure build-up in the motor. You can control it three ways: wireless remote, wired handheld remote or the in-cabin rocker switch. The clutch housing rotates 90 degrees to suit your installation.
Specifications
Voltage: 12V DC
Rated to: 9,500lb (4.3 tonnes) or 12,000lb (5.44 tonnes)

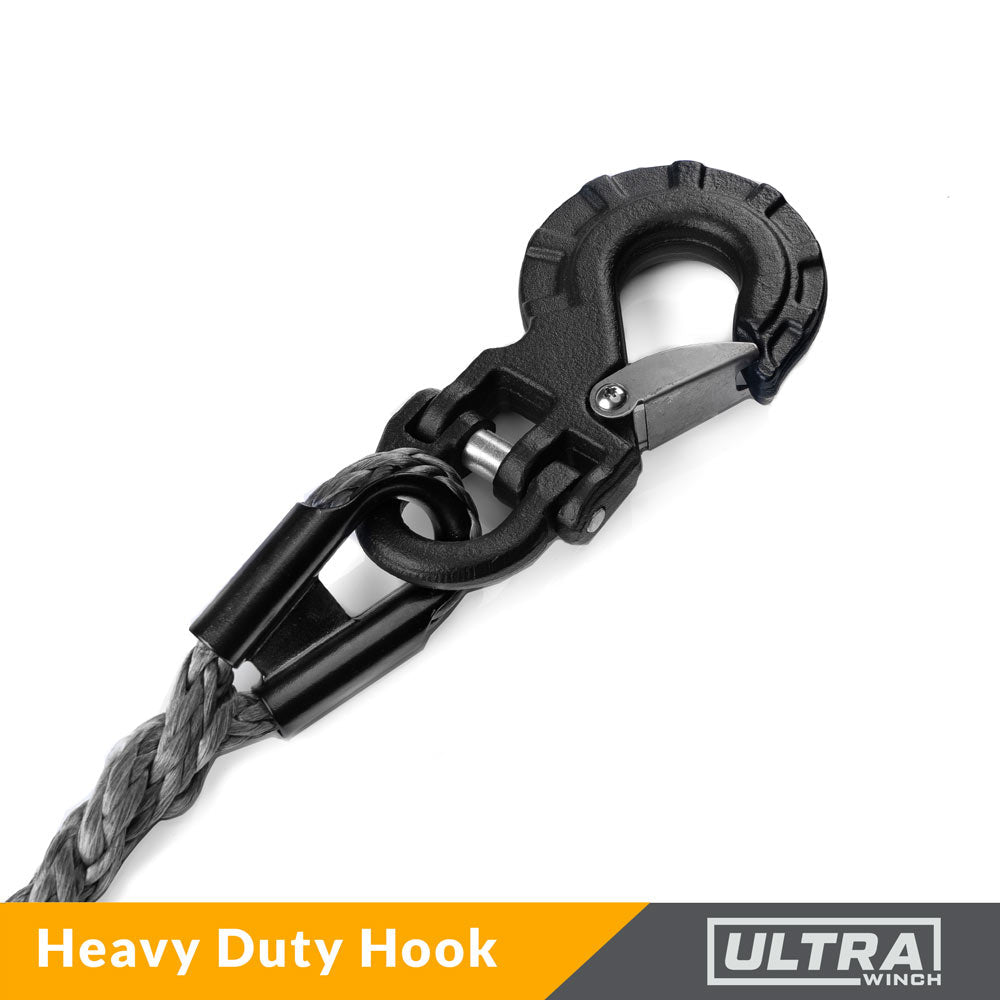

Rope: 10mm x 25m synthetic, 16,800lb minimum breaking strength
Control: Wireless remote, wired in-cabin switch and wired handheld remote
Gear train: 3 stage planetary, sealed, 235:1 ratio
