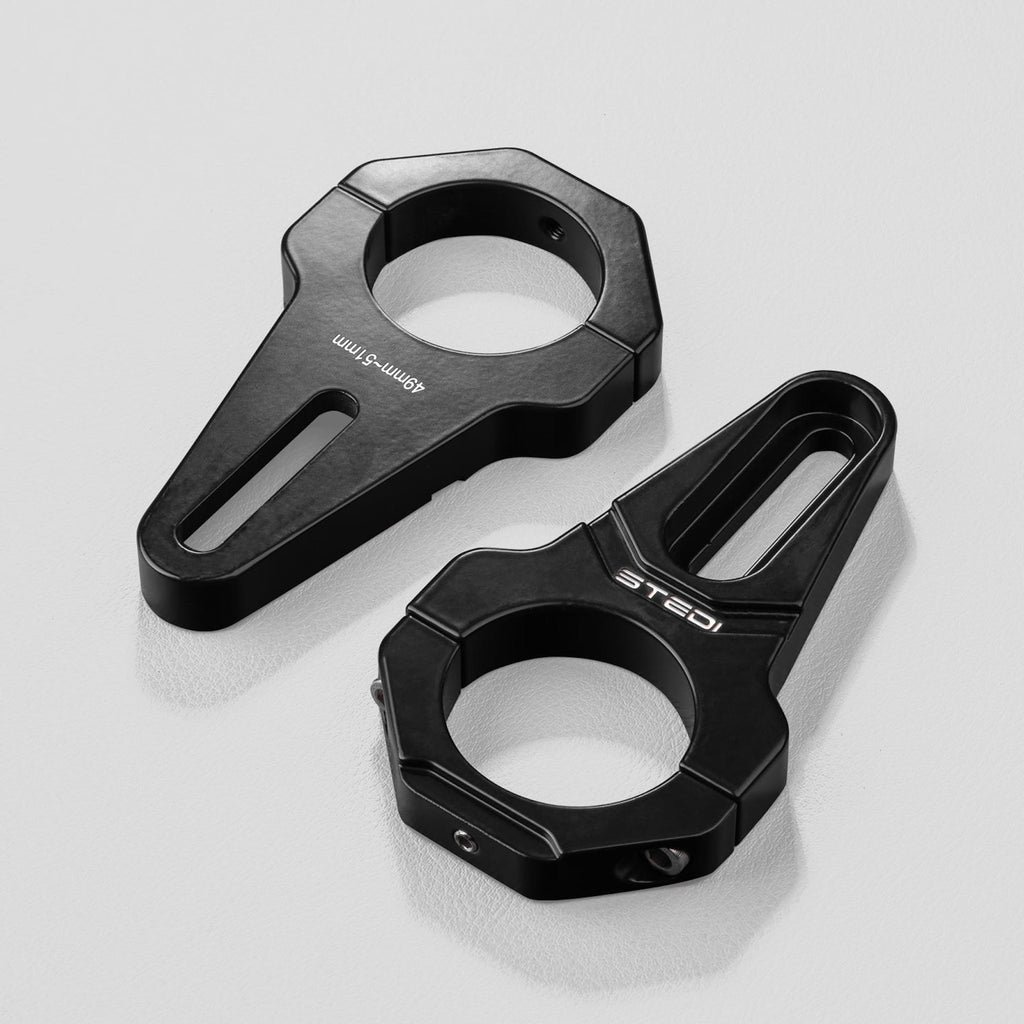

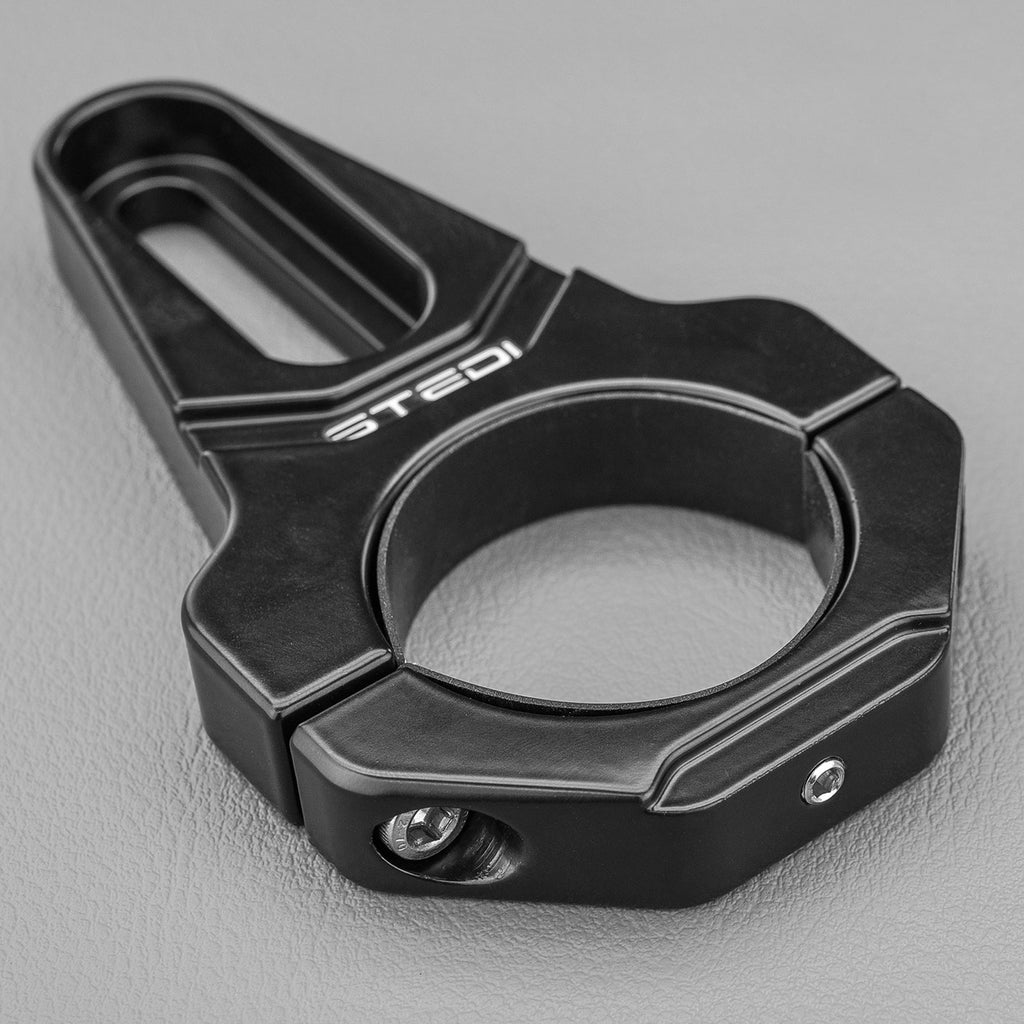

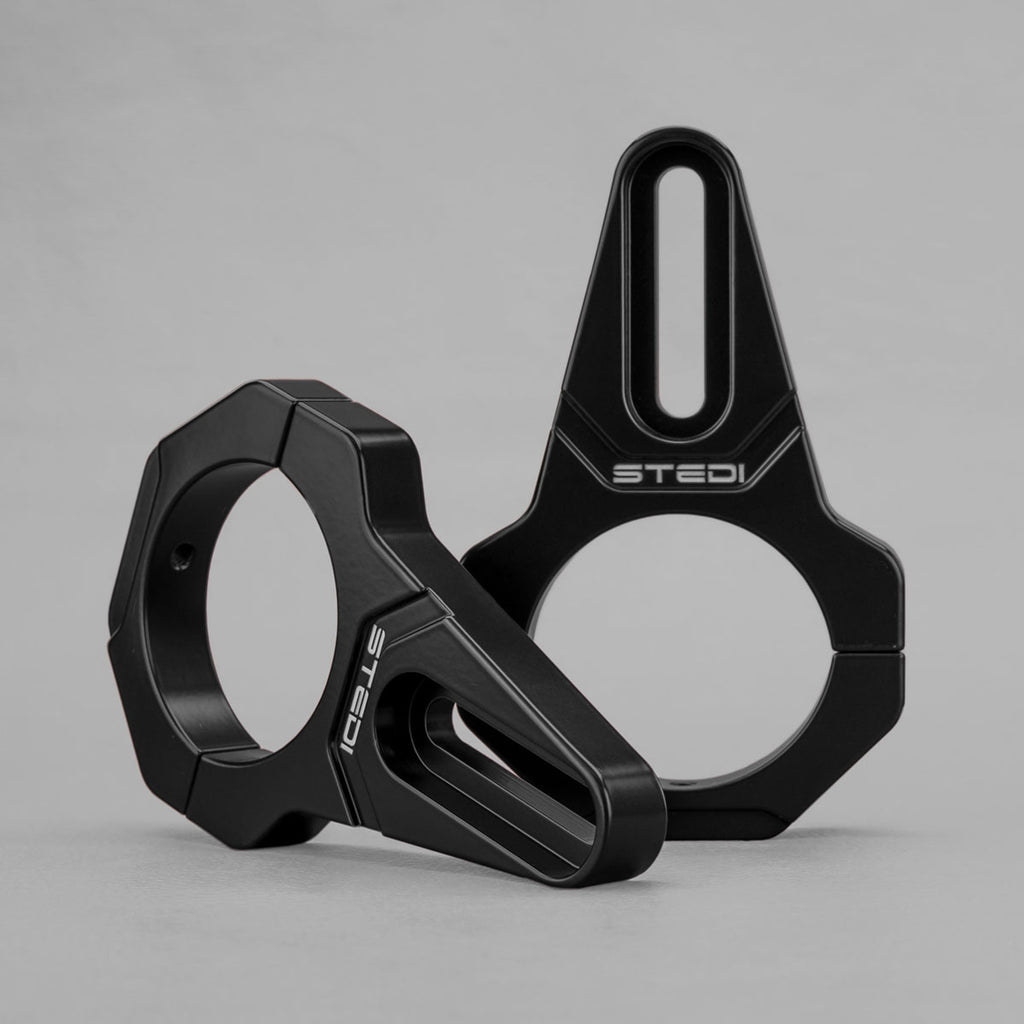

STEDI Vice Bull Bar Tube Clamps

R 999.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size 22mm-30mm 35mm-40mm 44.5mm-48mm 49mm-51mm 60mm-63.5mm 75mm-77mm

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

Universal mounting brackets for side-mounted and select lower-mounted LED light bars, built around a vice-style clamp that grips the bull bar tube securely from both sides. 360° rotation lets you dial in the exact light angle, while rubber inserts and a set screw keep the bracket from slipping once it is tightened down.

Cast from aluminium with stainless steel fasteners and a UV-stable polyester powder coat, it is rated for STEDI LED work lights from 10W up to 60W mining-spec models.

Key Features

Material	Cast aluminium, stainless steel fasteners, UV-stable powder coat
Tube diameter	22-30mm, 35-40mm, 44.5-48mm, 49-51mm, 60-63.5mm or 75-77mm
Rotation	360°, with rubber inserts and set screw to prevent slipping
Compatible light output	STEDI LED work lights 10W Mini to 60W Mining Spec (mounted vertically)

Highlights

Vice-style clamp for side or lower-mounted light bars
360° rotation for precise angle adjustment

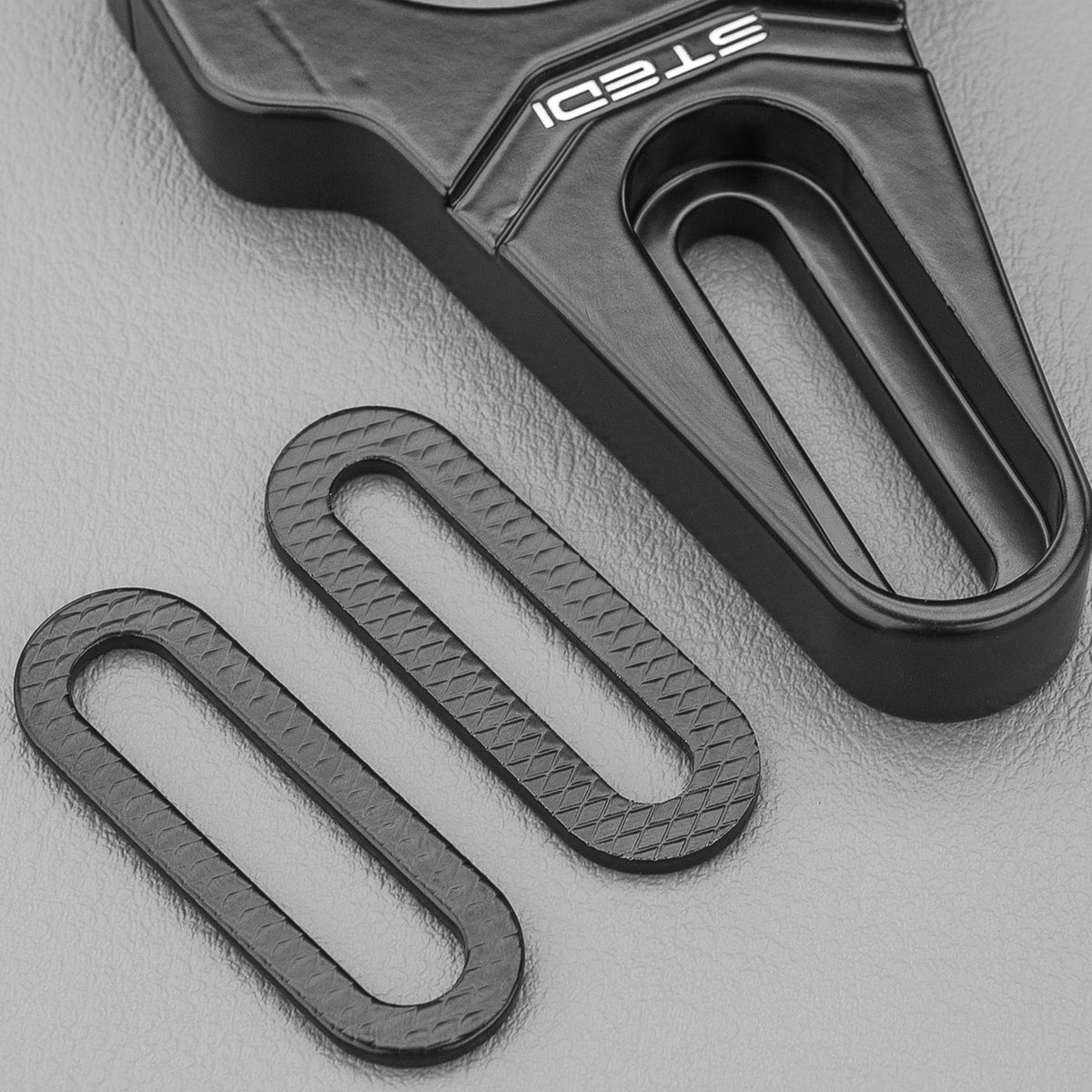

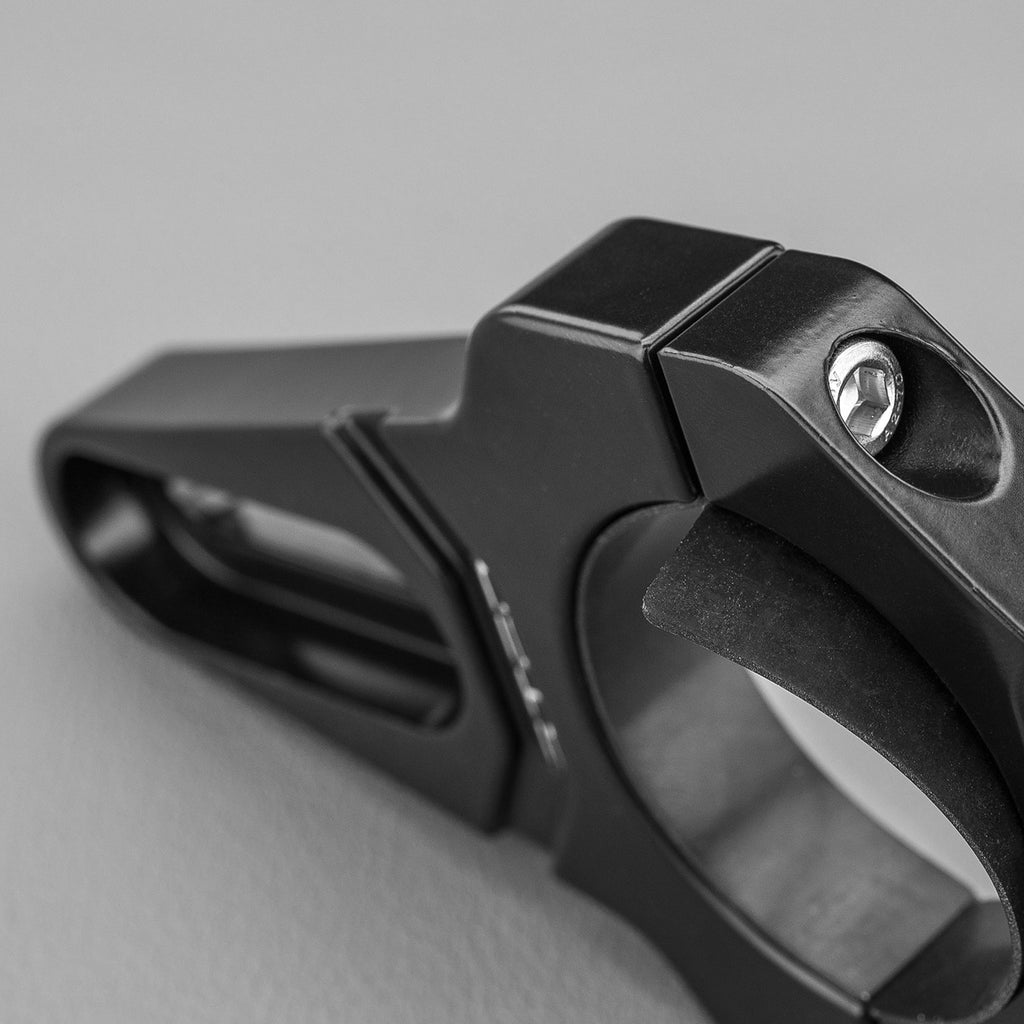

Rubber inserts and set screw grip the tube without slipping
Cast aluminium with UV-stable powder coat resists fading and corrosion
Rated for STEDI LED work lights from 10W Mini to 60W Mining Spec

Materials & care

Cast aluminium body with stainless steel fasteners, a UV-stable polyester powder coat finish and rubber tube inserts. Rinse off mud and salt after off-road or coastal driving to protect the coating.

Sizing & fit

Select the tube diameter that matches your bull bar: 22-30mm, 35-40mm, 44.5-48mm, 49-51mm, 60-63.5mm or 75-77mm.

Compatibility

Fits round bull bar tubing in the listed diameter ranges when the light is mounted vertically. Rated for STEDI LED work lights from 10W Mini up to 60W Mining Spec.

How to use

Choose the clamp size matching your bull bar tube diameter.
Fit the rubber inserts inside the clamp halves to protect the tube and prevent slipping.
Position the clamp around the tube, rotate to the angle you need, then tighten the stainless bolts and set screw.
Mount your light bar to the bracket using the supplied hardware.

What's included

2x Vice Bull Bar aluminium brackets
4x rubber inserts
2x M8 set screws
2x M6 set screws
2x grub screws
4x stainless 6mm bolts
2x Allen wrenches

Frequently asked questions

Can these mount a light bar underneath the bull bar tube?

They are designed for side-mounted lights and certain lower-mounted light bar positions — check your light bar's mounting requirements before ordering.

What stops the clamp from slipping once it is tightened?

Rubber inserts inside the clamp plus a set screw grip the tube and stop rotation once tightened.

What size should I order?

Measure your bull bar tube's outside diameter and choose the closest range from 22-30mm up to 75-77mm.
