• STEDI Type-X EVO 7 inch LED Driving Lights

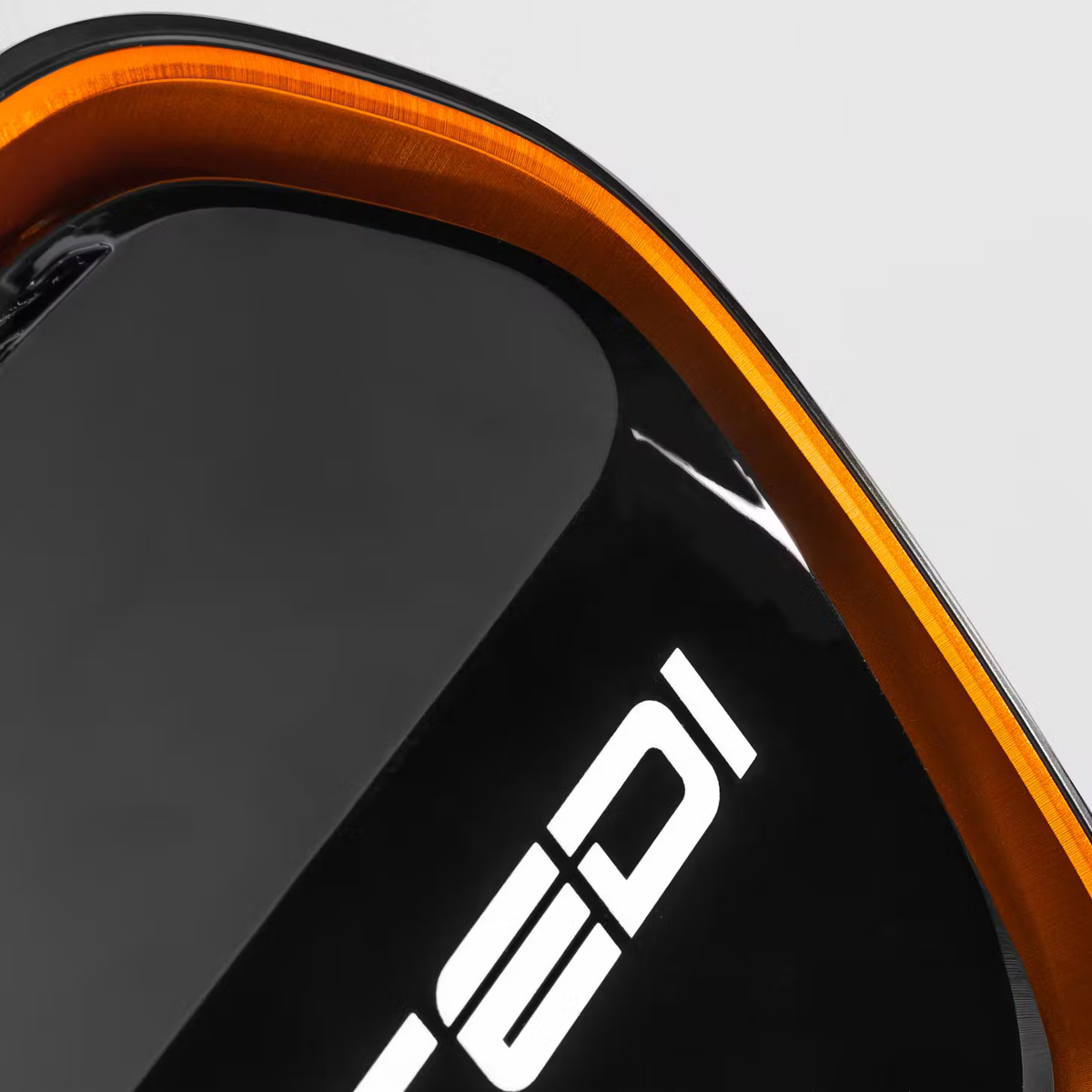

  • STEDI Type-X EVO 7" LED Driving Lights (Pair)

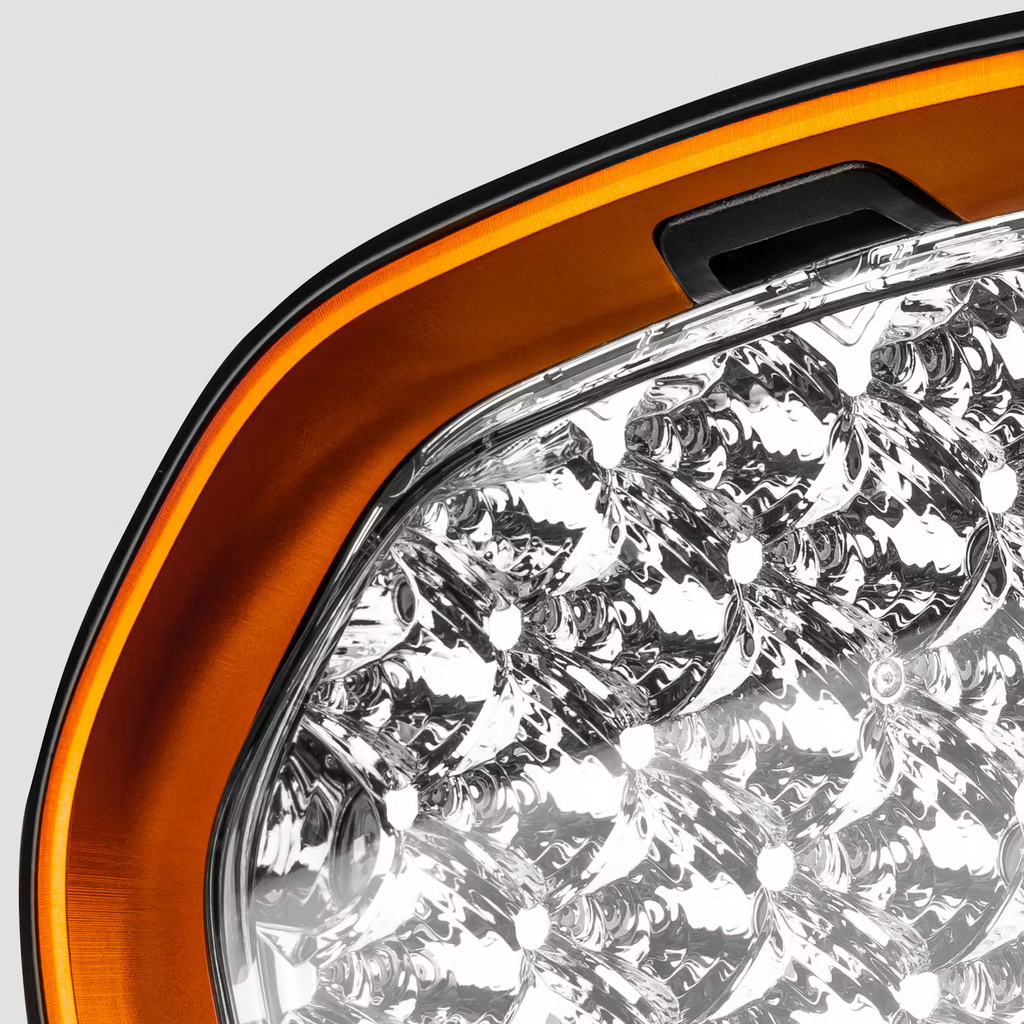

  • STEDI Type-X EVO 7 inch LED driving light front view
  • STEDI Type-X EVO 7 inch LED driving light angled view

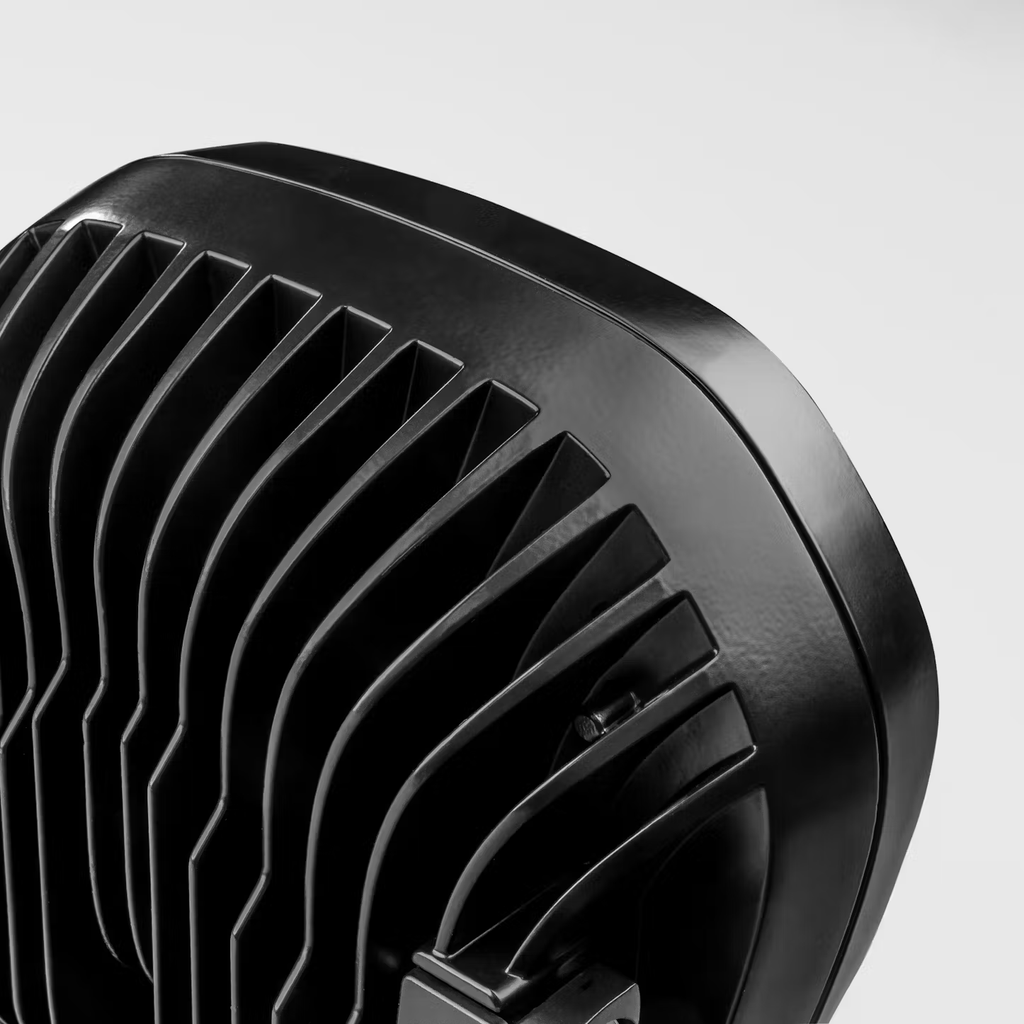

  • STEDI Type-X EVO 7 inch LED driving light lens detail
  • STEDI Type-X EVO 7 inch LED driving light rear connector view
1 6

Stedi

STEDI Type-X EVO 7" LED Driving Lights (Pair)

STEDI Type-X EVO 7" LED Driving Lights (Pair)

R 17,999.00
R 17,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beam Pattern

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The compact evolution of STEDI's Type-X EVO line, arriving a year after the 8.5" model with the same angular design and distinctive 3D lens language in a lower-profile 7" package. Each unit runs 32 CREE LEDs producing up to 8,200 raw lumens (7,000 tested), with tool-less colour ring customisation and a choice of Spot, Flood or Combo beam pattern.

Rated IP68 and wired to run on both 12V and 24V systems, the Type-X EVO 7" suits vehicles with tighter mounting space that still want EVO-level performance and styling. Supplied as a pair with a plug-and-play SMART wiring harness.

Key Features

Brand STEDI
Model Type-X EVO 7"
LED Count 32 x CREE LED per unit
Raw / Tested Lumens 8,200 / 7,000 lumens per unit
Candela 207,000cd per unit / 414,000cd per pair
Colour Temperature 5000K
Beam Options Spot, Flood, Combo
Light Throw Up to 948m down road, 140m lateral spread
Power Draw 95W total (pair)
Current Draw 8.5A @ 12V / 4.25A @ 24V per unit
Voltage 12V & 24V compatible
Weight 2.35kg per light
Operating Temperature -40°C to 60°C
Lumen Maintenance 30,000 hours (LM-80)
IP Rating IP68 — submersible to 3m

Highlights

  • Compact 7" footprint for vehicles with tighter bull bar or bracket space
  • Long-range touring and technical trail driving with interchangeable beam patterns
  • Tool-less colour ring swaps to match your vehicle's look
  • Distinctive 3D lens design shared with the larger 8.5" Type-X EVO
  • 12V and 24V compatibility for passenger and commercial/agricultural platforms

Sizing & fit

7" driving light housing. Weight: 2.35kg per light (4.7kg for the pair). Supplied as a pair — check mounting bracket clearance before purchase.

Compatibility

Wired for both 12V and 24V vehicle electrical systems, so the Type-X EVO 7" suits passenger 4x4s and 24V commercial/agricultural platforms alike. Designed for auxiliary mounting (bull bar, roof rack or under-bumper) rather than as a factory fog light replacement.

How to use

  • Have the lights professionally wired through a relay and fuse, or use the supplied SMART harness for plug-and-play installation.
  • Select your beam pattern (Spot, Flood or Combo) to suit the mounting position and driving conditions.
  • Use the tool-less colour ring system to switch the trim colour without removing the light.
  • Only operate driving lights on high beam / off-road use in line with local road rules.

What's included

  • 1x pair (2x) STEDI Type-X EVO 7" LED driving lights
  • Dual connector plug & play SMART wiring harness
  • Mounting hardware

Frequently asked questions

What's the difference between the 7" and 8.5" Type-X EVO?

The 7" is the compact version of the same EVO design, running 32 CREE LEDs per unit for up to 8,200 raw lumens, versus the 8.5" model's 44 LEDs and 18,920 raw lumens. Choose the 7" for tighter mounting space, or the 8.5" for maximum output.

Is the Type-X EVO 7" waterproof?

Yes, it carries an IP68 rating and is submersible to 3m, so it handles river crossings, mud and heavy rain without issue.

Will it work on a 24V vehicle?

Yes, the Type-X EVO 7" is compatible with both 12V and 24V electrical systems.
View full details
