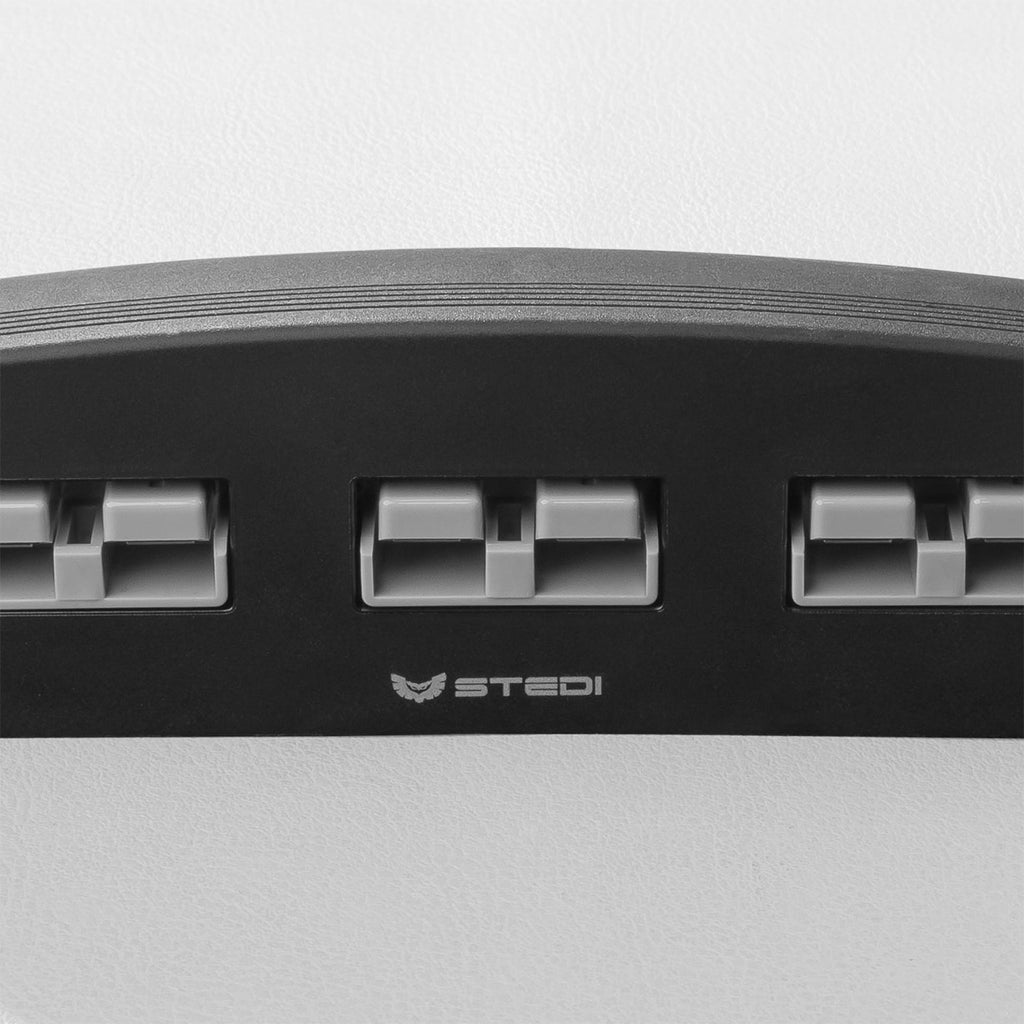

  • STEDI surface mount Anderson socket triple housing

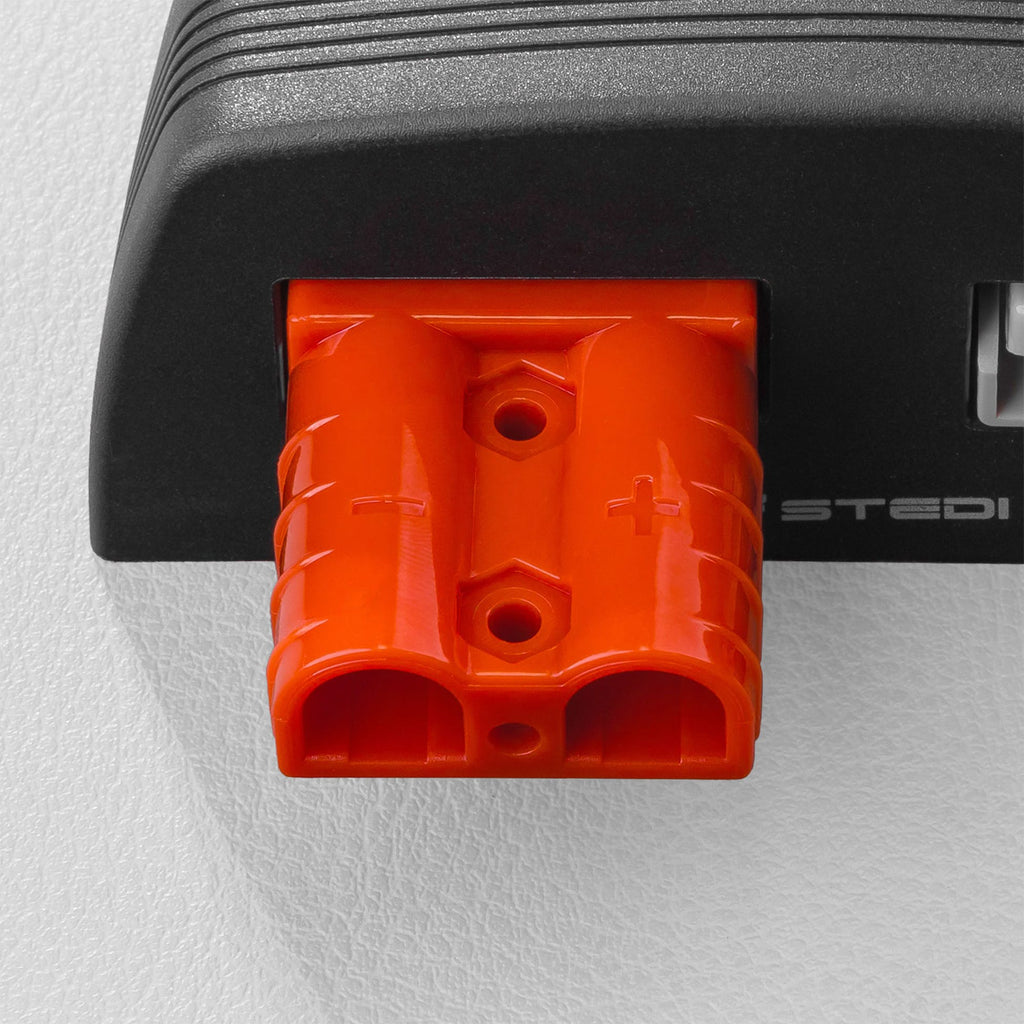

  • STEDI surface mount Anderson socket triple installed

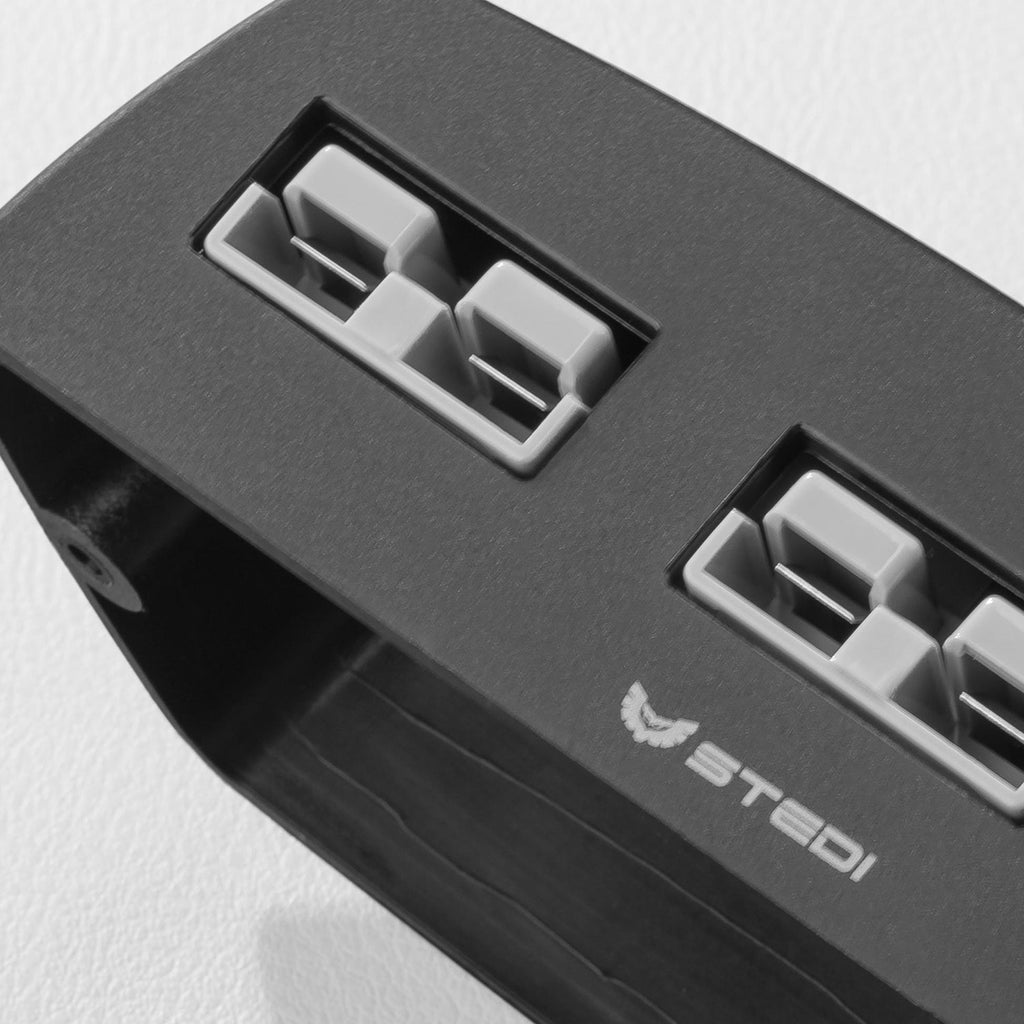

  • STEDI surface mount Anderson socket triple with plugs

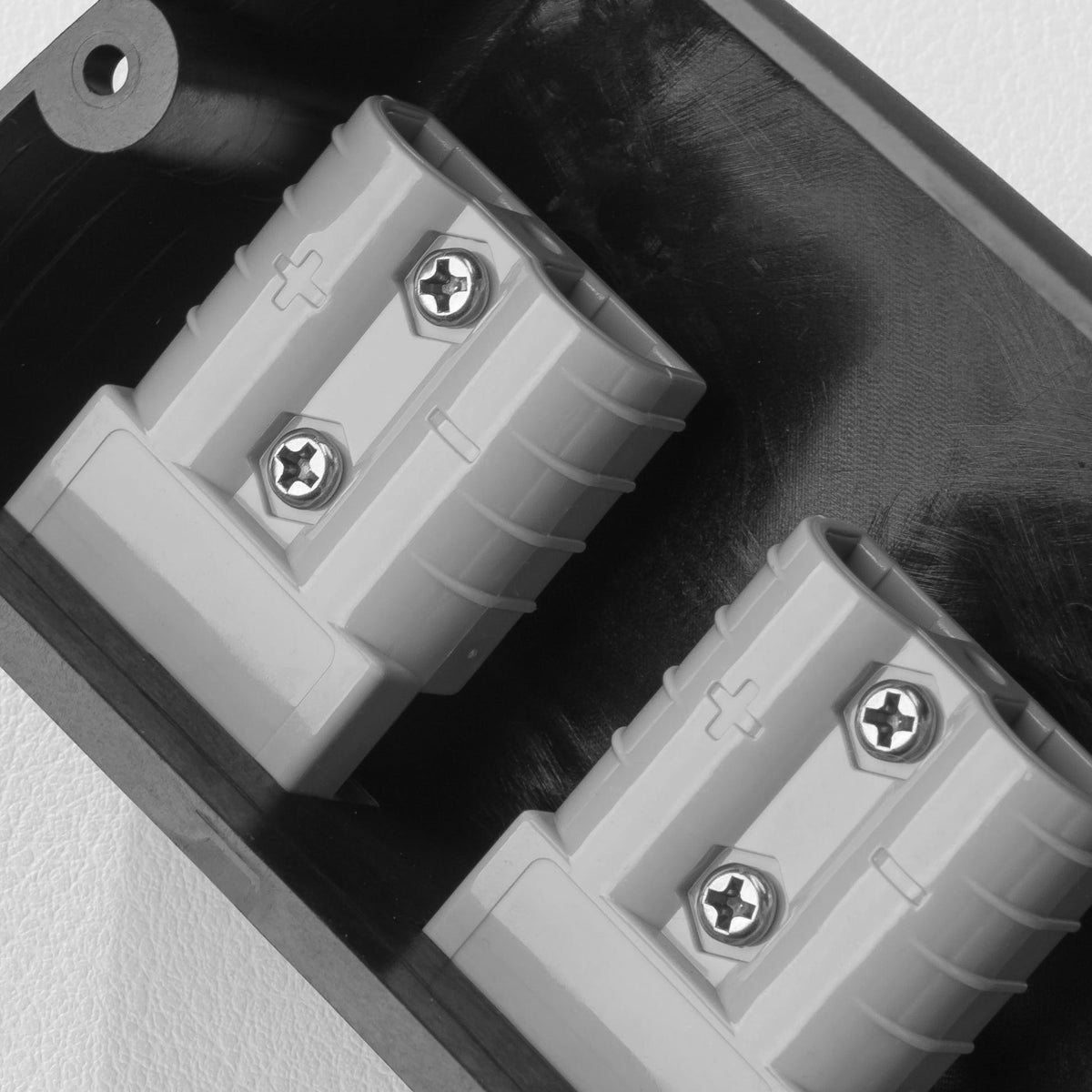

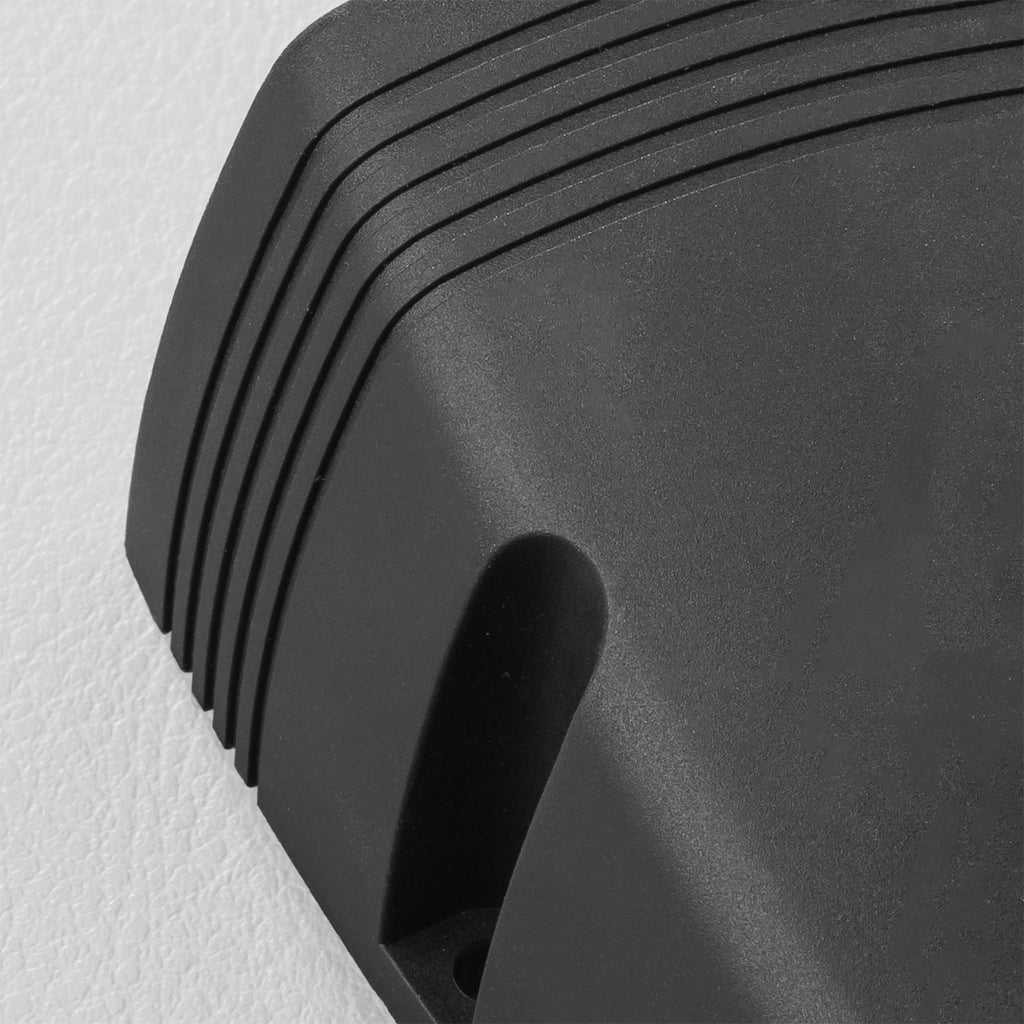

  • STEDI surface mount Anderson socket triple rear terminals
1 5

Stedi

STEDI Surface Mount Anderson Socket - Triple

STEDI Surface Mount Anderson Socket - Triple

R 999.00
R 999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI Surface Mount Anderson Socket – Triple packs three 50A Anderson sockets into one bolt-on ABS housing, ideal for setups running multiple circuits such as a fridge, dual battery and solar input from a single panel.

It comes complete with a PVC surface mounting plate, using UL silver-coated copper contacts for a reliable, low-resistance connection on each socket.

Key Features

Brand STEDI
Mounting Type Surface mount
Socket Configuration Triple — 3 x Anderson plug sockets
Amperage Rating 50A continuous
Plug Type Anderson-style 50A 2-pole
Operating Voltage 0–36V DC (600V rated)
Operating Temperature Up to 105°C
Housing Material ABS plastic, with PVC surface mounting plate included
Contact Material UL silver-coated copper
Cable Compatibility 8 B&S gauge, 5mm inner diameter (crimp attachment)

Highlights

  • Three independent 50A Anderson sockets in one surface-mount housing
  • No flush cutout required — bolts straight onto the surface
  • Includes a PVC surface mounting plate
  • UL silver-coated copper contacts for reliable, low-resistance connections
  • Ideal for separating fridge, dual battery and solar circuits on one panel

Materials & care

ABS plastic housing with a PVC surface mounting plate. Wipe clean with a damp cloth and keep socket covers closed when not in use.

Sizing & fit

Surface-mount unit — bolts directly onto a flat panel using the included PVC mounting plate, no cutout required.

Compatibility

Compatible with any 50A Anderson-style 2-pole plug, including fridges, dual battery systems, solar panels and portable power stations wired with a matching Anderson connector.

How to use

  • Choose a flat mounting surface on your drawer, canopy or trailer
  • Fix the included PVC mounting plate and socket housing in place with screws
  • Crimp your 8 B&S gauge cable (5mm inner diameter) to each socket's terminals
  • Connect the matching Anderson plugs from your accessories to complete each circuit

What's included

  • STEDI Surface Mount Anderson Socket - Triple
  • PVC surface mounting plate

Frequently asked questions

Can each of the three sockets run a separate circuit?

Yes, each of the three Anderson sockets is wired and rated independently to 50A continuous, so you can separate circuits such as fridge, dual battery and solar.

Do I need to cut a hole in my panel to fit this?

No, it's a surface-mount unit that bolts onto a flat surface using the included PVC mounting plate.

What cable size does it accept?

Each socket is designed for 8 B&S gauge cable with a 5mm inner diameter, using crimp-style terminals.
