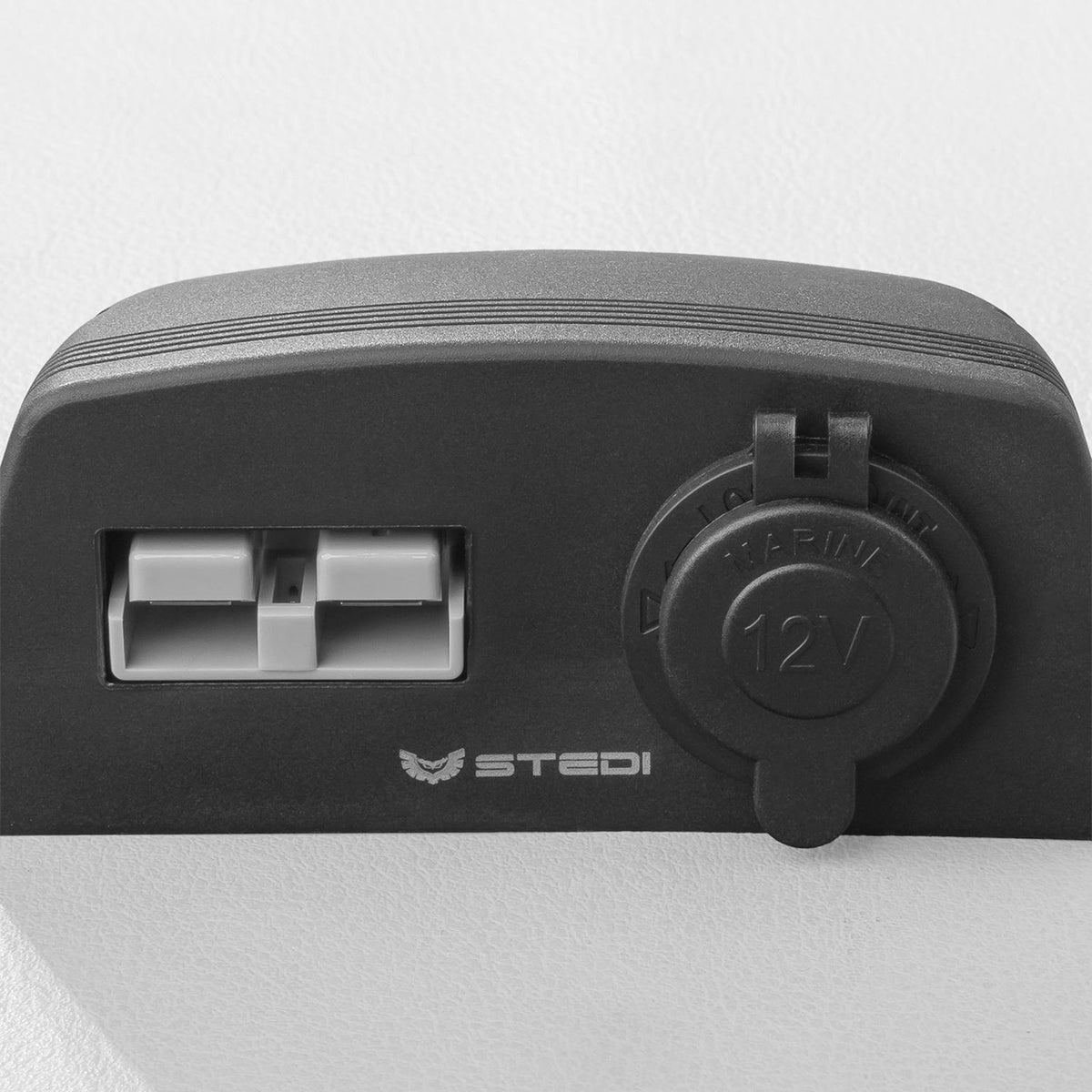

• STEDI Surface Mount Anderson Socket - Single & Cigarette

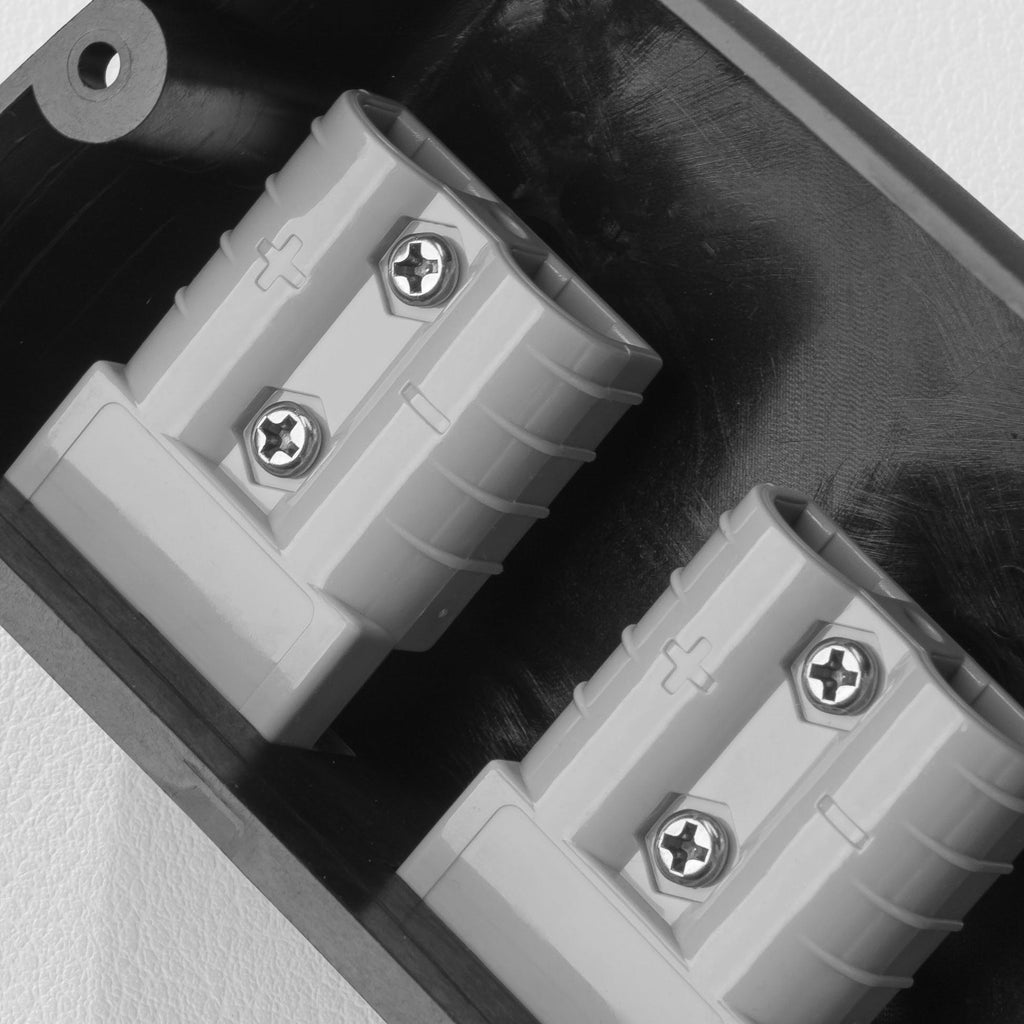

  • STEDI surface mount Anderson and cigarette socket housing

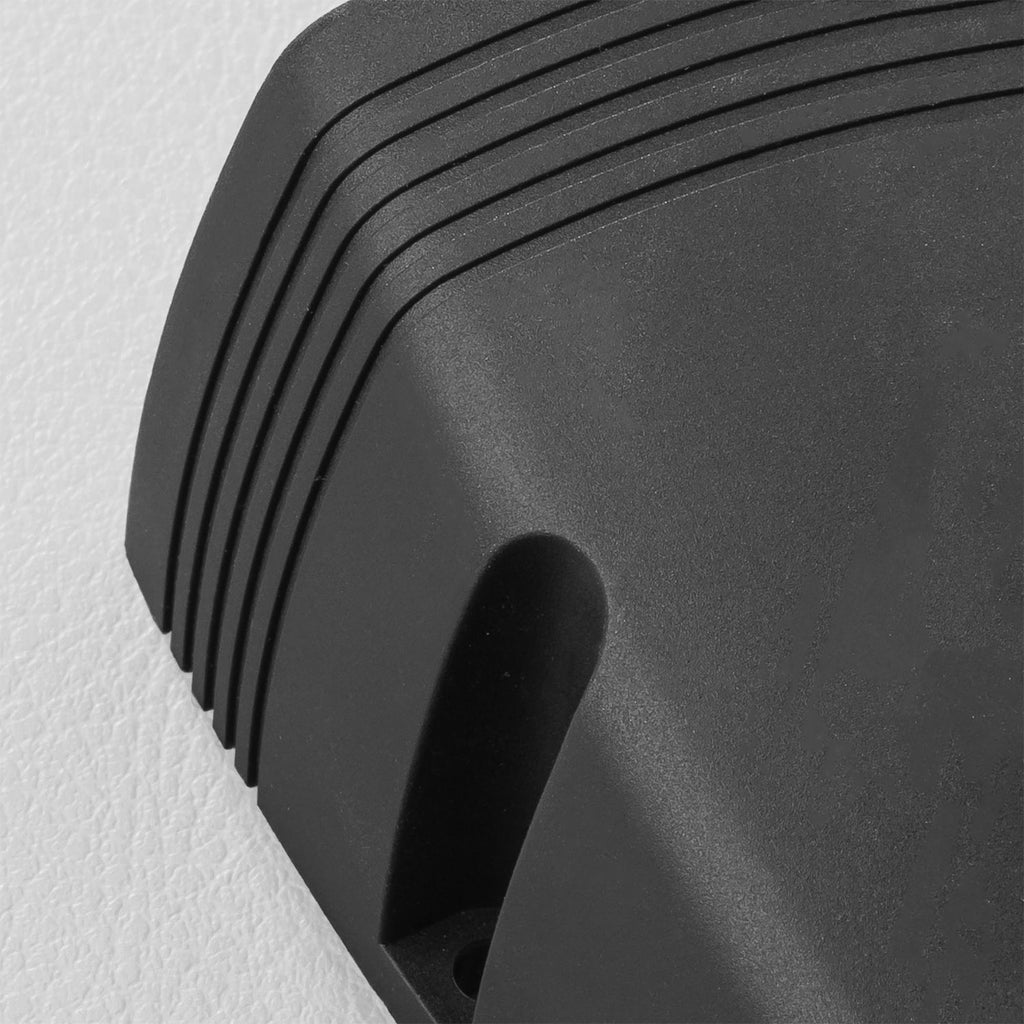

  • STEDI surface mount Anderson and cigarette socket rear terminals

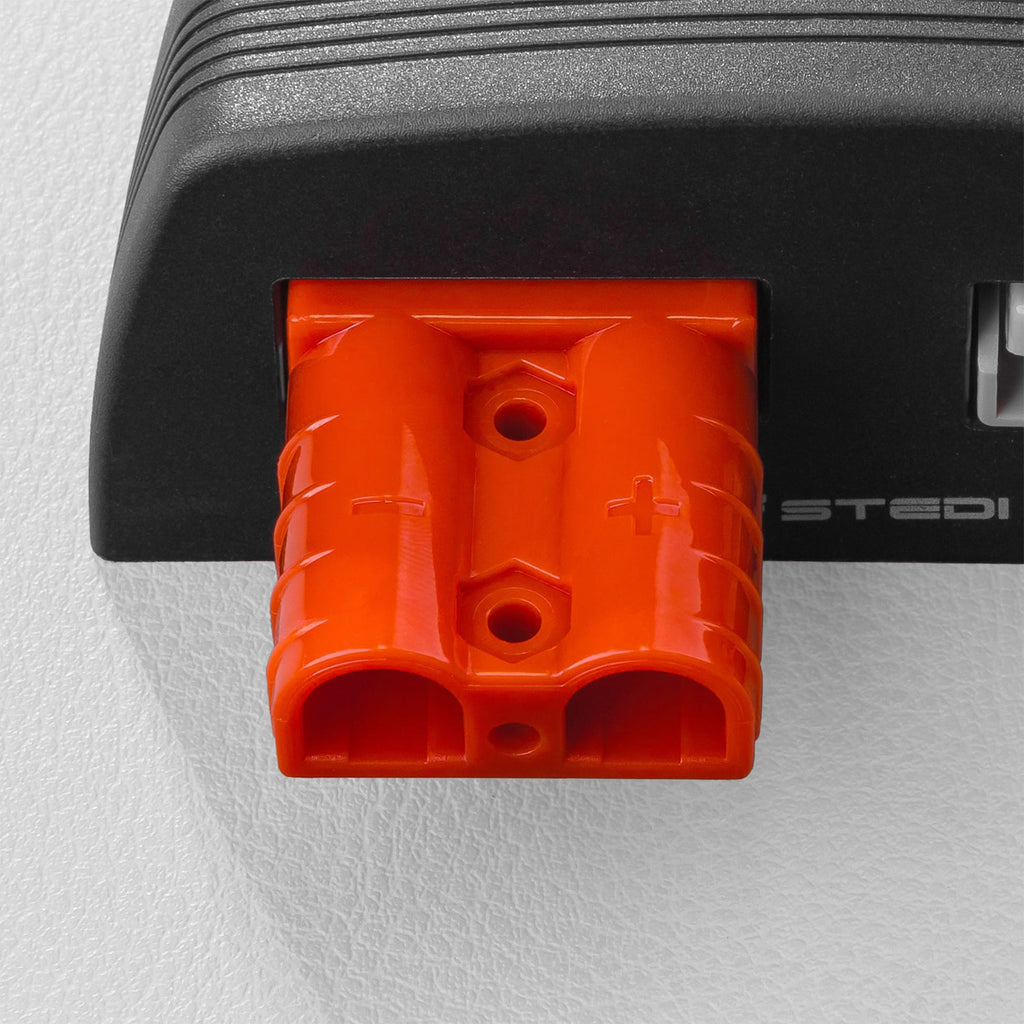

  • STEDI surface mount Anderson and cigarette socket installed
1 4

Stedi

STEDI Surface Mount Anderson Socket - Single & Cigarette

STEDI Surface Mount Anderson Socket - Single & Cigarette

R 999.00
R 999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI Surface Mount Anderson Socket – Single & Cigarette combines a 50A Anderson plug socket with a 15A cigarette lighter socket in one bolt-on ABS housing, giving you both connection types from a single panel.

It comes complete with a PVC surface mounting plate, so no flush cutout is needed — just bolt it to a drawer, canopy or trailer wall.

Key Features

Brand STEDI
Mounting Type Surface mount
Socket Configuration 1 x Anderson plug socket + 1 x cigarette lighter socket
Anderson Amperage Rating 50A continuous
Anderson Plug Type Anderson-style 50A 2-pole
Cigarette Socket Rating 15A, 0–36V
Housing Material ABS plastic, with PVC surface mounting plate included
Operating Temperature Up to 105°C (Anderson socket)
Cable Compatibility 8 B&S gauge, 5mm inner diameter (crimp attachment, Anderson socket)

Highlights

  • Combines a 50A Anderson socket and a 15A cigarette socket in one panel
  • No flush cutout required — bolts straight onto the surface
  • Includes a PVC surface mounting plate
  • Durable ABS plastic housing
  • Handy for running a fridge or dual battery lead alongside 12V accessories

Materials & care

ABS plastic housing with a PVC surface mounting plate. Wipe clean with a damp cloth and keep the Anderson socket cover closed when not in use.

Sizing & fit

Surface-mount unit — bolts directly onto a flat panel using the included PVC mounting plate, no cutout required.

Compatibility

The Anderson socket accepts any 50A Anderson-style 2-pole plug (fridges, dual battery systems, solar, portable power). The cigarette socket accepts standard 12V cigarette-style plugs rated to 15A or less.

How to use

  • Choose a flat mounting surface on your drawer, canopy or trailer
  • Fix the included PVC mounting plate and socket housing in place with screws
  • Crimp your 8 B&S gauge cable (5mm inner diameter) to the Anderson socket terminals and wire the cigarette socket per the included instructions
  • Connect your accessories — Anderson plug on one side, cigarette-style plug on the other

What's included

  • STEDI Surface Mount Anderson Socket - Single & Cigarette
  • PVC surface mounting plate

Frequently asked questions

What's the cigarette socket rated to?

The cigarette socket is rated to 15A at 0–36V DC.

Do I need to cut a hole in my panel to fit this?

No, it's a surface-mount unit that bolts onto a flat surface using the included PVC mounting plate.

What can I plug into the Anderson side?

Any accessory fitted with a standard 50A Anderson-style 2-pole plug, such as a fridge, dual battery lead or solar panel.
