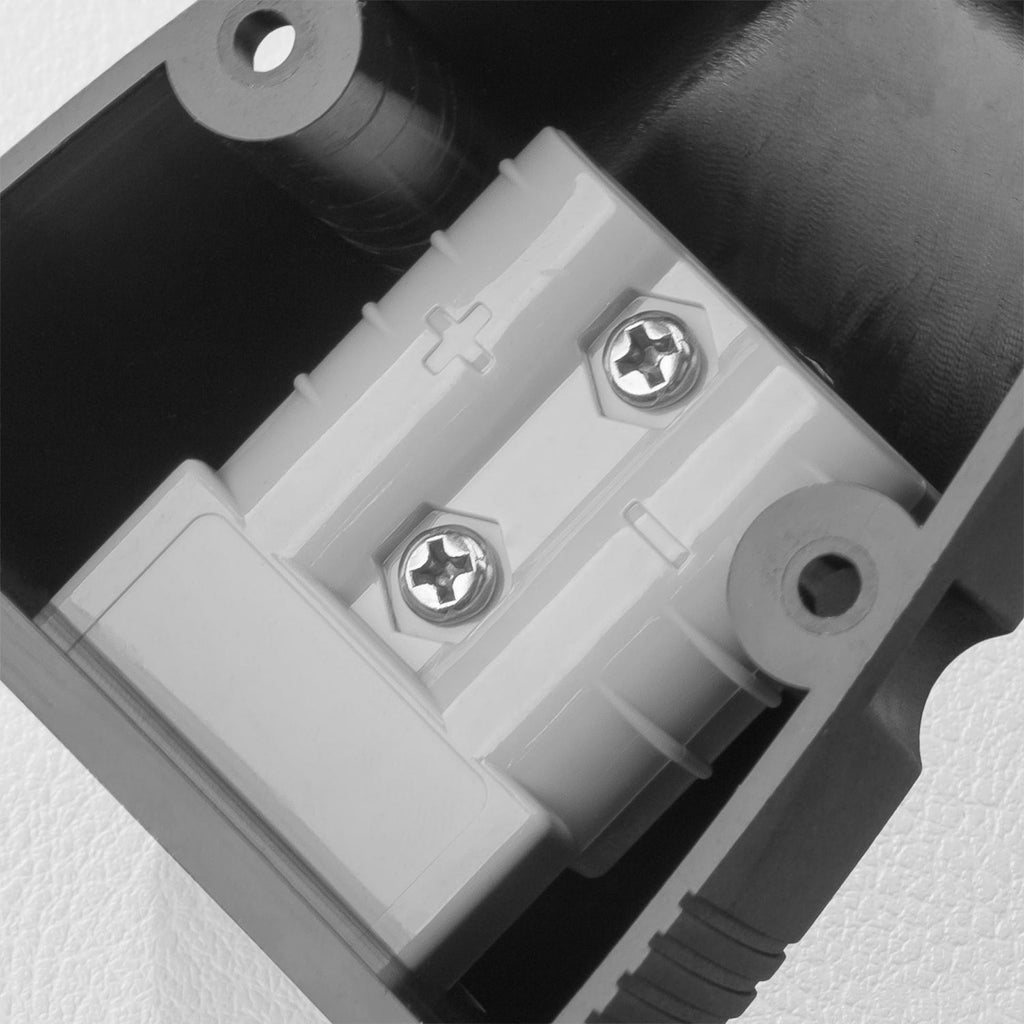

  • STEDI surface mount Anderson socket single housing

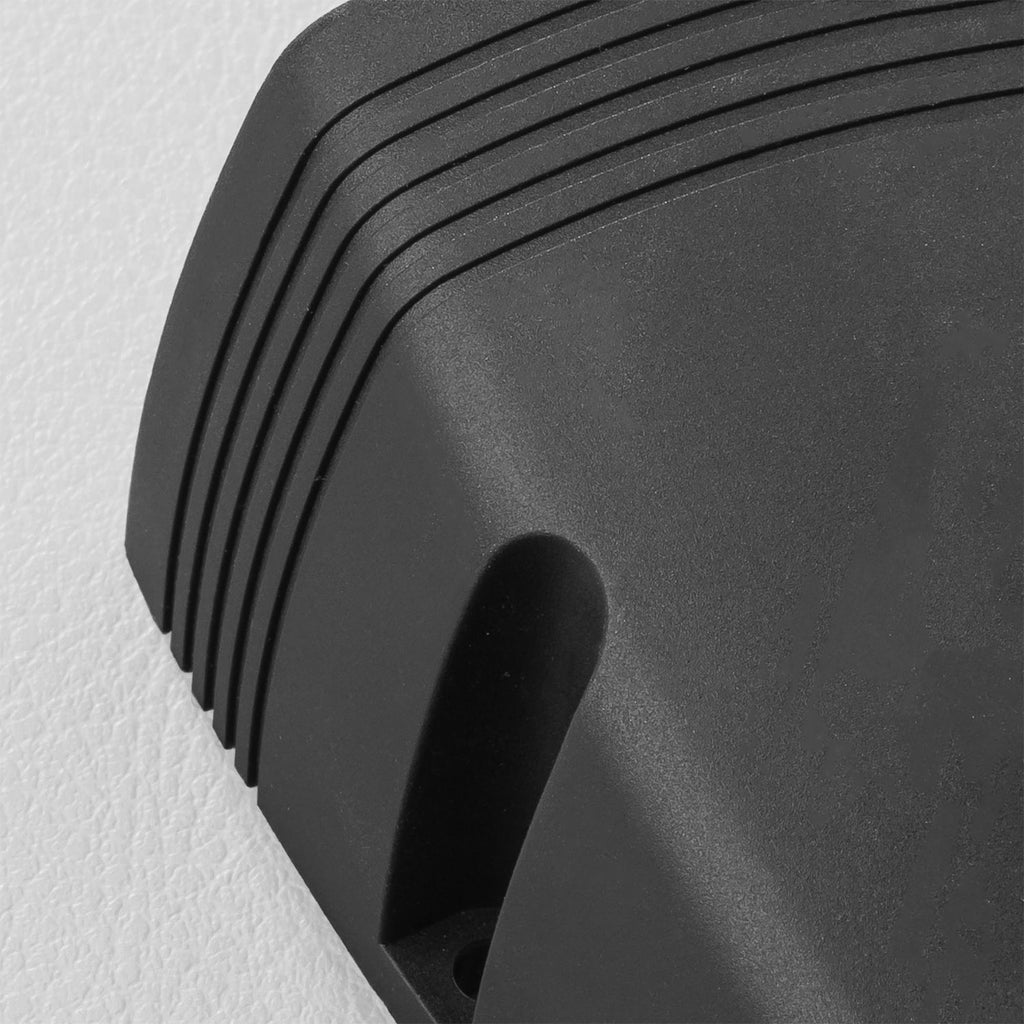

  • STEDI surface mount Anderson socket single installed

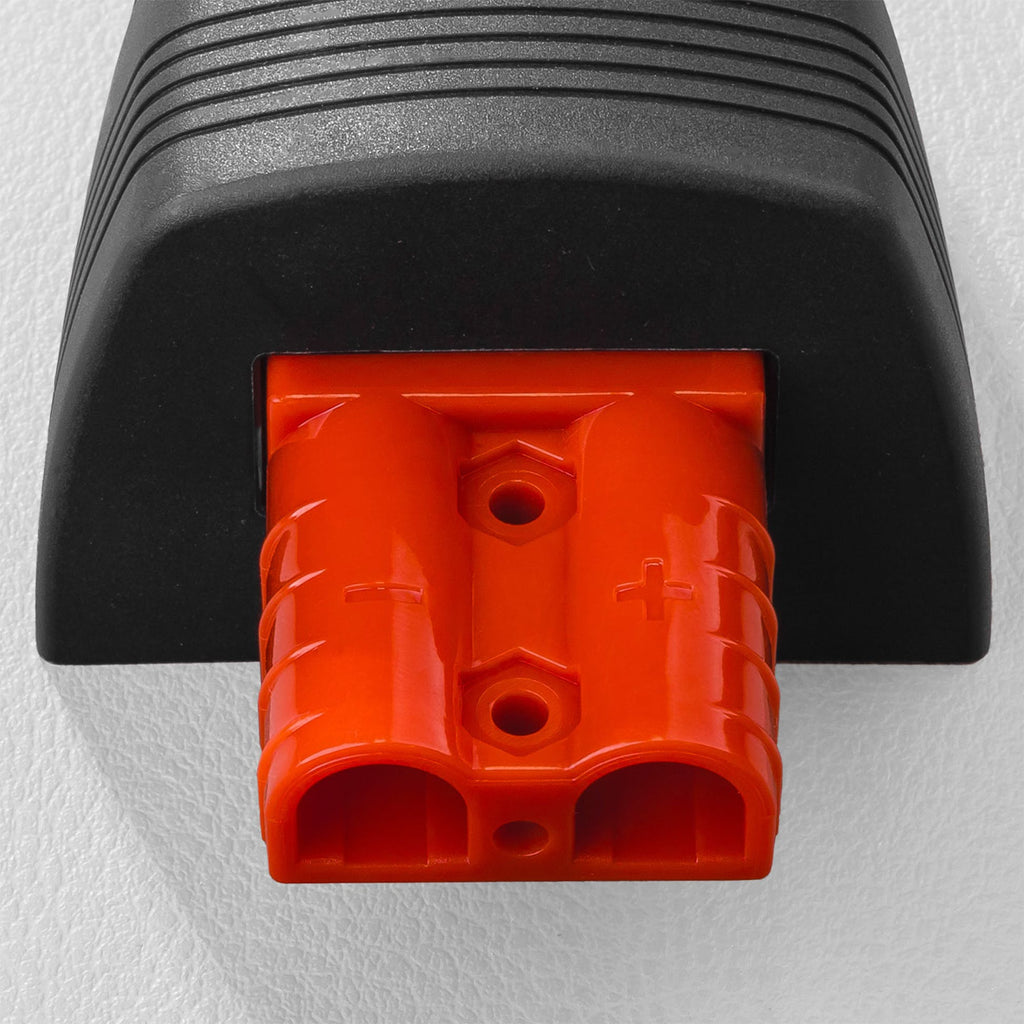

  • STEDI surface mount Anderson socket single rear terminals

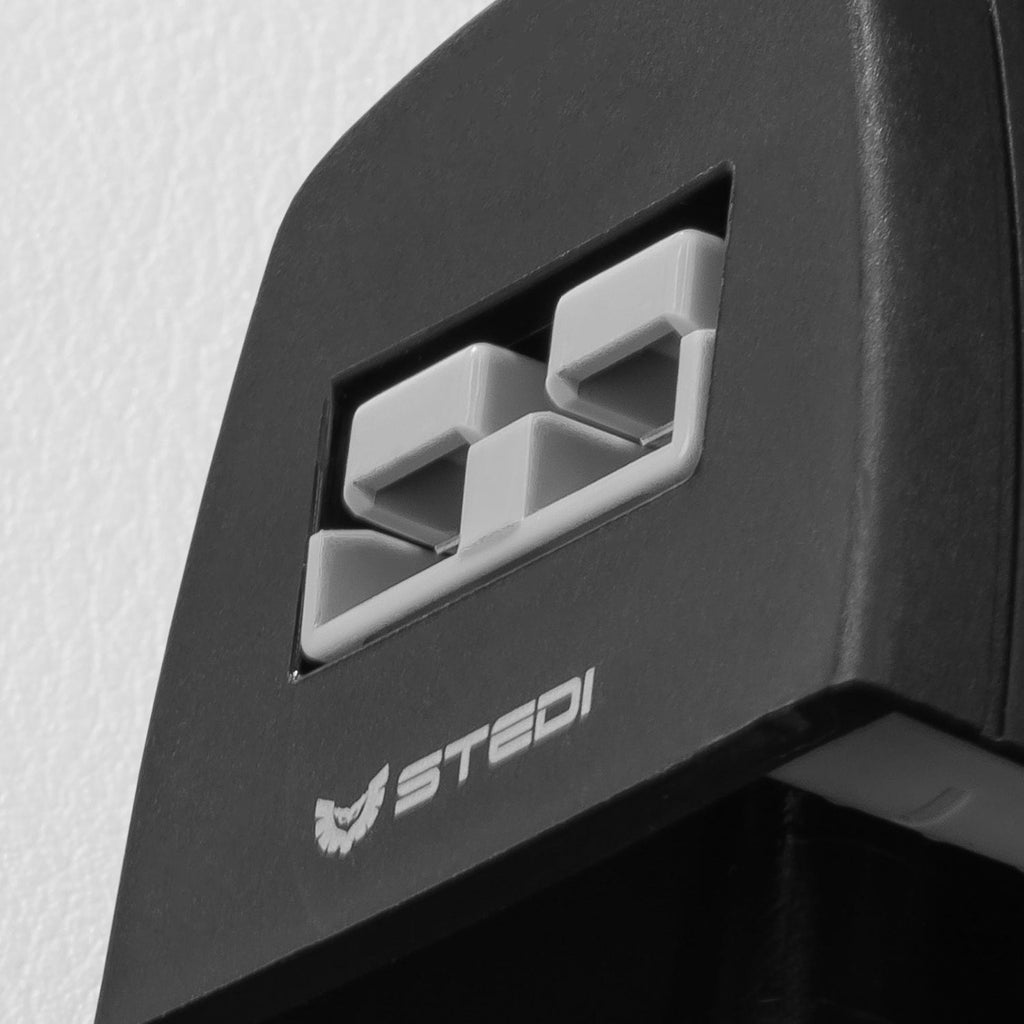

  • STEDI surface mount Anderson socket single with plug
1 5

Stedi

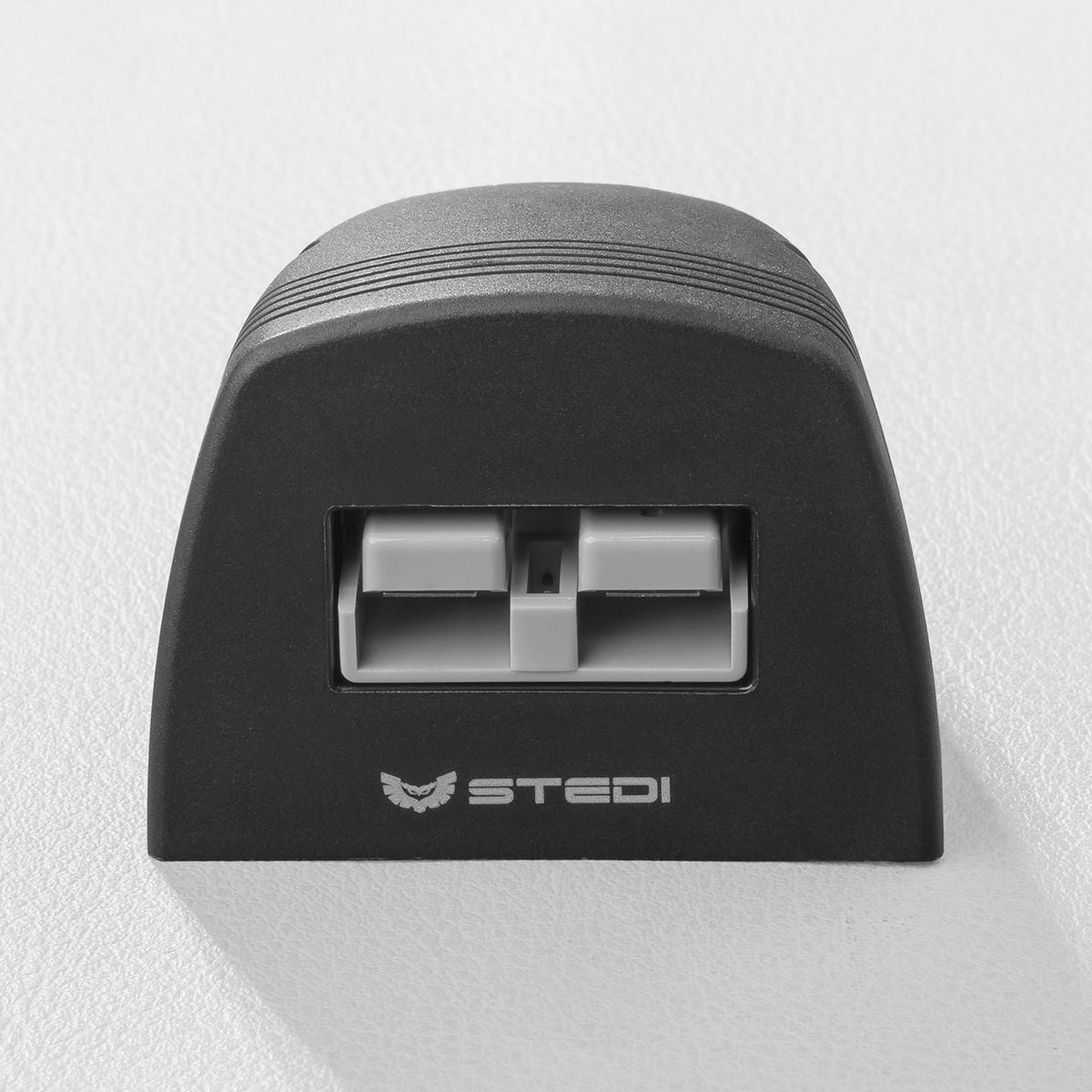

STEDI Surface Mount Anderson Socket - Single

STEDI Surface Mount Anderson Socket - Single

R 699.00
R 699.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI Surface Mount Anderson Socket – Single is a self-contained ABS housing with a single 50A Anderson socket, ready to bolt onto a drawer face, canopy wall or trailer without needing a flush cutout.

It comes complete with a PVC surface mounting plate, using UL silver-coated copper contacts for a low-resistance, reliable connection.

Key Features

Brand STEDI
Mounting Type Surface mount
Socket Configuration Single Anderson plug socket
Amperage Rating 50A continuous
Plug Type Anderson-style 50A 2-pole
Operating Voltage 0–36V DC (600V rated)
Operating Temperature Up to 105°C
Housing Material ABS plastic, with PVC surface mounting plate included
Contact Material UL silver-coated copper
Cable Compatibility 8 B&S gauge, 5mm inner diameter (crimp attachment)

Highlights

  • Rated to 50A continuous current for dual battery, fridge and solar setups
  • No flush cutout required — bolts straight onto the surface
  • Includes a PVC surface mounting plate
  • UL silver-coated copper contacts for reliable, low-resistance connections
  • Durable ABS plastic housing rated to 105°C

Materials & care

ABS plastic housing with a PVC surface mounting plate. Wipe clean with a damp cloth and keep the socket cover closed when not in use.

Sizing & fit

Surface-mount unit — bolts directly onto a flat panel using the included PVC mounting plate, no cutout required.

Compatibility

Compatible with any 50A Anderson-style 2-pole plug, including fridges, dual battery systems, solar panels and portable power stations wired with a matching Anderson connector.

How to use

  • Choose a flat mounting surface on your drawer, canopy or trailer
  • Fix the included PVC mounting plate and socket housing in place with screws
  • Crimp your 8 B&S gauge cable (5mm inner diameter) to the socket terminals
  • Connect the matching Anderson plug from your accessory to complete the circuit

What's included

  • STEDI Surface Mount Anderson Socket - Single
  • PVC surface mounting plate

Frequently asked questions

Do I need to cut a hole in my panel to fit this?

No, this is a surface-mount unit that bolts onto a flat surface using the included PVC mounting plate — no flush cutout is required.

What amperage is this Anderson socket rated to?

It's rated to 50A continuous current using UL silver-coated copper contacts.

What cable size does it accept?

It's designed for 8 B&S gauge cable with a 5mm inner diameter, using crimp-style terminals.
