STEDI Surface 6x LED RGB Rock Lights

STEDI Surface 6x LED RGB Rock Lights

R 5,999.00
R 5,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

A full 6-light RGB rock light kit with Bluetooth app control (iPhone/Android) for full-spectrum colour, brightness and flash pattern adjustment, plus voice command support. All 6 lights switch together as one zone - individual light control isn't available. Sealed automotive connectors and an aluminium housing make it suitable for underbody, rock crawling and show-light use.

Each light runs on a tiny 0.3A draw at 13.6V, so the full 6-light kit is easy on the vehicle's electrical system while lighting up the underbody in any colour from the app.

Key Features

Brand STEDI
Model Surface 6x LED RGB Rock Lights
LEDs 6 x RGB (Red 283lm / Green 498lm / Blue 201lm / Amber 244lm per light)
Amp Draw 0.3A @ 13.6V per light
Voltage 9-24V DC
IP Rating IP69K (Bluetooth module IP64)
Beam Angle 120°
Control Bluetooth app (iPhone/Android) - brightness, colour, flash functions, voice command
Housing Aluminium, sealed automotive connectors
Lifespan 50,000 hours
Certifications CE, E4, RoHS, R87
Warranty 2 years

Highlights

  • Full 6-light RGB kit with Bluetooth app colour control
  • Voice command support via the STEDI app
  • IP69K sealed for underbody and rock crawling use
  • Sealed automotive connectors and aluminium housing
  • Low 0.3A per-light draw

Materials & care

Aluminium housing with sealed automotive connectors. Rinse mud and grit off after off-road use and check the Bluetooth junction box seal periodically.

Sizing & fit

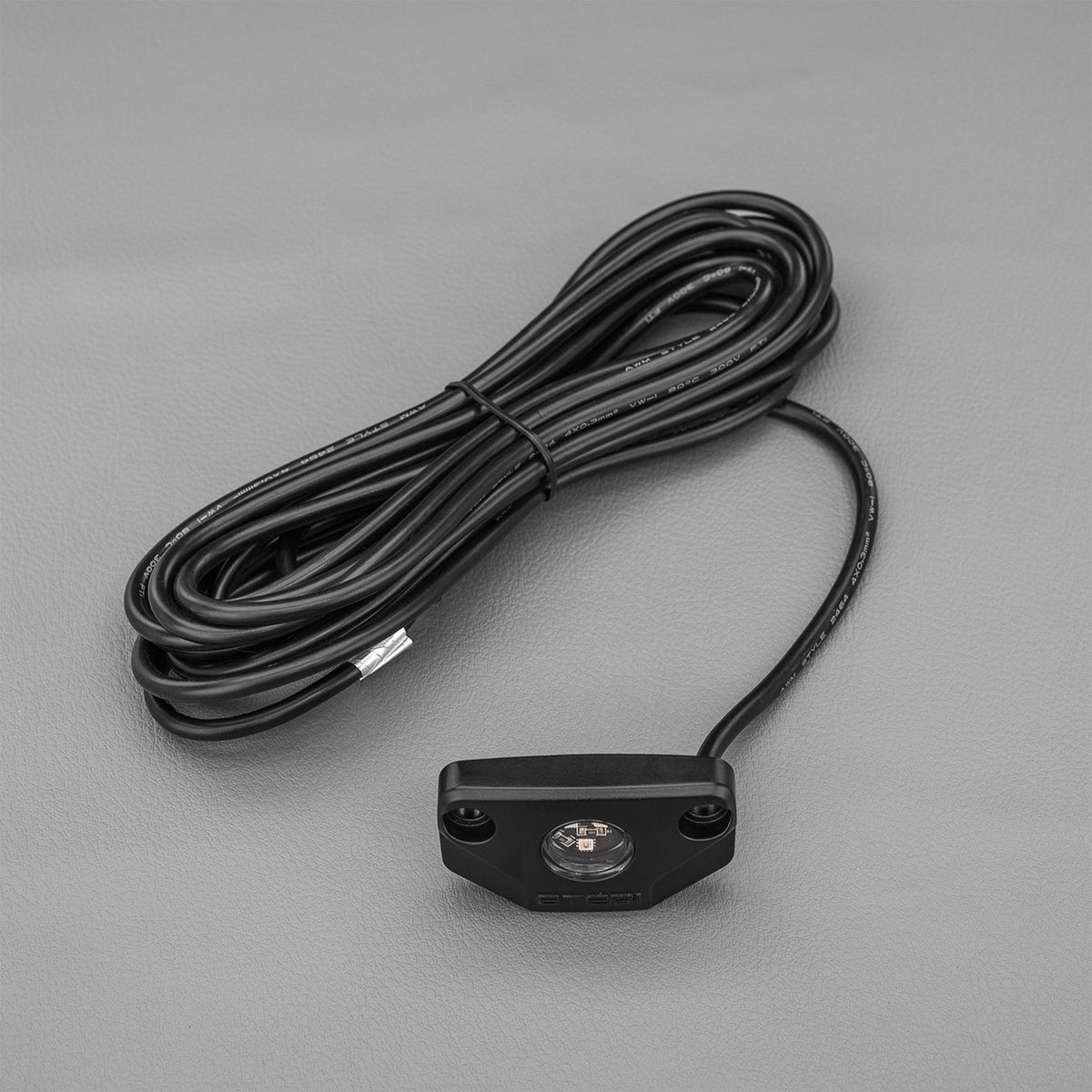

Supplied with rubber mounting pads and stainless steel screws and bolts for surface mounting to chassis rails, diffs, rock sliders or underbody panels. Cable lengths: 2 x 5m, 4 x 3.5m.

Compatibility

9-24V DC systems - suited to 4x4s, utes and trailers. All 6 lights wire into the included 6-in-1 harness and Bluetooth junction box as a single zone; individual light control isn't available.

How to use

  • Mount the 6 lights using the rubber pads and stainless steel fasteners at the desired underbody points.
  • Run the cables to the 6-in-1 connector harness and Bluetooth junction box.
  • Wire the junction box to a 9-24V DC supply, ideally through a relay/switch harness.
  • Pair the STEDI app via Bluetooth to set colour, brightness and flash patterns, or use voice commands.

What's included

  • 6 x RGB rock lights

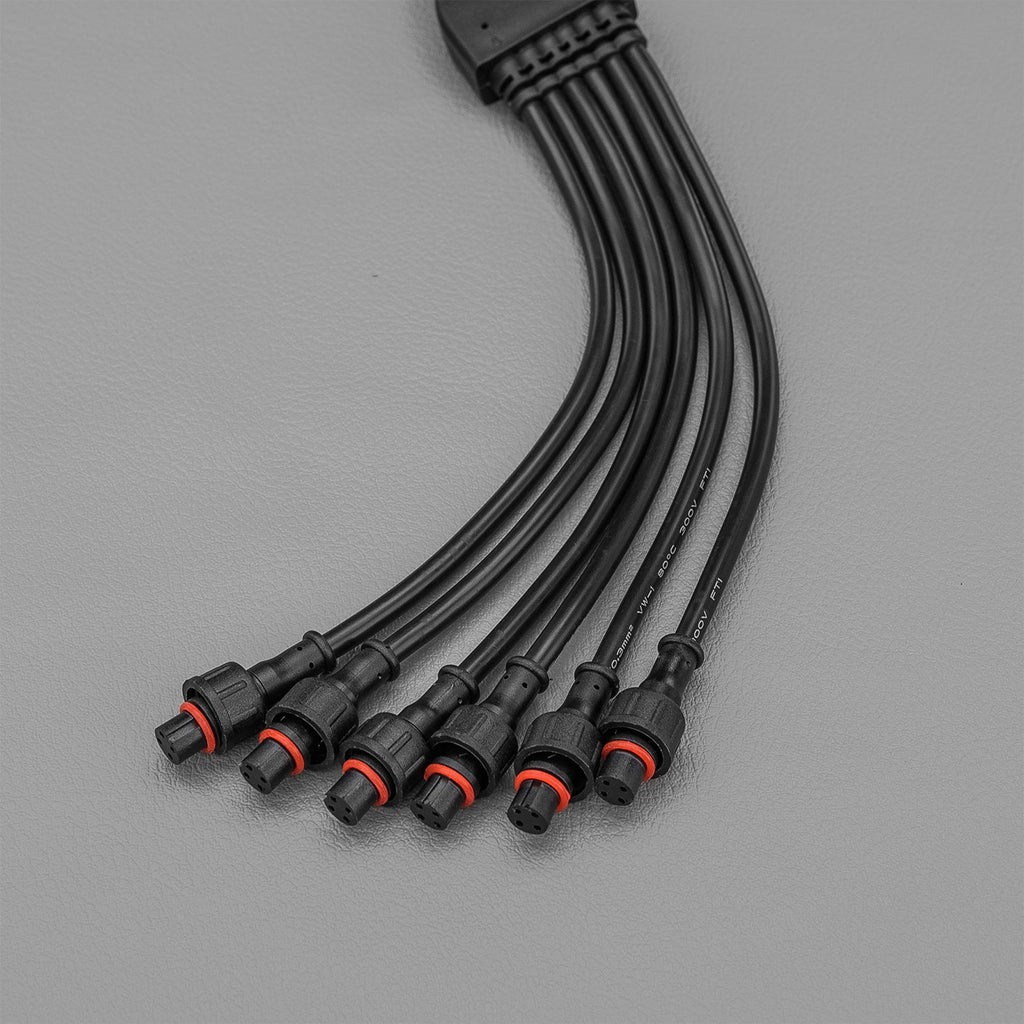

  • 6-in-1 connector wiring harness

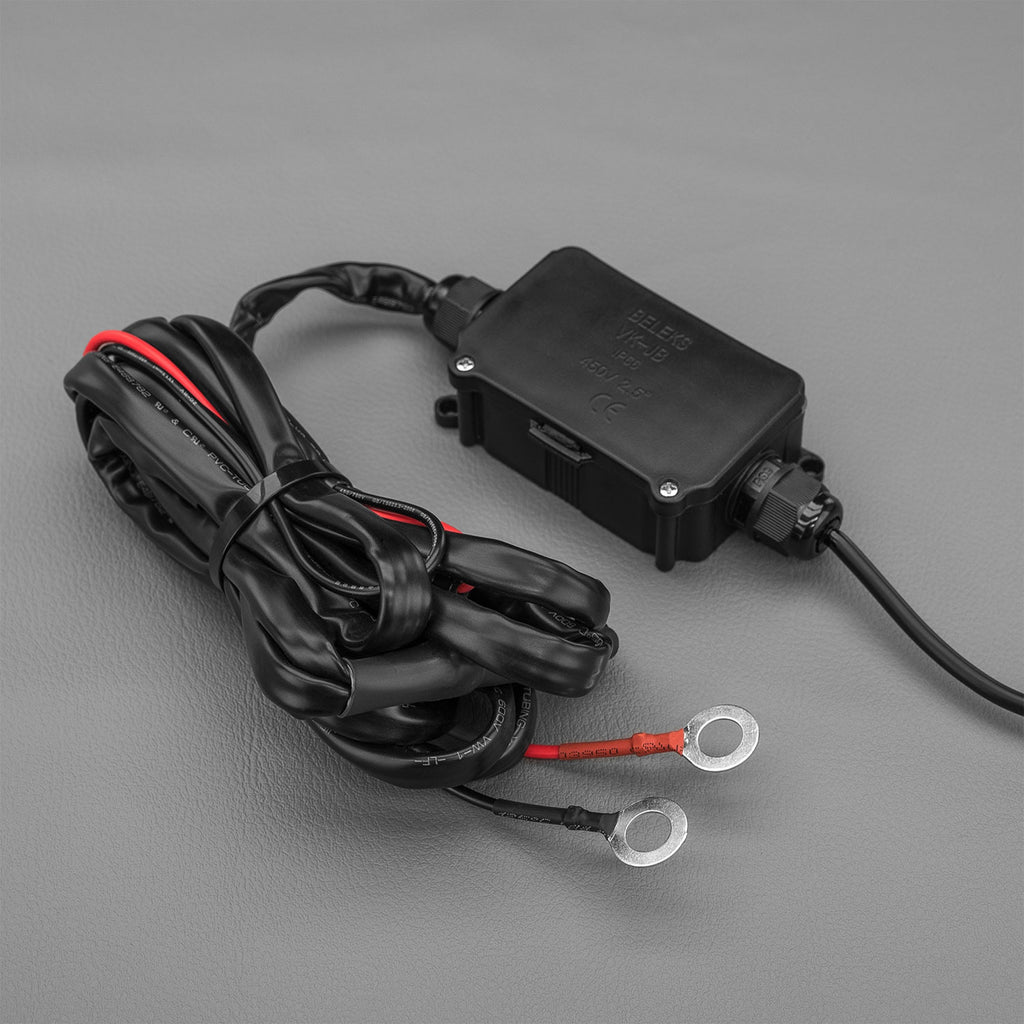

  • Bluetooth junction box
  • 6 x rubber mounting pads with stainless steel screws and bolts
  • Instruction manual

Frequently asked questions

Can I control each rock light individually?

No, all 6 lights are wired through the included harness into one Bluetooth junction box and switch together as a single zone.

What app do I use to control the lights?

The STEDI Bluetooth app, available for iPhone and Android, controls colour, brightness and flash patterns, and supports voice commands.

Are these safe for underbody and rock crawling use?

Yes. The lights are IP69K rated with sealed automotive connectors and an aluminium housing, built to handle mud, water and rock strikes underbody.
