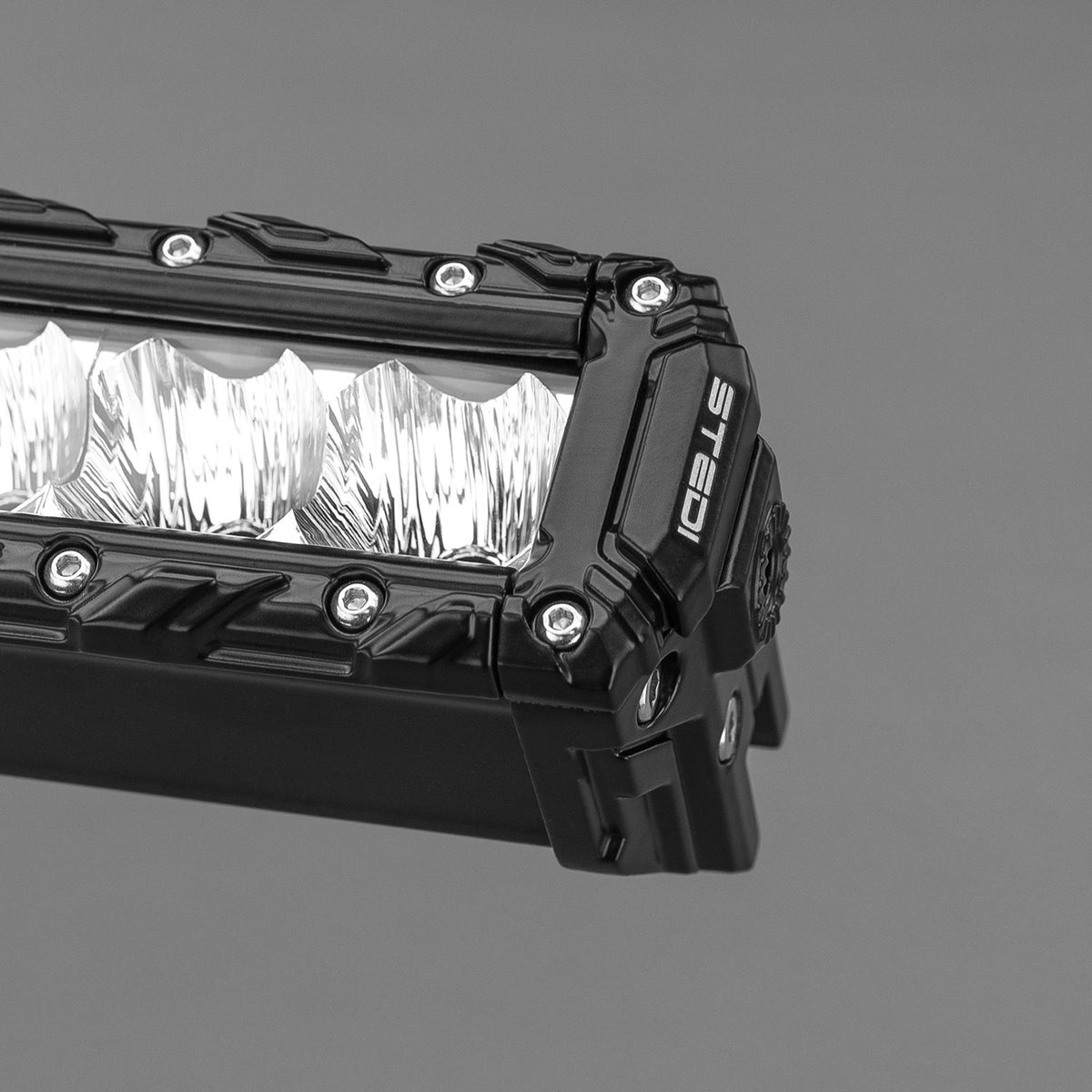

• STEDI ST3K 7.5 inch Slim LED Light Bar
  • STEDI ST3K 7.5" 6 LED Slim LED Light Bar

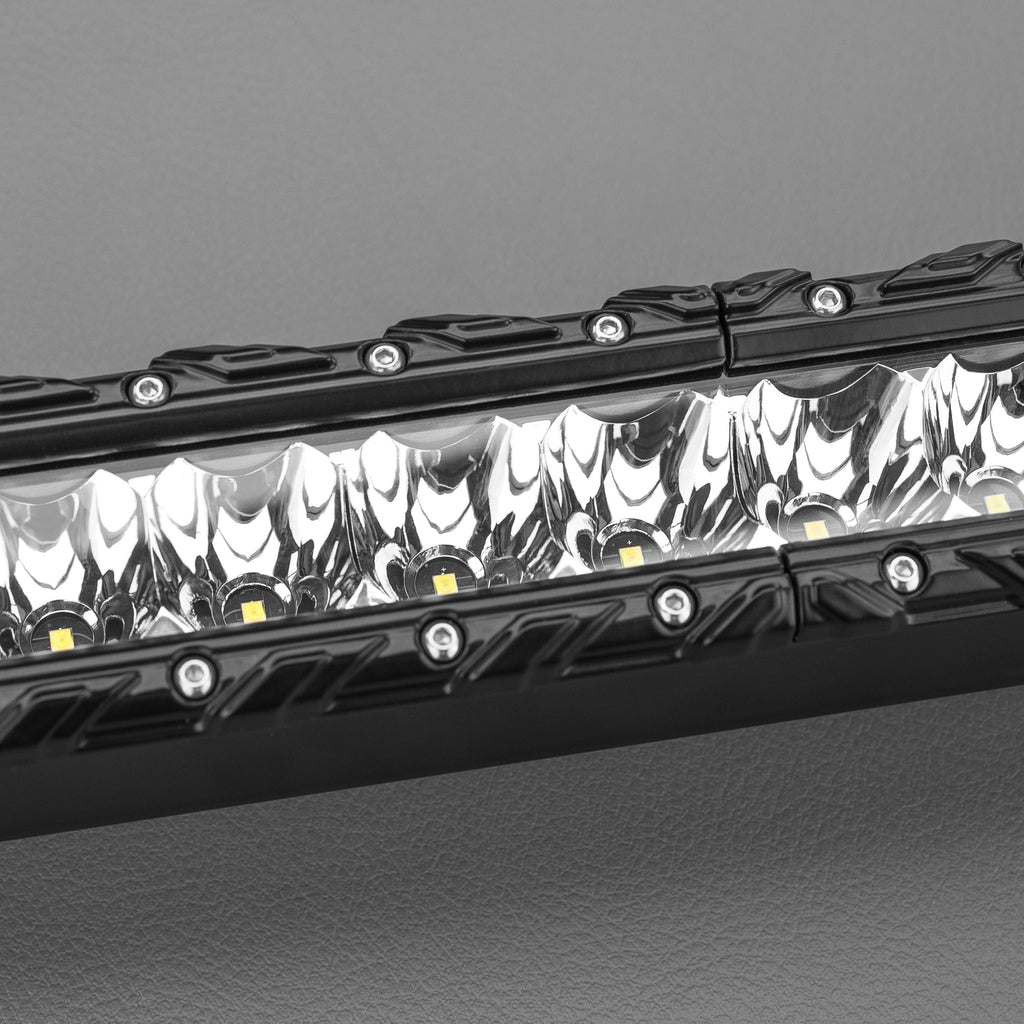

  • STEDI ST3K 7.5 inch 6 LED Slim Light Bar front view

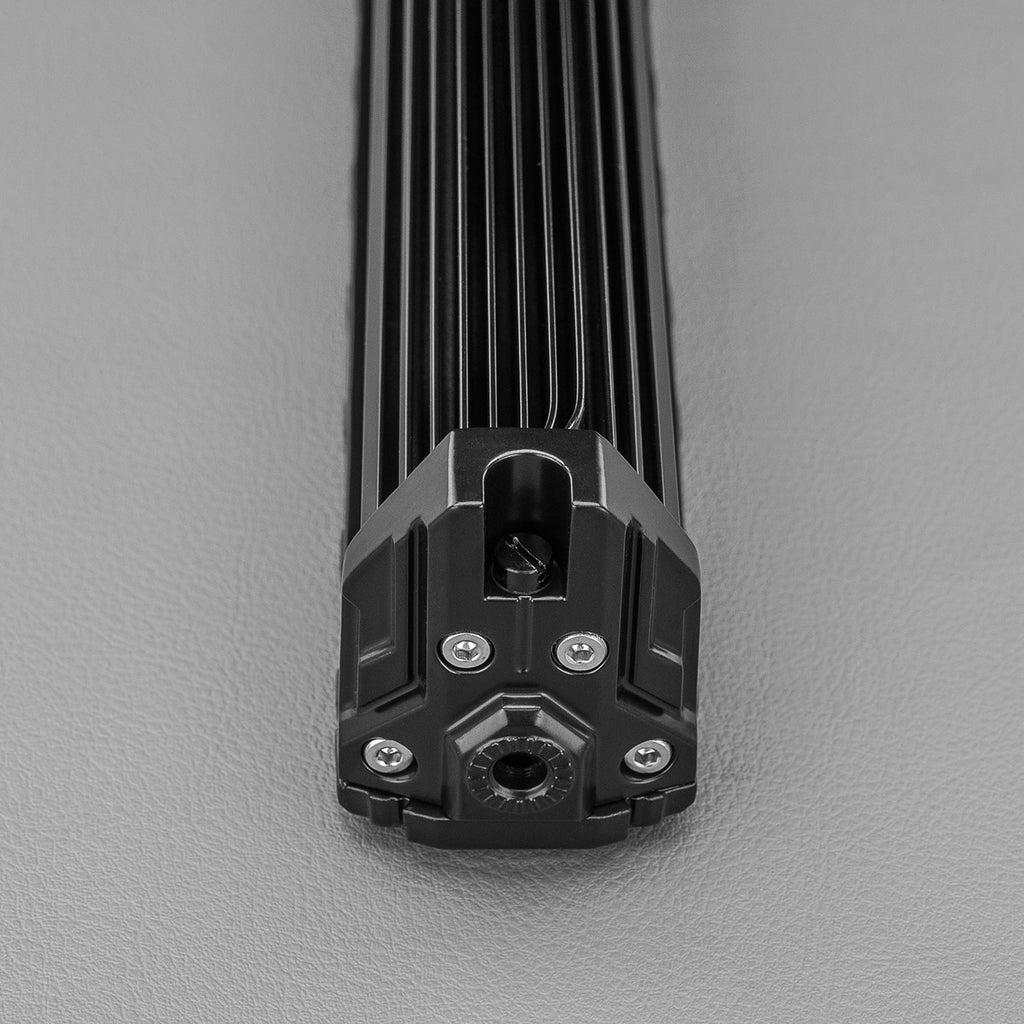

  • STEDI ST3K 7.5 inch 6 LED Slim Light Bar side view

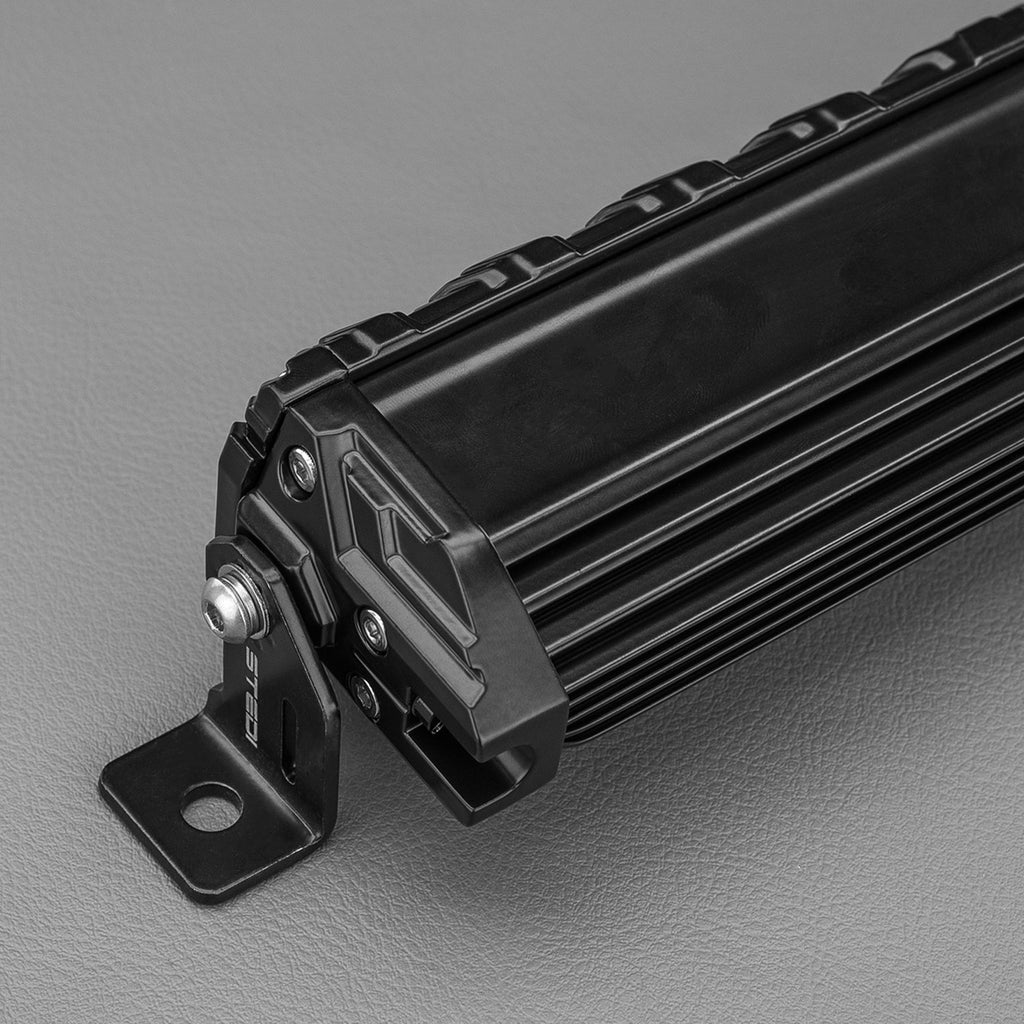

  • STEDI ST3K 7.5 inch 6 LED Slim Light Bar rear connector view

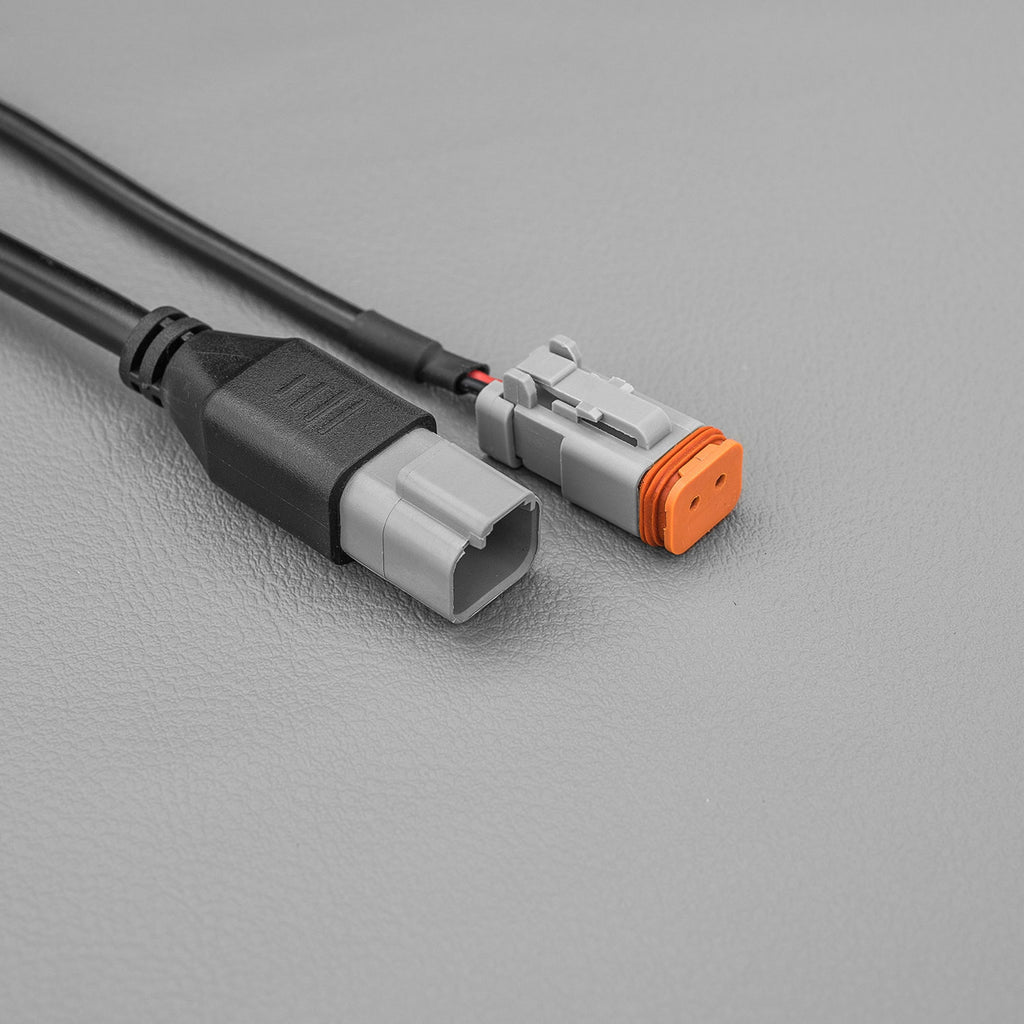

  • STEDI ST3K 7.5 inch 6 LED Slim Light Bar mounted on vehicle
1 6

Stedi

STEDI ST3K 7.5" 6 LED Slim LED Light Bar

STEDI ST3K 7.5" 6 LED Slim LED Light Bar

R 3,199.00
R 3,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI ST3K 7.5" is the smallest bar in STEDI's slim single-row range, with a low 63mm profile (brackets attached) that tucks into tight spaces like grilles, bull bar corners and front bumpers while keeping a factory-fitted look. It combines flood and spot beam technology using OSRAM OSLON® White LEDs.

At 1,230 effective lumens across 6 LEDs, it's built for close-in fill light and accent lighting rather than long-range throw - ideal where a bulky light bar simply won't fit.

Key Features

Brand STEDI
Model ST3K 6 LED Slim Light Bar (7.5")
LED Count 6x OSRAM OSLON® White
Colour Temperature 5700K True White
Effective Lumens 1,230 lm
Peak Intensity 72,960 candela
Beam Pattern 2 Flood + 2 Spot + 2 Flood - 50° flood, 5.8° spot
Max Beam Distance 269m @ 1 lux
Voltage 10-30V DC
Current Draw 1.3A @ 13.6V
IP Rating IP68
Operating Temperature -40°C to 50°C
Lifespan 50,000 hours
Weight 0.760kg
Warranty 5-year replacement

Highlights

  • Grille and bumper-mounted accent lighting where a full-size bar won't fit
  • Close-in fill light to complement a longer-range primary light bar
  • Roll cage, mirror-arm or bull bar corner mounting on compact 4x4s
  • Low 63mm profile keeps a factory-fitted look

Materials & care

Aluminium extrusion & cast housing with a GE™ Lexan lens, powder-coated 3mm stainless steel mounting brackets and 3-series stainless steel fasteners. Wipe down with a soft cloth and clean water; avoid abrasive cleaners on the lens.

Sizing & fit

7.5" slim light bar, 63mm high with brackets attached, weighing 0.760kg - sized to fit tight grille, bumper or bull bar mounting points.

Compatibility

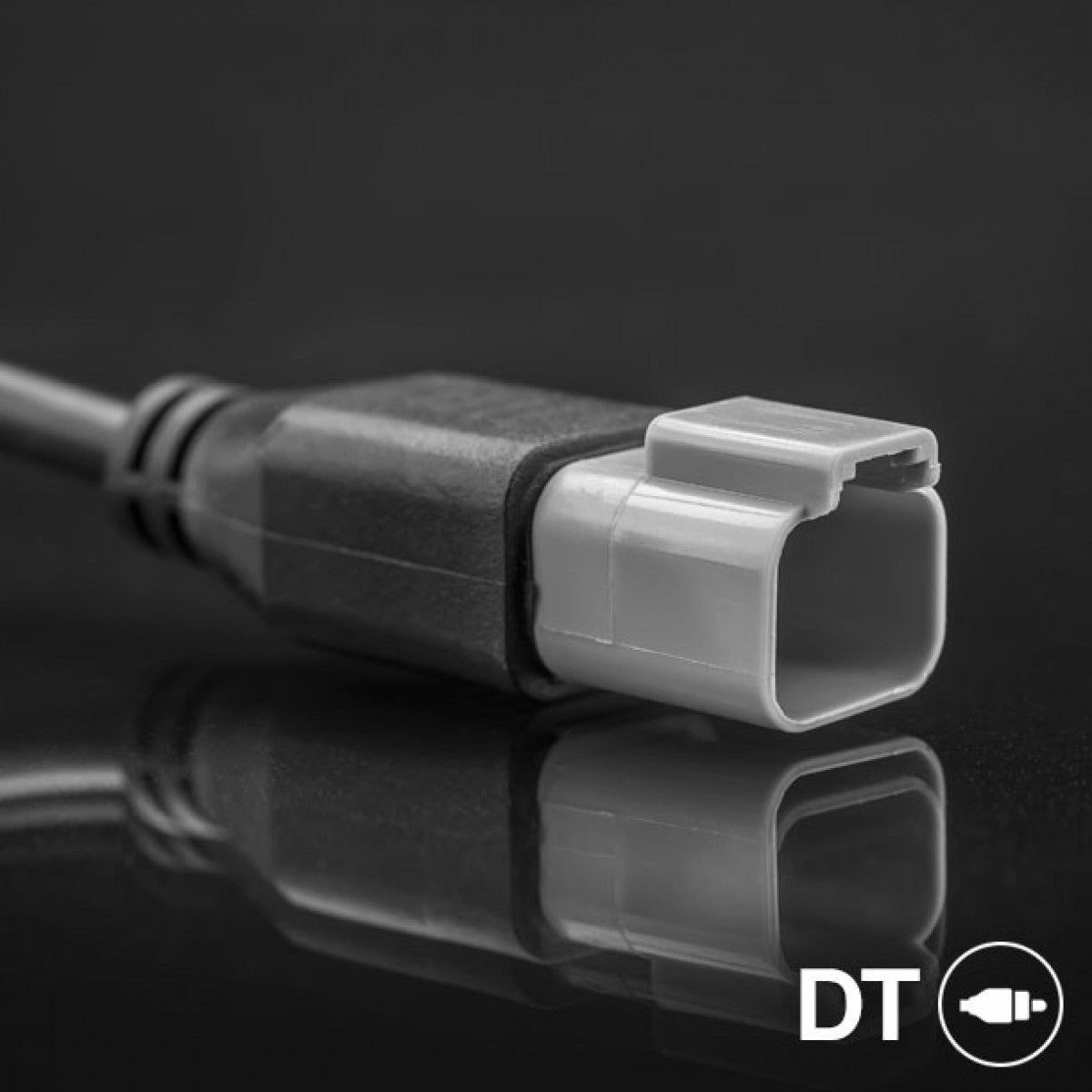

Runs on 10-30V DC, suiting both 12V and 24V vehicle electrical systems. Terminates in a DT wire tail connector; a wiring harness with relay and switch is sold separately for this size.

How to use

  • Mount using the supplied low-profile stainless steel side brackets in your chosen grille, bumper or bracket location.
  • Wire the DT wire tail into a relay-protected, fused circuit (harness sold separately for this size).
  • Aim the bar with the vehicle on level ground before fully tightening the brackets.
  • Use as an auxiliary off-road light and switch off when driving on public roads unless legally permitted in your area.

What's included

  • ST3K 7.5" LED light bar unit
  • Low-profile stainless steel side brackets
  • Stainless steel fasteners
  • DT wire tail connector

Frequently asked questions

Does this light bar come with a wiring harness?

No, this 7.5" bar terminates in a DT wire tail connector and the wiring harness is sold separately. Let us know if you'd like us to add one to your order.

Is this bar meant to be a primary driving light?

At 1,230 lumens it's best suited to close-in fill and accent lighting in tight spaces rather than long-range throw. For maximum distance, choose a longer ST3K bar such as the 31.5" or 51.5".

How long is the warranty?

STEDI backs the ST3K 7.5" with a 5-year replacement warranty against manufacturing defects.
