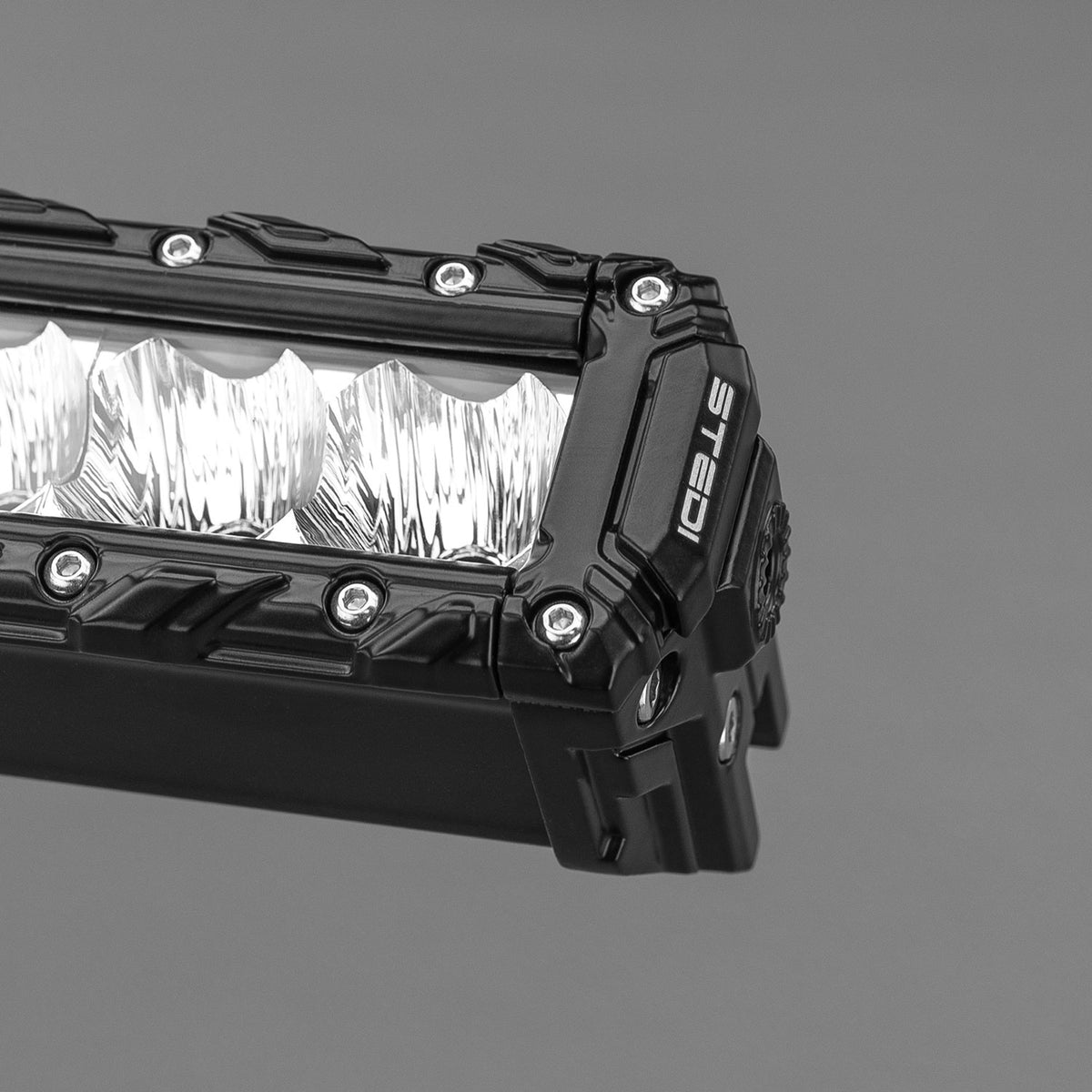

• STEDI ST3K 31.5 inch Slim LED Light Bar

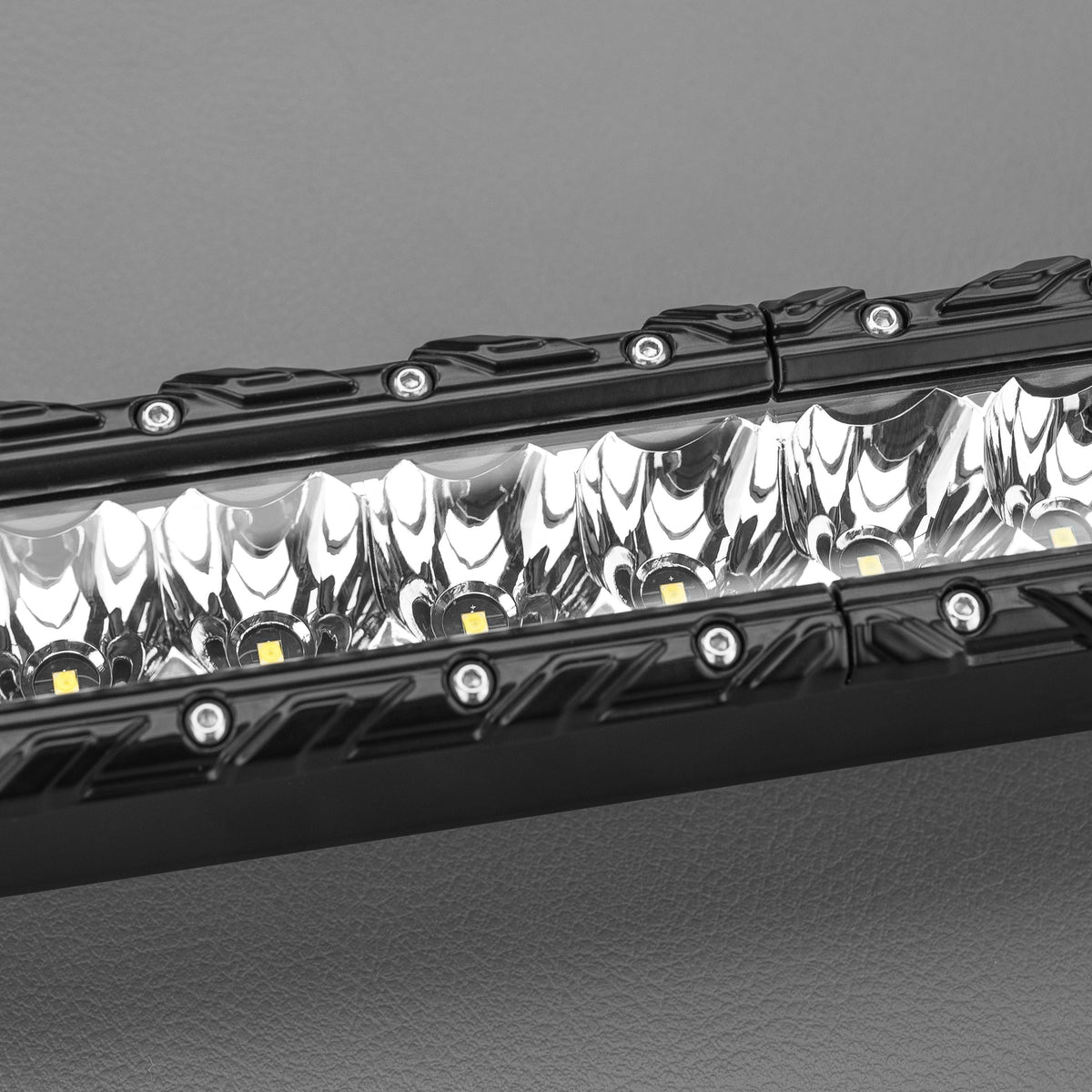

  • STEDI ST3K 31.5" 30 LED Slim LED Light Bar

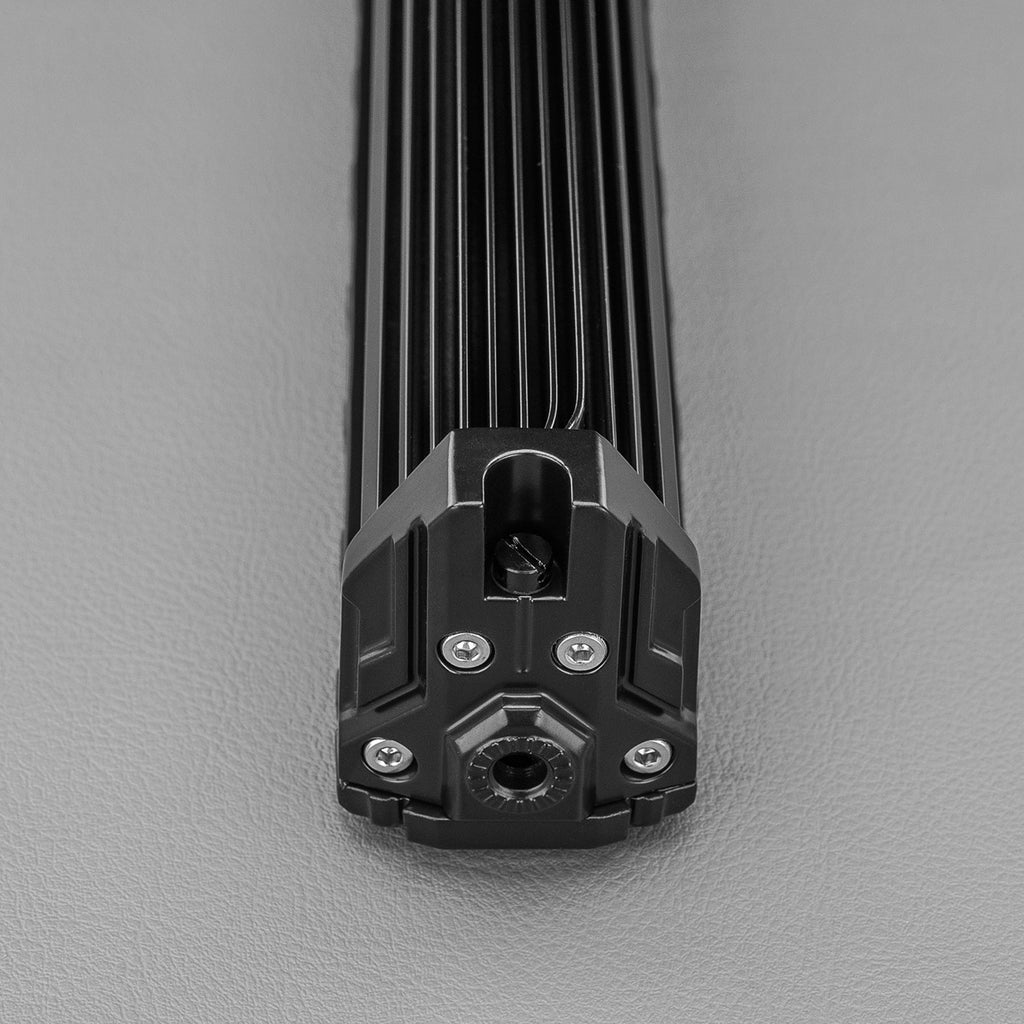

  • STEDI ST3K 31.5 inch 30 LED Slim Light Bar side view

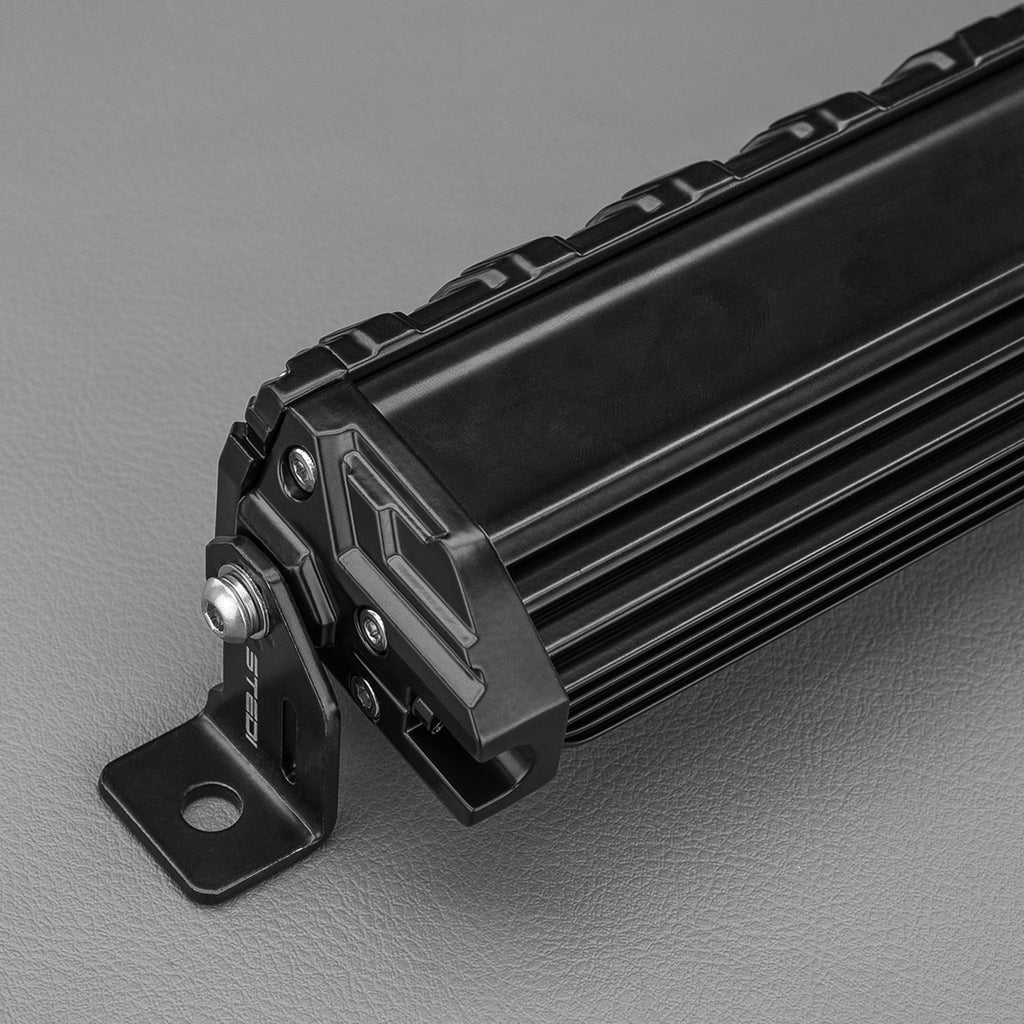

  • STEDI ST3K 31.5 inch 30 LED Slim Light Bar rear connector view
  • STEDI ST3K 31.5 inch 30 LED Slim Light Bar mounted on vehicle
  • STEDI ST3K 31.5 inch 30 LED Slim Light Bar detail view
1 6

Stedi

STEDI ST3K 31.5" 30 LED Slim LED Light Bar

STEDI ST3K 31.5" 30 LED Slim LED Light Bar

R 7,999.00
R 7,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI ST3K 31.5" is a low-profile light bar (63mm with brackets attached), designed to fit tight spaces like front bars or grilles while keeping the factory look. It combines flood and spot beam technology using OSRAM OSLON® White LEDs across 30 emitters, sealed to IP68.

With 6,150 lumens and a beam reaching out to 601m, this size gives you genuine long-range driving-light performance while staying low profile enough to grille- or bumper-mount.

Key Features

Brand STEDI
Model ST3K 30 LED Slim Light Bar (31.5")
LED Count 30x OSRAM OSLON® White
Colour Temperature 5700K True White
Lumens 6,150 lm
Peak Intensity 364,800 candela
Beam Pattern 6 Flood + 18 Spot + 6 Flood - 50° flood, 5.8° spot
Max Beam Distance 601m @ 1 lux
Voltage 10-30V DC
Current Draw 6.5A @ 13.6V
IP Rating IP68
Operating Temperature -40°C to 50°C
Lifespan 50,000 hours
Weight 2.64kg
Warranty 5-year replacement

Highlights

  • Genuine long-range driving performance in a slim, low-profile housing
  • Grille, bumper or bull bar mounting on mid-size to large 4x4s
  • Farm roads, rural touring and night-time recovery work
  • Low 63mm profile keeps a factory-fitted look

Materials & care

Aluminium extrusion & cast housing with a GE™ Lexan lens and powder-coated 3mm stainless steel mounting brackets. Wipe down with a soft cloth and clean water; avoid abrasive cleaners on the lens.

Sizing & fit

31.5" slim light bar, 63mm high with brackets attached, weighing 2.64kg.

Compatibility

Runs on 10-30V DC, suiting both 12V and 24V vehicle electrical systems. Supplied with a 12V quick-fit high beam wiring harness, relay, on/off switch and H4/HB3 adapters.

How to use

  • Mount using the supplied stainless steel side brackets in your chosen grille, bumper or bracket location.
  • Wire in using the supplied quick-fit high beam harness, relay and H4/HB3 adapters, and fuse close to the battery.
  • Aim the bar with the vehicle on level ground before fully tightening the brackets.
  • Use as an auxiliary off-road light and switch off when driving on public roads unless legally permitted in your area.

What's included

  • ST3K 31.5" LED light bar

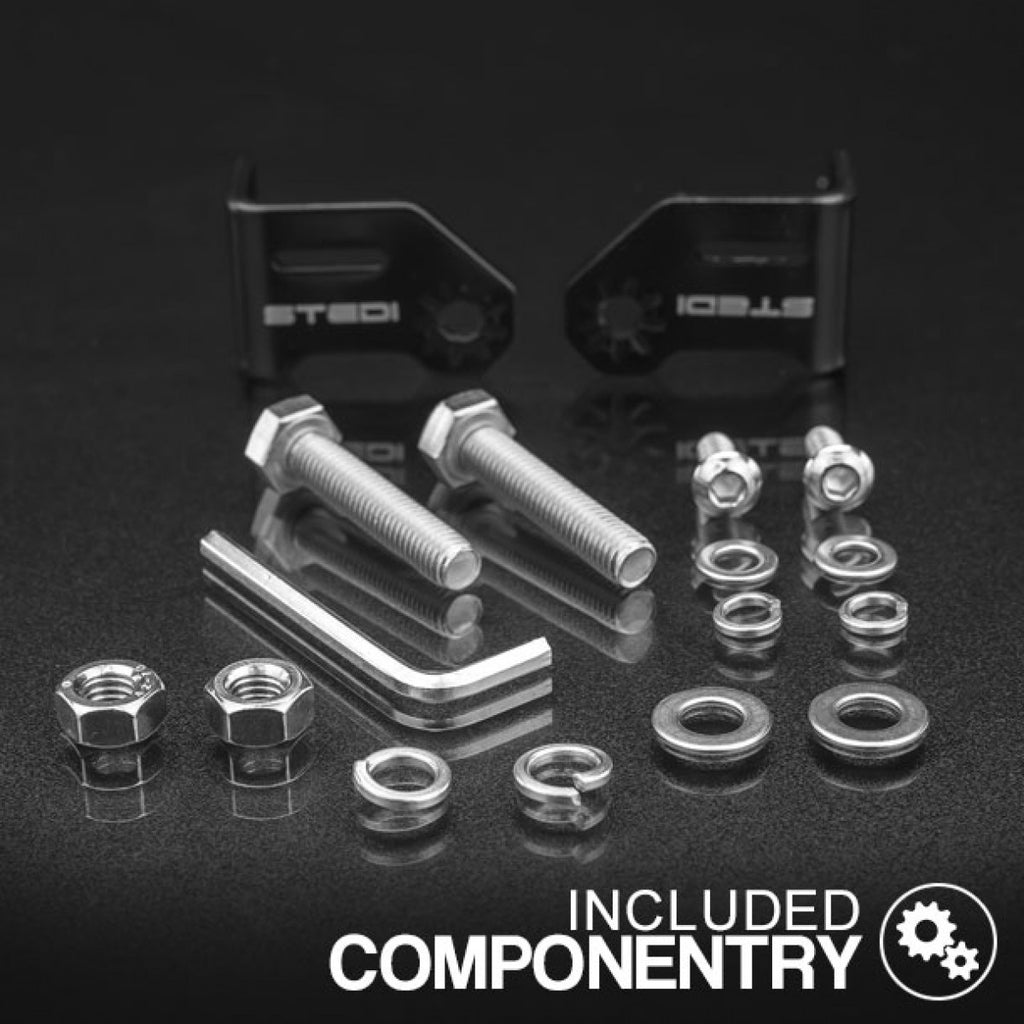

  • Stainless fasteners and stainless steel side mounting brackets

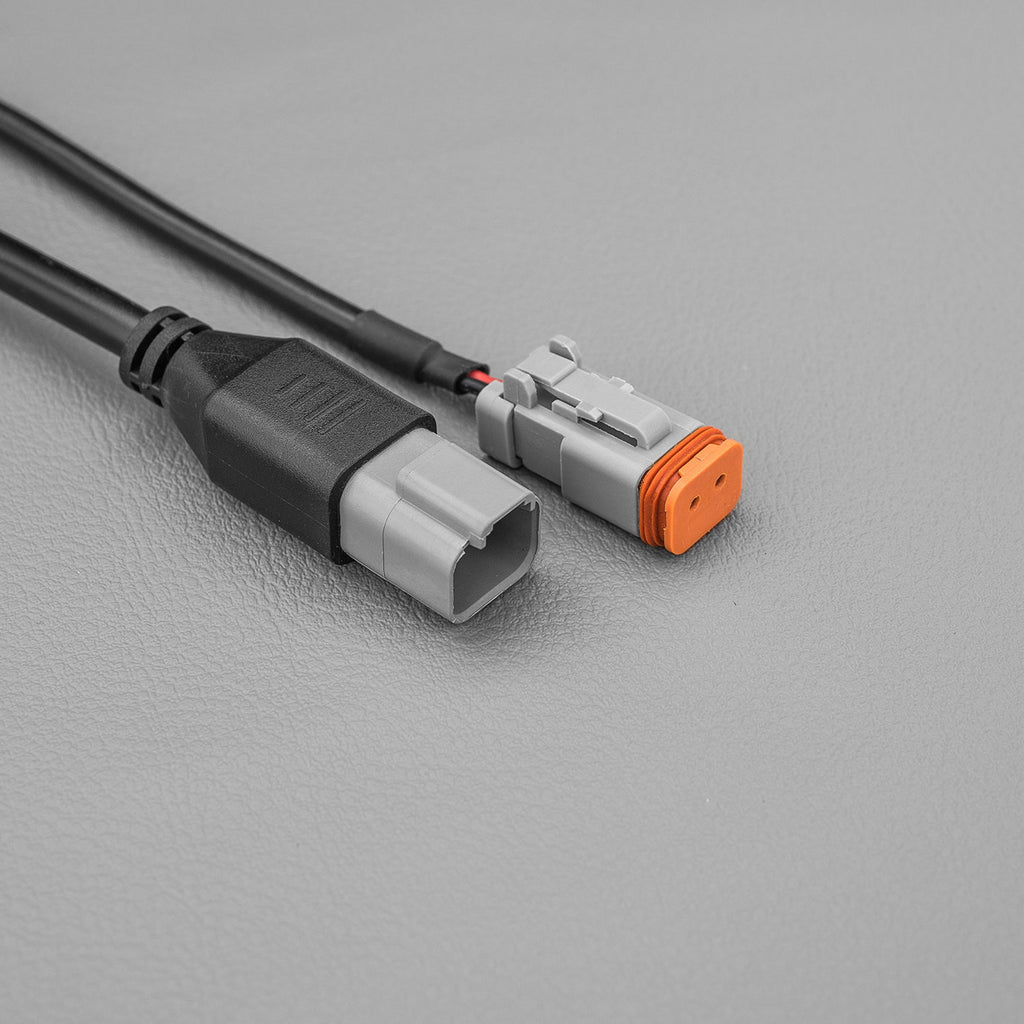

  • 12V quick-fit high beam wiring harness with relay
  • On/off switch, H4 and HB3 adapters
  • Wiring instructions

Frequently asked questions

Does this bar come with a wiring harness?

Yes. The 31.5" ST3K includes a 12V quick-fit high beam wiring harness with relay, on/off switch, and H4/HB3 adapters ready to install.

How far will this bar throw light?

The spot section of the beam reaches approximately 601m at 1 lux, with the flood sections giving wide close-range coverage.

How long is the warranty?

STEDI backs the ST3K 31.5" with a 5-year replacement warranty against manufacturing defects.
