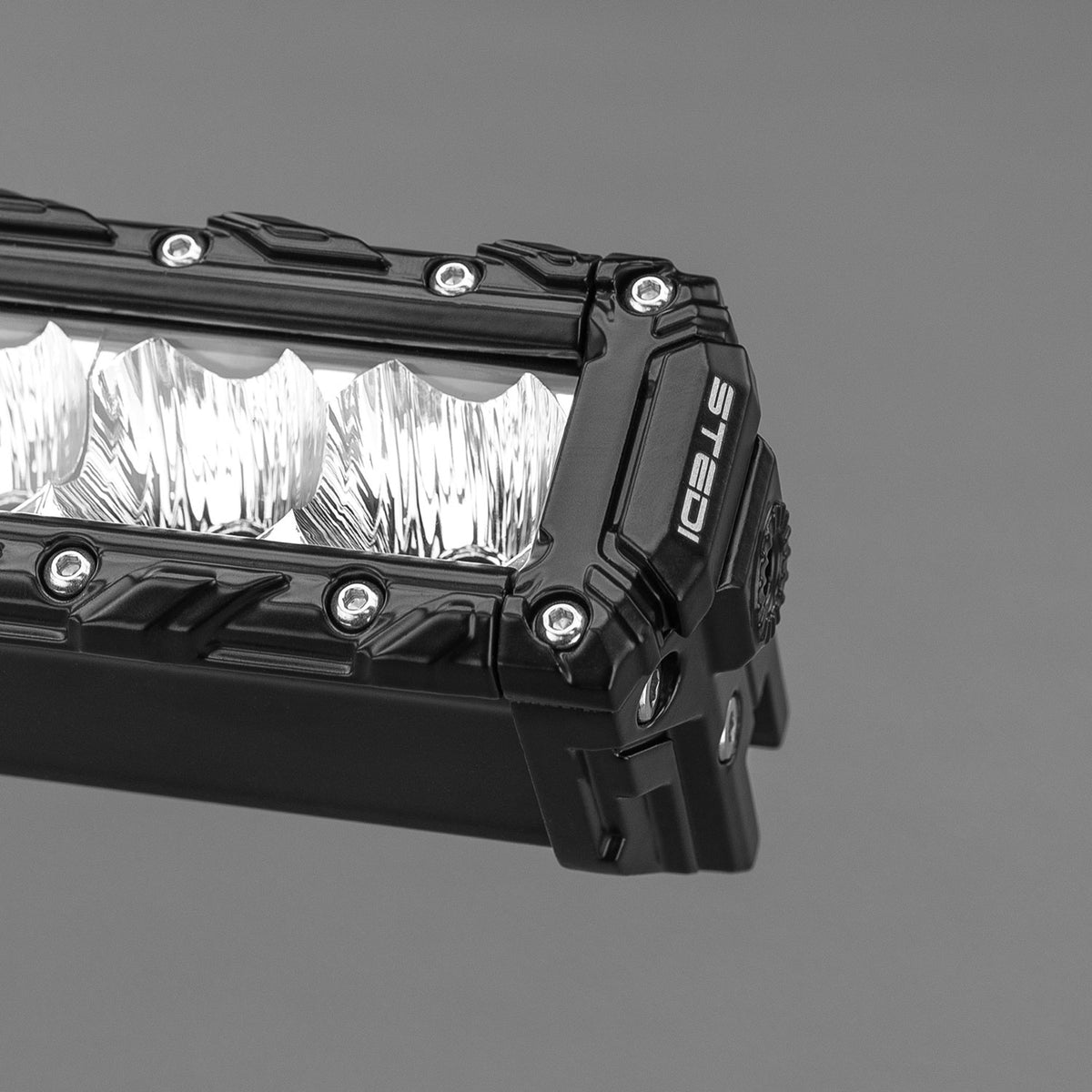

• STEDI ST3K 21.5 inch Slim LED Light Bar
  • STEDI ST3K 21.5" 20 LED Slim LED Light Bar

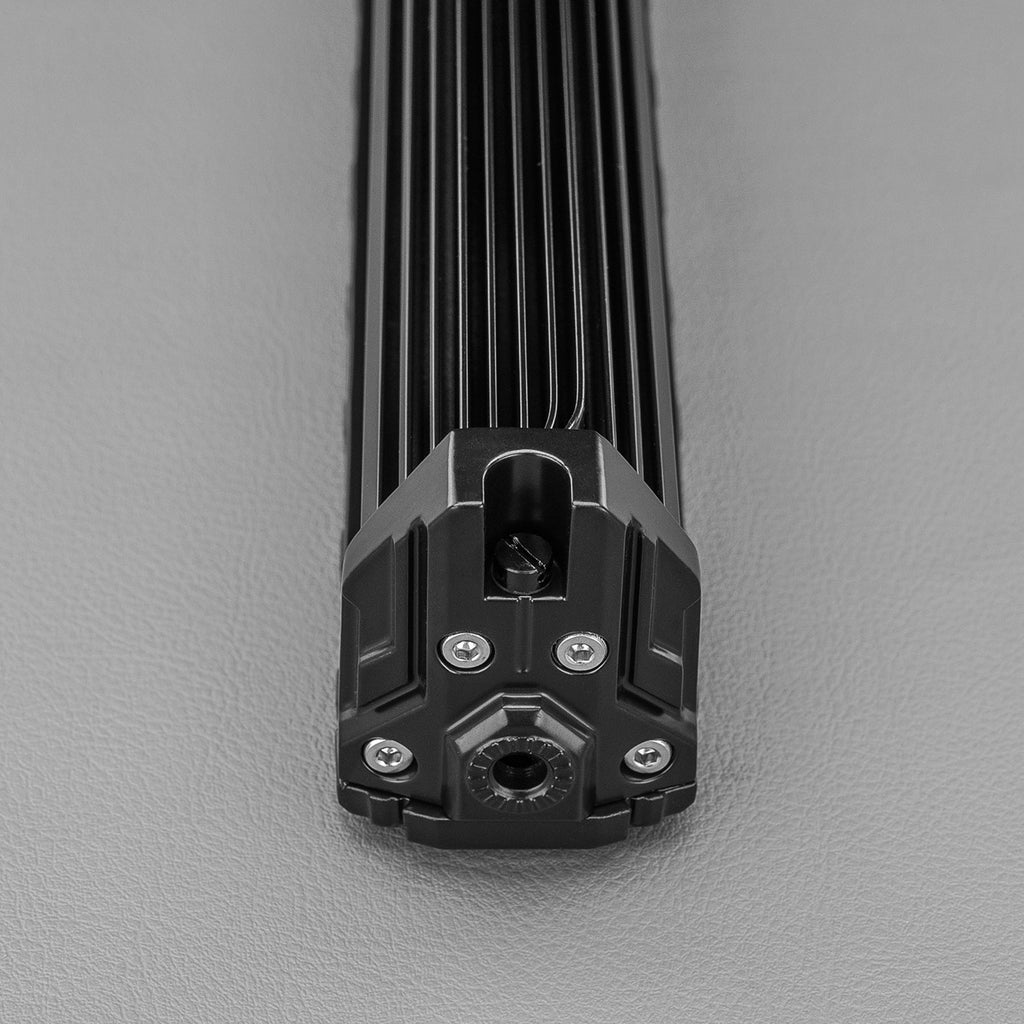

  • STEDI ST3K 21.5 inch 20 LED Slim Light Bar side view

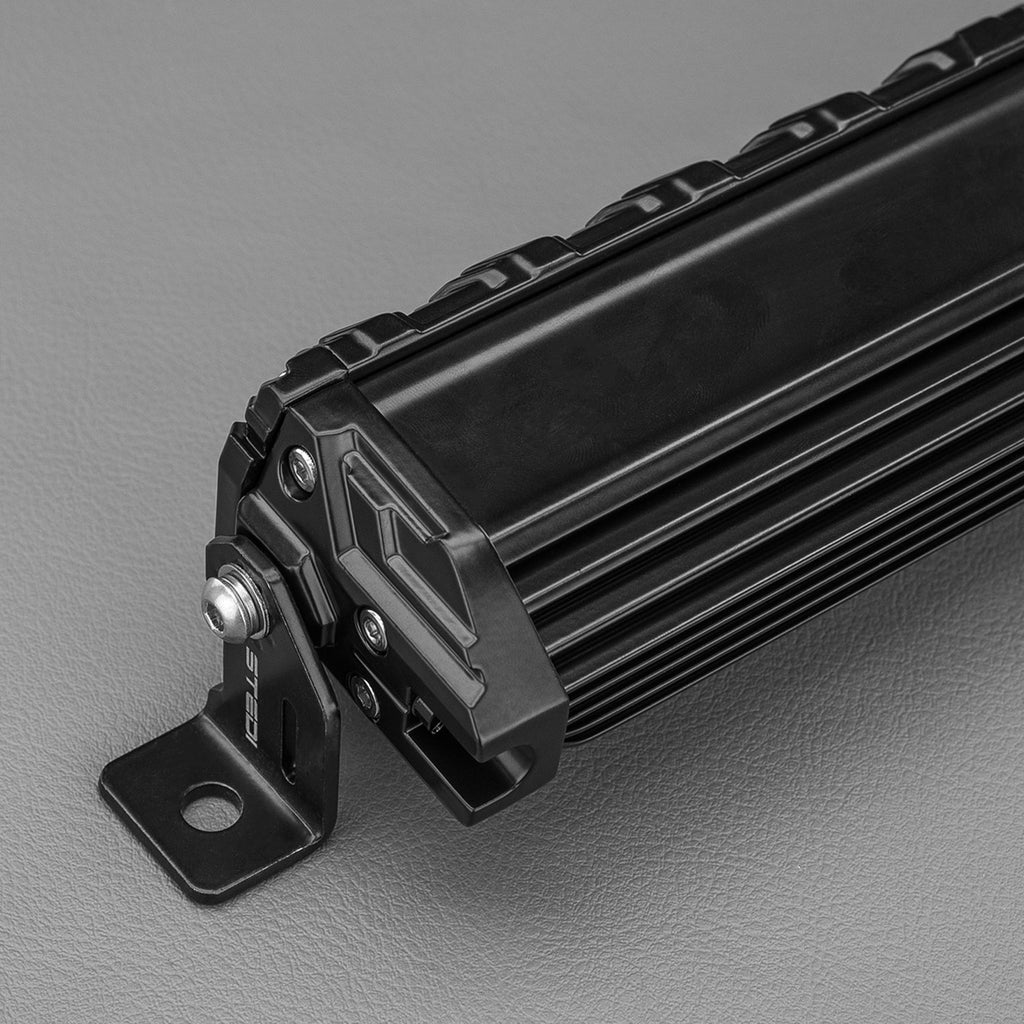

  • STEDI ST3K 21.5 inch 20 LED Slim Light Bar rear connector view
  • STEDI ST3K 21.5 inch 20 LED Slim Light Bar mounted on vehicle
  • STEDI ST3K 21.5 inch 20 LED Slim Light Bar detail view
1 6

Stedi

STEDI ST3K 21.5" 20 LED Slim LED Light Bar

STEDI ST3K 21.5" 20 LED Slim LED Light Bar

R 6,499.00
R 6,499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

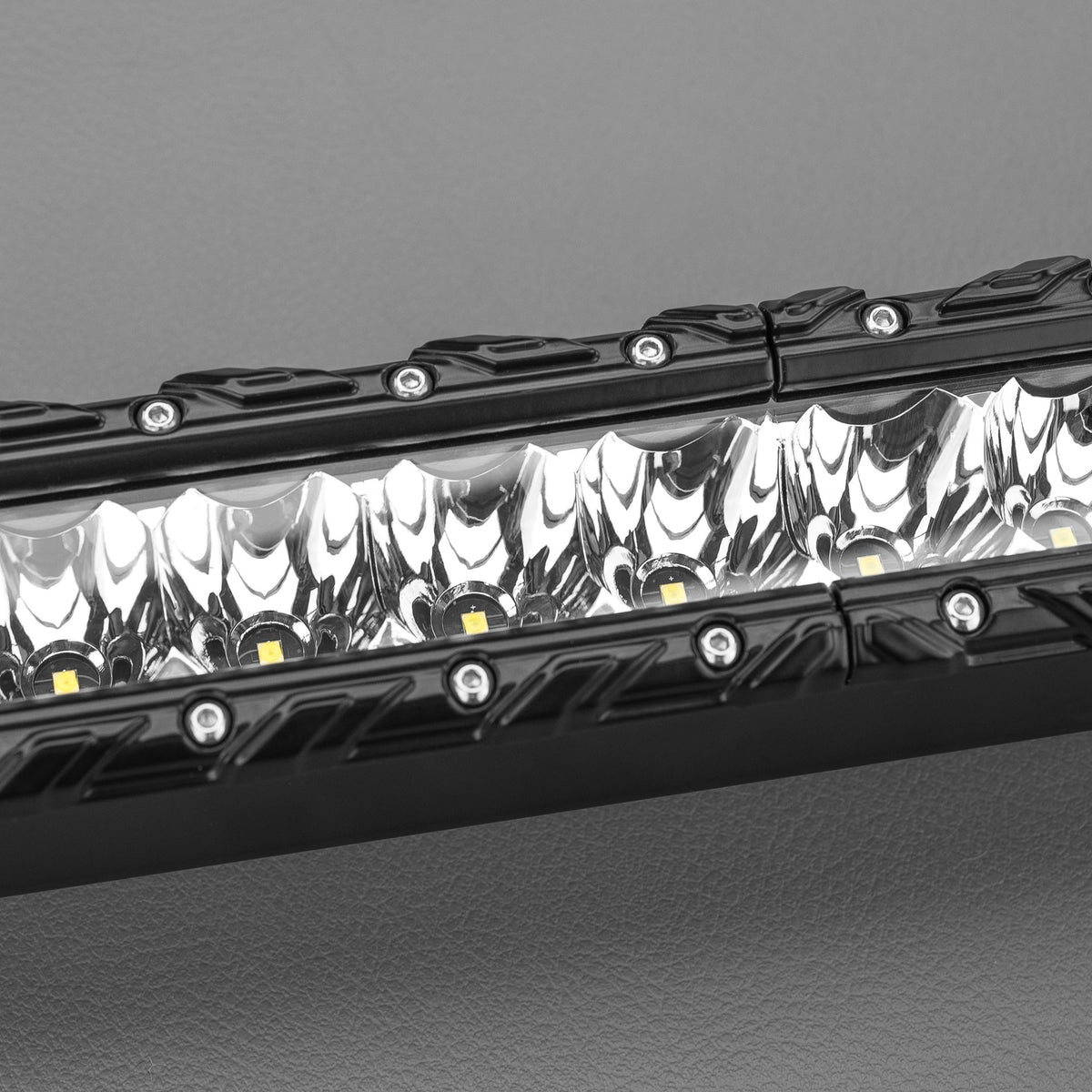

The STEDI ST3K 21.5" is a low-profile light bar (63mm with brackets attached), designed to fit tight spaces like front bars or grilles while keeping the factory look. It combines flood and spot beam technology using OSRAM OSLON® White LEDs across 20 emitters, sealed against dust and water to IP68.

With 4,100 effective lumens and a beam reaching out to 493m, it's a solid mid-range option for grille or bumper mounting where you want genuine driving-light distance in a slim housing.

Key Features

Brand STEDI
Model ST3K 20 LED Slim Light Bar (21.5")
LED Count 20x OSRAM OSLON® White
Colour Temperature 5700K True White
Effective Lumens 4,100 lm
Peak Intensity 243,200 candela
Beam Pattern 4 Flood + 12 Spot + 4 Flood - 50° flood, 5.8° spot
Max Beam Distance 493m @ 1 lux
Voltage 10-30V DC
Current Draw 4.3A @ 13.5V
IP Rating IP68 (dust & waterproof to 3m)
Operating Temperature -40°C to 50°C
Lifespan 50,000 hours
Weight 1.855kg
Warranty 5-year replacement

Highlights

  • Grille and bumper-mounted lighting with strong mid-range reach
  • Compact to mid-size 4x4s and bakkies needing genuine driving-light distance
  • Fill light to complement a longer-range primary light bar
  • Low 63mm profile keeps a factory-fitted look

Materials & care

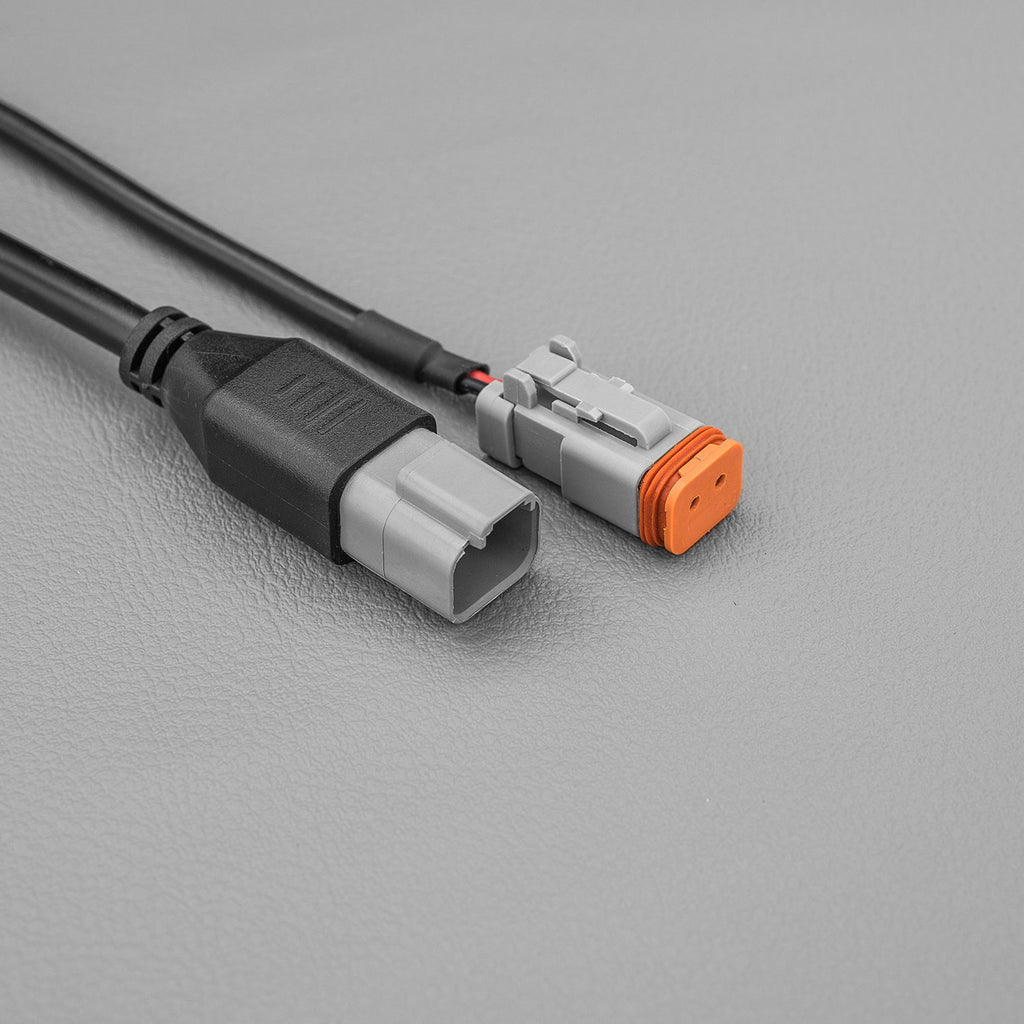

Aluminium extrusion & cast housing with a GE™ Lexan lens, powder-coated 3mm stainless steel mounting brackets, sealed Deutsch® DT-2 connector with EMC/RFI protection and a pressure equalisation vent. Wipe down with a soft cloth and clean water; avoid abrasive cleaners on the lens.

Sizing & fit

21.5" slim light bar, 51mm profile without brackets (63mm with side brackets attached), weighing 1.855kg.

Compatibility

Runs on 10-30V DC, suiting both 12V and 24V vehicle electrical systems. Supplied with a 12V quick-fit high beam wiring harness, relay, switch and H4/HB3 adapters.

How to use

  • Mount using the supplied stainless steel side brackets in your chosen grille, bumper or bracket location.
  • Wire in using the supplied quick-fit high beam harness, relay and H4/HB3 adapters, and fuse close to the battery.
  • Aim the bar with the vehicle on level ground before fully tightening the brackets.
  • Use as an auxiliary off-road light and switch off when driving on public roads unless legally permitted in your area.

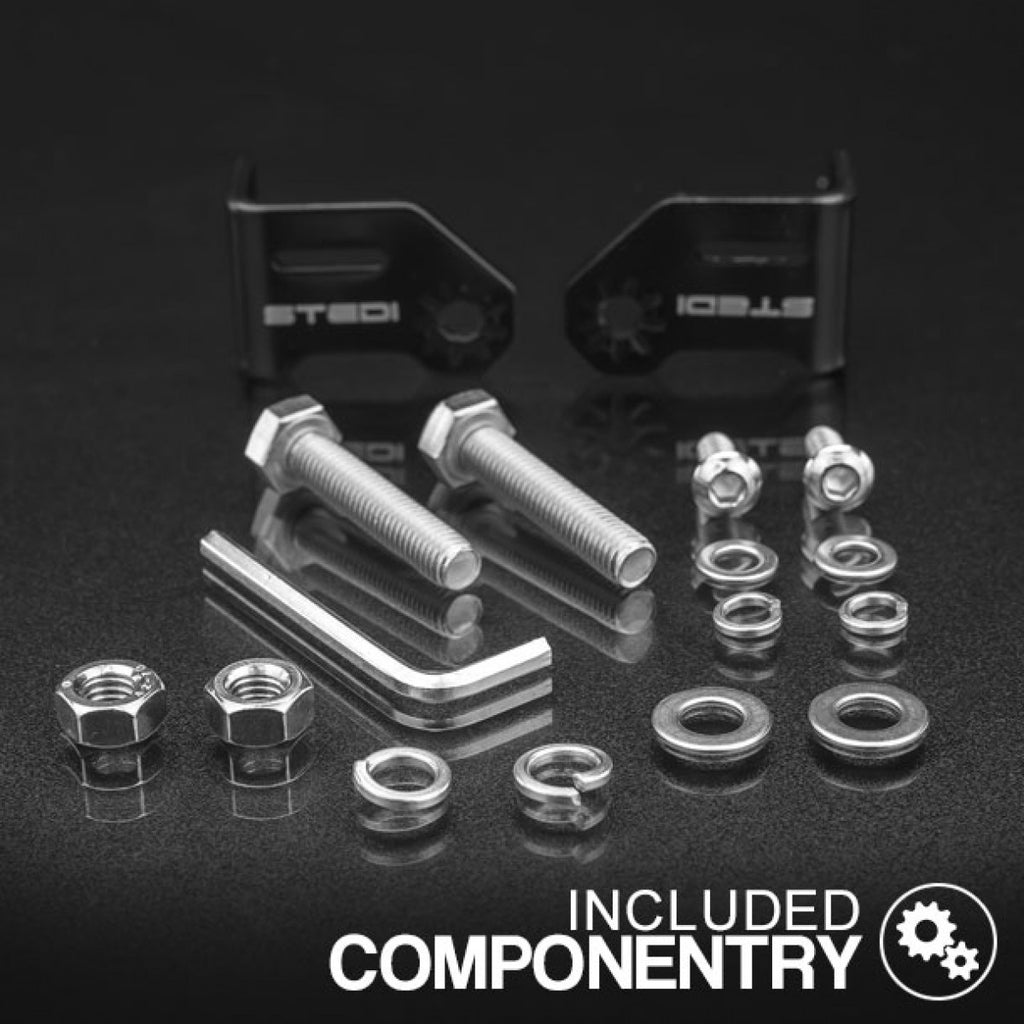

What's included

  • ST3K 21.5" LED light bar
  • Stainless steel fasteners and side mounting brackets
  • 12V quick-fit high beam wiring harness with relay and switch
  • H4 and HB3 adapters
  • Wiring instructions

Frequently asked questions

Does this bar come with a wiring harness?

Yes. The 21.5" ST3K includes a 12V quick-fit high beam wiring harness with relay, switch, and H4/HB3 adapters ready to install.

How far will this bar throw light?

The spot section of the beam reaches approximately 493m at 1 lux, with the flood sections providing wide close-range coverage.

How long is the warranty?

STEDI backs the ST3K 21.5" with a 5-year replacement warranty against manufacturing defects.
