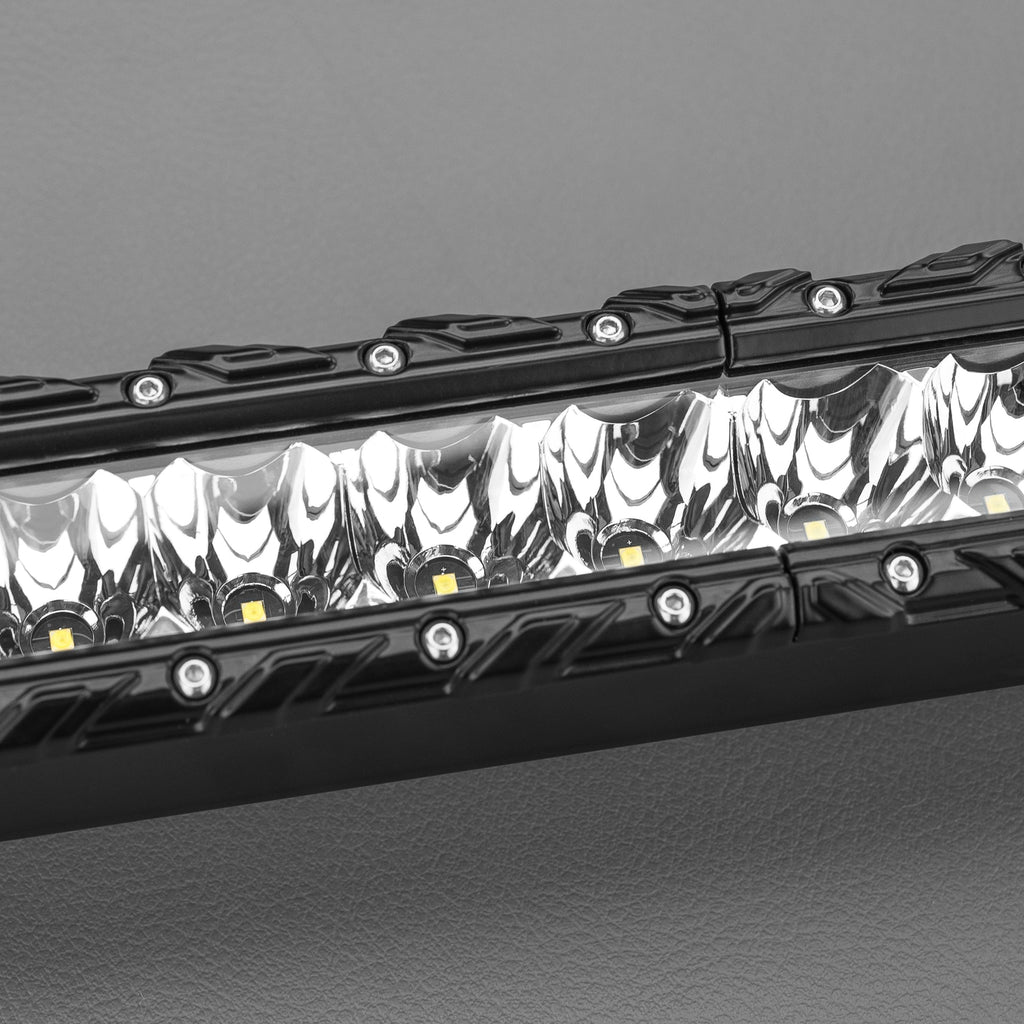

  • STEDI ST3K 11.5 inch 10 LED Slim Light Bar front view

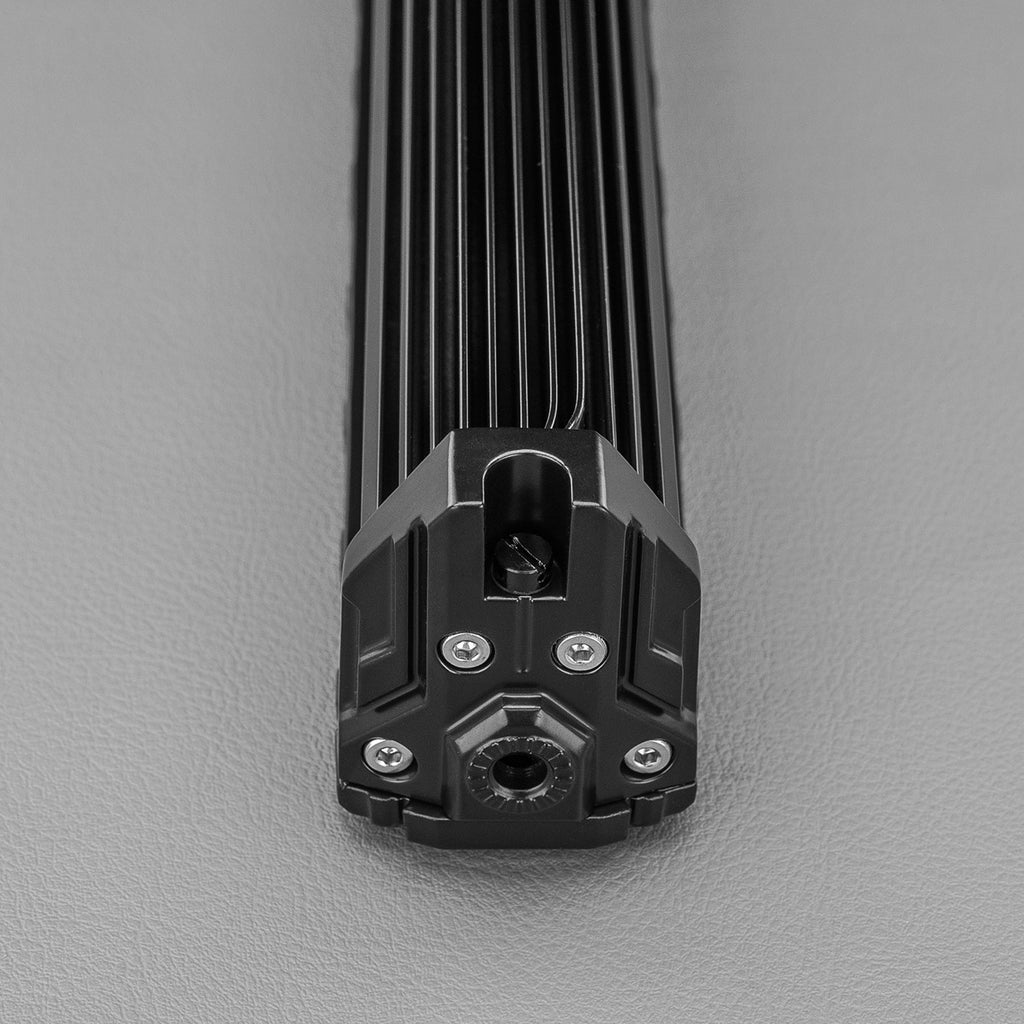

  • STEDI ST3K 11.5 inch 10 LED Slim Light Bar side view
  • STEDI ST3K 11.5 inch 10 LED Slim Light Bar mounted on vehicle
1 5

Stedi

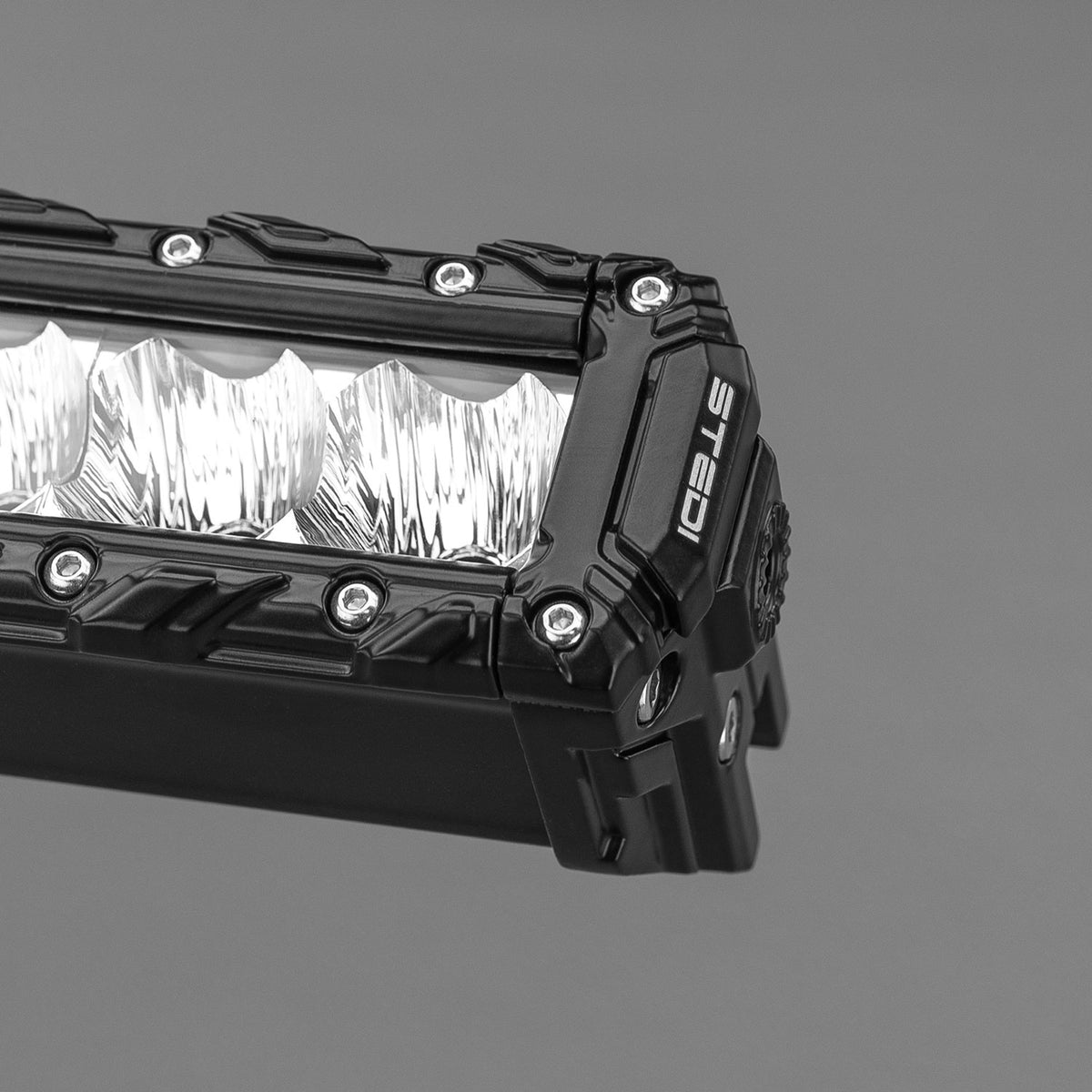

STEDI ST3K 11.5" 10 LED Slim LED Light Bar

STEDI ST3K 11.5" 10 LED Slim LED Light Bar

R 3,499.00
R 3,499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI ST3K 11.5" is a low-profile light bar (63mm with brackets attached), designed to fit tight spaces like front bars or grilles while keeping the factory look. It combines flood and spot beam technology using OSRAM OSLON® White LEDs across 10 emitters.

With 2,050 effective lumens and a beam reaching out to 348m, it's a practical step up from the 7.5" bar for grille or bumper mounting where you still want genuine driving-light distance.

Key Features

Brand STEDI
Model ST3K 10 LED Slim Light Bar (11.5")
LED Count 10x OSRAM OSLON® White
Colour Temperature 5700K True White
Effective Lumens 2,050 lm
Peak Intensity 121,600 candela
Beam Pattern 2 Flood + 6 Spot + 2 Flood - 50° flood, 5.8° spot
Max Beam Distance 348m @ 1 lux
Voltage 10-30V DC
Current Draw 2.1A @ 13.6V
IP Rating IP68
Operating Temperature -40°C to 50°C
Lifespan 50,000 hours
Weight 1.65kg
Warranty 5-year replacement

Highlights

  • Grille and bumper-mounted lighting with real driving-light reach
  • Compact 4x4s and bakkies without space for a full-size bar
  • Fill light to complement a longer-range primary light bar
  • Low 63mm profile keeps a factory-fitted look

Materials & care

Aluminium extrusion & cast housing with a GE™ Lexan lens and stainless steel side brackets and fasteners. Wipe down with a soft cloth and clean water; avoid abrasive cleaners on the lens.

Sizing & fit

11.5" slim light bar, 63mm high with brackets attached, weighing 1.65kg - sized to fit grille, bumper or bull bar mounting points.

Compatibility

Runs on 10-30V DC, suiting both 12V and 24V vehicle electrical systems. Terminates in a DT wire tail connector; a wiring harness with relay and switch is sold separately for this size.

How to use

  • Mount using the supplied stainless steel side brackets in your chosen grille, bumper or bracket location.
  • Wire the DT wire tail into a relay-protected, fused circuit (harness sold separately for this size).
  • Aim the bar with the vehicle on level ground before fully tightening the brackets.
  • Use as an auxiliary off-road light and switch off when driving on public roads unless legally permitted in your area.

What's included

  • ST3K 11.5" LED light bar
  • Stainless steel side brackets
  • Stainless steel fasteners

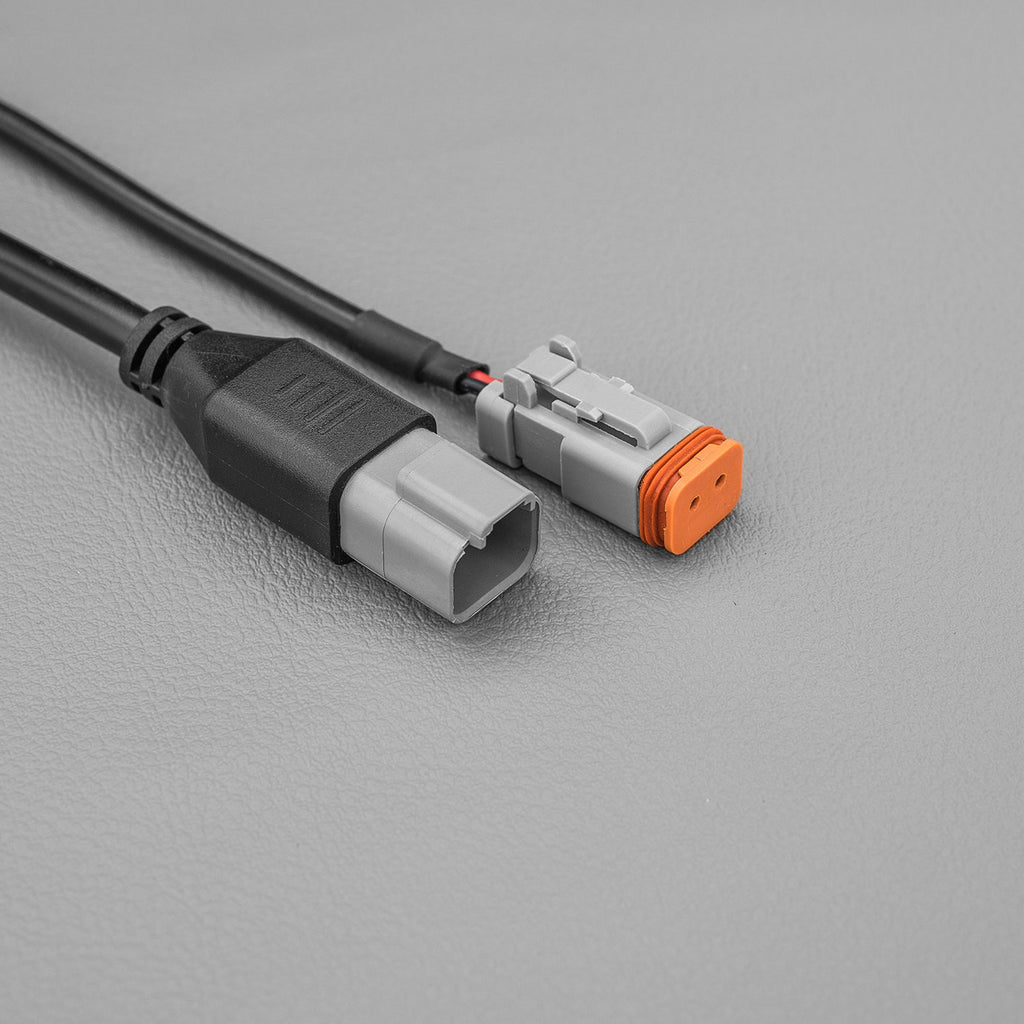

  • DT wire tail connector

Frequently asked questions

Does this light bar come with a wiring harness?

No, this 11.5" bar terminates in a DT wire tail connector and the wiring harness is sold separately. Let us know if you'd like us to add one to your order.

How far will this bar throw light?

The spot section of the beam reaches approximately 348m at 1 lux, with the flood sections providing wide close-range coverage.

How long is the warranty?

STEDI backs the ST3K 11.5" with a 5-year replacement warranty against manufacturing defects.
