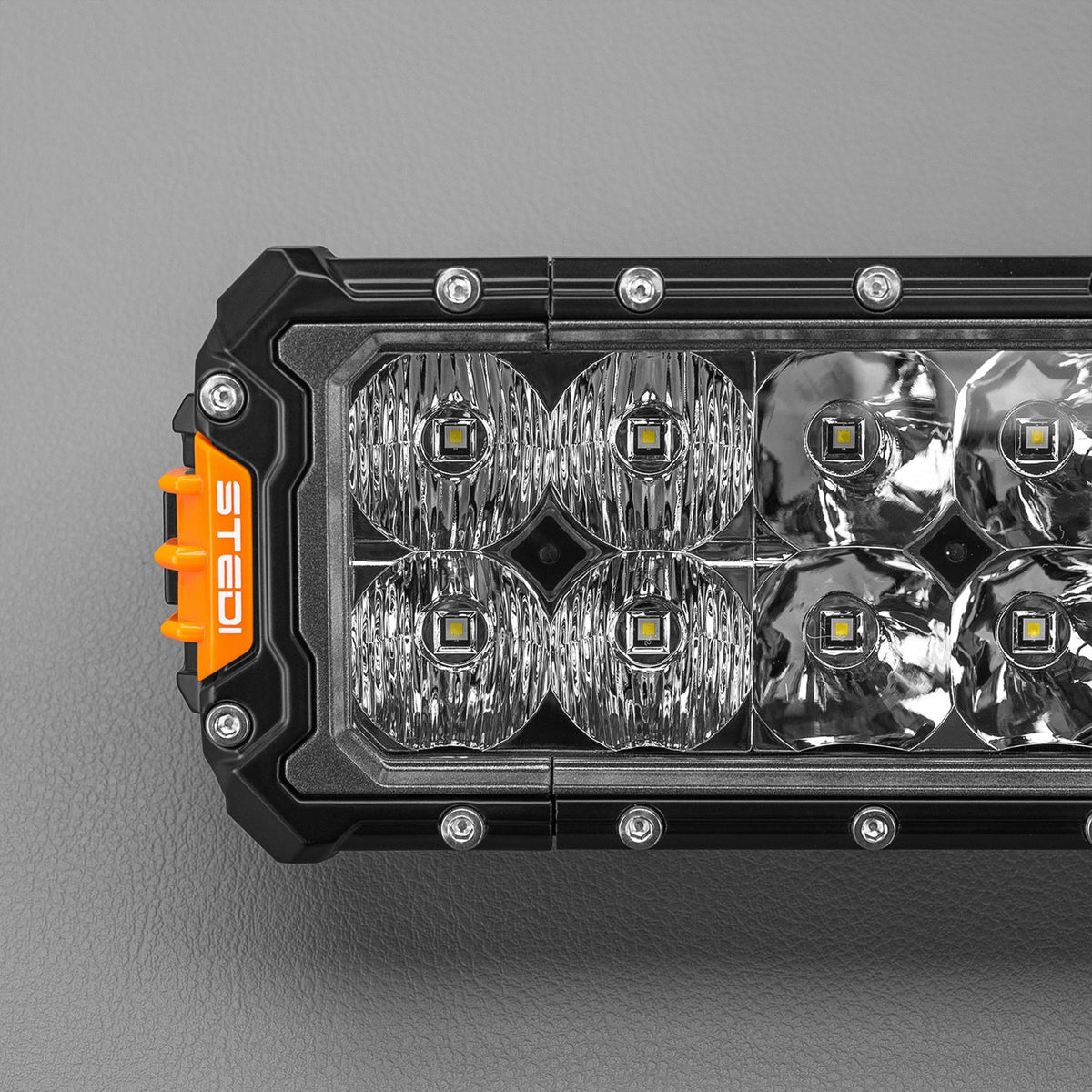

The largest bar in STEDI's ST3303 Pro double-row range, running 60 CREE XPL Hi-Intensity LEDs across individual 32mm parabolic reflectors for 65,700 raw lumens (33,600 effective) in a combo flood/spot beam pattern.

Backed by a 5-year warranty, it's built around the same A360.0 cast aluminium housing and hard-coated Lexan lens as the rest of the range, with a harness sized for its 36.7A current draw.

Key Features

LED Brand/Count 60x CREE XPL Hi-Intensity
Raw Lumens 65,700 Lm
Effective Lumens 33,600 Lm
Peak Intensity 919,681 cd
Colour Temperature 5700K
Beam Pattern Flood 50° / Spot 9° (combo)
Voltage Range 9V - 32V
Current Draw 36.7A @ 13.6V (40A @ 12.5V)
Reflectors 32mm diameter parabolic
IP Rating IP68 (submersible to 3m)
Housing A360.0 cast face plate, extruded aluminium heat sink
Lens Optical-grade, hard-coated Lexan
Connector High-current Deutsch DTP-2 25A
Operating Temperature -38°F to +302°F
Lifespan 50,000 hours
Weight 5.2kg
Warranty 5 years

Highlights

  • The largest and brightest bar in the ST3303 Pro double-row range at 65,700 raw lumens
  • 60 CREE XPL Hi-Intensity LEDs across individual 32mm parabolic reflectors
  • Combo beam pattern for both flood coverage and long-range spot throw
  • IP68 rated for serious water crossings and dust
  • 5-year warranty backing

Materials & care

A360.0 cast aluminium alloy housing with an extruded aluminium heat sink and hard-coated Lexan lens. Rinse off mud and salt after off-road or coastal use and check Deutsch connectors periodically for corrosion.

Sizing & fit

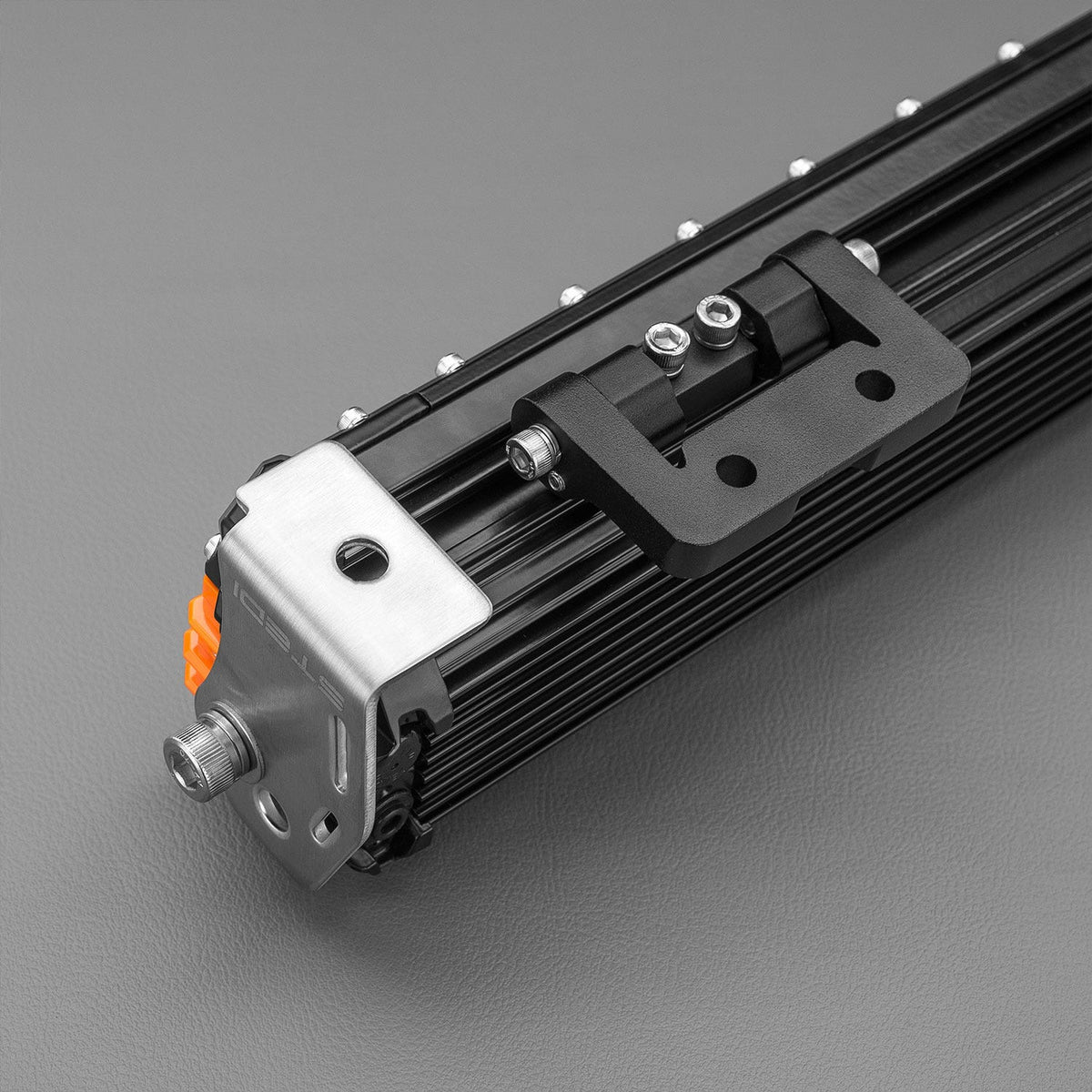

39" double-row light bar, 5.2kg. Mounts via the supplied stainless steel mounting brackets - check clearance on your bull bar or roof rack before ordering given its length.

Compatibility

Uses the ST3303 Pro platform - compatible with the STEDI ST3303 Pro Lightbar Covers (39" size), Color Caps and the ST3303 Pro Anti-Theft Kit (side brackets), sold separately.

How to use

  • Confirm you have enough clear mounting width (39") on your bull bar, winch bar or roof rack before fitting.
  • Mount using the supplied stainless steel brackets.

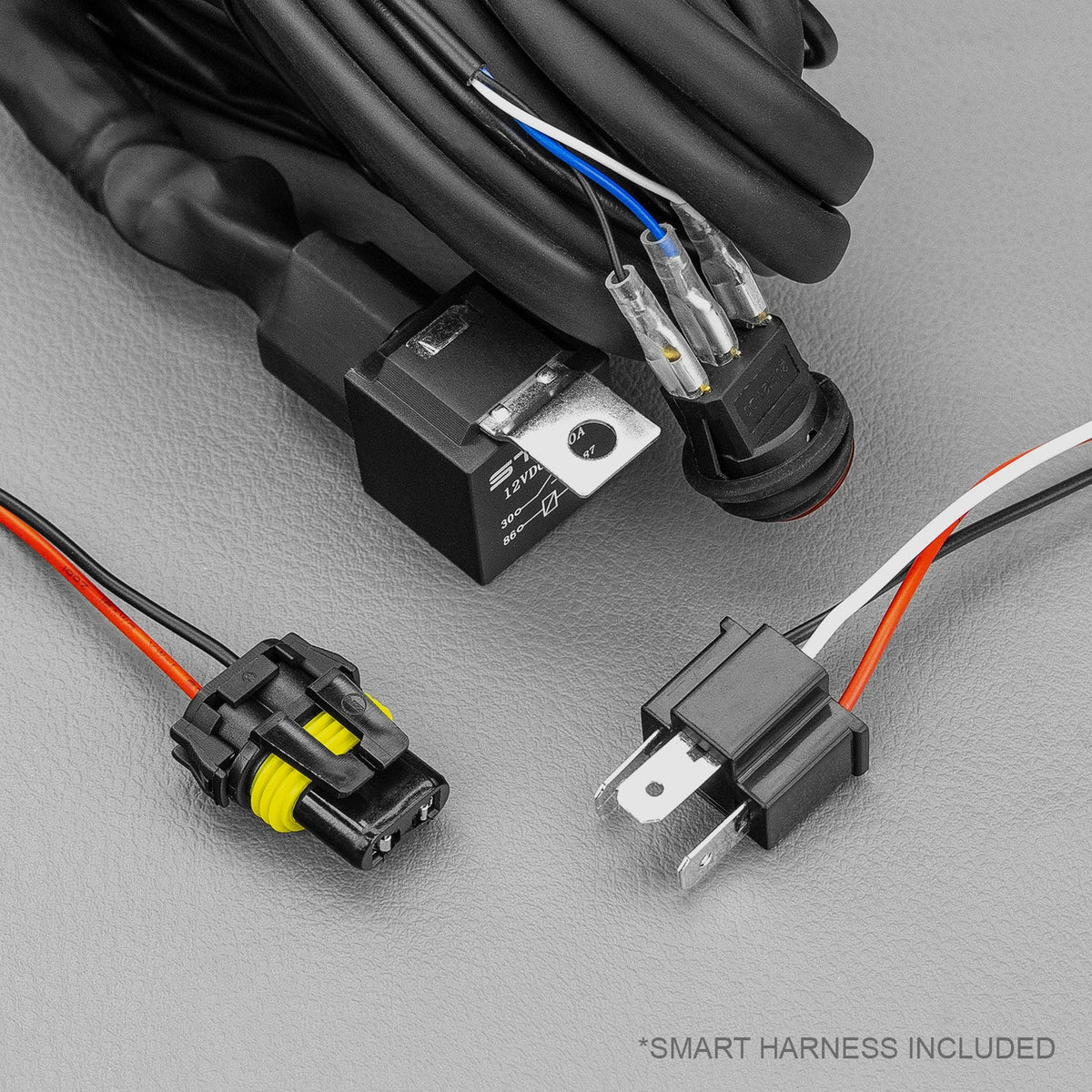

  • Wire in via the included harness with H4 & HB3 adapters for a safe, fused connection.
  • Route the Deutsch DTP-2 connector away from sharp edges and heat sources.

What's included

  • Light bar unit
  • Wiring harness with H4 & HB3 adapters
  • Stainless steel mounting brackets
  • Orange and grey end caps

Frequently asked questions

How bright is the 39" ST3303 Pro?

It's rated at 65,700 raw lumens (33,600 effective lumens) from 60 CREE XPL Hi-Intensity LEDs - the brightest bar in the ST3303 Pro double-row range.

What current draw should I wire for?

It draws 36.7A at 13.6V (up to 40A at 12.5V), so make sure your wiring, fuse and relay are rated accordingly - the supplied harness is sized for this.

Is it submersible?

Yes, IP68 rated and submersible to 3m.
