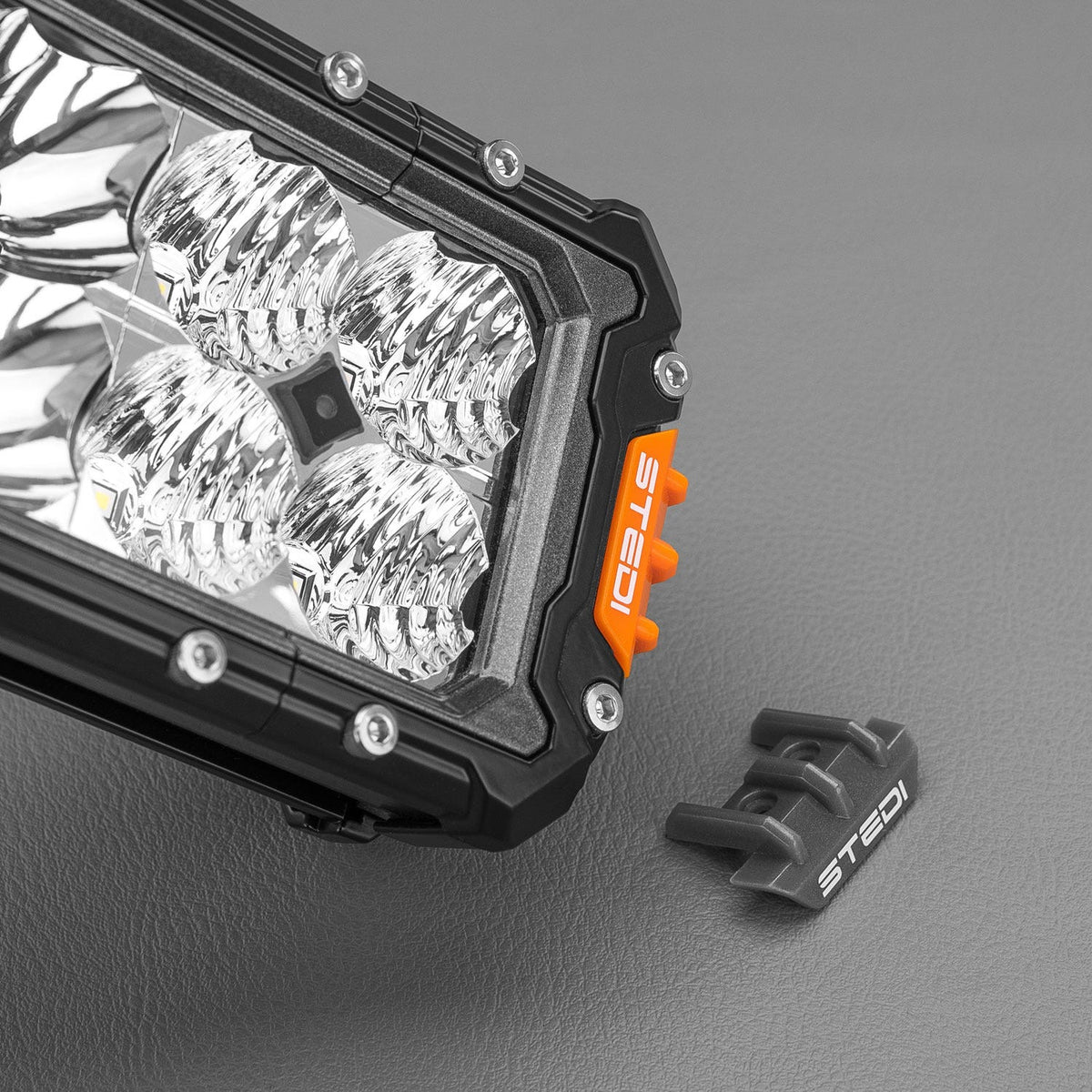

  • STEDI ST3303 Pro 28.2 inch LED bar rear view

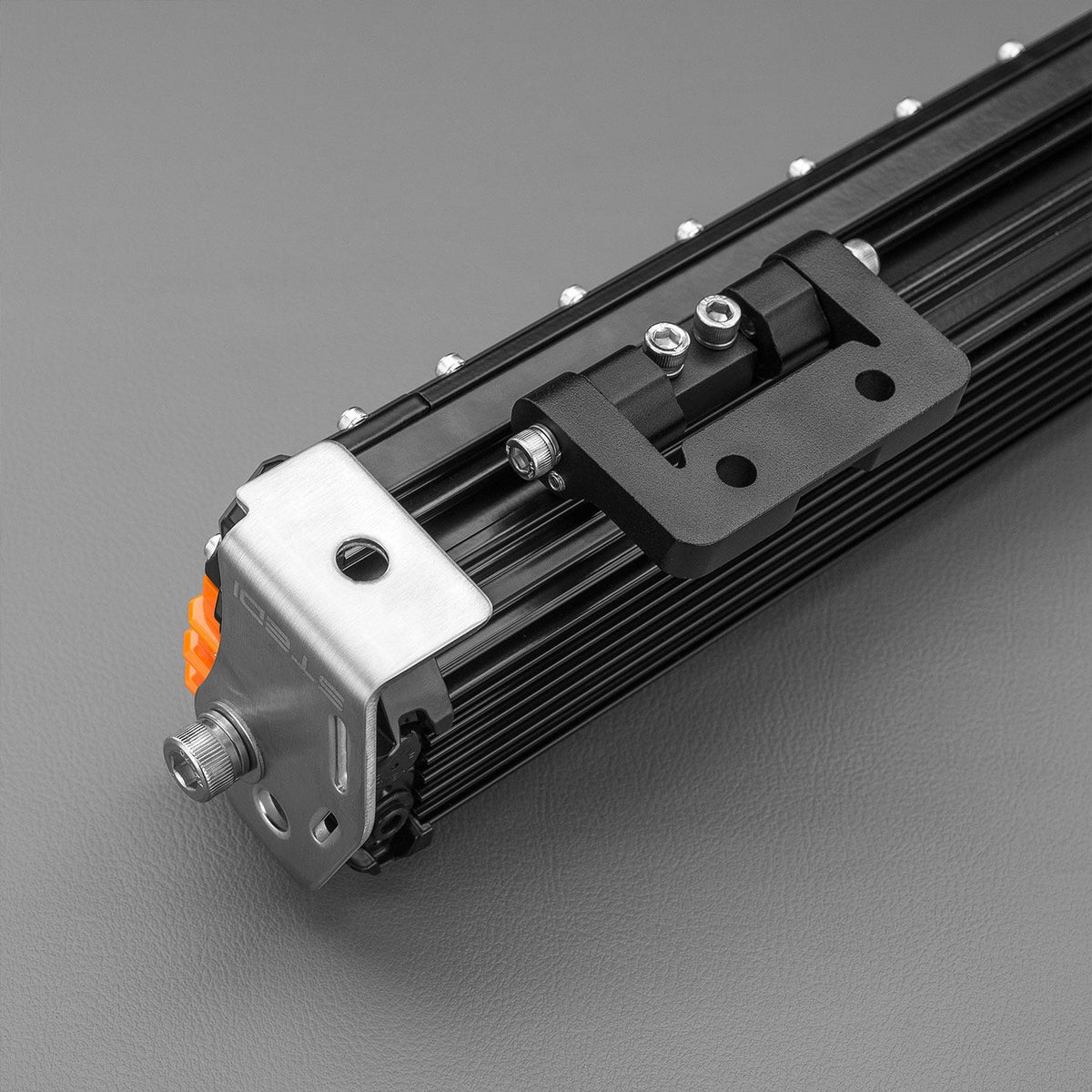

  • STEDI ST3303 Pro 28.2 inch LED bar angle view

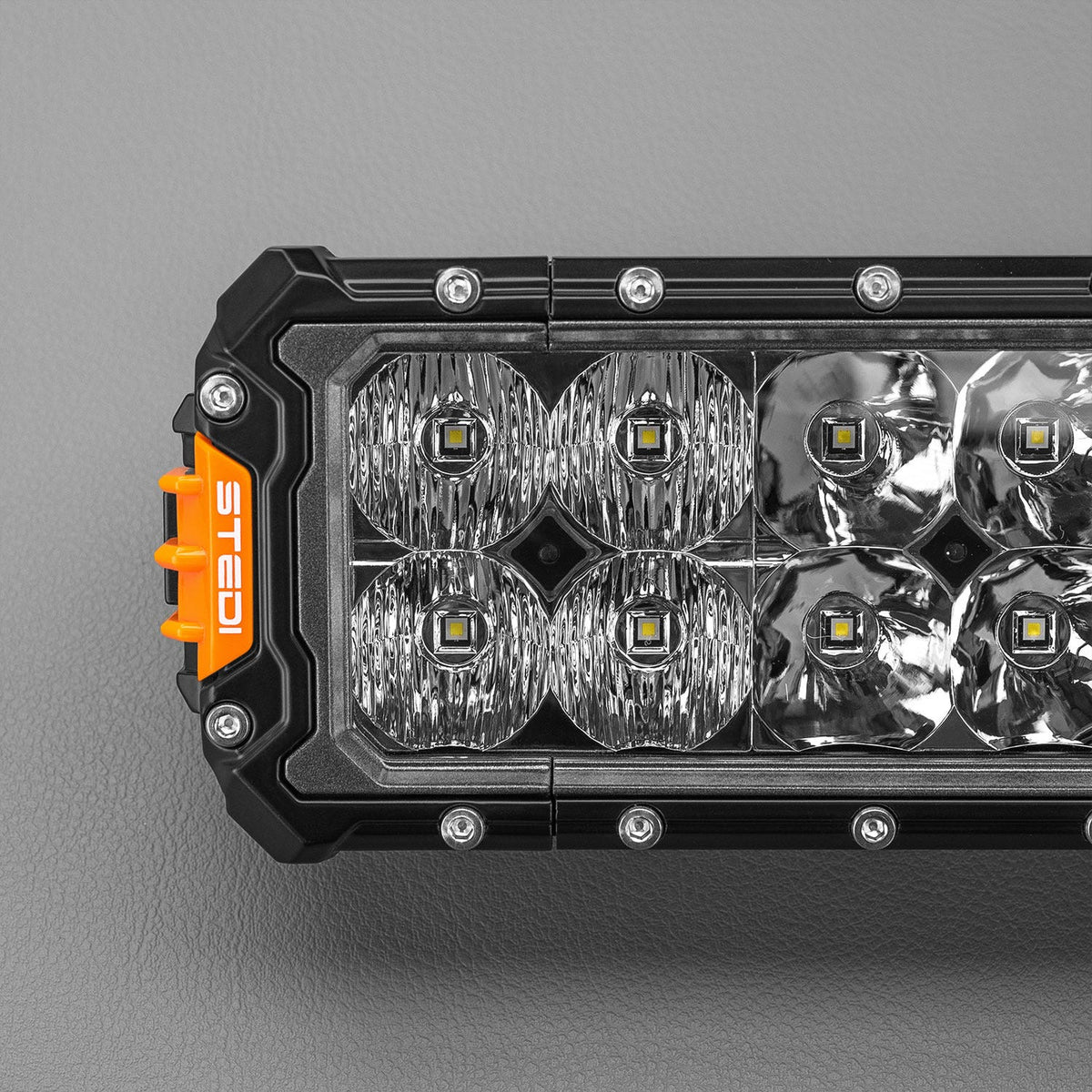

  • STEDI ST3303 Pro 28.2 inch LED bar side view

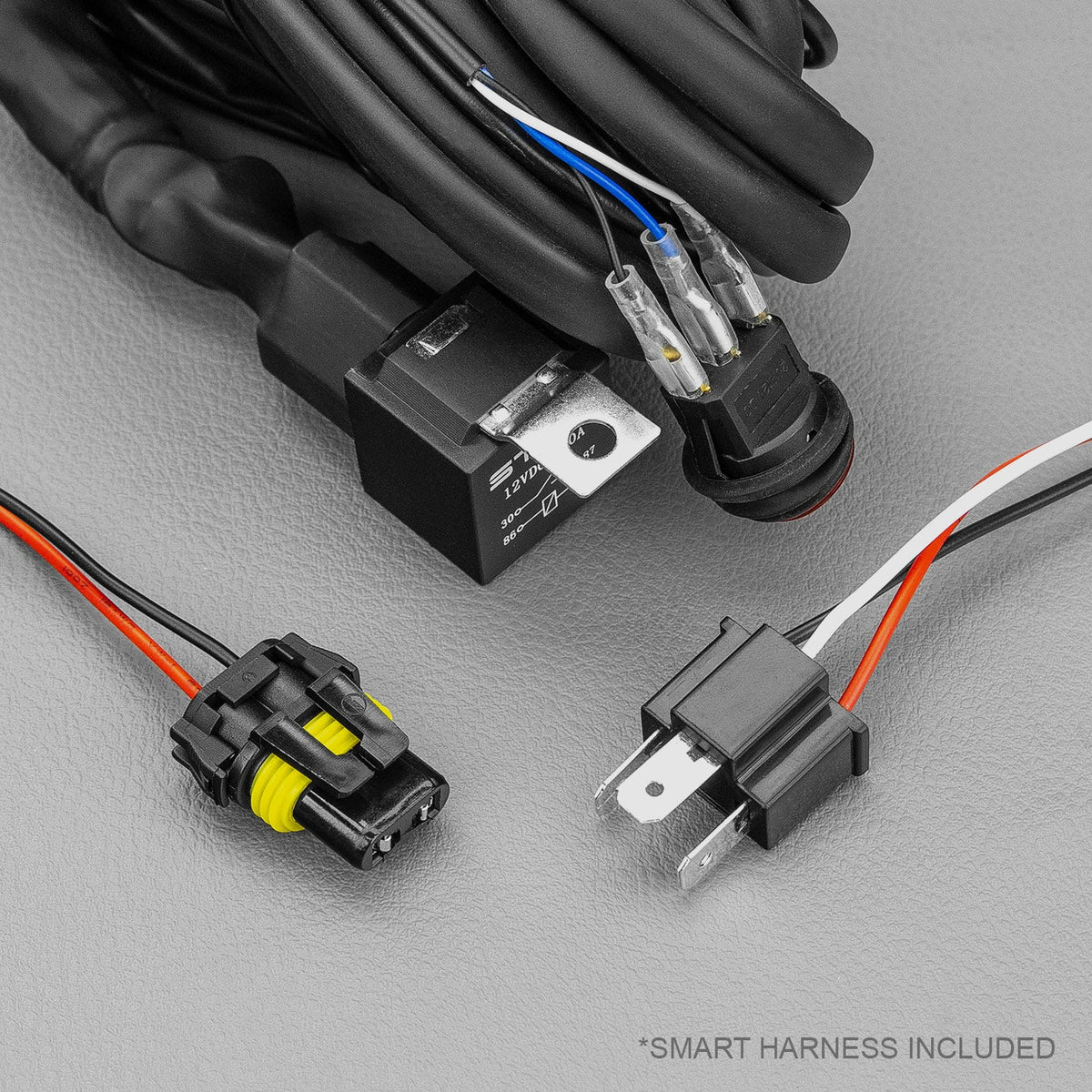

  • STEDI ST3303 Pro included wiring harness
1 6

Stedi

STEDI ST3303 Pro 28.2" Double Row Ultra High Output LED Bar

STEDI ST3303 Pro 28.2" Double Row Ultra High Output LED Bar

R 14,999.00
R 14,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

A high-output double-row light bar from STEDI's ST3303 Pro range, running 40 CREE XPL Hi-Intensity LEDs for 43,800 raw lumens (22,400 effective) in a combo flood/spot beam pattern - strong wide-area visibility combined with genuine long-range throw.

Backed by a 5-year warranty and built around an A360.0 cast aluminium housing with a hard-coated Lexan lens, it ships with a heavy-duty wiring harness sized for its 25.3A current draw.

Key Features

LED Brand/Count 40x CREE XPL Hi-Intensity
Raw Lumens 43,800 Lm
Effective Lumens 22,400 Lm
Peak Intensity 656,100 cd
Colour Temperature 5700K
Beam Pattern Flood 50° / Spot 9° (combo)
Voltage Range 9V - 32V
Current Draw 25.3A @ 13.6V
IP Rating IP68 (submersible to 3m)
Housing A360.0 cast face plate, extruded aluminium heat sink
Lens Optical-grade, hard-coated Lexan
Connector High-current Deutsch DTP-2 25A
Operating Temperature -38°F to +140°F
Lifespan 50,000 hours
Weight 4.96kg (10.93lbs)
Warranty 5 years

Highlights

  • Huge 43,800 raw lumen output for serious long-range and wide-area visibility
  • Combo beam (50° flood + 9° spot) covers both peripheral awareness and long throw
  • Heavy-duty dual relay, dual fused wiring harness rated for the high LED count
  • IP68 rated for water crossings, dust and vibration
  • 5-year warranty backing

Materials & care

Housing is A360.0 cast aluminium alloy with an extruded aluminium heat sink and hard-coated Lexan lens. Rinse off mud, salt and grime after off-road or coastal driving, and check the Deutsch DTP-2 connectors are seated and free of corrosion periodically.

Sizing & fit

28.2" double-row light bar, weighing 4.96kg. Mounts using the supplied 3 lower mounting brackets and 2 stainless steel side brackets.

Compatibility

Uses the ST3303 Pro platform - compatible with the STEDI ST3303 Pro Lightbar Covers (28.2" size), Color Caps and the ST3303 Pro Anti-Theft Kit (side brackets), sold separately.

How to use

  • Mount using the supplied lower or side brackets depending on your vehicle position.
  • Wire in via the included dual relay, dual fused harness with H4/HB3 adapters for a safe, fused connection.
  • Route the Deutsch DTP-2 connector away from sharp edges and heat sources.
  • Aim the beam to suit your use - lower for flood work, higher for long-range spot throw.

What's included

  • Light bar unit
  • Heavy-duty dual relay wiring harness with H4/HB3 adapters
  • 3x lower mounting brackets
  • 2x stainless steel side brackets
  • Orange and grey end caps

Frequently asked questions

How many lumens does the 28.2" ST3303 Pro put out?

It's rated at 43,800 raw lumens (22,400 effective lumens) from 40 CREE XPL Hi-Intensity LEDs.

Is this bar waterproof for water crossings?

Yes, it carries an IP68 rating and is submersible to 3m.

What's the beam pattern?

It's a combo pattern - a 50° flood spread combined with a focused 9° spot throw - for both wide-area visibility and long-range distance.
