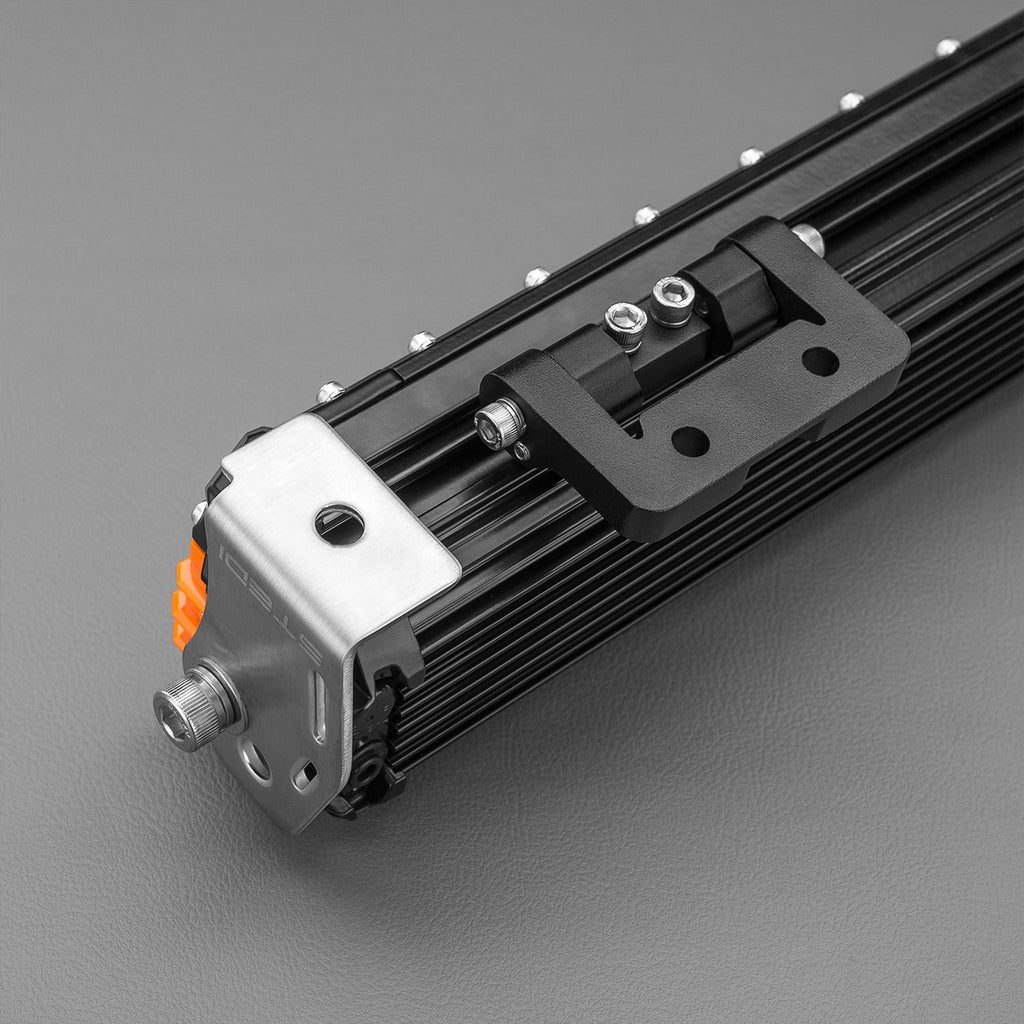

• STEDI ST3303 Pro 23.3 inch Full Flood LED Bar

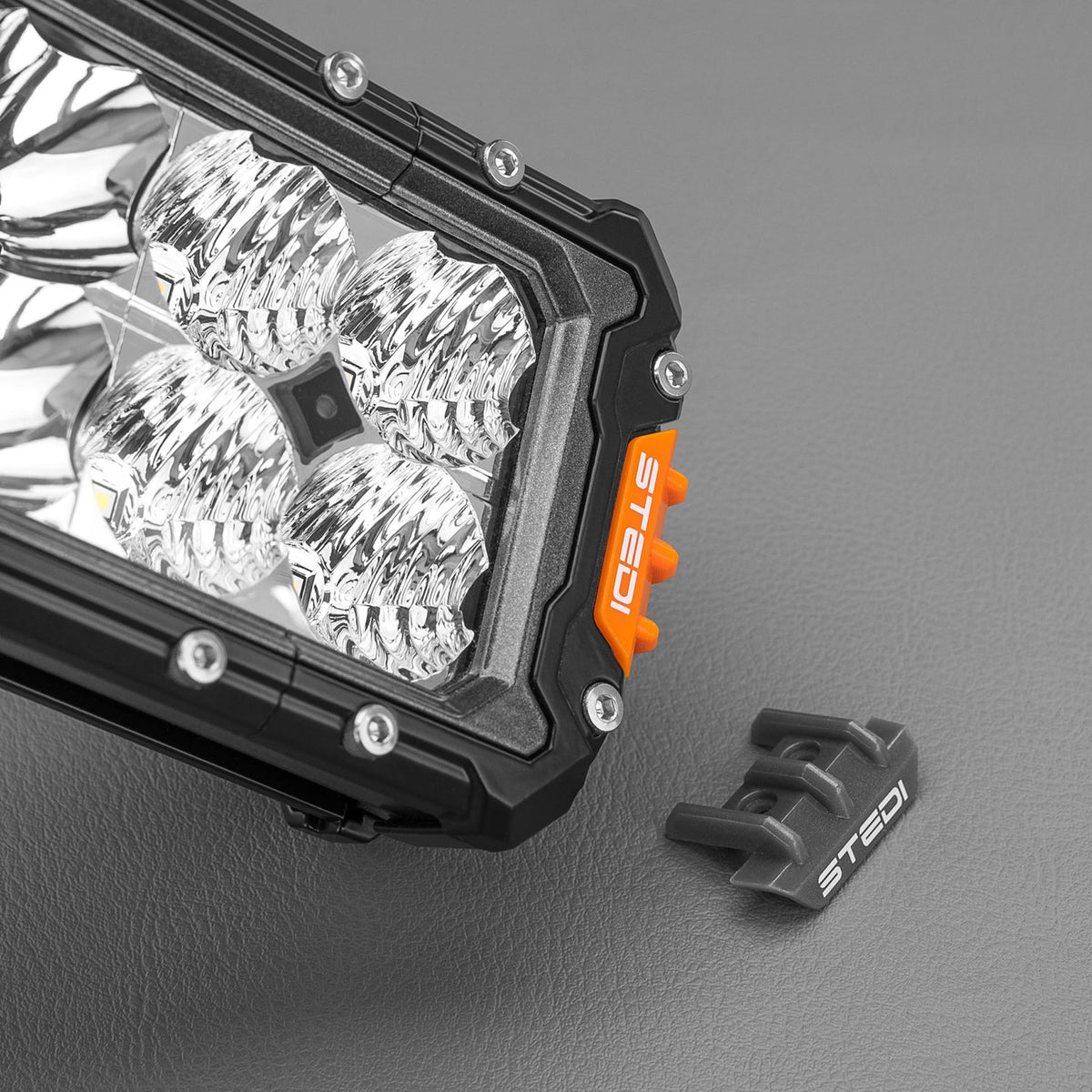

  • STEDI ST3303 Pro 23.3" Full Flood LED Bar

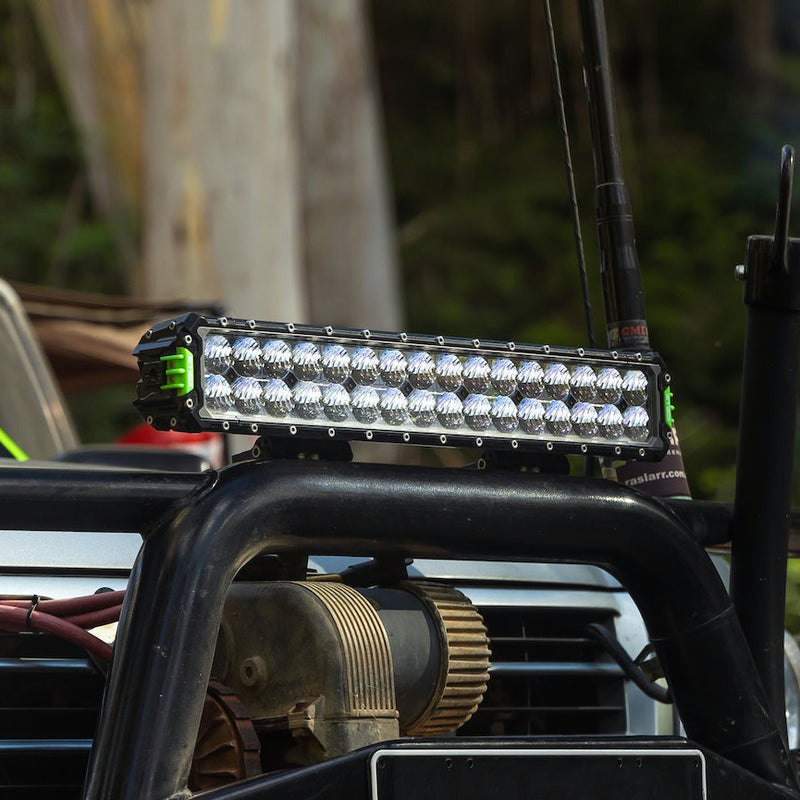

  • STEDI ST3303 Pro 23.3 inch Full Flood bar fitted

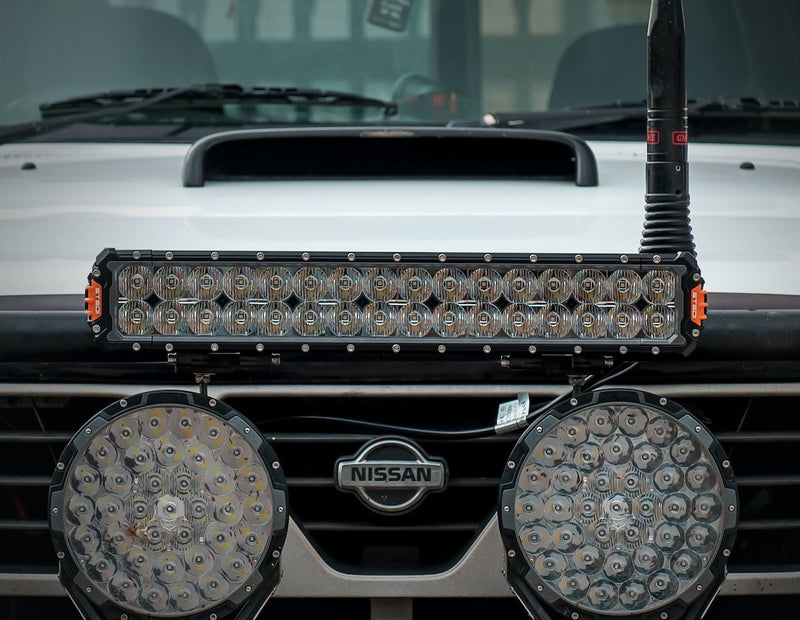

  • STEDI ST3303 Pro 23.3 inch Full Flood bar

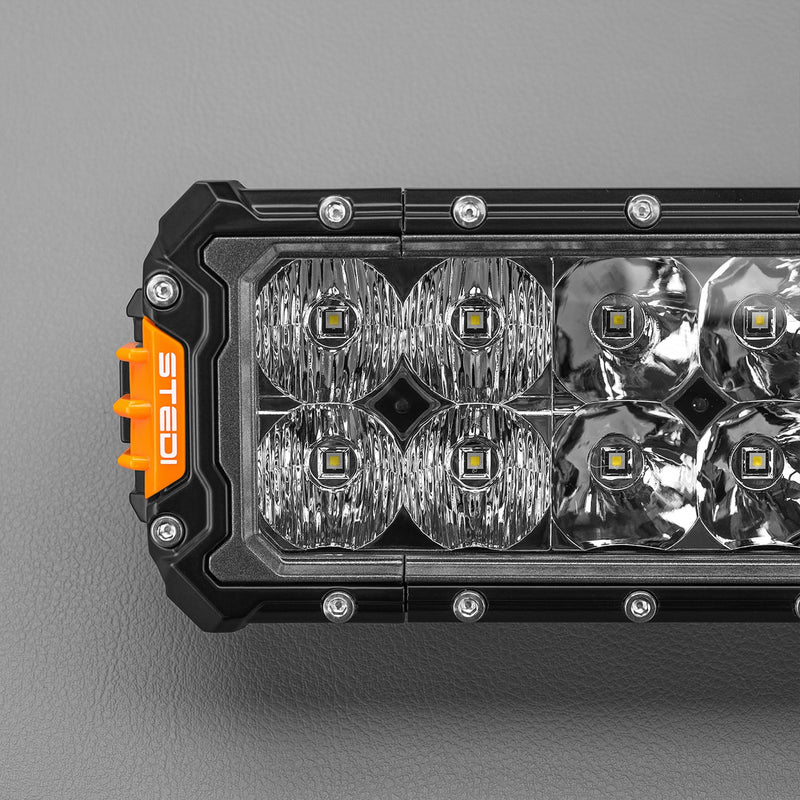

  • STEDI ST3303 Pro 23.3 inch Full Flood bar side view

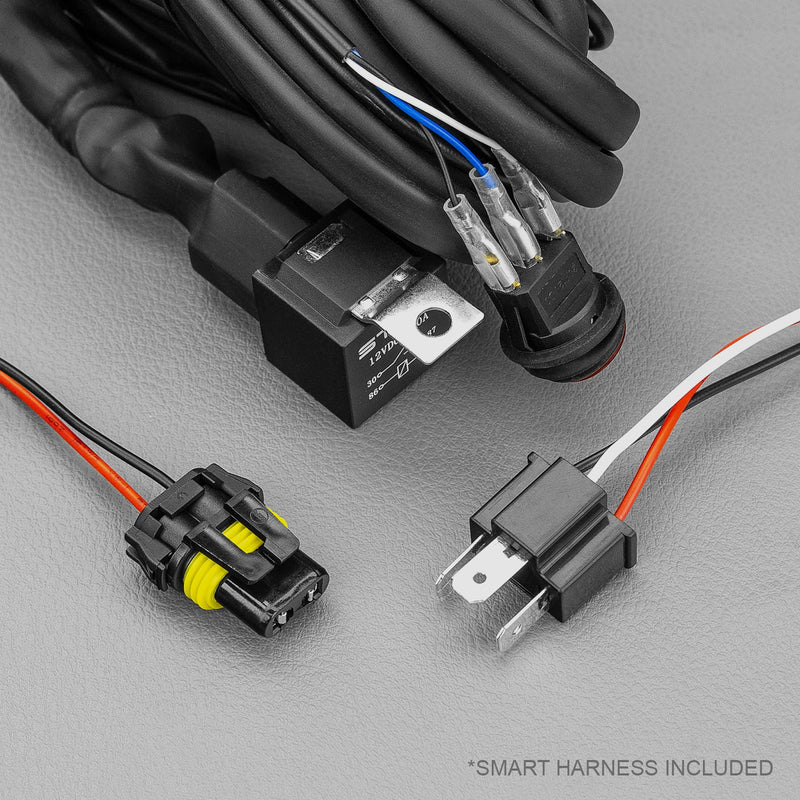

  • STEDI ST3303 Pro included wiring harness
1 6

Stedi

STEDI ST3303 Pro 23.3" Full Flood LED Bar

STEDI ST3303 Pro 23.3" Full Flood LED Bar

R 11,999.00
R 11,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The full-flood version of the ST3303 Pro 23.3" double-row light bar. All 32 CREE XPL Hi LEDs use flood reflectors rather than a combo mix, delivering 35,040 raw lumens (17,920 effective) spread wide for maximum area coverage.

It's well suited to camp, worksite or close-quarters off-road lighting where even, wide coverage matters more than long-range throw.

Key Features

LED Brand/Count CREE XPL Hi, 32 LEDs
Raw Lumens 35,040 Lm
Effective Lumens 17,920 Lm
Peak Intensity 474,721 cd
Beam Pattern Full Flood, 50°
Voltage Range 9V - 32V
Current Draw 16.7A @ 13.6V
IP Rating IP68 (submersible to 3m)
Housing A360.0 cast face plate, extruded aluminium heat sink
Lens Optical-grade, hard-coated Lexan
Connector High-current Deutsch DTP-2 25A
Operating Temperature -40°C to +150°C
Lifespan 50,000 hours
Weight 2.85kg

Highlights

  • All-flood reflector layout across all 32 LEDs for maximum wide-area coverage
  • Ideal for camp lighting, worksite lighting or close-quarters off-road driving
  • IP68 rated for dust, rain and water crossings
  • Same rugged A360.0 cast housing and Lexan lens as the rest of the ST3303 Pro range
  • Wiring harness with H4/HB3 adapters included for straightforward installation

Materials & care

A360.0 cast aluminium alloy housing with an extruded aluminium heat sink and hard-coated Lexan lens. Rinse off mud and salt after off-road or coastal use and check the Deutsch connector periodically for corrosion.

Sizing & fit

23.3" double-row light bar, 2.85kg. Mounts via the supplied lower mounting brackets and 4mm stainless steel side brackets.

Compatibility

Uses the ST3303 Pro platform - compatible with the STEDI ST3303 Pro Lightbar Covers (23.3" size), Color Caps and the ST3303 Pro Anti-Theft Kit (side brackets), sold separately. Note this is the full-flood variant - for a combo flood/spot beam in the same 23.3" length, see the standard ST3303 Pro 23.3" bar.

How to use

  • Mount using the supplied lower or side brackets depending on your vehicle position.
  • Wire in via the included harness with H4 & HB3 adapters.
  • Best suited to close-range, wide-area lighting - camp setup, reversing/worksite visibility or tight technical trails rather than long-range highway throw.
  • Route the Deutsch DTP-2 connector away from sharp edges and heat sources.

What's included

  • Light bar unit
  • Wiring harness with H4 & HB3 adapters
  • 2x lower mounting brackets with stainless steel fasteners
  • 2x 4mm stainless steel side brackets
  • Orange and grey end caps

Frequently asked questions

What's different about the "Full Flood" version?

All 32 LEDs use flood reflectors rather than a mix of flood and spot, giving maximum wide-area coverage at the expense of long-range throw - it's built for close-quarters and area lighting rather than distance.

How bright is it?

35,040 raw lumens (17,920 effective lumens) at 16.7A @ 13.6V.

What's it best used for?

Camp lighting, worksite illumination, reversing visibility or technical low-speed trail driving where wide, even coverage matters more than long-range throw.
