STEDI ST3301 Pro 4.6" 2 LED Work Light
STEDI ST3301 Pro 4.6" 2 LED Work Light
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

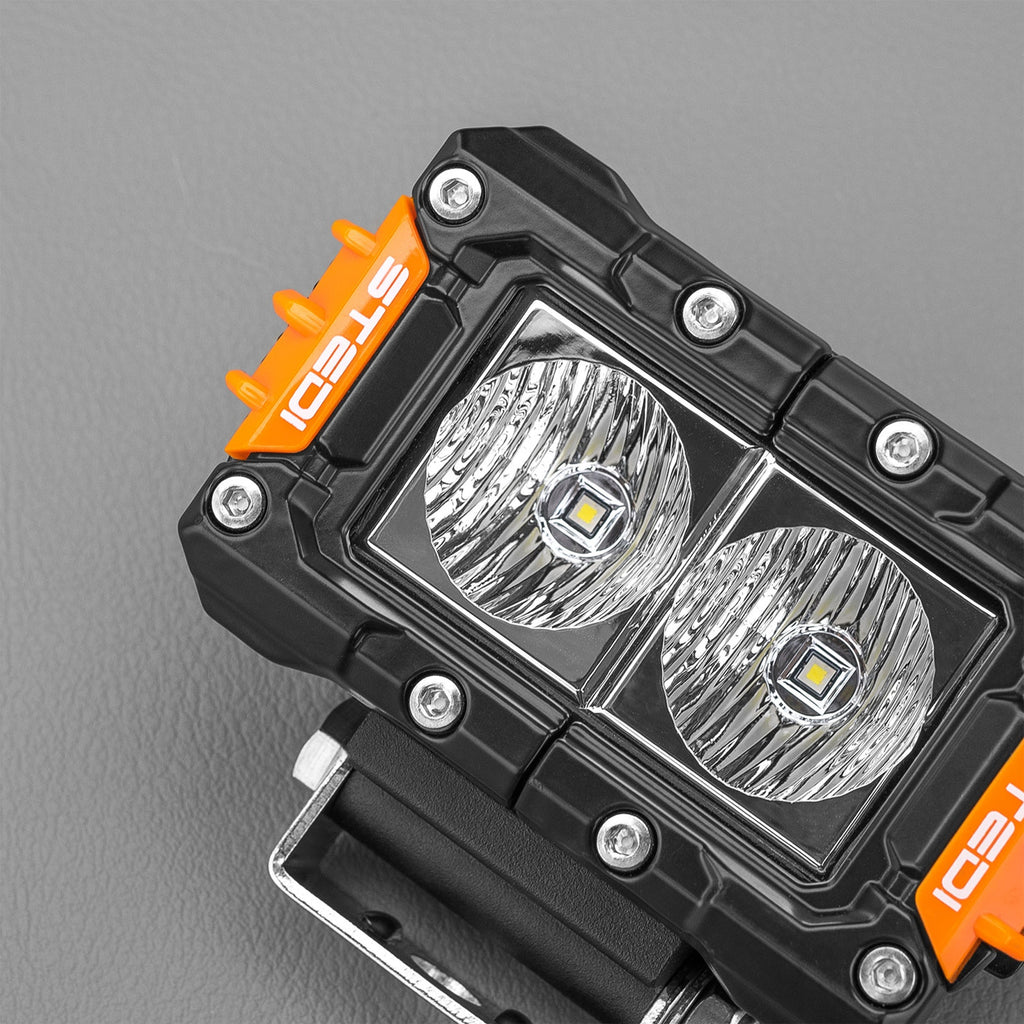

A compact 4.6" work light on the ST3301 Pro platform, built around 2 OSRAM LEDs producing a wide 45° flood beam for close-to-mid range illumination - useful for roadside wildlife detection or as a general auxiliary work light.
Die-cast aluminium housing with a GE Lexan lens and an IP68 rating make it suitable for permanent off-road mounting in dust and water crossings.
Key Features
| Brand | STEDI |
| Model | ST3301 Pro 4.6" 2 LED |
| Lumens (raw) | 1,720 Lm |
| LED Count/Type | 2 x OSRAM |
| Beam Pattern | Flood, 45° half-width beam angle |
| Colour Temperature | 5600K |
| Operating Voltage | 10-45V DC |
| Current Draw | 1.4A @ 13.6V |
| IP Rating | IP68 |
| Weight | 600g |
| Material | Die-cast aluminium housing, GE Lexan lens |
| Mounting | Sliding brackets + stainless steel sides |
Highlights
- Compact size suits tight mounting spots such as bull bar wings or roof rack corners
- Wide flood beam for close-to-mid range work and area lighting
- IP68 rated for reliable operation in dust, rain and water crossings
- Roadside wildlife detection at moderate speed
- General auxiliary work light for camp, trailer or workshop use
Materials & care
Die-cast aluminium housing with a GE Lexan polycarbonate lens. Rinse off mud and salt after off-road or coastal driving; the IP68 rating protects against dust and temporary water submersion, not high-pressure jet washing directly at seals.
Sizing & fit

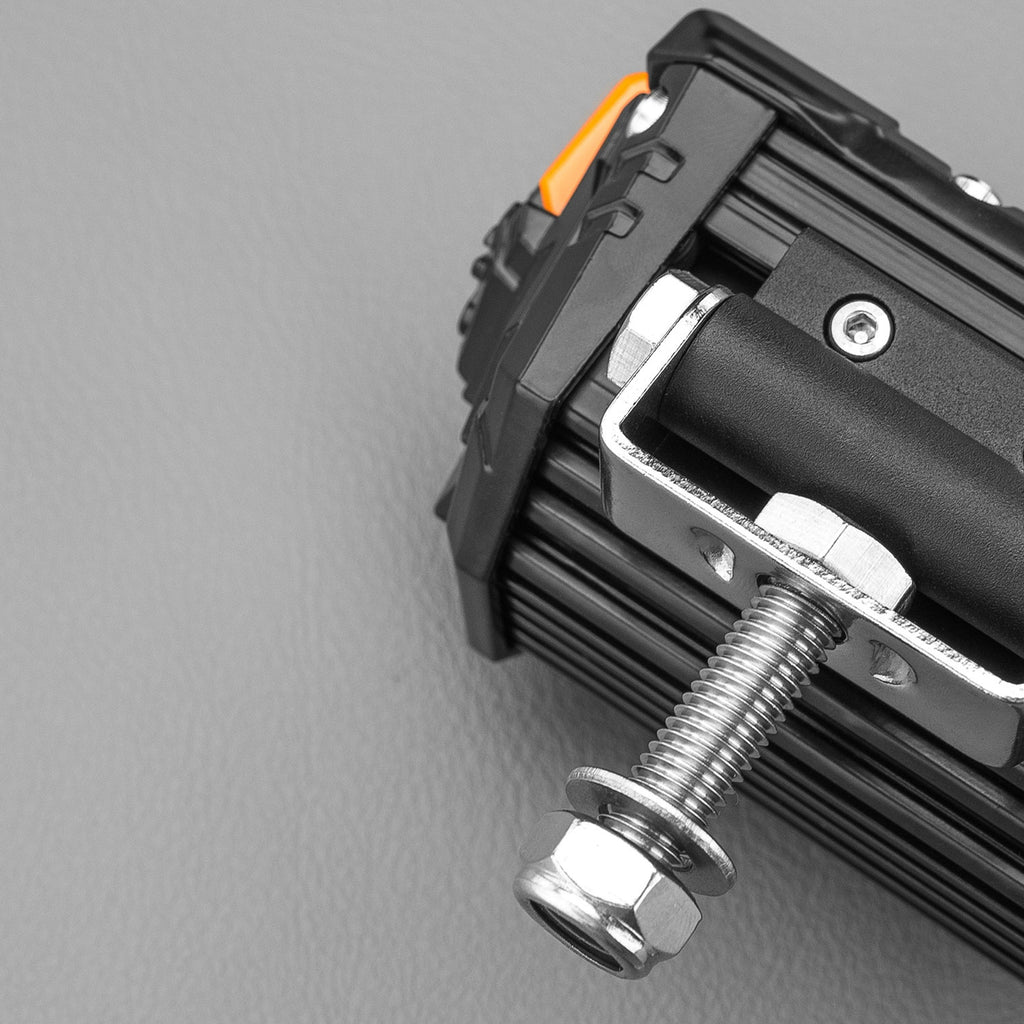

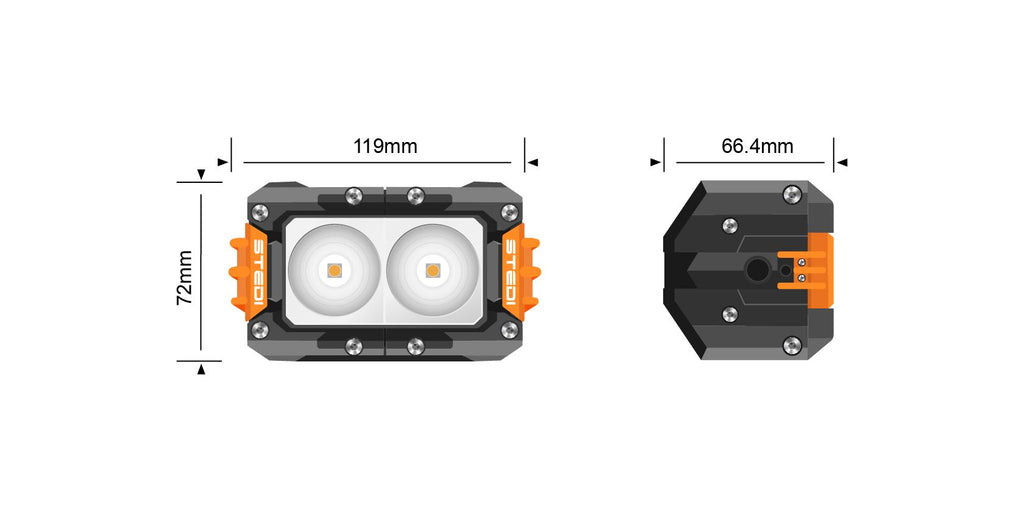

Compact 4.6" work light, 600g. Mounts via sliding brackets with stainless steel side hardware - suited to smaller mounting locations where a full-length light bar won't fit.
Compatibility
Part of the STEDI ST3301 Pro platform; HB3/H4 piggy-back adapters are included for wiring into an existing headlight circuit, alongside the supplied relay harness for a dedicated switched circuit.
How to use
- Mount the light using the supplied sliding brackets and stainless steel side hardware at your chosen location.
- Wire in the supplied relay harness with switch for a dedicated, fused circuit, or use the HB3/H4 adapters to tap into an existing headlight connector.
- Aim the beam slightly downward to avoid dazzling oncoming traffic when used on public roads.
- Check mounting bolts periodically for tightness after corrugated or rough terrain driving.
What's included
- 1 x ST3301 Pro 4.6" work light

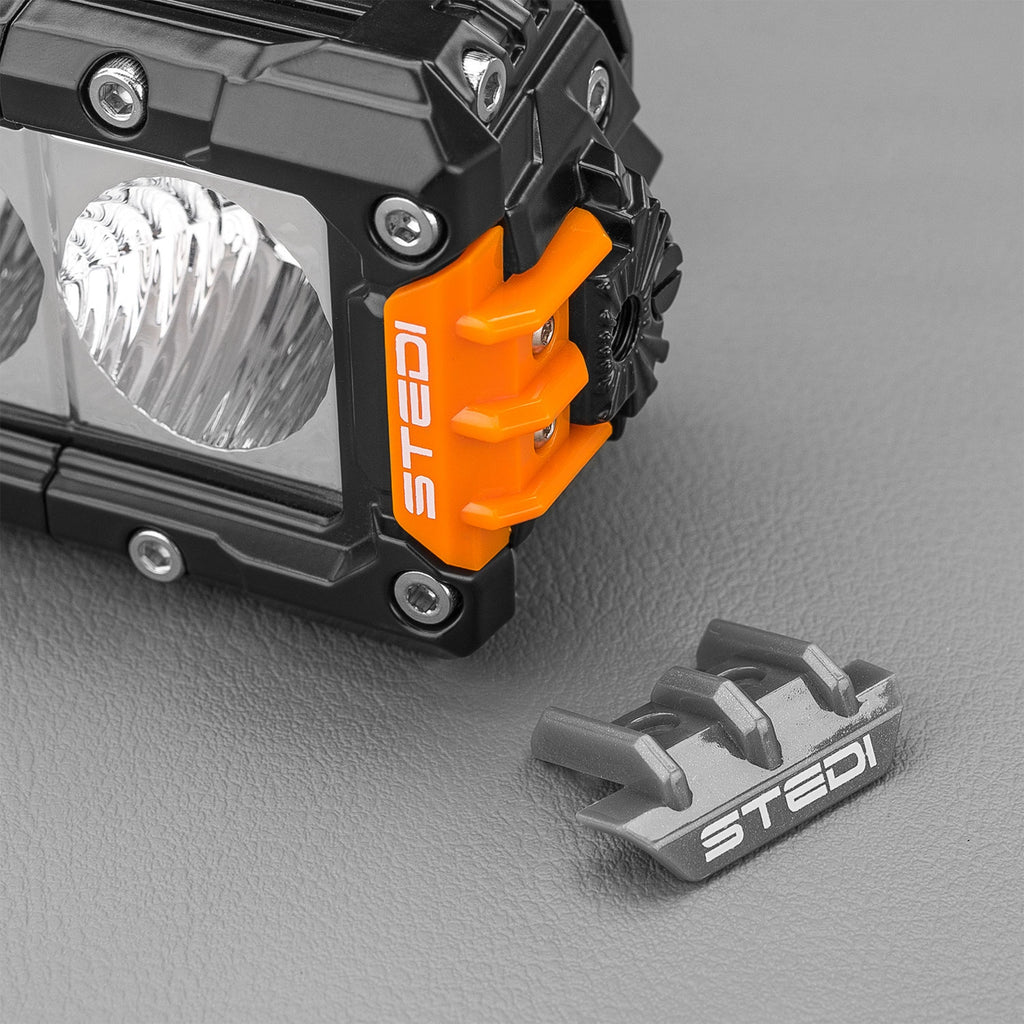

- 2 x grey side caps
- 2 x orange side caps
- Stainless steel fasteners
- Aluminium U-mounting brackets
- Male and female Deutsch connectors
