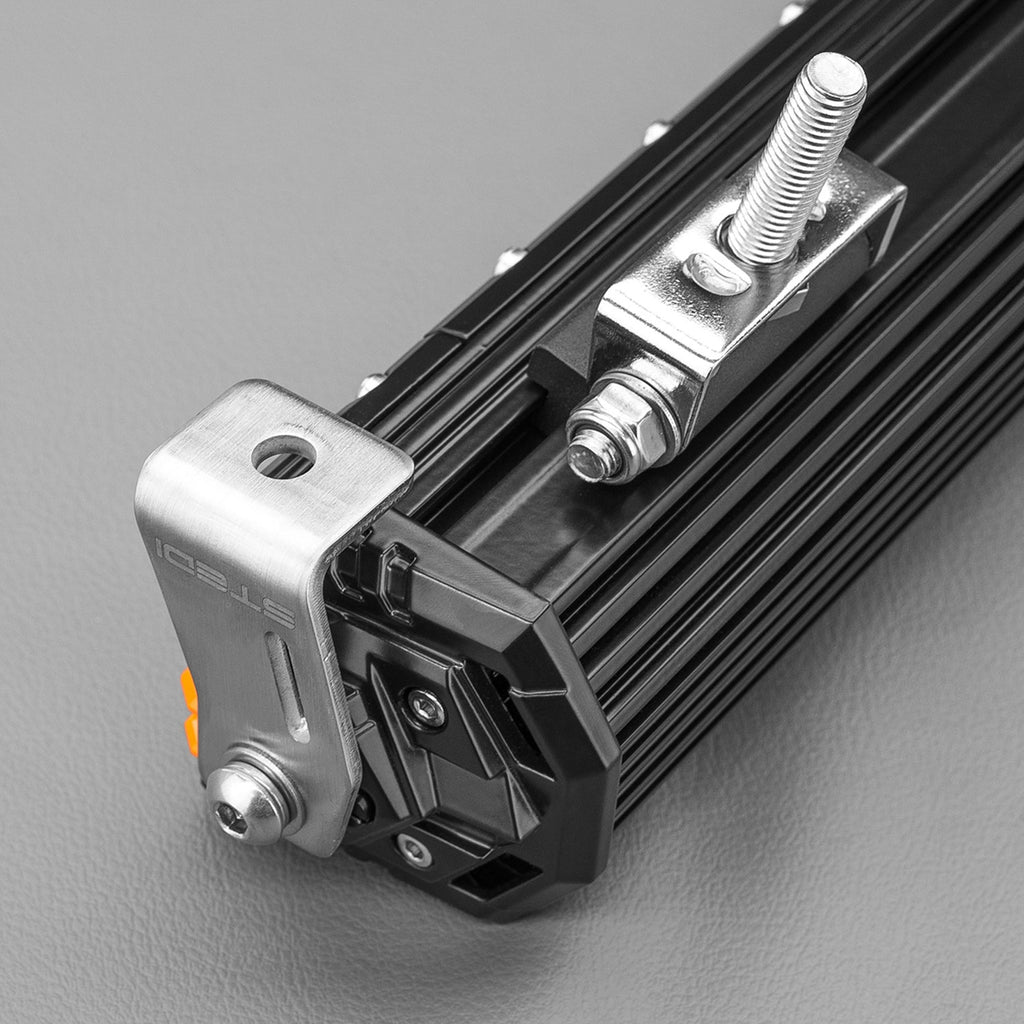

  • STEDI ST3301 Pro 27.5 inch Light Bar front view

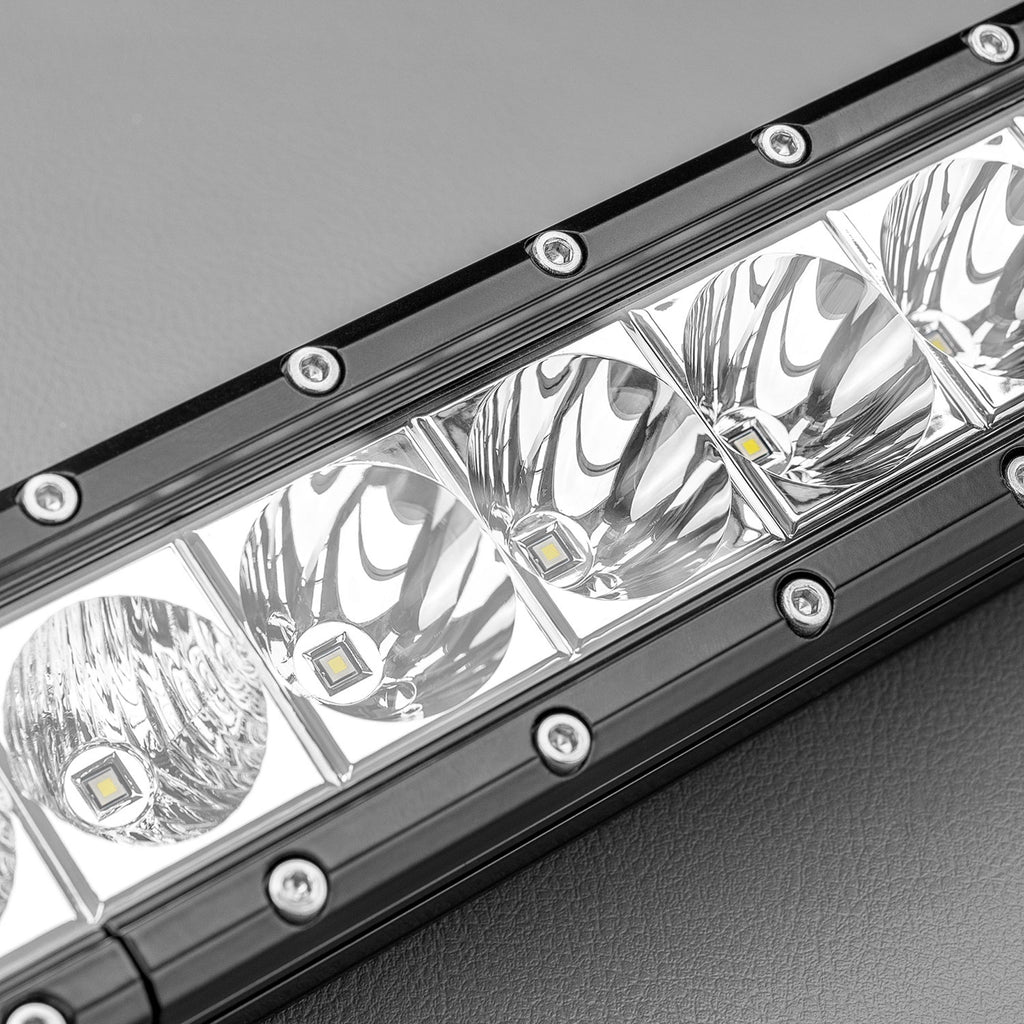

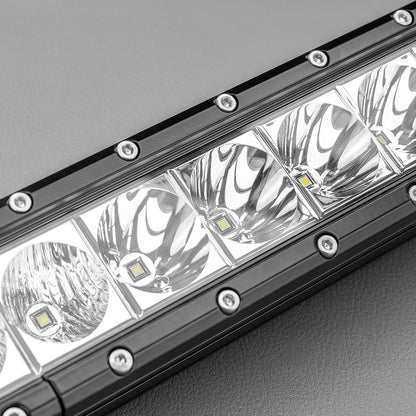

  • STEDI ST3301 Pro 27.5 inch Light Bar mounted

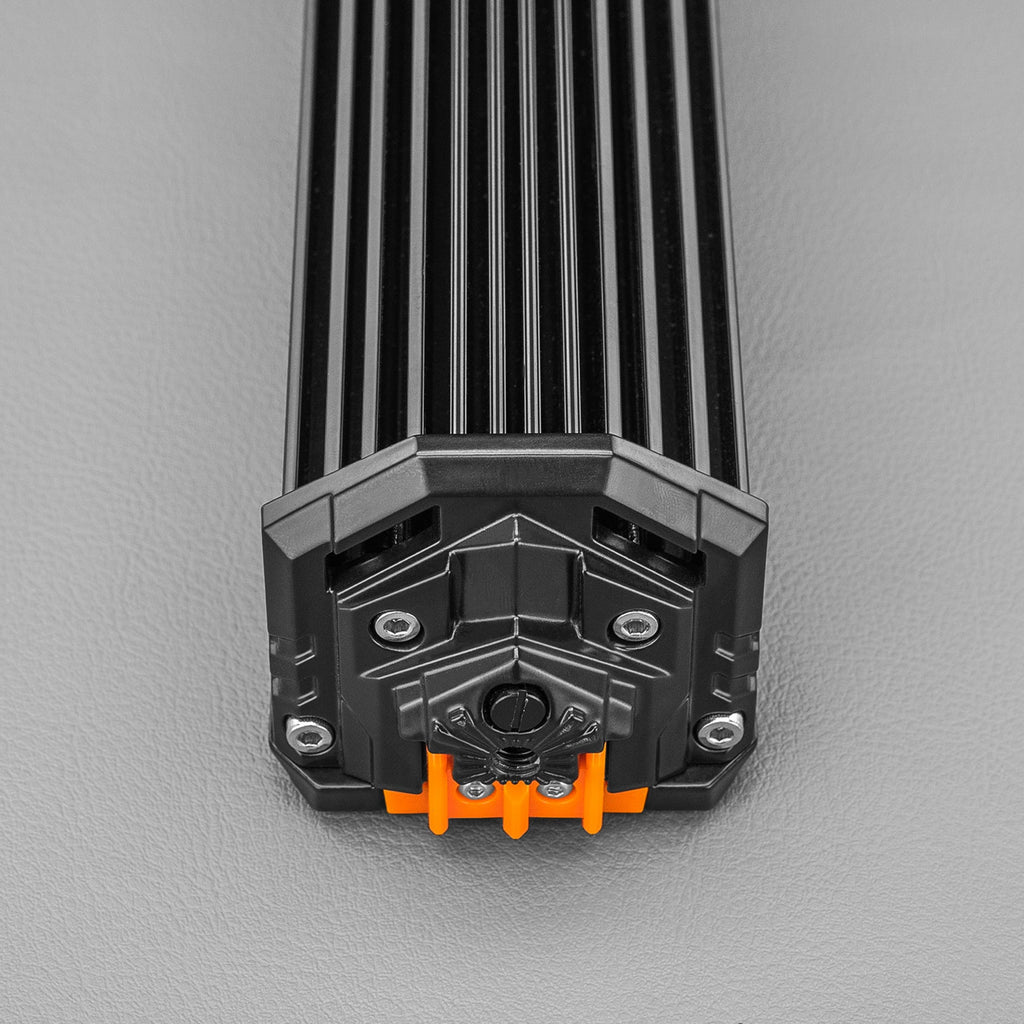

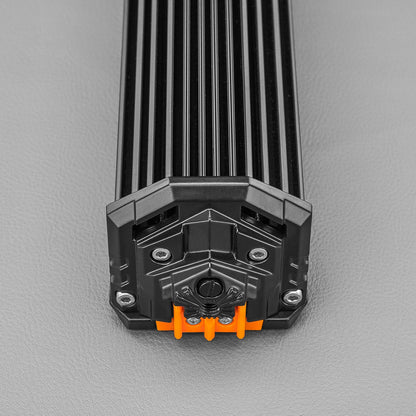

  • STEDI ST3301 Pro 27.5 inch Light Bar beam pattern

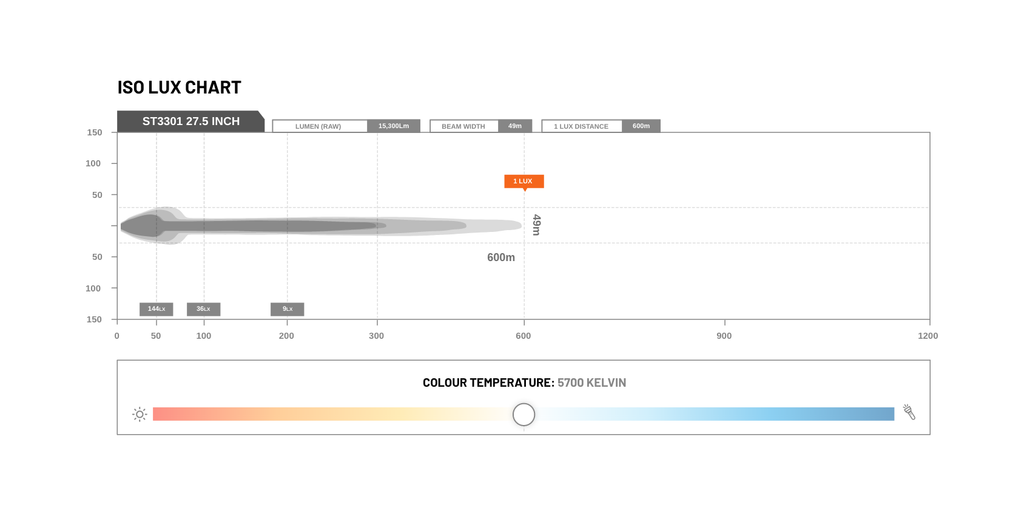

  • STEDI ST3301 Pro 27.5 inch Light Bar dimensions
1 5

Stedi

STEDI ST3301 Pro 27.5" 18 LED Light Bar

STEDI ST3301 Pro 27.5" 18 LED Light Bar

R 8,999.00
R 8,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

A mid-range light bar on the ST3301 Pro platform, running 18 OSRAM LEDs with a combo flood/spot beam pattern (4 Flood + 10 Spot + 4 Flood, 45°/11°) for wide illumination with strong brightness in the focal area - well suited to roadside wildlife detection and mid-to-long range coverage.

Die-cast aluminium construction with a GE Lexan lens and an IP68 rating stand up to dust, water crossings and corrugated roads, backed by STEDI's 5-year warranty.

Key Features

Brand STEDI
Model ST3301 Pro 27.5" 18 LED
Lumens 15,300 raw / 8,250 effective
Peak Intensity 360,000 candela
LED Count/Type 18 x OSRAM
Beam Pattern 4 Flood + 10 Spot + 4 Flood reflector distribution (45°/11°)
Beam Distance Up to 600m @ 1 Lux
Colour Temperature 5700K
Operating Voltage 10-45V DC
Current Draw 11.8A @ 13.6V
IP Rating IP68
Weight 2.8kg
Material Die-cast aluminium housing, GE Lexan lens
Mounting Aluminium sliding mounts with side brackets
Warranty 5 years, plus 30-day money-back guarantee

Highlights

  • Long 600m beam distance for early hazard and wildlife detection at speed
  • Combo flood/spot beam balances wide coverage with a bright, far-reaching spot
  • IP68 rating for dust and water crossing reliability
  • Popular longer-length size for bull bars, roof racks and canopy mounts
  • Backed by a 5-year manufacturer warranty and 30-day money-back guarantee

Materials & care

Die-cast aluminium housing with a GE Lexan polycarbonate lens. Rinse off mud, salt and dust after off-road or coastal trips to protect the housing finish and seals over time.

Sizing & fit

27.5" light bar, 2.8kg. Mounts via aluminium sliding mounts with side brackets, suiting bull bars, nudge bars and roof racks with tube or flat mounting points.

Compatibility

Part of the STEDI ST3301 Pro single-row platform. Compatible with the 27.5" STEDI ST3301 Pro Lightbar Cover and ST3303/ST3301 Pro Color Caps, and the STEDI Anti-Theft kit for ST3301 Pro / ST4K / ST-X lightbars.

How to use

  • Mount the light bar using the supplied aluminium sliding mounts and stainless steel hardware.
  • Wire in the supplied 12V relay harness with switch for a dedicated, fused circuit, or use the HB3/H4 piggy-back adapters.
  • Aim the beam so the spot section covers your intended focal distance and the flood sections light the immediate foreground.
  • Fit a compliant cover if driving on public roads where forward-facing auxiliary lighting is regulated.

What's included

  • 1 x ST3301 Pro 27.5" light bar
  • Stainless steel bolt/nut set
  • Aluminium sliding mounts with side brackets
  • 12V relay wiring harness with switch
  • 4 interchangeable side caps (orange and grey)
  • HB3 and H4 piggy-back adapters

Frequently asked questions

How far does this light bar throw?

It has a rated beam distance of up to 600m at the 1 Lux mark, with a peak intensity of 360,000 candela.

What is the warranty period?

This light bar is covered by STEDI's 5-year manufacturer warranty, plus a 30-day money-back guarantee.

What comes in the box?

The light bar ships with stainless steel hardware, aluminium sliding mounts with side brackets, a 12V relay wiring harness with switch, interchangeable orange and grey side caps, and HB3/H4 piggy-back adapters.
