STEDI ST1K 21.5" E-Mark LED Light Bar
STEDI ST1K 21.5" E-Mark LED Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

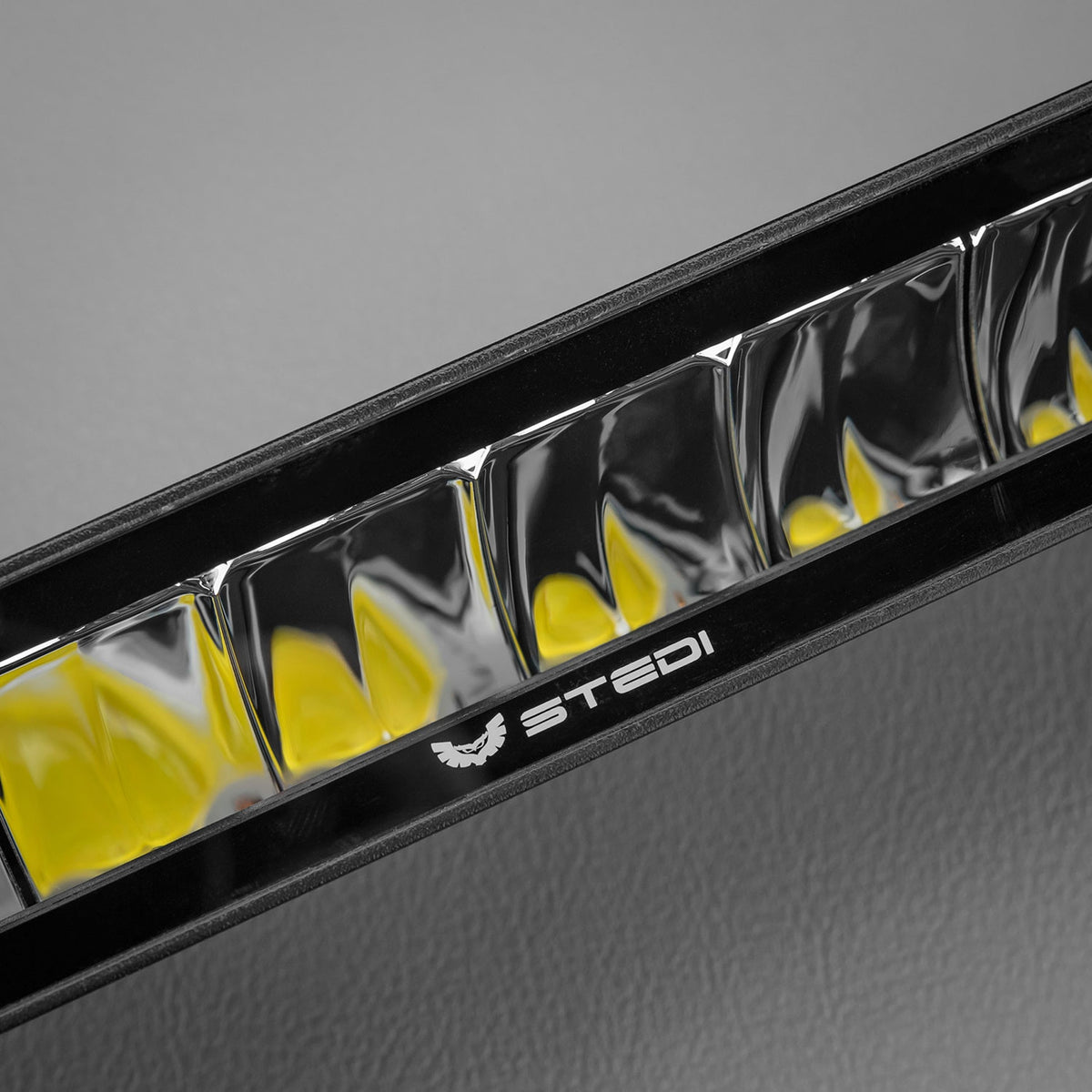

The STEDI ST1K 21.5" E-Mark LED Light Bar is a full-size, road-legal driving light bar carrying ECE E-mark certification, giving strong forward light output while remaining legal for on-road use. Its wide-horizontal beam and hooded reflector design fills the road shoulders with light while minimising glare off road signs and wasted light on treetops.
Built to STEDI’s IP68 waterproof standard with sealed Deutsch DT-2 connectors, it includes RFI/EMI suppression, reverse polarity protection and built-in voltage surge protection for a reliable install.
Key Features
| Brand | STEDI |
| Model | ST1K |
| Length | 21.5" |
| LEDs | 20 x 5W OSRAM |
| Raw Lumens | 5,920lm |
| Peak Intensity | 219,792cd |
| Voltage | 9V - 32V |
| Amp Draw | 8.0A @ 13.6V |
| Beam Pattern | Wide-horizontal, mid-field distribution |
| IP Rating | IP68 (submersible to 3m) |

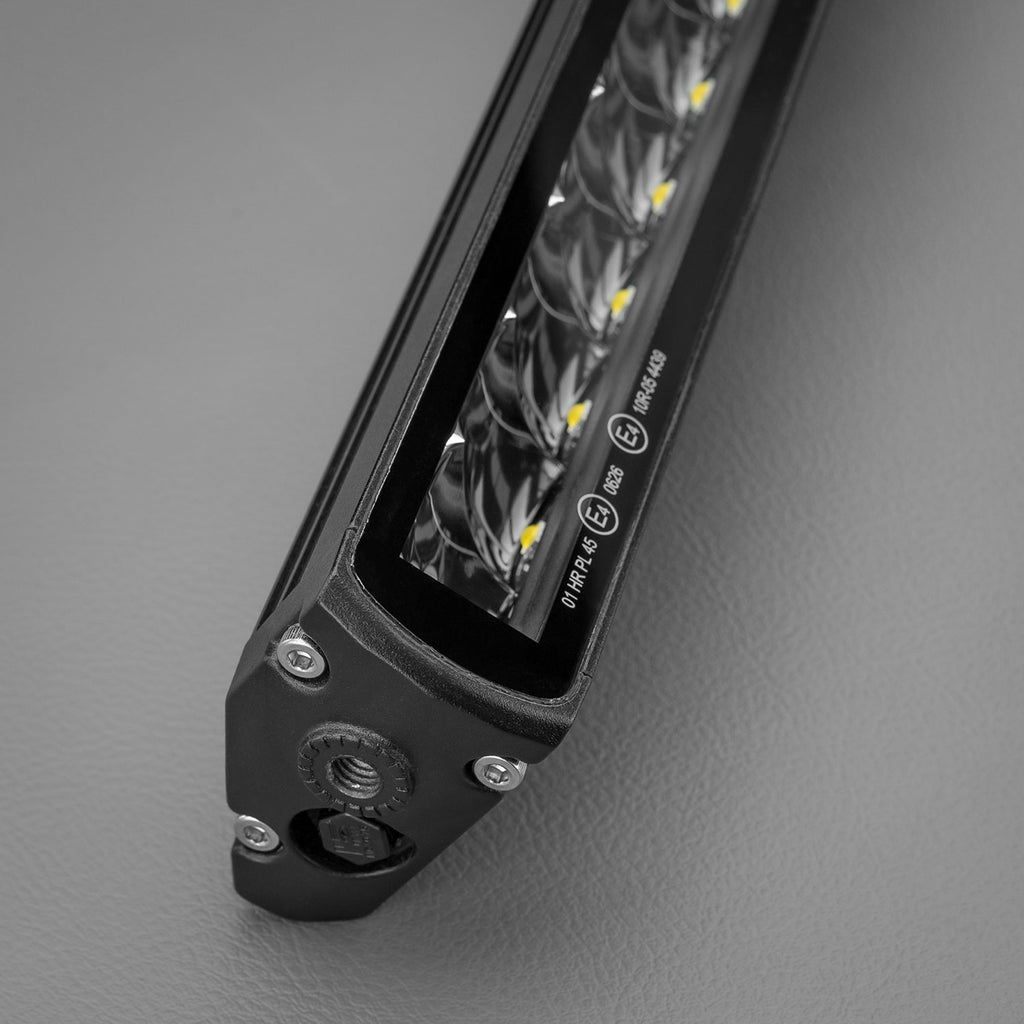

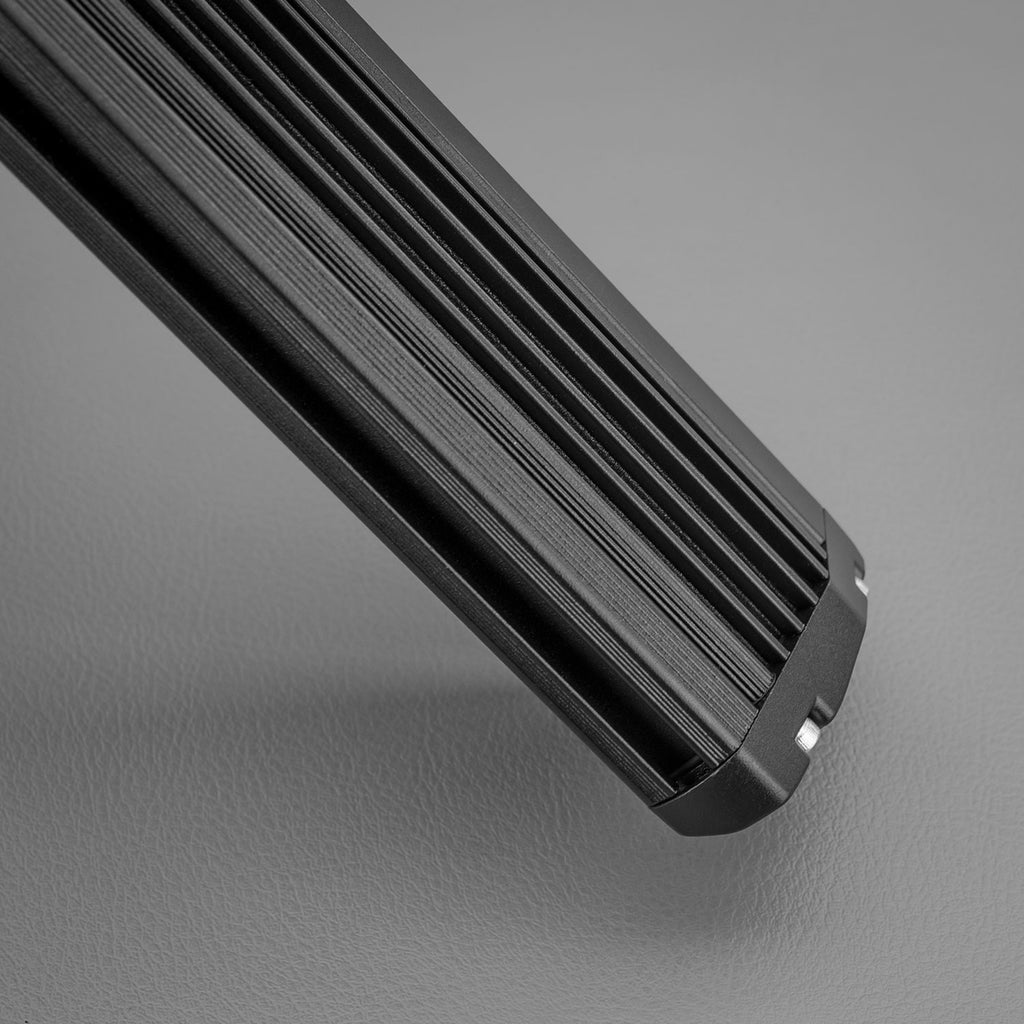

| Housing | A360.0 cast face plate, extruded aluminium heat sink |
| Lens | Optical-grade Makrolon |
| Lumen Maintenance | 50,000 hours (LM80) |

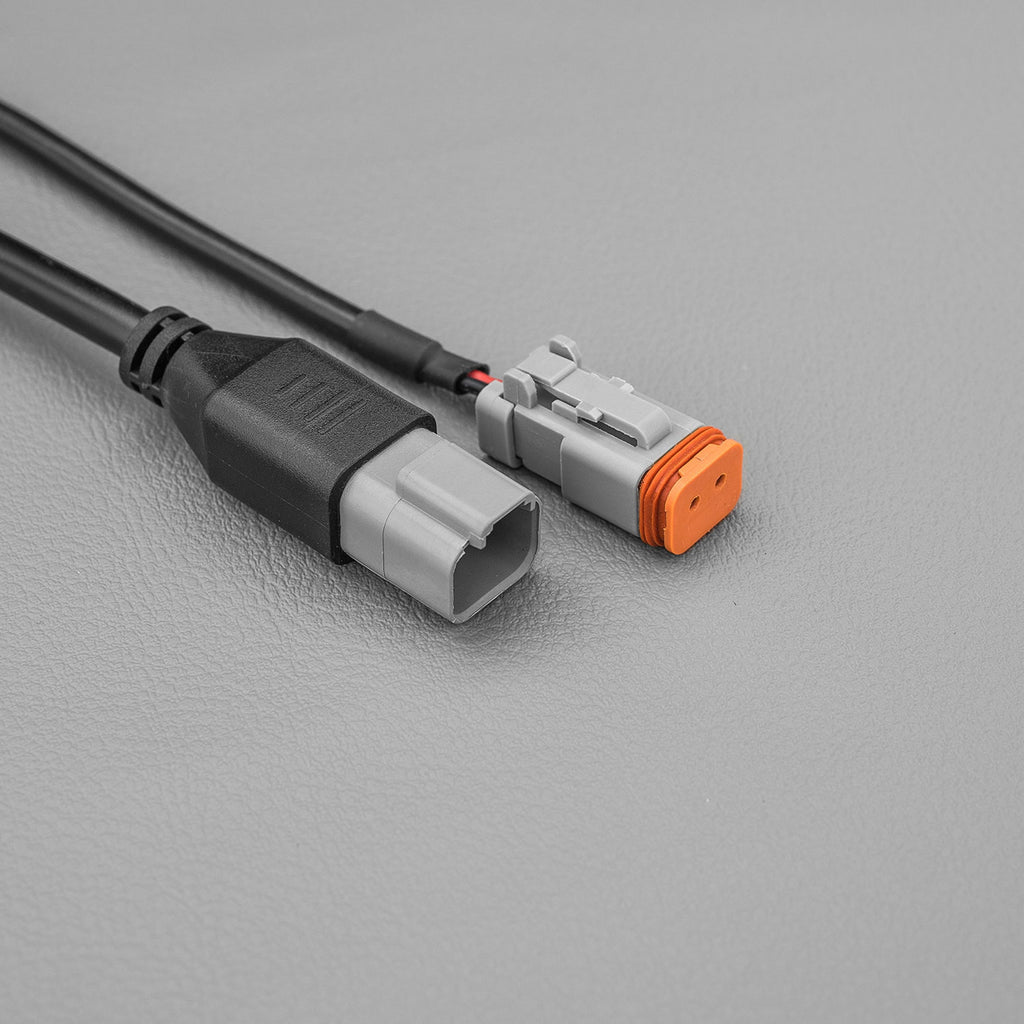

| Connectors | Environmentally sealed Deutsch DT-2 |
| Weight | 1.290kg |
| Height | 38mm |
| Certification | ECE E-Mark road-legal compliant |
Highlights
- ECE E-Mark certified and road-legal
- Strong forward light output for a full-size 21.5" bar
- Wide-horizontal beam with hooded reflector to reduce glare
- IP68 rated and submersible to 3m
- Built-in RFI/EMI suppression, reverse polarity and surge protection
Materials & care
A360.0 cast aluminium face plate with an extruded aluminium heat sink and optical-grade Makrolon lens. Wipe down with a soft cloth and mild soap; avoid abrasive cleaners on the lens.
Sizing & fit
Length: 21.5". Height: 38mm. Weight: 1.290kg. Suits bumper, grille or roof-edge mounting on most 4x4s.
Compatibility
Wired via environmentally sealed Deutsch DT-2 connectors, compatible with 9V-32V electrical systems (12V and 24V vehicles). Includes RFI/EMI suppression circuitry, reverse polarity protection and voltage surge protection.
How to use
- Mount using the supplied brackets on a bumper, grille or roof position.
- Aim the beam to suit your vehicle and driving conditions.
- Wire in using the included easy-fit high-beam wiring harness with H4 and HB3 adapters.
- Refer to the included installation manual for wiring and mounting details.
What's included
- STEDI ST1K 21.5" E-Mark LED Light Bar
- Easy-fit high-beam wiring harness
- H4 & HB3 adapters
- Installation manual
