STEDI ST1K 13.5" E-Mark LED Light Bar
STEDI ST1K 13.5" E-Mark LED Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.
The STEDI ST1K 13.5" E-Mark LED Light Bar is a compact, road-legal driving light bar carrying full ECE E-mark certification, making it suitable for on-road use where standard non-certified light bars aren’t legal. It combines a 50° flood beam with a 9° spot beam for a versatile, wide-and-far spread of light.
Built to STEDI’s IP68 waterproof standard with sealed Deutsch DT-2 connectors, it includes RFI/EMI suppression, reverse polarity protection and built-in voltage surge protection for a reliable install on any 4x4 or camping rig.
Key Features
| Brand | STEDI |
| Model | ST1K |
| Length | 13.5" |
| LEDs | 20 x 5W OSRAM |
| Raw Lumens | 3,552lm |
| Peak Intensity | 134,435cd |
| Voltage | 9V - 32V |
| Amp Draw | 4.0A @ 13.6V |
| Beam Pattern | Flood 50° / Spot 9° |
| IP Rating | IP68 (submersible to 3m) |
| Housing | A360.0 cast face plate, extruded aluminium heat sink |
| Lens | Optical grade, hard-coated Lexan |
| Operating Temperature | -40°C to +150°C |
| Lifespan | 50,000 hours |
| Connectors | Environmentally sealed Deutsch DT-2 |
| Weight | 0.845kg |
| Height | 38mm |
| Certification | ECE E-Mark — road-legal in Europe and New Zealand |
Highlights
- ECE E-Mark certified — road-legal in Europe and New Zealand
- Combo 50° flood / 9° spot beam pattern
- IP68 rated and submersible to 3m
- Built-in RFI/EMI suppression, reverse polarity and surge protection
- Compact 13.5" size suits grille and bumper mounting
- 50,000 hour LED lifespan
Materials & care
A360.0 cast aluminium face plate with an extruded aluminium heat sink and optical grade, hard-coated Lexan lens. Wipe down with a soft cloth and mild soap; avoid abrasive cleaners on the lens.
Sizing & fit
Length: 13.5". Height: 38mm. Weight: 0.845kg. Compact enough for grille, bumper or roof-edge mounting where a full-size light bar won’t fit.
Compatibility

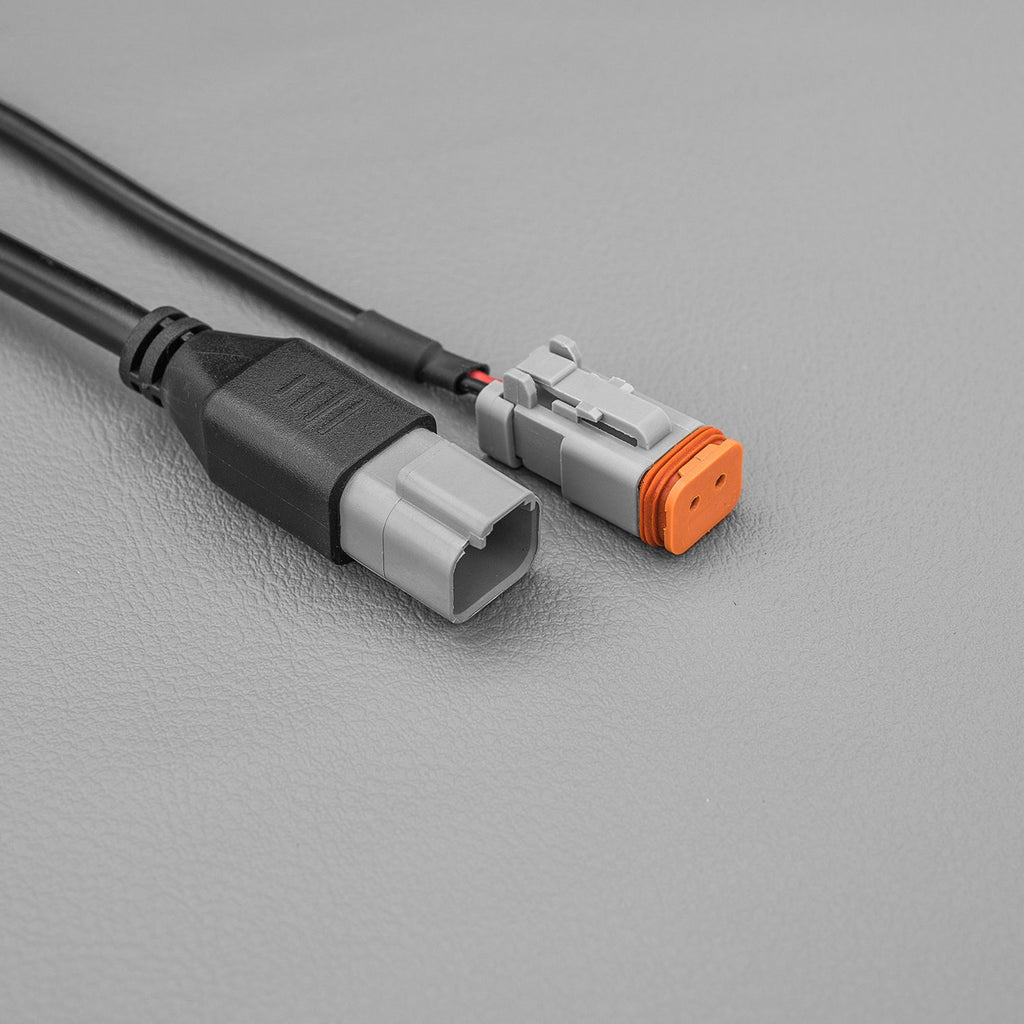

Wired via environmentally sealed Deutsch DT-2 connectors, compatible with 9V-32V electrical systems (12V and 24V vehicles). Includes RFI/EMI suppression circuitry, reverse polarity protection and voltage surge protection.
How to use
- Mount using the included side brackets and adjustable sliding brackets.
- Aim the beam using the adjustable mounting brackets to suit your bumper, grille or roof position.
- Wire in via the sealed Deutsch DT-2 connectors to a switched 9V-32V feed.
- Refer to the included installation manual for wiring and mounting torque specs.
What's included
- STEDI ST1K 13.5" E-Mark LED Light Bar
- Installation manual
- 2x side brackets
- 2x adjustable sliding brackets
