STEDI ST-X 50" Super Drive LED Light Bar

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

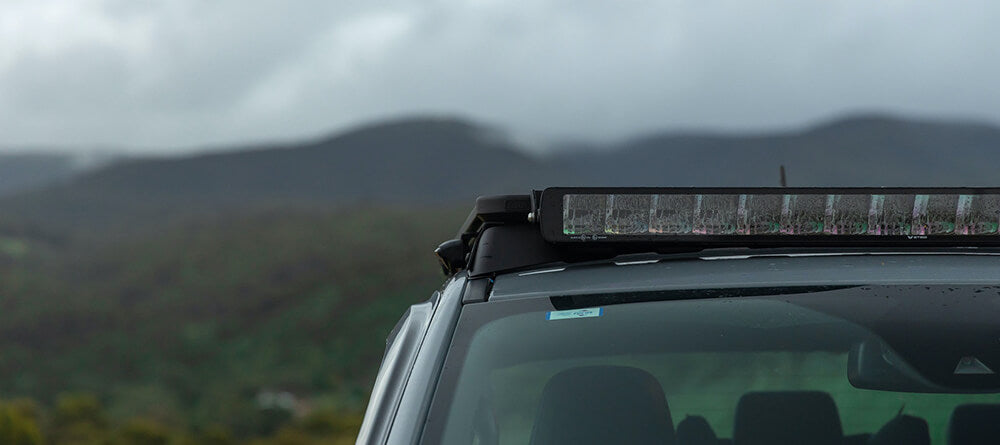

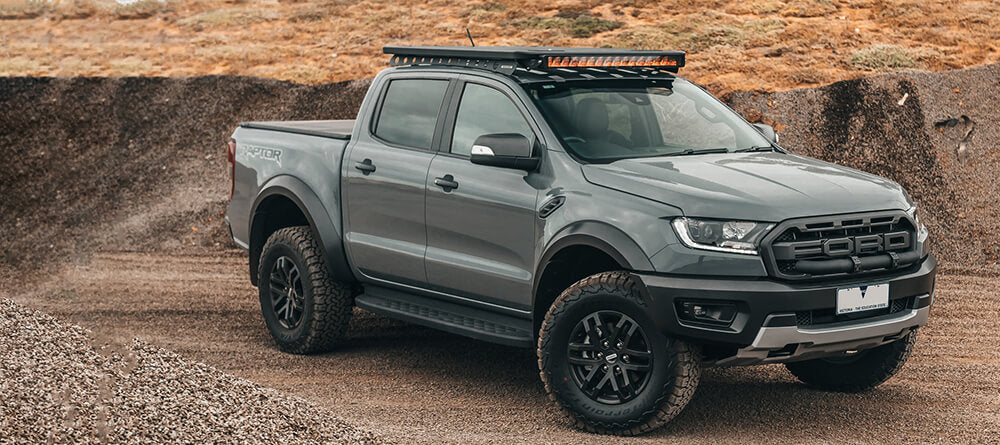

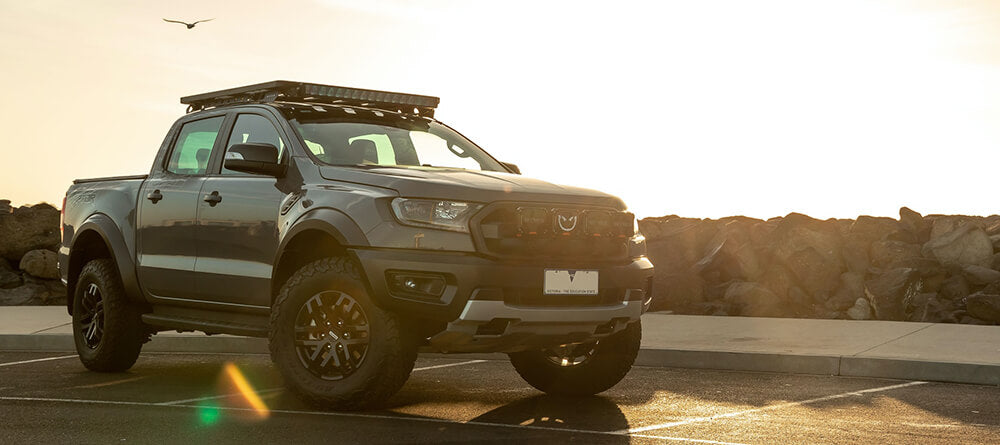

The STEDI ST-X 50" Super Drive LED Light Bar is the largest bar in STEDI's ST-X Super Drive range, with an edge-to-edge bonded lens and a built-in amber/white daytime running light function. It offers full-power and reduced-output modes for regulatory compliance and is E-mark/ECE R112 and R10 certified for road-legal use.

Built around 20 x 15W A-grade reverse-facing LED emitters in a 6063 aluminium extrusion housing with a hard-coated optical-grade Lexan lens, it is rated IP68 for full weatherproofing, giving serious long-range throw for touring and overland vehicles.

Key Features

Highlights

• Road-legal, long-range auxiliary driving light with E-mark/ECE certification
• Built-in amber or white daytime running light function
• Full power and reduced-output modes for regulatory compliance
• Serious long-range throw for high-speed touring and overlanding
• Sealed IP68 housing for reliable use in dust and rain

Materials & care

Housing is 6063 aluminium extrusion with a hard-coated, optical-grade Lexan lens. Wipe the lens with a soft cloth and clean water; avoid abrasive cleaners that could scratch the coating.

Sizing & fit

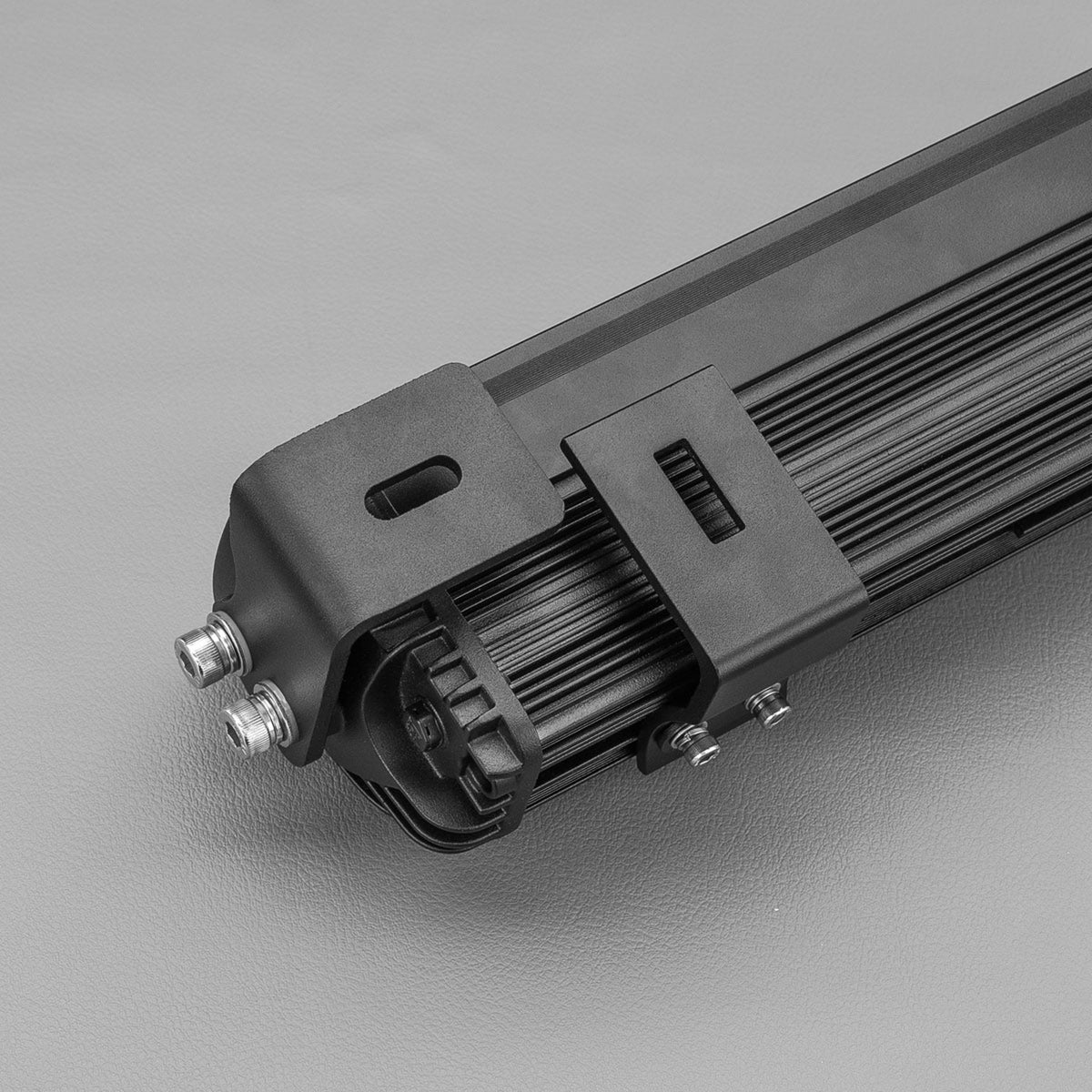

50" (approx. 1,270mm) overall length. Supplied with adjustable side brackets, sliding bottom brackets and brace supports to keep the bar rigid across mounting points at this length.

Compatibility

Suits 9-36V vehicle electrical systems (12V and 24V). DRL function requires wiring to an ignition-switched circuit; the Easy-Fit high beam harness includes HB3/H4 adapters for common high-beam connectors.

How to use

• Mount using the supplied adjustable side brackets, sliding bottom brackets and brace supports for a rigid fit across the full 50" length.
• Wire using the Easy-Fit high beam harness with HB3/H4 adapters, running a fused feed from the battery sized for the higher current draw of this bar.
• Aim the light bar so the beam is level with or slightly below the horizon to avoid dazzling oncoming traffic.
• Use the reduced-output/DRL mode when driving on public roads to remain compliant, and switch to full power for off-road use.

What's included

• STEDI ST-X 50" Super Drive LED Light Bar
• Adjustable side brackets
• Sliding bottom brackets
• Brace supports
• Easy-Fit high beam wiring harness with HB3/H4 adapters
