STEDI ST-X 21.5" Super Drive LED Light Bar
STEDI ST-X 21.5" Super Drive LED Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.
The STEDI ST-X 21.5" Super Drive LED Light Bar is a mid-size, edge-to-edge bonded-lens light bar with a built-in amber/white daytime running light function and both full-power and reduced-output driving modes for road-legal use. It is E-mark/ECE R112 and R10 certified.
Built around 8 x 15W A-grade reverse-facing LED emitters in a 6063 aluminium extrusion housing with a hard-coated optical-grade Lexan lens, it is rated IP68 for full weatherproofing and designed for both off-road and on-road auxiliary lighting duty.
Key Features
| Brand | STEDI |
| Model | ST-X 21.5" Super Drive |
| LED count | 8 x 15W A-grade reverse-facing LEDs |
| Lumens (full power) | 4,010 LM |
| Lumens (limit power) | 2,310 LM |
| Wattage | 102W full power / 41.52W limit power |
| Current draw @ 12V | 8.5A full power / 3.46A limit power |
| Voltage | 9-36V |
| Colour temperature | 5000K |
| Beam pattern | 30° horizontal, 15° vertical spread |
| Peak intensity | 344,017 cd full power / 189,429 cd limit power |
| IP rating | IP68 (weatherproof) |
| Housing / lens | 6063 aluminium extrusion; hard-coated optical-grade Lexan lens |
| Connector | Deutsch® DTP 4-pin, 60cm cable |
| Weight | 2.6kg |
| Lifespan | 50,000 hours (LM80) |
| Certifications | R112 (ref. 50), R10 E-mark/ECE |
Highlights
- Road-legal auxiliary driving light with E-mark/ECE certification
- Built-in amber or white daytime running light function
- Full power and reduced-output modes for regulatory compliance
- Mid to long-range illumination for touring and 4x4 driving
- Sealed IP68 housing for reliable use in dust and rain
Materials & care
Housing is 6063 aluminium extrusion with a hard-coated, optical-grade Lexan lens. Wipe the lens with a soft cloth and clean water; avoid abrasive cleaners that could scratch the coating.
Sizing & fit

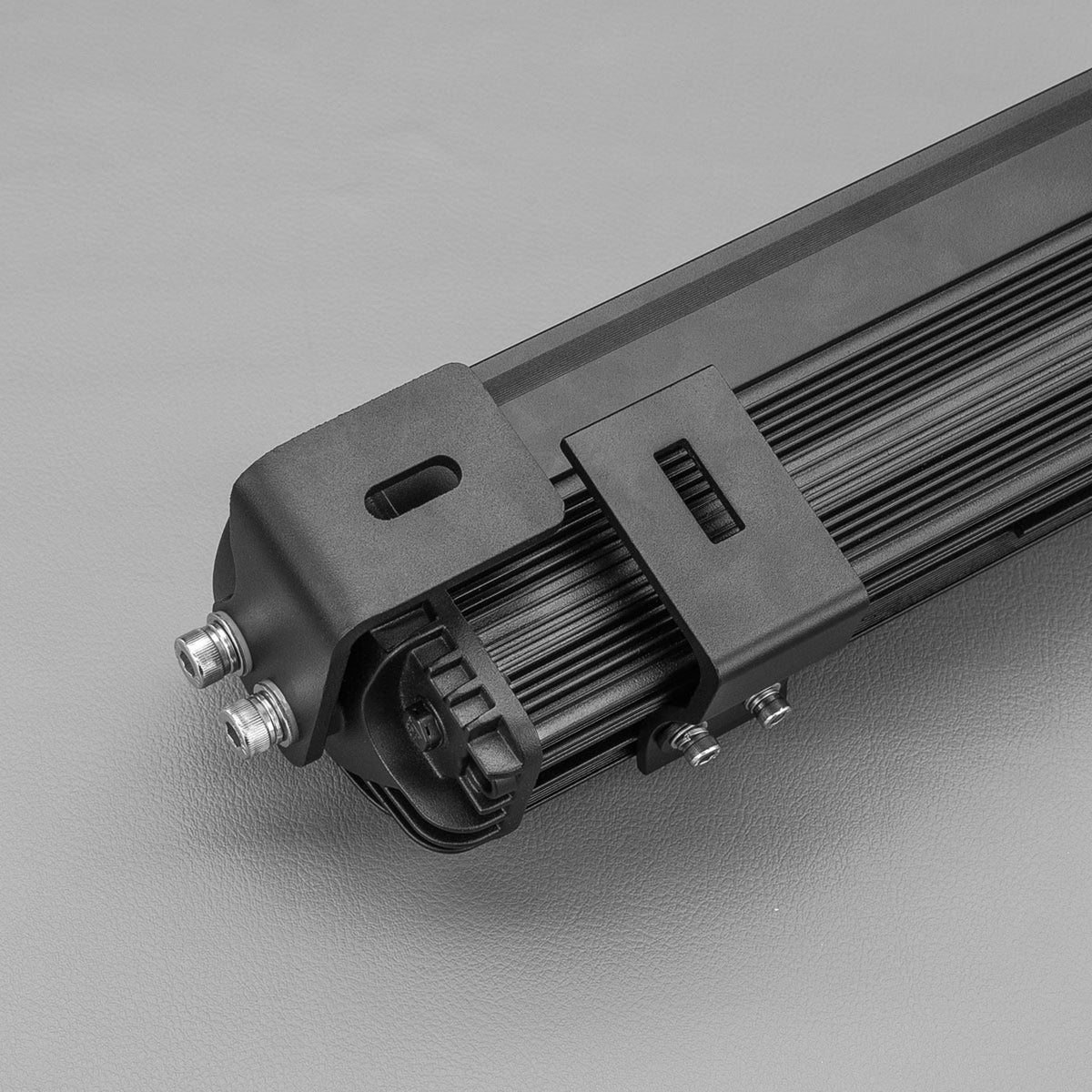

21.5" (approx. 546mm) overall length. Supplied with adjustable side brackets and sliding bottom brackets to suit a range of bull bars and roof mounting positions.
Compatibility
Suits 9-36V vehicle electrical systems (12V and 24V). DRL function requires wiring to an ignition-switched circuit; the Easy-Fit high beam harness includes HB3/H4 adapters for common high-beam connectors.
How to use
- Mount using the supplied adjustable side brackets and sliding bottom brackets, ensuring the light bar is secure and won't vibrate loose.
- Wire using the Easy-Fit high beam harness with HB3/H4 adapters, running a fused feed from the battery.
- Aim the light bar so the beam is level with or slightly below the horizon to avoid dazzling oncoming traffic.
- Use the reduced-output/DRL mode when driving on public roads to remain compliant, and switch to full power for off-road use.
What's included
- STEDI ST-X 21.5" Super Drive LED Light Bar
- Adjustable side brackets
- Sliding bottom brackets
- Easy-Fit high beam wiring harness with HB3/H4 adapters
