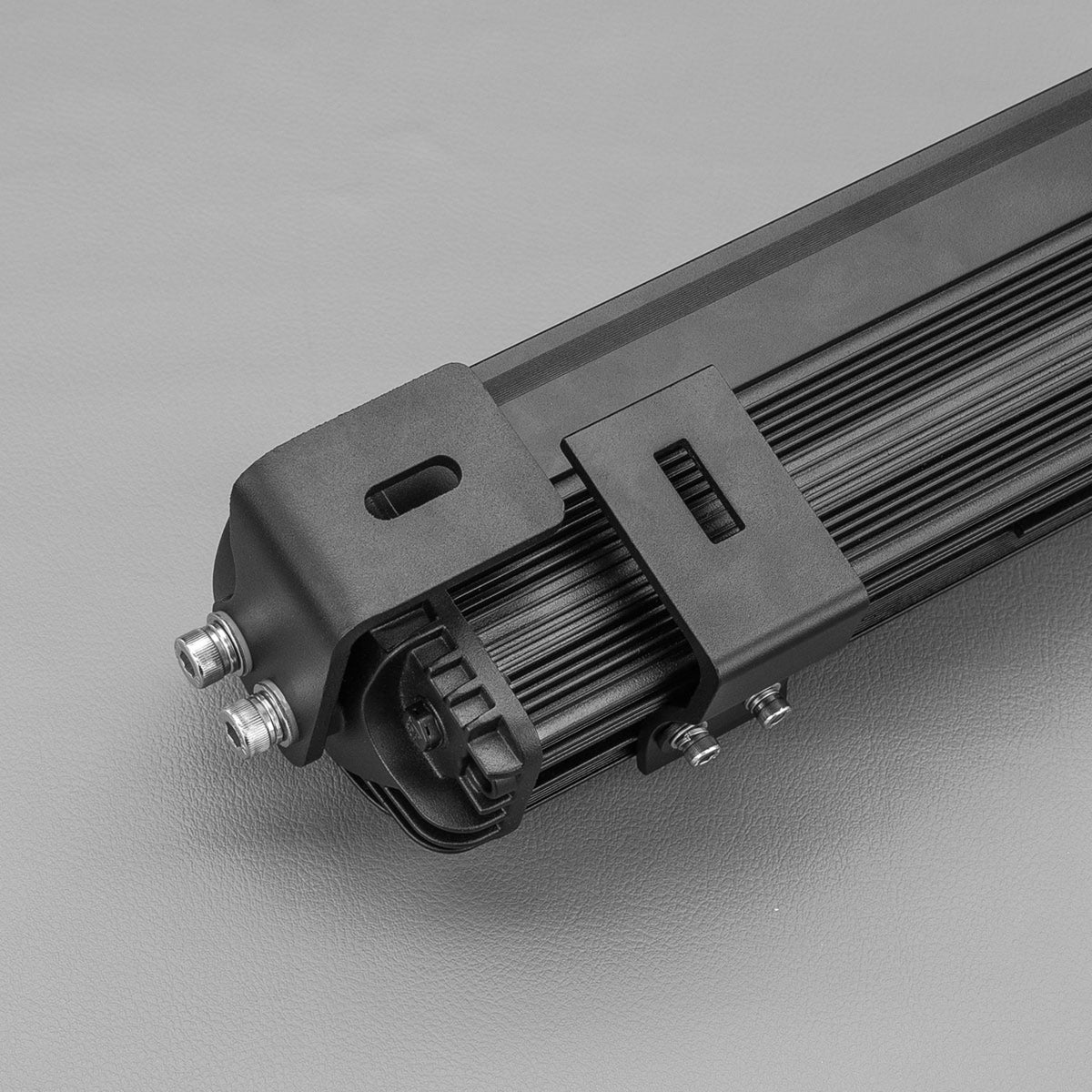

• STEDI ST-X 12 inch Super Drive LED Light Bar

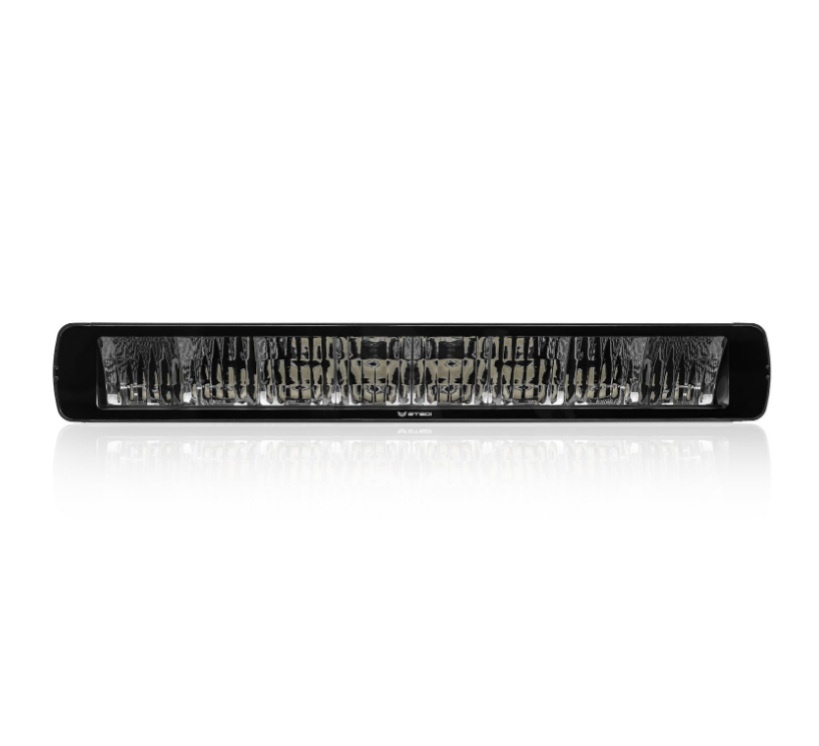

  • STEDI ST-X 12 inch Super Drive LED Light Bar spec diagram

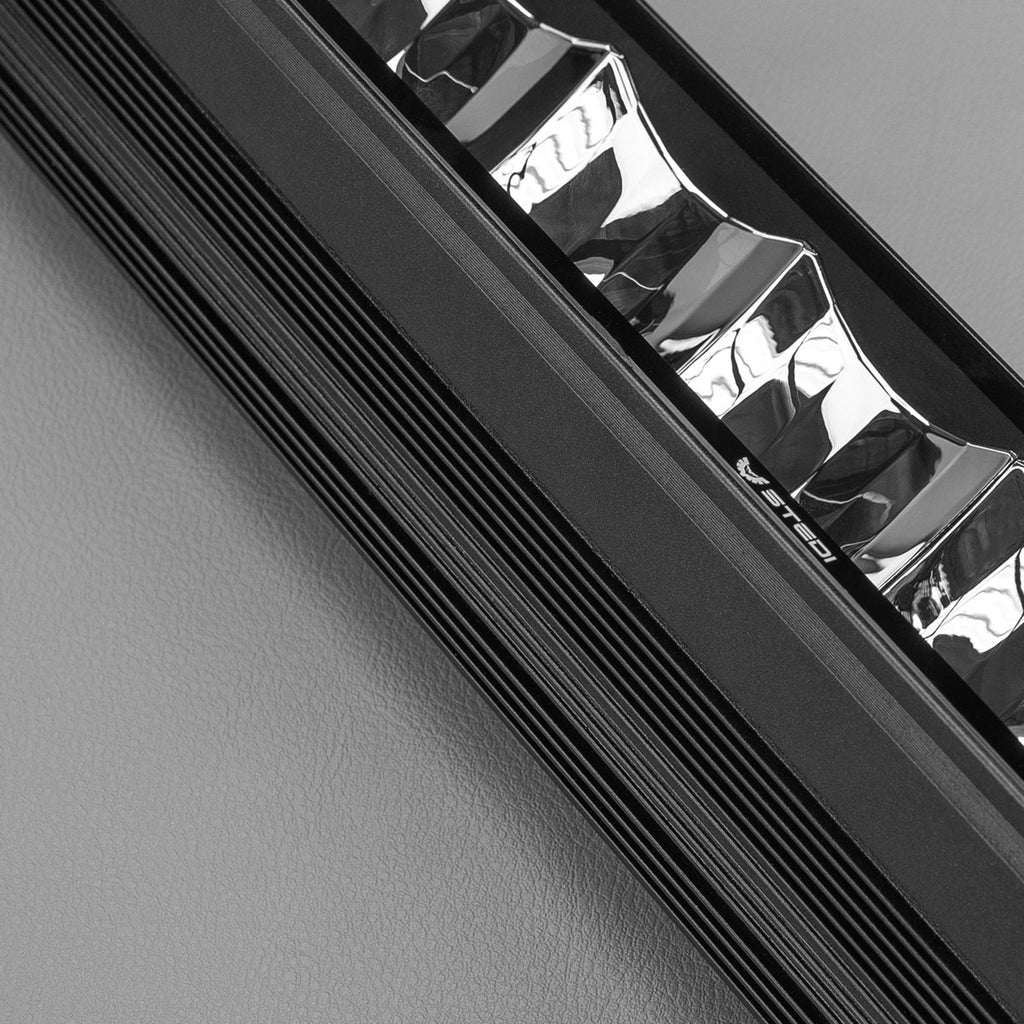

  • STEDI ST-X 12 inch Super Drive LED Light Bar angle view
  • STEDI ST-X 12 inch Super Drive LED Light Bar mounted

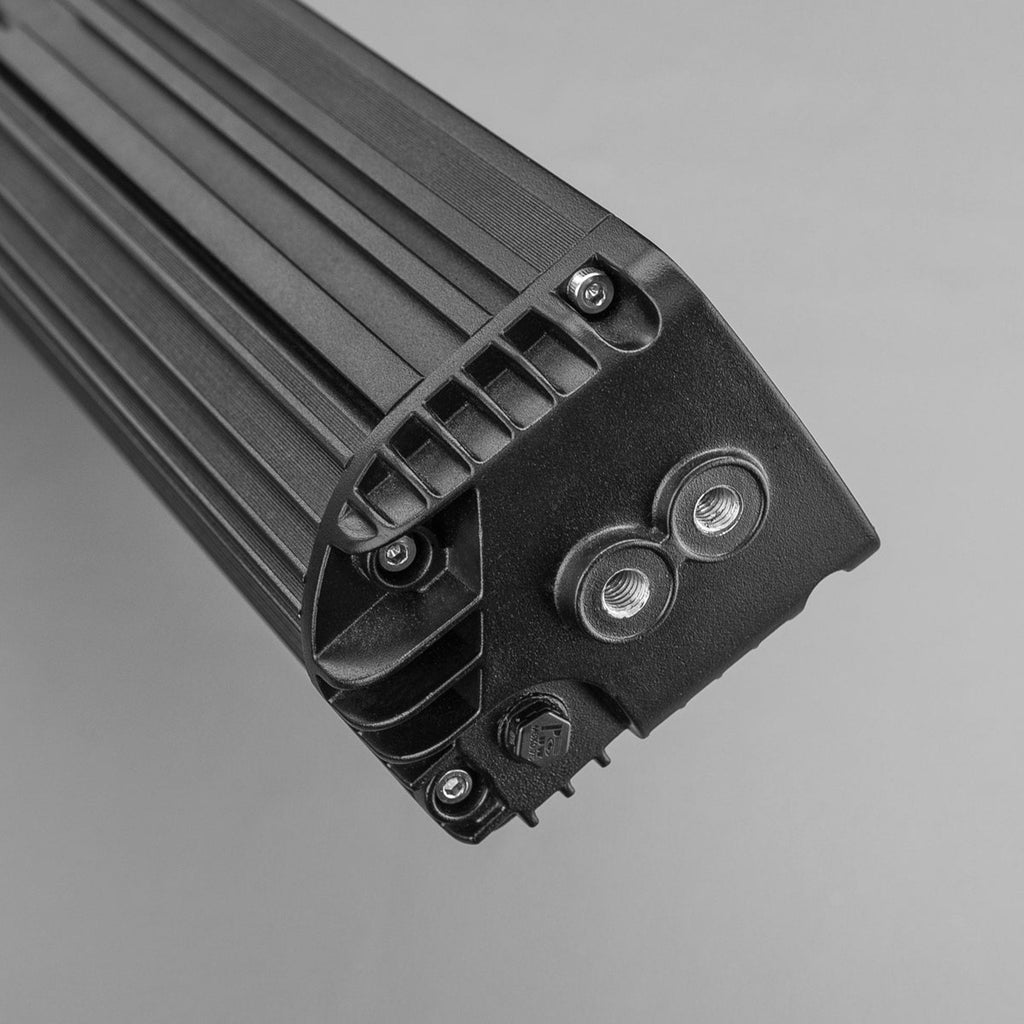

  • STEDI ST-X 12 inch Super Drive LED Light Bar lit up
1 5

Stedi

STEDI ST-X 12" Super Drive LED Light Bar

STEDI ST-X 12" Super Drive LED Light Bar

R 5,999.00
R 5,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The compact size in STEDI's ST-X Super Drive range, with an edge-to-edge bonded lens and a built-in amber or white daytime running light function. Rated at 2,100 lumens with a focused beam reaching 429m at 1 lux.

Offers E-mark/ECE certification (R112, R10) for road-legal use, and shares the same plug-and-play high beam wiring kit as the rest of the ST-X range.

Key Features

LED 4x 15W emitters
Output 2,100 lm
Colour Temperature 5000K
Beam Pattern 30° horizontal, 15° vertical
Range @ 1 lux 429m
Peak Intensity 184,164 cd
Voltage Range 9V - 36V
Current Draw 4.08A
IP Rating IP68
Housing 6063 aluminium extrusion
Lens Optical-grade, hard-coated Lexan
Connector Deutsch® DTP, 60cm lead
Operating Temperature -40°C to +60°C
Lifespan 50,000 hours (LM80)
Weight 1.6kg
Certifications R112, R10 (E-mark/ECE)
DRL Colour Amber or white

Highlights

  • Compact 12" size in the ST-X Super Drive range - suits smaller bull bars and tight mounting spots
  • Edge-to-edge bonded lens for focused highway-range throw despite its small size
  • Built-in amber or white daytime running light function
  • E-mark/ECE R112 & R10 certified for road-legal use
  • Plug-and-play high beam harness for straightforward wiring

Materials & care

6063 aluminium extrusion housing with an optical-grade, hard-coated Lexan lens. Rinse mud and salt off after off-road or coastal driving.

Sizing & fit

12" light bar, 1.6kg (2.1kg shipped) - the smallest bar in the ST-X range, suited to tighter mounting locations than the 40.5" version.

Compatibility

Uses the same plug-and-play high beam wiring kit (HB3 & H4 adapters) as the rest of the ST-X range.

How to use

  • Mount using the supplied steel side brackets and sliding brackets.
  • Wire in via the plug-and-play high beam harness with HB3/H4 adapters.
  • Select amber or white for the DRL function according to your preference and local road rules.
  • Check mounting bolts periodically for tightness after rough terrain driving.

What's included

  • 1x 12" ST-X light bar
  • 2x steel side brackets
  • 2x steel sliding brackets
  • High beam wiring kit with HB3 & H4 adapters
  • 304 stainless steel fasteners
  • Instructions

Frequently asked questions

Is the 12" ST-X bright enough for highway use?

It's rated at 2,100 lumens with a focused 30°/15° beam reaching 429m at 1 lux - a good driving-beam boost for a compact bar, though the longer ST-X lengths throw further.

Is it road-legal?

Yes, it's E-mark/ECE certified to R112 and R10.

Does it double as a DRL?

Yes, it has a built-in amber or white daytime running light function.
