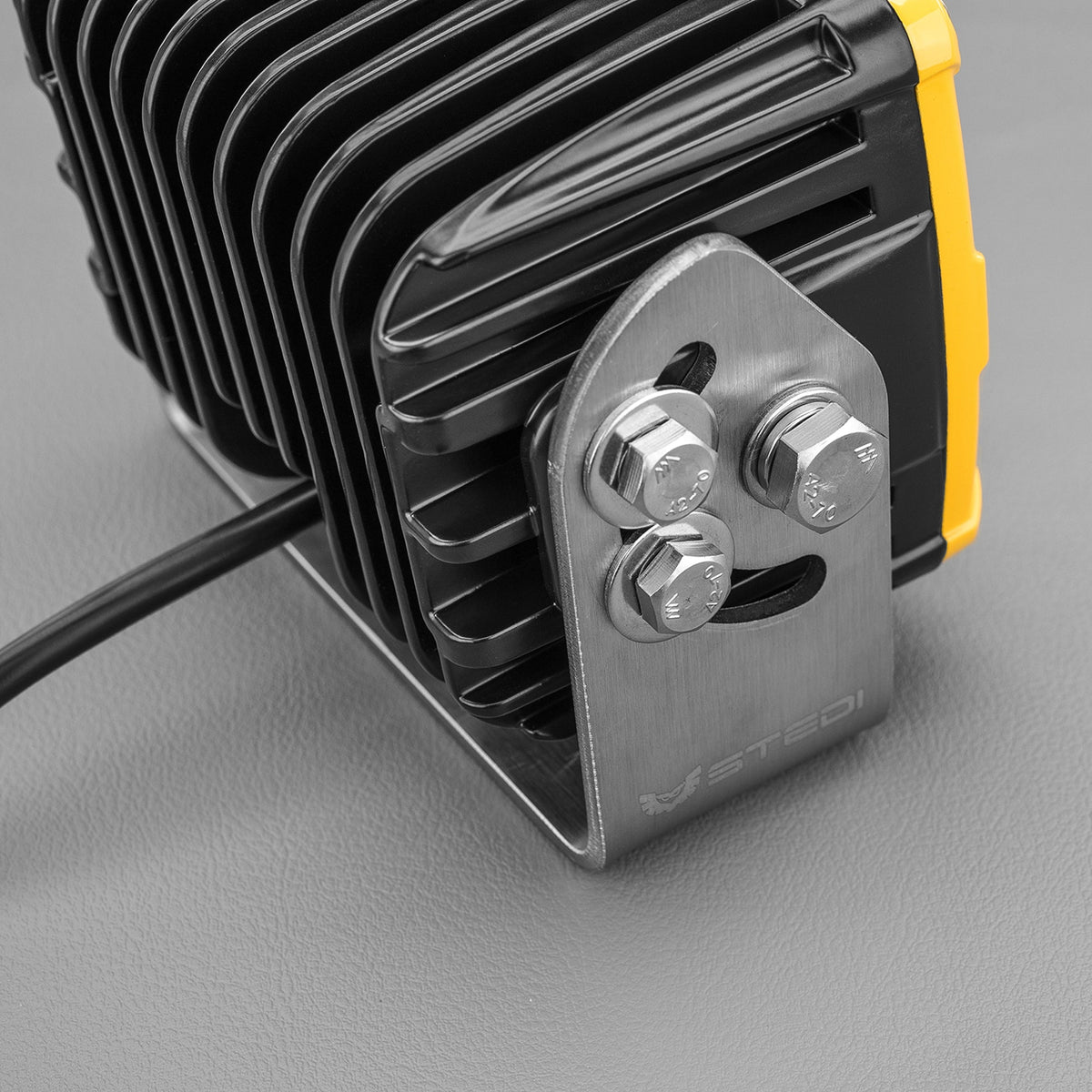

• STEDI SHOCK 6 Mining Spec LED Flood Light - Yellow

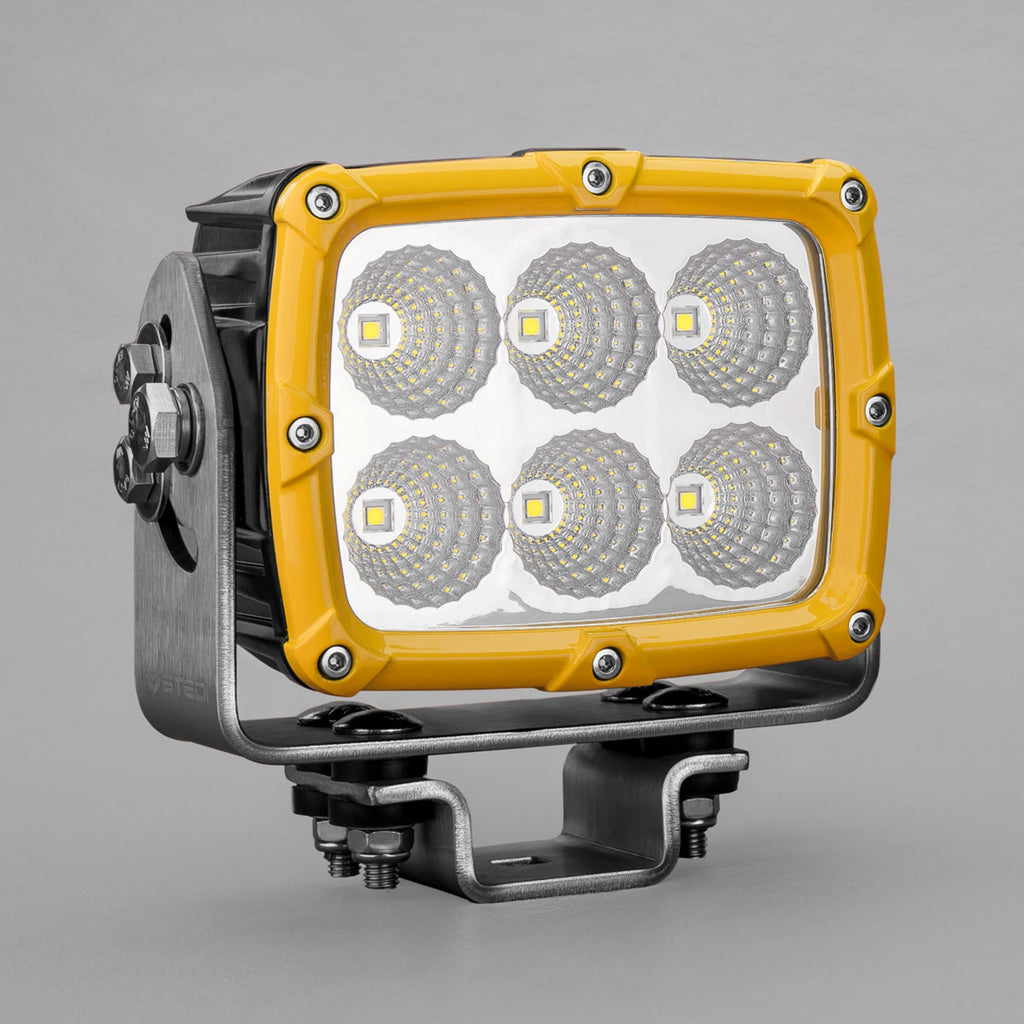

  • STEDI SHOCK 6 Mining Spec Flood Light

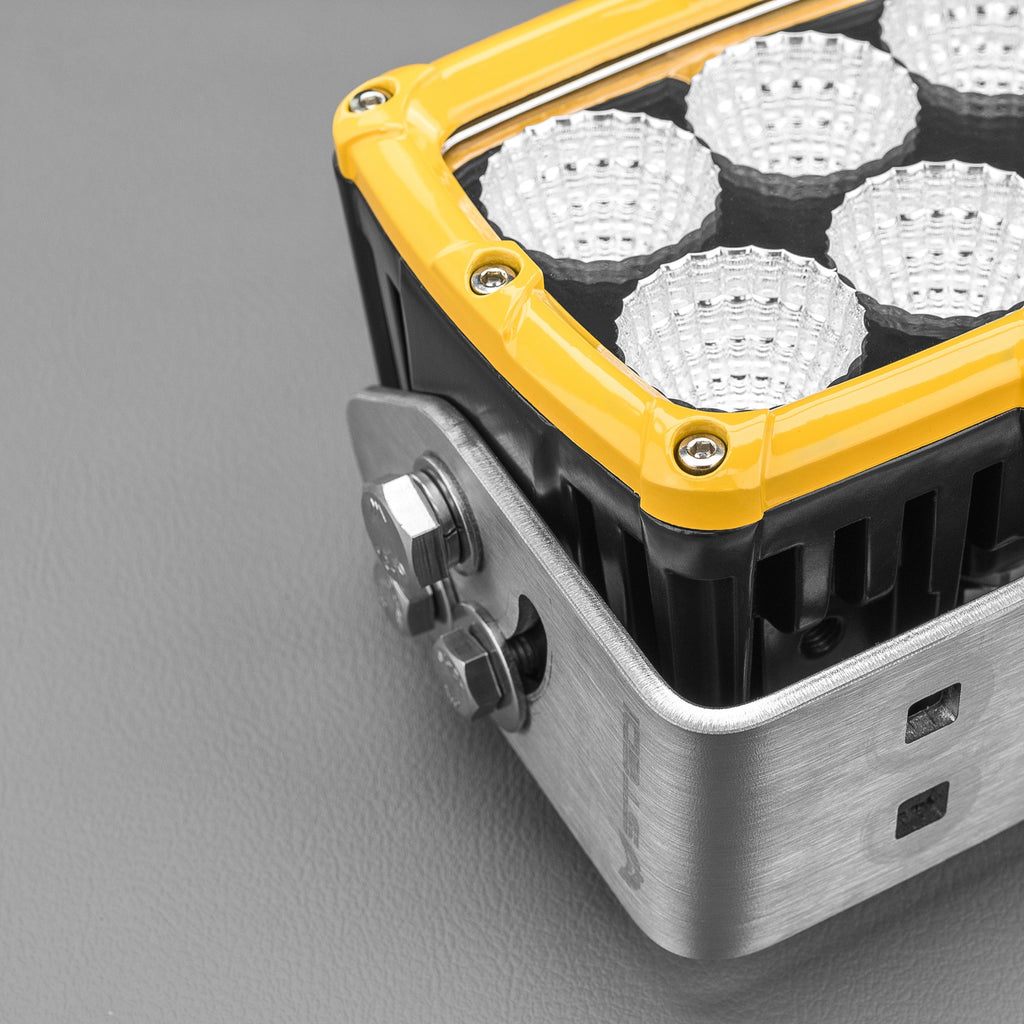

  • STEDI SHOCK 6 detail

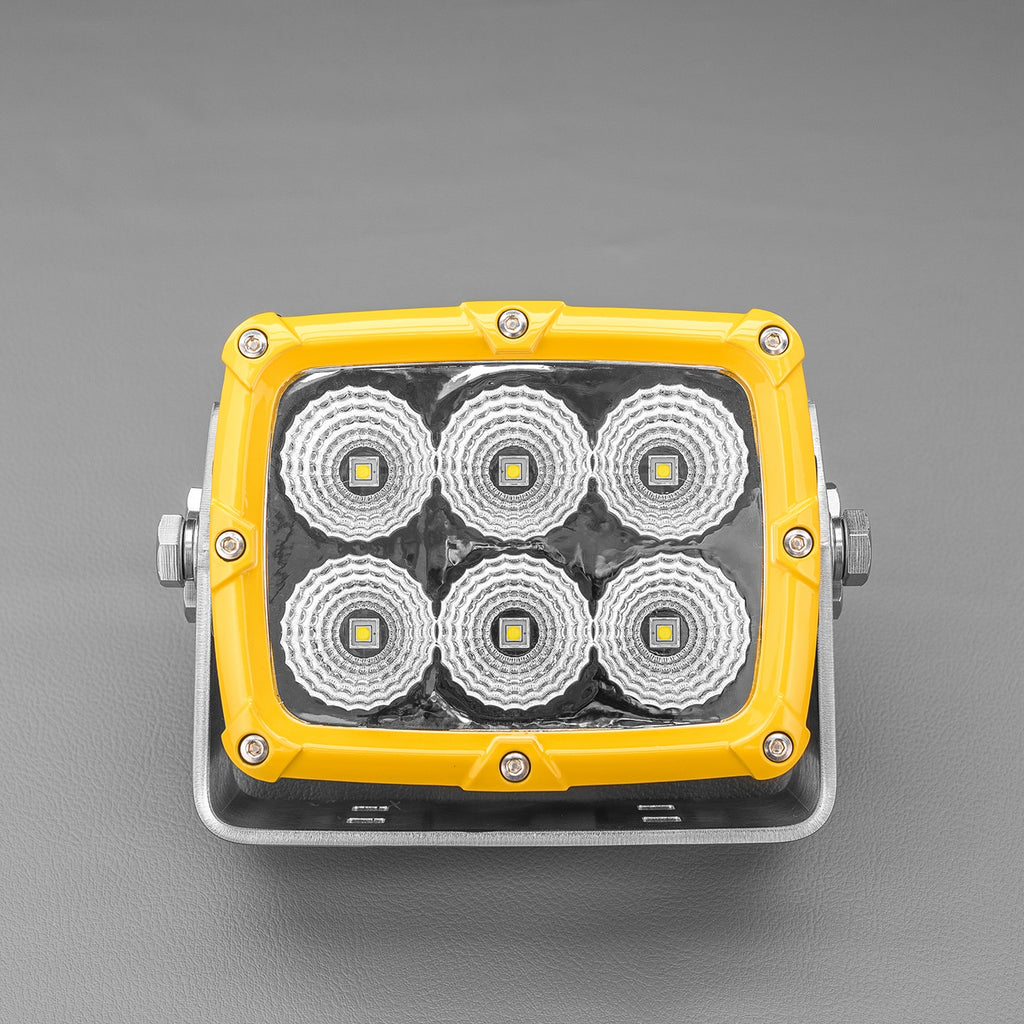

  • STEDI SHOCK 6 mounted on machinery

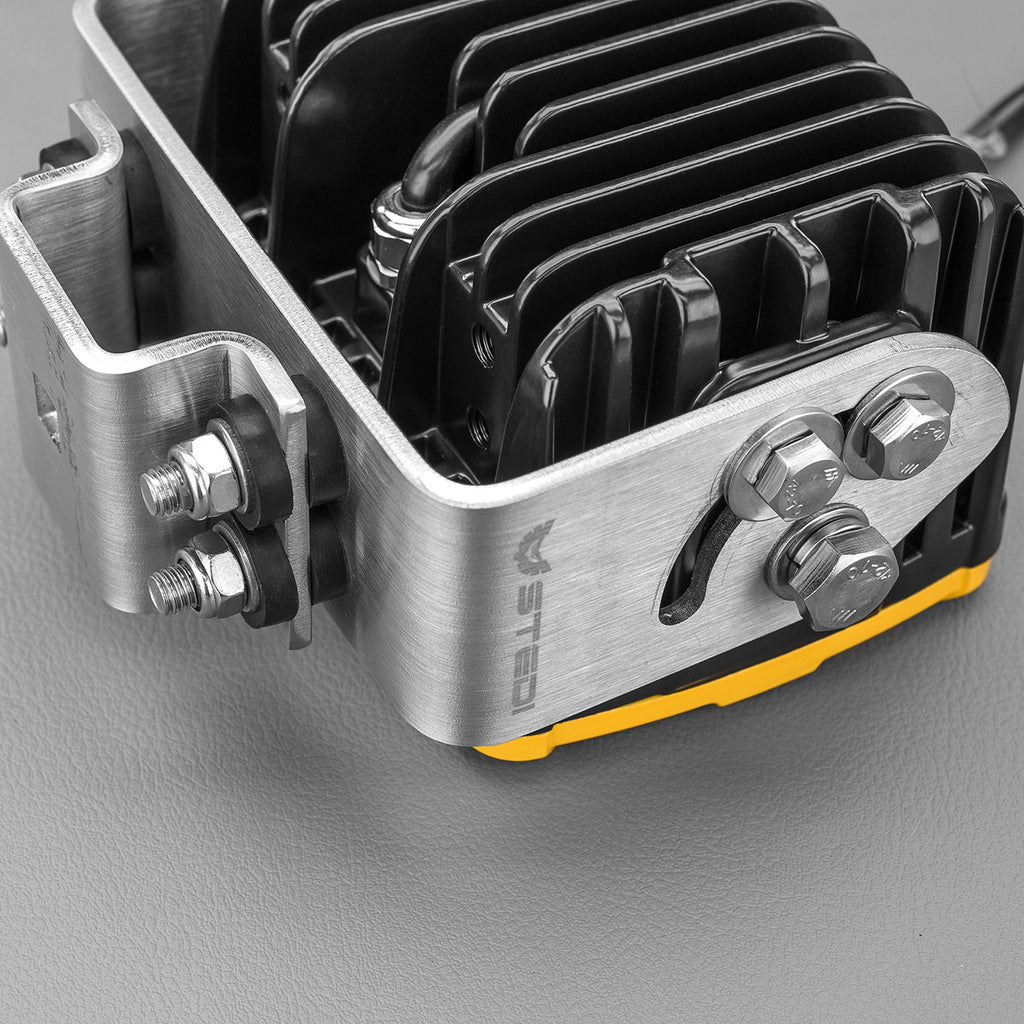

  • STEDI SHOCK 6 in use
1 5

Stedi

STEDI SHOCK 6 Mining Spec LED Flood Light - Yellow

STEDI SHOCK 6 Mining Spec LED Flood Light - Yellow

R 6,999.00
R 6,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

Built to mining spec for continuous 24/7 duty on heavy machinery, the SHOCK 6 uses a die-cast aluminium ADC12 heat-sink housing with dynamic thermal management, plus shock and vibration testing to withstand the abuse of loaders, excavators and mining trucks.

Six 10W CREE XM-L2 LEDs deliver 5,400lm at 6000K from a 60° flood pattern, reaching 132m at 1 lux, and connect via a rugged Deutsch DT04-2P plug for a reliable field connection.

Key Features

Brand STEDI
Model SHOCK 6 Mining Spec LED Flood Light
Power 60W (6 x 10W CREE XM-L2)
Lumens 5,400lm
Amp Draw 5.3A @ 12V / 2.3A @ 24V
Voltage 9-36V
Colour Temperature 6000K
Beam 60° Flood
Peak Beam Distance 132m @ 1 Lux
IP Rating IP68
Lens LEXAN optical polycarbonate
Housing Die-cast aluminium ADC12 heat-sink
Connector Deutsch DT04-2P
Weight 2.07kg
Lifespan 50,000 hours (LM-80)
Certifications CE, IP68, CISPR 25 Class 4

Highlights

  • Mining spec build for continuous 24/7 duty on heavy machinery
  • 5,400lm from six CREE XM-L2 LEDs
  • Shock and vibration tested die-cast aluminium heat-sink housing
  • Wide 9-36V input suits cars, trucks and machinery
  • Deutsch DT04-2P connector for a rugged field connection

Materials & care

Die-cast aluminium ADC12 heat-sink housing with a LEXAN optical polycarbonate lens. Wipe clean with a soft cloth and check the Deutsch connector seal periodically.

Sizing & fit

Weight: 2.07kg. Supplied with a stainless steel U-bracket and a secondary shock-dampening mount for machinery-grade vibration resistance.

Compatibility

9-36V systems - suited to heavy machinery, mining trucks, loaders and 4x4s running 12V or 24V electrics. Fitted with a Deutsch DT04-2P connector; STEDI wiring looms and switches (sold separately) are compatible.

How to use

  • Mount using the supplied stainless steel U-bracket and shock-dampening mount.
  • Connect via the Deutsch DT04-2P connector to a 9-36V supply, ideally through a relay/switch harness.
  • Torque the mounting hardware to spec to preserve the shock-dampening function.

What's included

  • 1 x SHOCK 6 flood light
  • Stainless steel U-bracket
  • Secondary shock dampening mount
  • Mounting pad
  • Stainless steel fasteners

Frequently asked questions

What makes this suitable for mining and heavy machinery?

The SHOCK 6 is shock and vibration tested and includes a secondary shock-dampening mount and dynamic thermal management, built for continuous 24/7 duty on excavators, loaders and mining trucks.

Will it run on both 12V and 24V machinery?

Yes, its 9-36V input covers both 12V and 24V systems.

How far does the beam reach?

The 60° flood beam reaches 132m at 1 lux, giving wide-area illumination around machinery and work sites.
View full details
