STEDI Quad EVO LED Driving Lights (Pair)

R 19,600.00

~~R 19,999.00~~ R 19,600.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Beam Pattern Flood (2x Side Lights) Spot (2x Centre Lights)

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

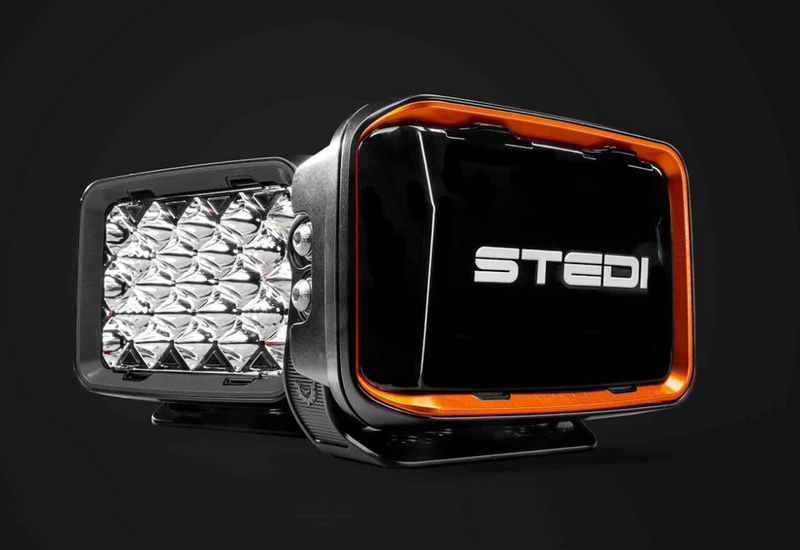

The next-generation rectangular driving light evolving from STEDI's legacy Quad Pro, with a modular Centre and Side module design so you can build a set to suit your bar or bracket. The Centre (Spot) module runs 23 CREE XP20 LEDs for a combo beam mixing spot, flood and widespread throw, while the Side (Flood) module runs 18 CREE XP20 LEDs plus 5 widespread emitters for a 210° combo flood pattern.

Both modules share the same 5000K colour temperature, IP68 waterproofing and 12V/24V compatibility, so centre and side units can be run together as a matched set.

Key Features

Brand	STEDI
Model	Quad EVO
Centre Module LEDs	23 x CREE XP20 (each)
Centre Module Lumens	6,159lm tested (each) / 12,049lm (pair)
Centre Module Beam	Combo (Flood, Spot & Widespread), 928m throw (pair)
Side Module LEDs	18 x CREE XP20 + 5 x Widespread (each)
Side Module Lumens	5,885lm tested (each) / 11,726lm (pair)
Side Module Beam	210° Combo Widespread, 578m throw (pair)
Colour Temperature	5000K
Power / Current Draw	144W (pair); 14A @ 12V pair, 7A @ 12V each, 3.5A @ 24V each
Voltage	12V & 24V compatible
Weight	2.11kg (Centre) / 2.35kg (Side) per light
Operating Temperature	-40°C to 60°C
Lumen Maintenance	30,000 hours (LM-80)
IP Rating	IP68 — submersible to 3m

Highlights

Modular Centre + Side layout for a custom rectangular light bar look
Combo beam Centre modules for long-range spot performance
210° wide Side modules for close-range peripheral visibility
Customisable colour fascias and black-out covers for a personalised finish
12V and 24V compatibility for passenger and commercial/agricultural platforms

Sizing & fit

Weight: 2.11kg per Centre light, 2.35kg per Side light. Sold as a pair — select Centre (Spot) or Side (Flood) modules to suit your bracket layout, and check clearance before purchase.

Compatibility

Wired for both 12V and 24V vehicle electrical systems. Centre and Side modules are designed to be run together as a matched modular set, or independently depending on your bar/bracket configuration.

How to use

Have the lights professionally wired through a relay and fuse, or use the supplied smart wiring harness for plug-and-play installation.
Choose Centre modules for maximum throw, Side modules for wide peripheral coverage, or combine both.
Swap the colour fascia rings or fit the black-out covers to match your vehicle's look.
Only operate driving lights on high beam / off-road use in line with local road rules.

What's included

1x pair (2x) STEDI Quad EVO LED driving lights (Centre or Side, as selected)
Customisable colour fascias and black-out covers
Mounting brackets
Smart wiring harness

Frequently asked questions

What's the difference between the Centre and Side modules?

Centre modules run 23 CREE XP20 LEDs for a combo beam with 928m throw, ideal for long-range spot performance. Side modules run 18 CREE XP20 LEDs plus 5 widespread emitters for a 210° flood pattern, ideal for close-range peripheral visibility. They're designed to be run together as a matched set.

Is the Quad EVO waterproof?

Yes, both Centre and Side modules carry an IP68 rating and are submersible to 3m.

Can I customise the look of the light?

Yes, the Quad EVO ships with customisable colour fascias and black-out covers so you can match the finish to your vehicle.
