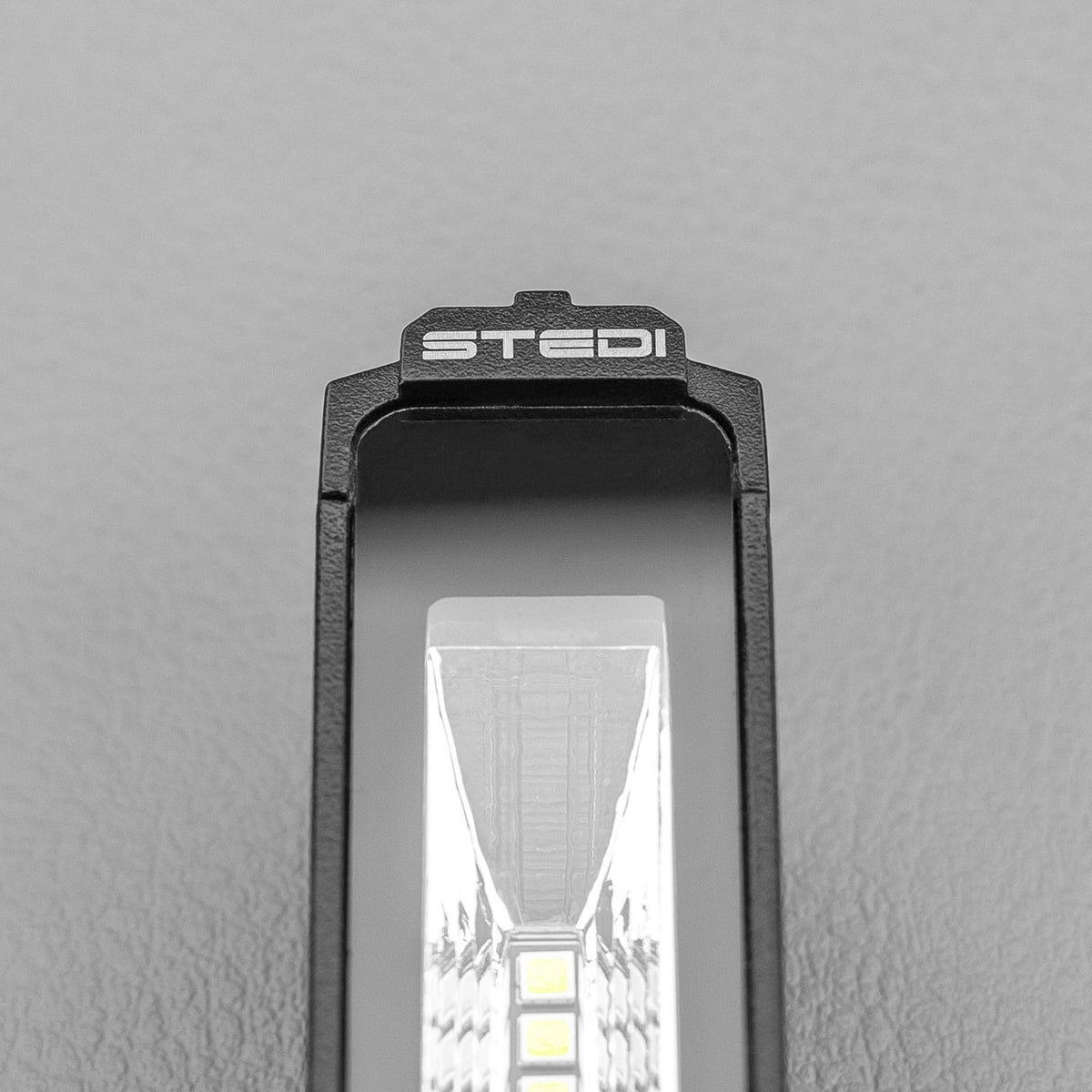

• STEDI Micro v2 & Touch Series LED Flood Bars

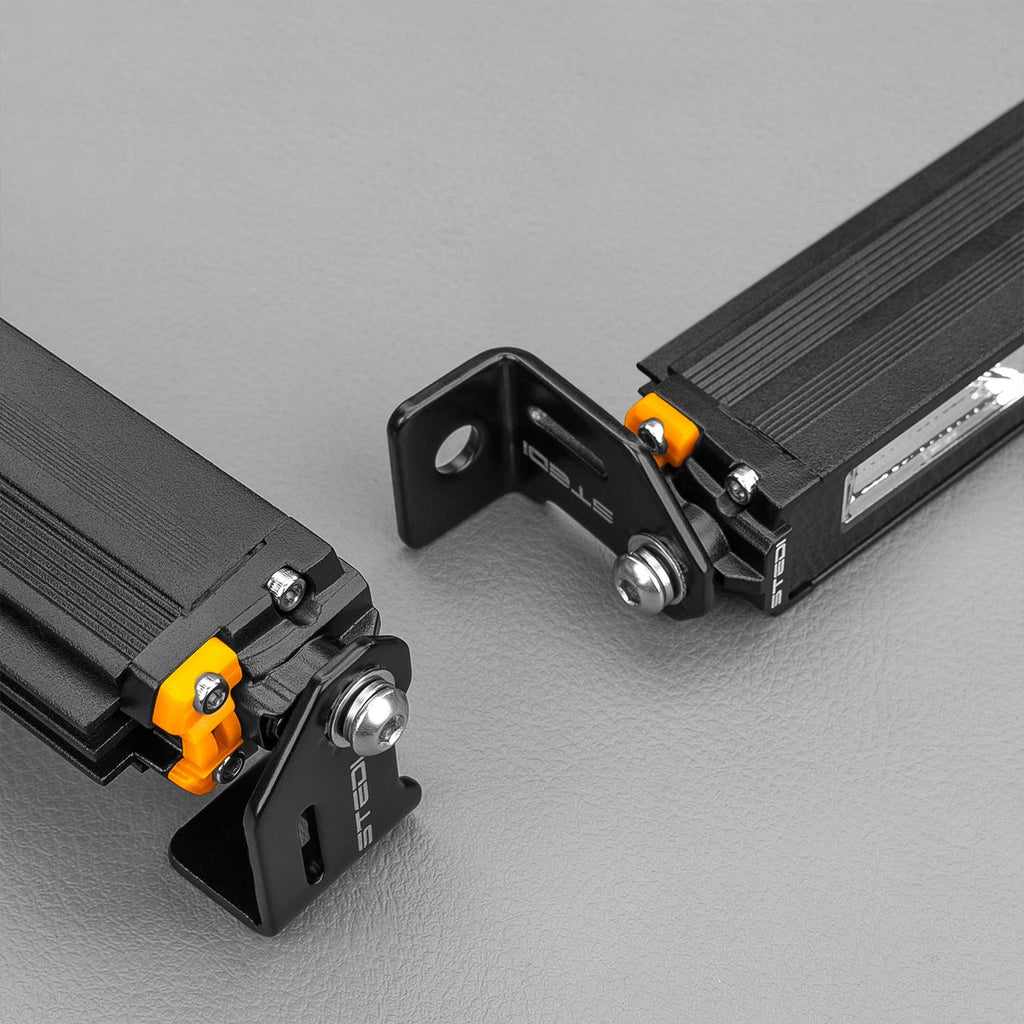

  • STEDI Micro v2 LED Flood Bar detail

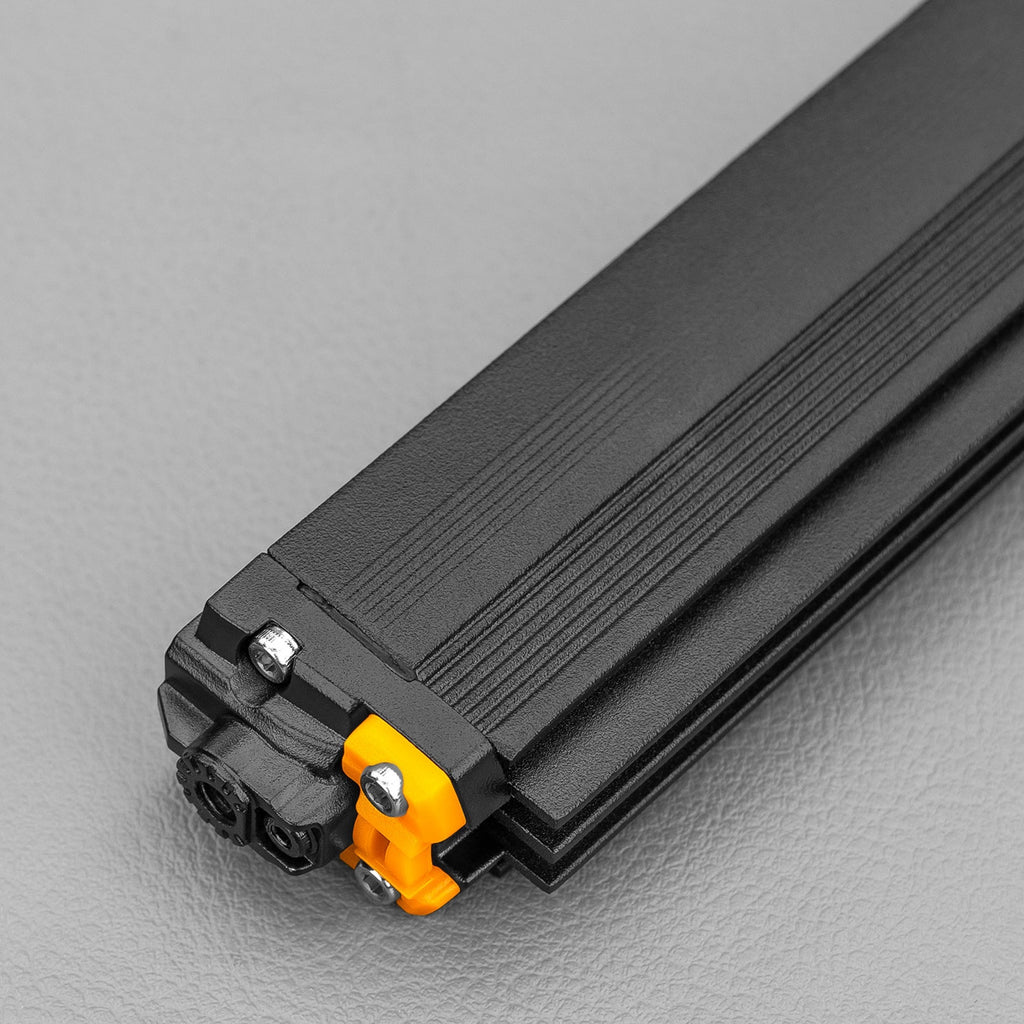

  • STEDI Micro v2 LED Flood Bar mounted

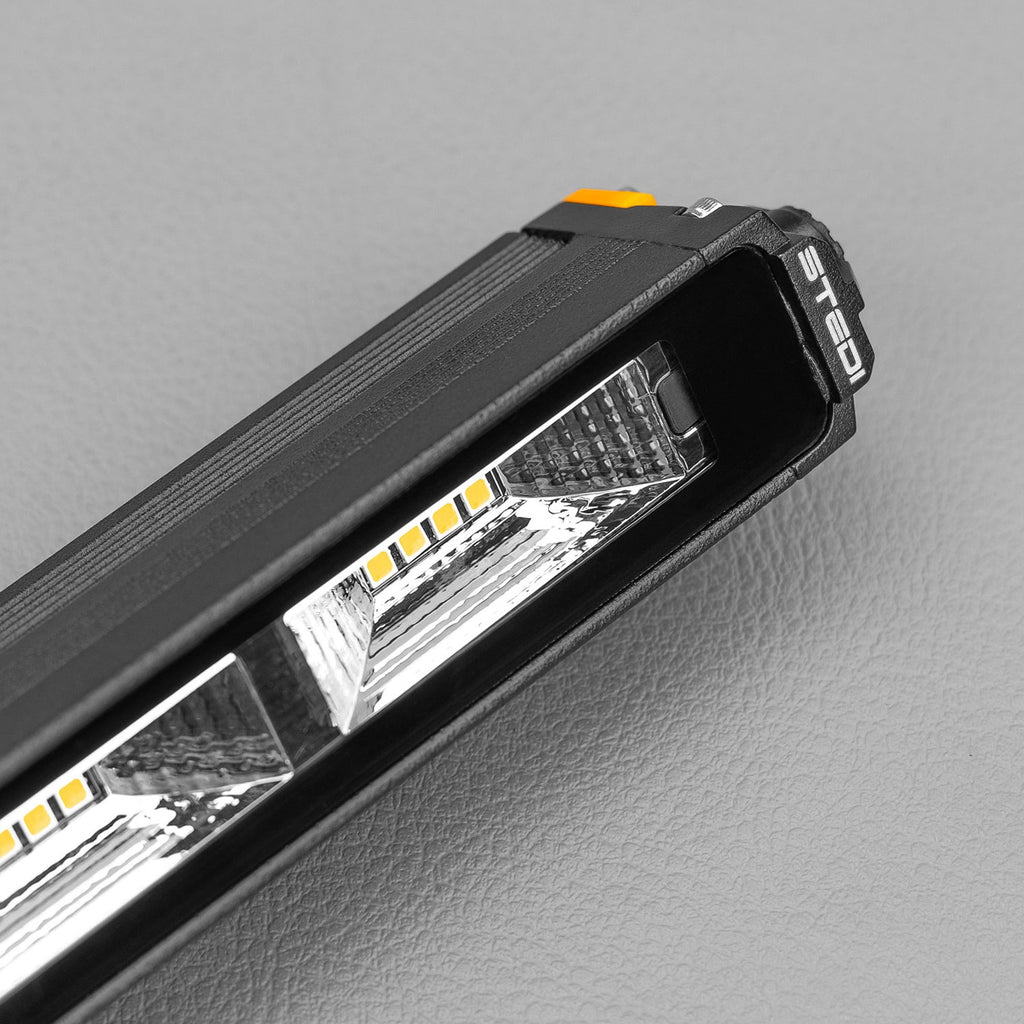

  • STEDI Micro v2 LED Flood Bar white

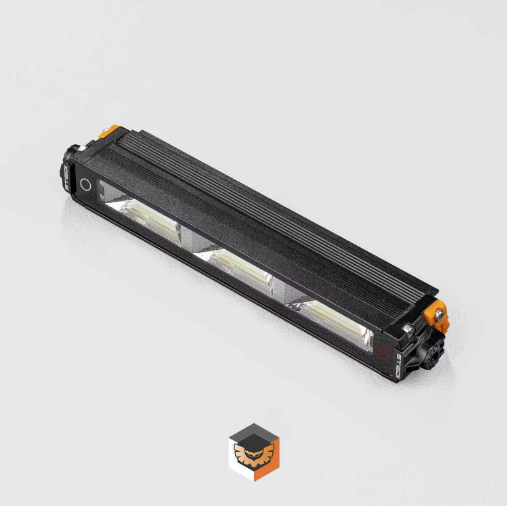

  • STEDI Touch Series 7.8 inch Flood Bar
1 5

Stedi

STEDI Micro v2 & Touch Series LED Flood Bars

STEDI Micro v2 & Touch Series LED Flood Bars

R 1,499.00
R 1,499.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Type

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

STEDI's lowest-profile LED flood bar at just 26mm tall, built for tight spaces where a full-size light bar won't fit - rear lights, awning strips, bull bar edges and canopy trim. Available in White or Amber across three lengths, with a Touch variant that adds touch-activated dual-colour blending (warm amber to crisp white with dimming), and a Touch Marine version offering white/red switching for maritime use.

All sizes use OSRAM LEDs behind an extruded aluminium frame and surface-hardened polycarbonate lens, sealed to IP68 with Deutsch connectors for a reliable, waterproof install.

Key Features

Brand STEDI
Model Micro v2 & Touch Series LED Flood Bar
7.8" Model 12 x OSRAM LEDs, 12W, 1,400lm, 1A@12V / 0.5A@24V, 197.8 x 25.9 x 40.6mm, 0.3kg
13.9" Model 24 x OSRAM LEDs, 24W, 2,600lm, 2A@12V / 1A@24V, 353 x 25 x 40.6mm, 0.5kg
26" Model 48 x OSRAM LEDs, 48W, approx. 2,600lm, 4A@12V / 2A@24V, 665 x 25 x 15mm, 0.8kg
Touch Variants Touch-activated dimming and dual-colour blending, 1,500K-5700K (standard) / 650nm-5700K (marine)
Voltage DC 10-28V (standard), DC 10-30V (marine)
IP Rating IP68
Beam Angle Height 30° / Width 120°
Material Extruded aluminium frame, surface-hardened polycarbonate lens
Cable Length 400mm
Lifespan 30,000 hours
Certification CISPR 25

Highlights

  • Only 26mm tall - STEDI's lowest-profile flood bar
  • Three lengths (7.8", 13.9", 26") in White or Amber
  • Touch variant blends warm amber to white with dimming
  • Touch Marine version switches between white and red
  • IP68 sealed with waterproof Deutsch connectors

Materials & care

Extruded aluminium frame with a surface-hardened polycarbonate lens. Wipe clean with a soft cloth and check the Deutsch connector seal periodically.

Sizing & fit

7.8": 197.8 x 25.9 x 40.6mm, 0.3kg. 13.9": 353 x 25 x 40.6mm, 0.5kg. 26": 665 x 25 x 15mm, 0.8kg. Supplied with side brackets and M8/M6 hardware for surface mounting.

Compatibility

DC 10-28V (standard) or DC 10-30V (marine) - suited to 4x4s, trailers, canopies and boats. Fitted with waterproof Deutsch connectors; STEDI wiring looms and switches (sold separately) are compatible.

How to use

  • Mount using the supplied side brackets and M8/M6 bolts, nuts and washers.
  • Connect via the Deutsch connectors to a 12V or 24V supply, ideally through a relay/switch harness.
  • On Touch variants, tap the lens to cycle through colour and dimming modes.

What's included

  • 1 x Micro v2 or Touch Series flood bar
  • Side brackets
  • M8/M6 bolts, nuts and washers
  • Deutsch connectors

Frequently asked questions

What does the Touch variant do?

Tapping the lens on a Touch variant cycles and blends colour temperature from warm 1,500K amber through to crisp 5700K white, with adjustable dimming.

How low profile is the Micro v2?

It's only 26mm tall, making it STEDI's lowest-profile LED flood bar - ideal for tight spaces where a full-size light bar won't fit.

What's the difference between the Touch and Touch Marine versions?

The standard Touch blends warm amber to white for camp and work use. Touch Marine instead switches between white and red, and runs on a wider DC 10-30V input for boat electrical systems.
View full details
