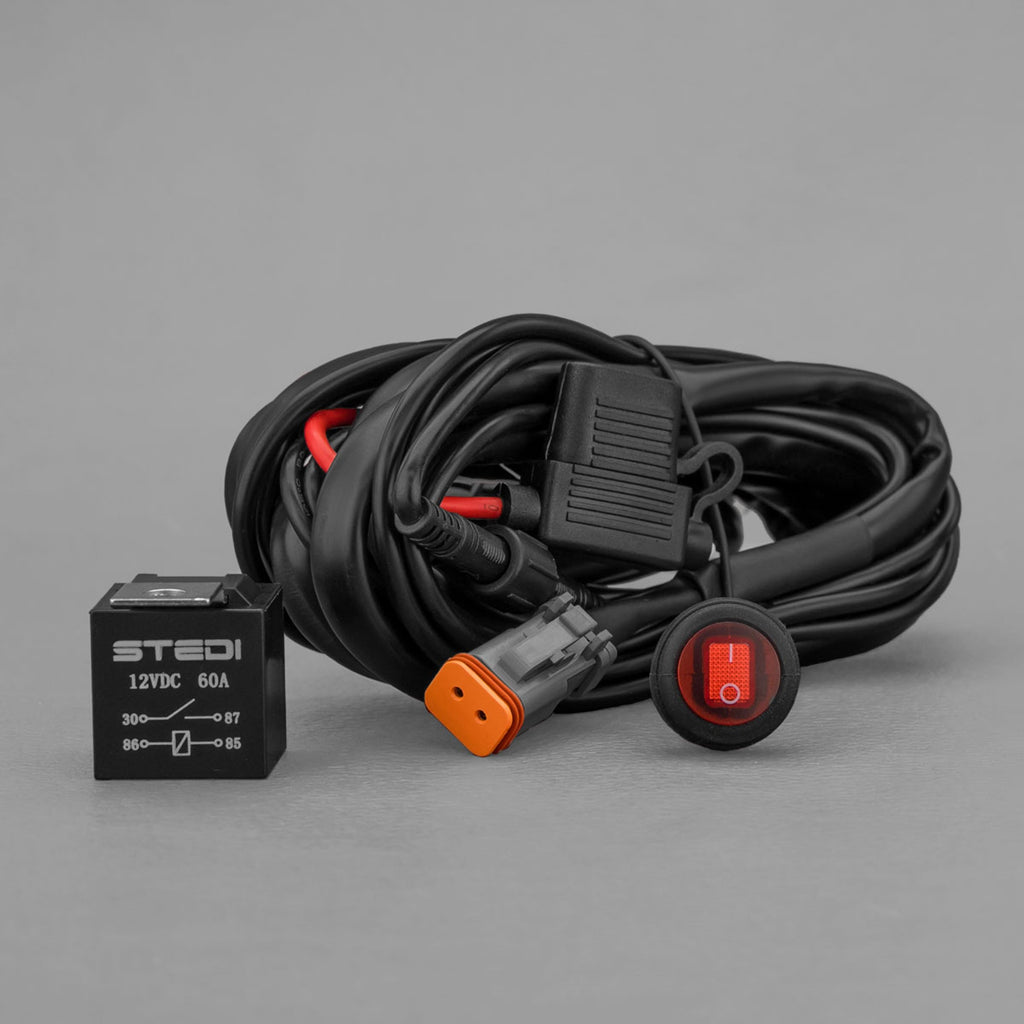

• STEDI LED Work Light Wiring Kit Loom Harness
  • STEDI LED Work Light Wiring Kit mobile install

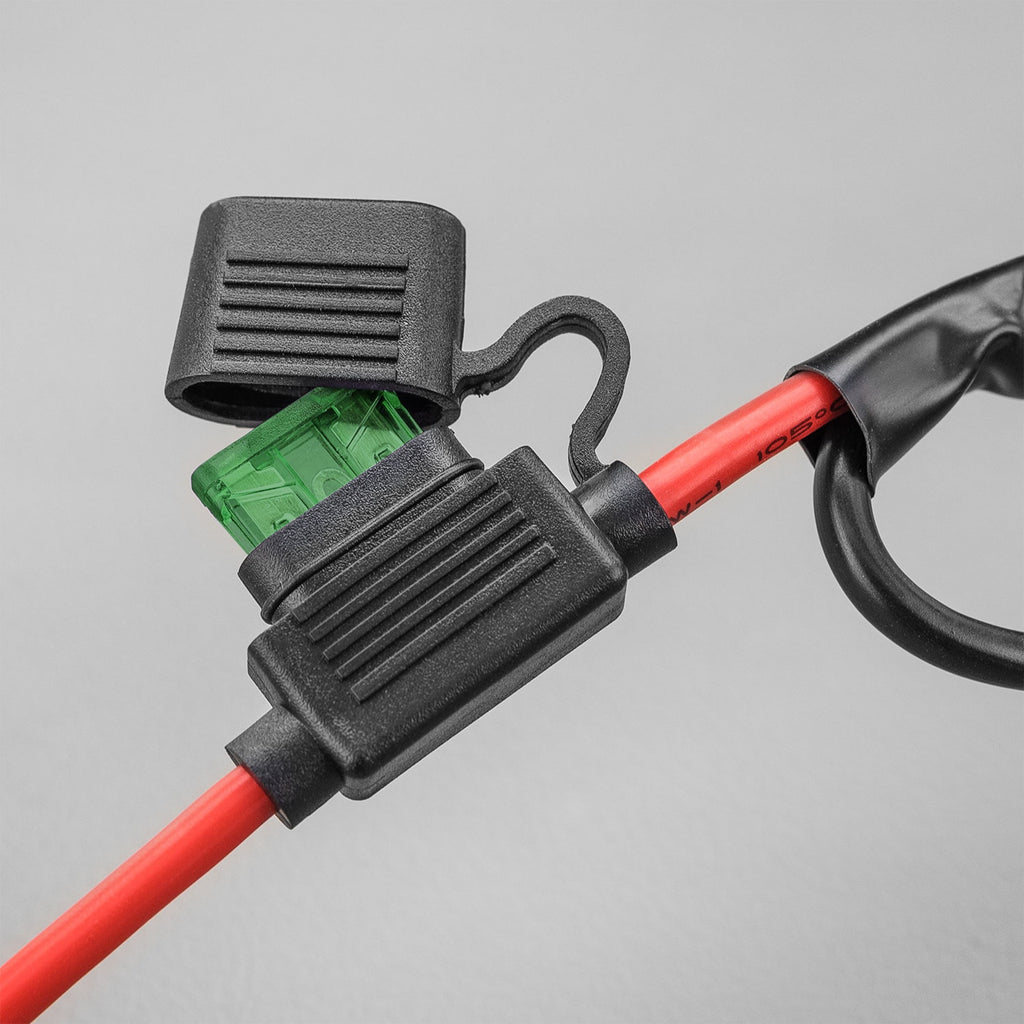

  • STEDI LED Work Light Wiring Kit relay and fuse
  • STEDI LED Work Light Wiring Kit switch detail

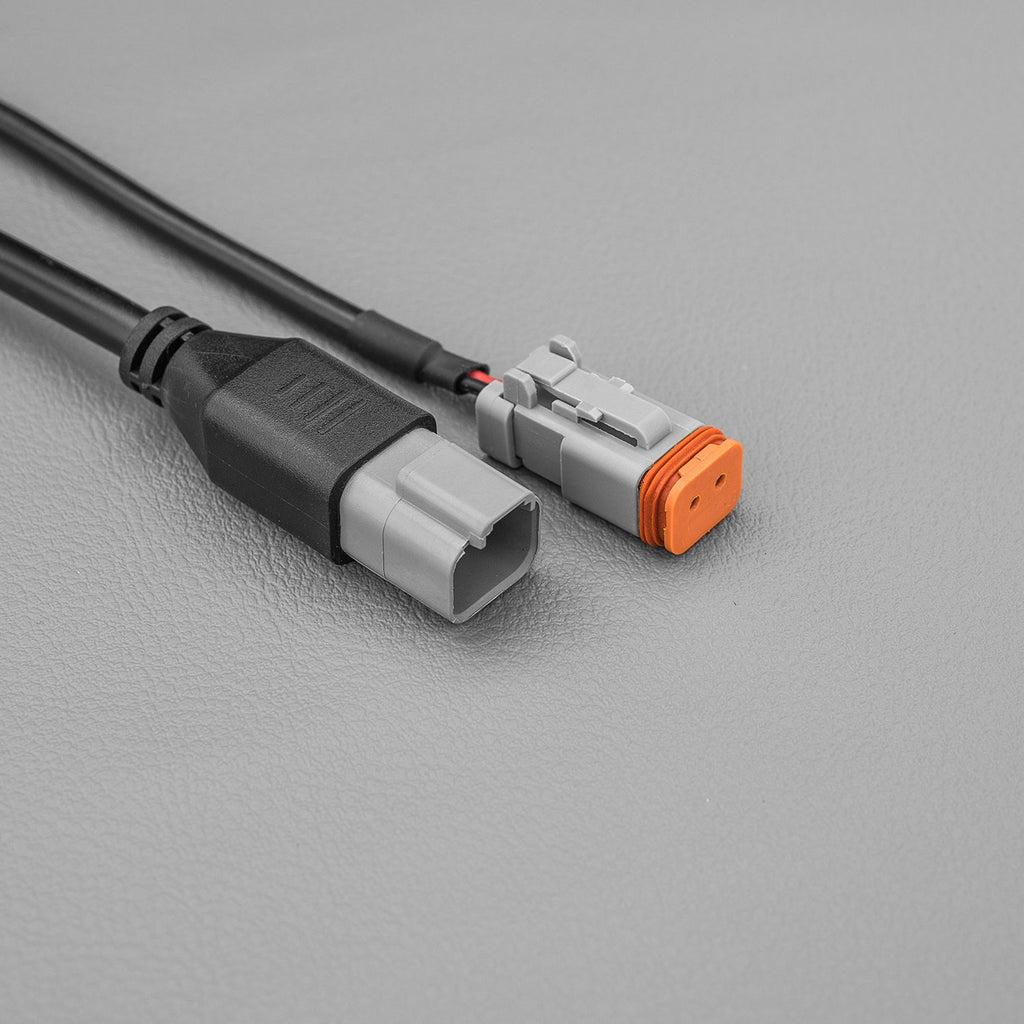

  • STEDI LED Work Light Wiring Kit connectors
1 5

Stedi

STEDI LED Work Light Wiring Kit Loom Harness (NOT HIGH BEAM TRIGGERED)

STEDI LED Work Light Wiring Kit Loom Harness (NOT HIGH BEAM TRIGGERED)

R 999.00
R 999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI LED Work Light Wiring Kit Loom Harness is a fully assembled, ready-to-fit wiring solution for LED work lights, reversing lights and camp/site lighting. It bundles a relay, fused wiring and a press-button switch into a single loom, so extra lights can be added without sourcing and wiring individual components.

This kit is not high beam triggered — it's switched manually via the included waterproof dime switch, which makes it well suited to lighting you want to control independently of your headlights, such as reverse-facing work lights, camp lighting or a winch light.

Key Features

Brand STEDI
Wiring Kit Rating 12VDC 30A (fused)
Relay Rating 12VDC 40A switching relay
Fuse 30A
Total Cable Length Approx. 4.8m (2.8m relay-to-switch, 2.0m light connectors-to-relay)

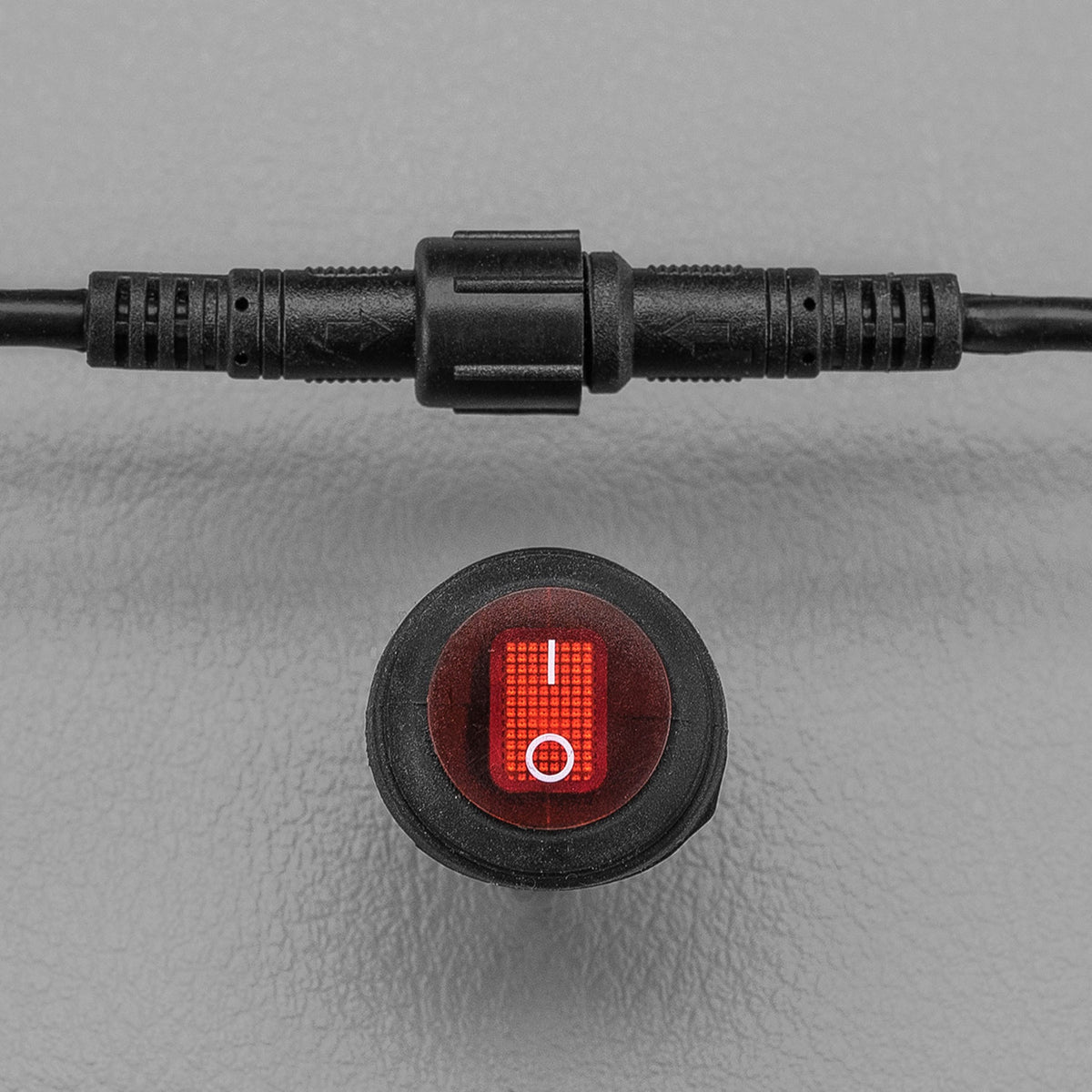

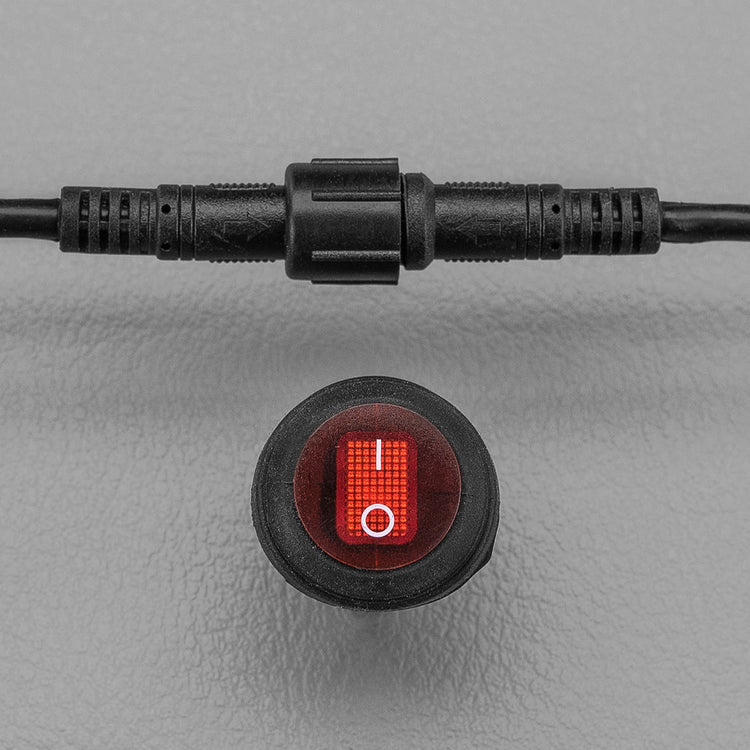

Switch Type Waterproof press-button dime switch
Trigger Type Manual ON/OFF — not high beam triggered
Insulation UV-rated

Highlights

  • Fully assembled loom — relay, fuse and switch included, ready to install
  • 40A relay allows multiple LED work lights or a light bar to run off one loom
  • Manual press-button switch gives control that's independent of your high beam circuit
  • UV-rated insulation copes with engine bay heat and South African sun exposure
  • Waterproof dime switch suits dash, panel or auxiliary switch panel mounting

Compatibility

Universal 12V kit suited to any vehicle running LED work lights, a light bar, or camp/site lighting where high-beam triggering is not required or not desired.

How to use

  • Mount the relay and fuse holder in a dry area of the engine bay, close to the battery.
  • Run the light-side cable from the relay to your work light or light bar connectors.
  • Route the switch cable to your chosen dash or panel position and fit the waterproof dime switch.
  • Connect the fused power feed to the battery, test operation, then secure all cabling with ties.

What's included

  • 1 x 12V work light wiring loom
  • Waterproof press-button dime switch
  • 12VDC 30A fused wiring kit
  • 12VDC 40A switching relay
  • UV-rated insulation

Frequently asked questions

Is this kit high beam triggered?

No. This loom is switched manually using the included press-button dime switch, so your lights operate independently of your vehicle's high beam.

How many lights can I run off one loom?

The 40A relay allows multiple LED work lights or a light bar to be wired to a single loom, provided total current draw stays within the 30A fused rating.

How long is the wiring?

Total cabling is approximately 4.8 metres — about 2.8m from relay to switch, and 2.0m from the light connectors to the relay.
