Beam Pattern

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

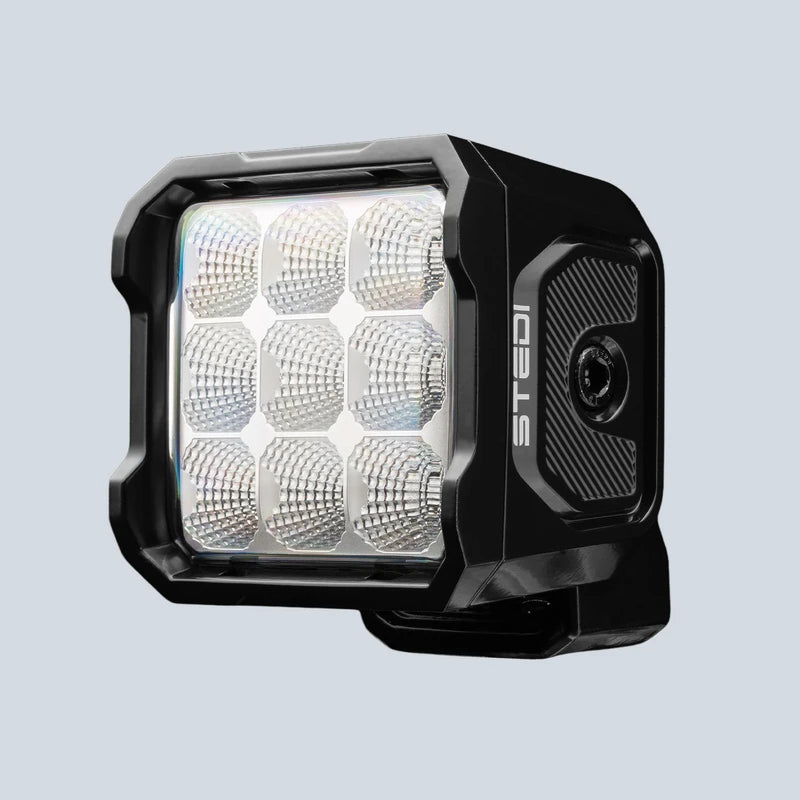

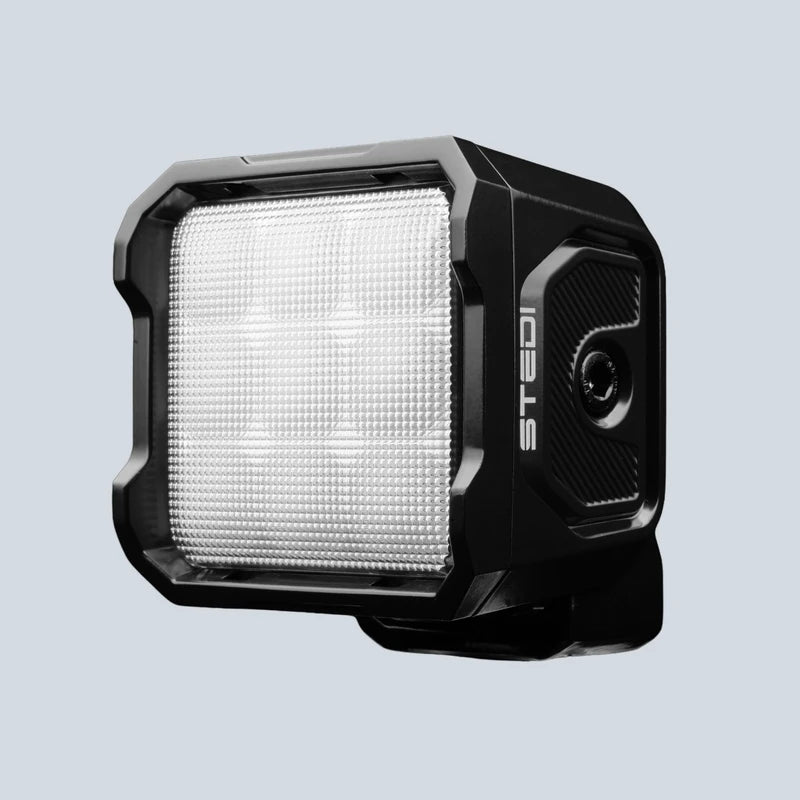

The STEDI G9 Work Lights are a heavy-duty multipurpose auxiliary light built for industrial, agricultural and worksite environments, with a die-cast aluminium housing and full electromagnetic shielding to CISPR 25 Class 3. Choose Flood for a wide, even 60° spread or Ultra Flood for maximum 80° ultra-diffused area coverage.

Rated to IP68 and IP69K and tested to 30Gs shock / 5Gs vibration, the G9 is built to survive the vibration and dust of trailers, canopies, tractors and machinery, backed by a 50,000 hour LED lifespan.

Key Features

Brand STEDI
Model G9
LEDs 9 x CREE XP-L2, 10W each
Total Wattage 90W
Raw Lumens 9,000lm
Tested Lumens 6,900lm
Amp Draw 7.2A @ 13.5V
Voltage 12V & 24V compatible
IP Rating IP68 & IP69K
CISPR Rating 25 Class 3
Colour Temperature 5700K
Beam Distance 90m length; 65m width (1 lux)
Housing Die-cast aluminium
Lens Polycarbonate
Connector 2-pin male
Shock / Vibration Tested 30Gs shock; 5Gs vibration
Lifespan 50,000 hours
Weight 1.91kg

Highlights

  • Choice of Flood or Ultra Flood beam pattern
  • 9,000lm raw / 6,900lm tested output from 9 x CREE XP-L2 LEDs
  • IP68 & IP69K rated for dust and high-pressure water jets
  • CISPR 25 Class 3 electromagnetic shielding
  • Shock tested to 30Gs and vibration tested to 5Gs
  • 50,000 hour LED lifespan

Materials & care

Die-cast aluminium housing with a polycarbonate lens and stainless steel mounting hardware. Wipe down with a soft cloth and mild soap; avoid abrasive cleaners on the lens.

Sizing & fit

Weight: 1.91kg. Compact enough to mount on canopies, trailers, tractors and machinery via the included stainless steel bracket.

Compatibility

Compatible with 12V and 24V electrical systems via a 2-pin male connector. CISPR 25 Class 3 rated, making it suitable for use near sensitive vehicle electronics.

How to use

  • Mount using the included stainless steel bracket and bolts.
  • Aim the light to suit your worksite, canopy or machinery position.
  • Connect via the 2-pin male connector to a switched 12V/24V feed.
  • Fit the included black cover when not in use to protect the lens.

What's included

  • STEDI G9 Work Light (Flood or Ultra Flood)
  • Black protective cover
  • Stainless steel bolts, fittings and bracket
  • 2-pin male connector

Frequently asked questions

What’s the difference between Flood and Ultra Flood?

Flood gives a wide, even spread of light, while Ultra Flood uses an 80° ultra-diffused pattern for maximum area coverage — useful for lighting up a whole worksite rather than a single beam path.

Is the G9 waterproof?

Yes. It’s rated IP68 and IP69K, so it handles dust, submersion and high-pressure water jets.

Will it interfere with my vehicle’s electronics?

No. It’s CISPR 25 Class 3 rated for electromagnetic shielding, so it’s suitable for use near sensitive vehicle electronics.
