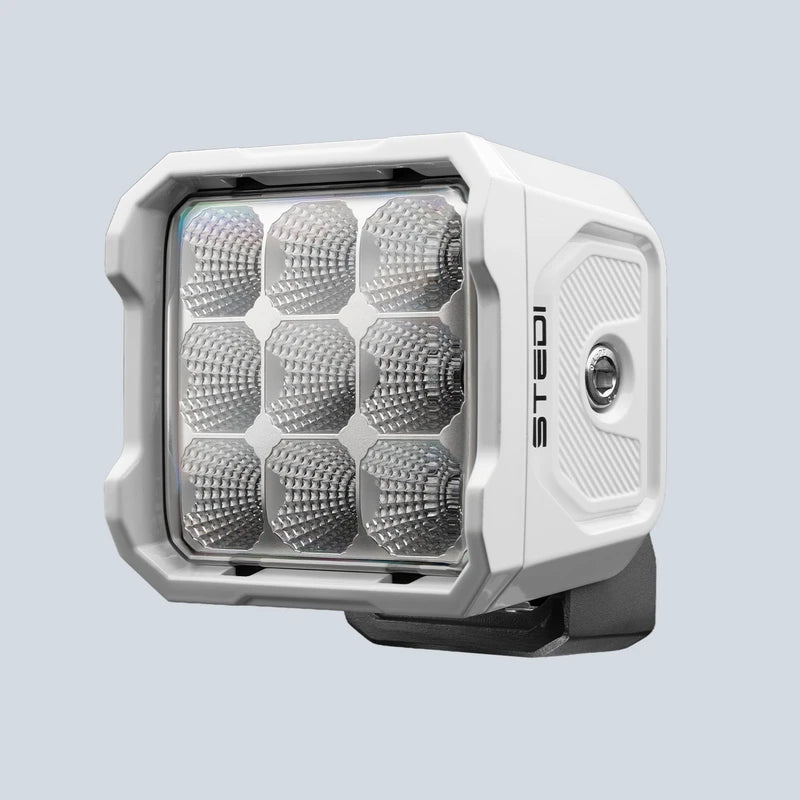

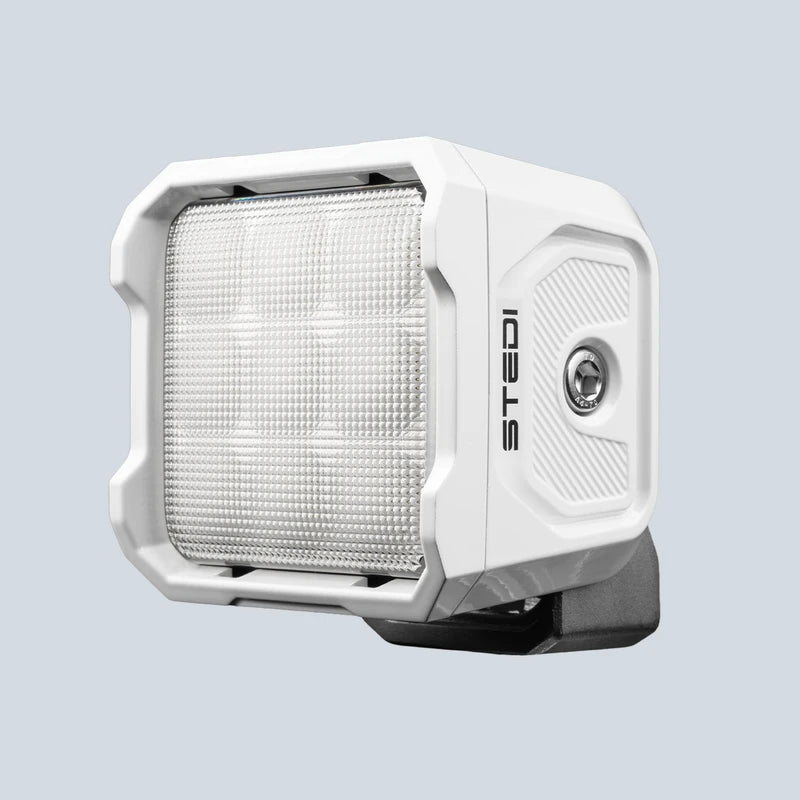

The STEDI G9 Marine Work Lights are the marine-grade version of STEDI’s G9 series, built on the same die-cast aluminium housing and 9 x CREE XP-L2 LED array with tinned cabling and an isolated earth for additional corrosion protection on boats, decks and coastal rigs.
Choose Flood or Ultra Flood (80° ultra-diffused) beam patterns, both rated IP68 and IP69K with CISPR 25 Class 3 electromagnetic shielding and a 50,000 hour LED lifespan.
Key Features
| Brand | STEDI |
| Model | G9 Marine |
| LEDs | 9 x CREE XP-L2, 10W each |
| Total Wattage | 90W |
| Raw Lumens | 9,000lm |
| Tested Lumens | 6,900lm |
| Amp Draw | 7.2A @ 13.5V |
| Voltage | 12V & 24V compatible |
| IP Rating | IP68 & IP69K |
| CISPR Rating | 25 Class 3 |
| Colour Temperature | 5700K |
| Beam Distance | 90m length; 65m width (1 lux) |
| Housing | Die-cast aluminium with marine-grade corrosion protection |
| Lens | Polycarbonate |
| Cabling | Tinned cabling with isolated earth |
| Connector | 2-pin male |
| Shock / Vibration Tested | 30Gs shock; 5Gs vibration |
| Lifespan | 50,000 hours |
| Weight | 1.91kg |
Highlights
- Marine-grade corrosion protection with tinned cabling and isolated earth
- Choice of Flood or Ultra Flood beam pattern
- 9,000lm raw / 6,900lm tested output from 9 x CREE XP-L2 LEDs
- IP68 & IP69K rated for dust, submersion and high-pressure water jets
- CISPR 25 Class 3 electromagnetic shielding
- 50,000 hour LED lifespan
Materials & care
Die-cast aluminium housing with marine-grade corrosion protection, a polycarbonate lens, tinned cabling with isolated earth, and 316 stainless steel mounting hardware. Rinse with fresh water after salt-water exposure.
Sizing & fit
Weight: 1.91kg. Compact enough to mount on boat towers, decks, canopies and trailers via the included bracket.
Compatibility
Compatible with 12V and 24V electrical systems via a 2-pin male connector. CISPR 25 Class 3 rated, making it suitable for use near sensitive vehicle and marine electronics.
How to use
- Mount using the included 316 stainless steel bracket and bolts.
- Aim the light to suit your boat, deck or worksite position.
- Connect via the 2-pin male connector to a switched 12V/24V feed.
- Rinse with fresh water after use in salt water and fit the included black cover when not in use.
What's included
- STEDI G9 Marine Work Light (Flood or Ultra Flood)
- Black protective cover
- 316 stainless steel bolts, fittings and bracket
- 2-pin male connector
