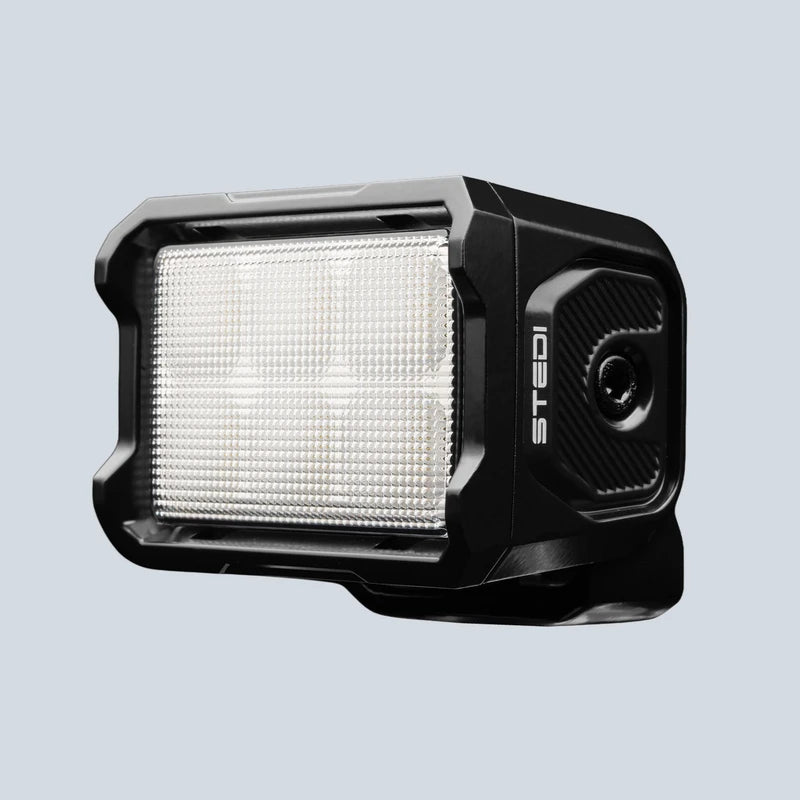

• STEDI G6 Work Lights

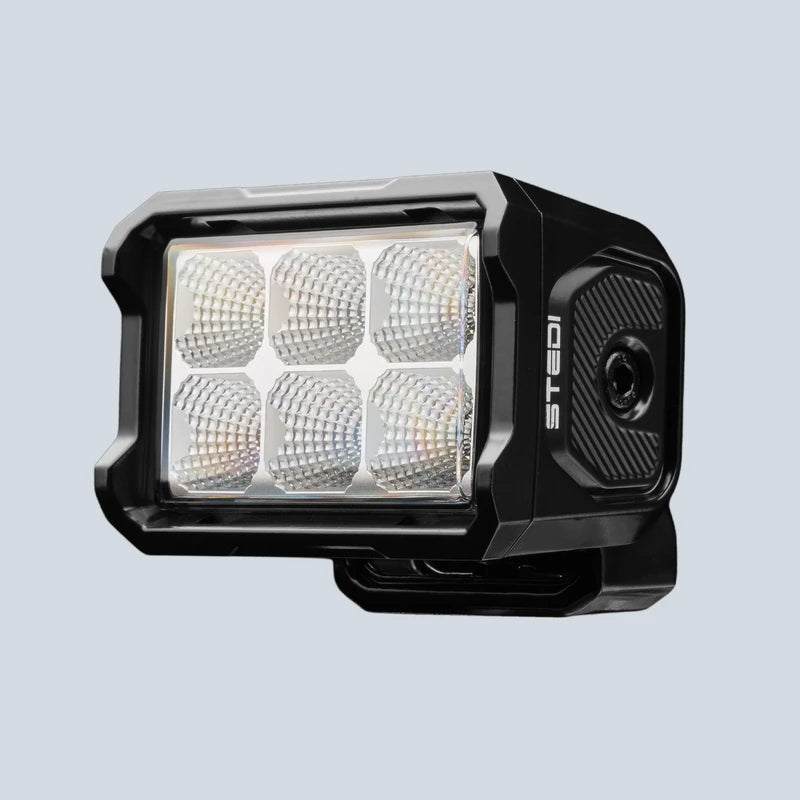

  • STEDI G6 Work Light Flood variant

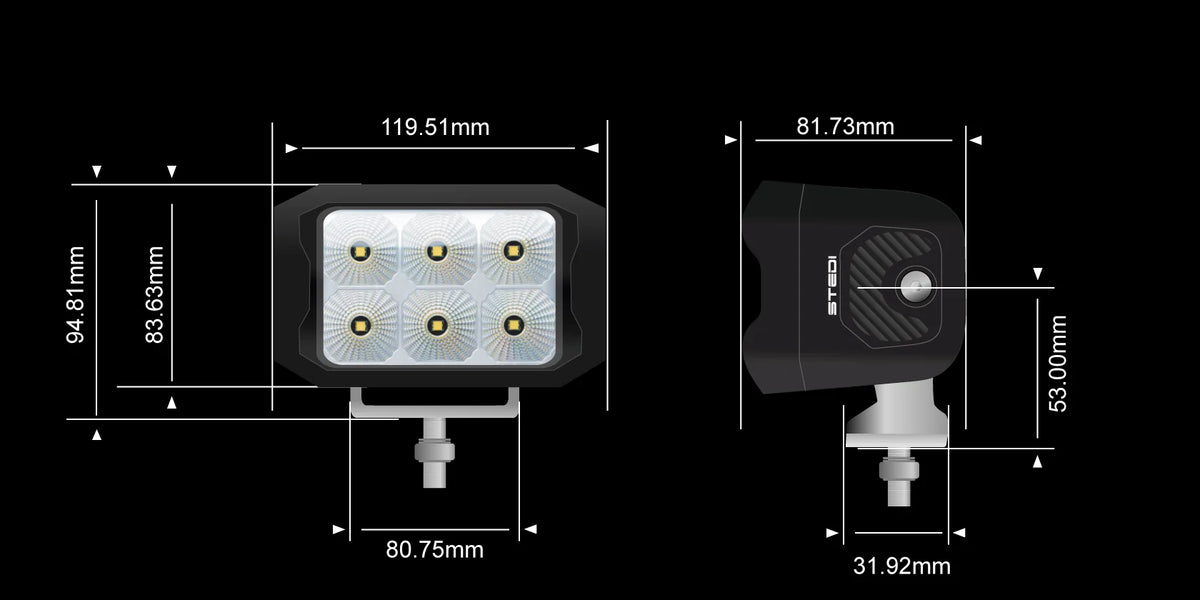

  • STEDI G6 Work Light dimensions diagram

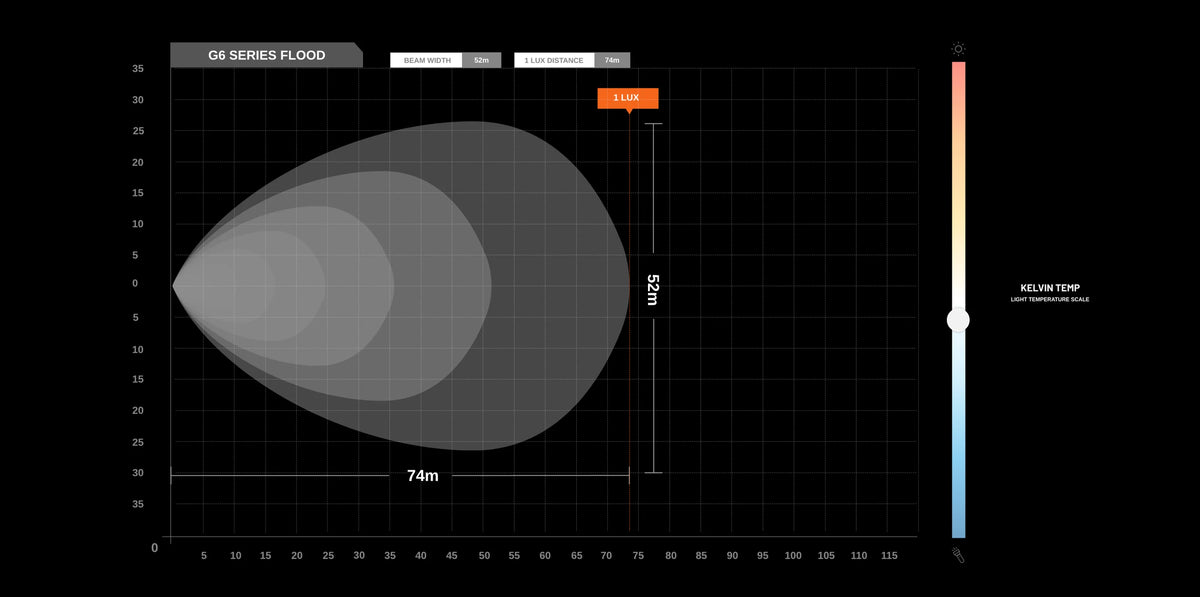

  • STEDI G6 Work Light Flood beam pattern

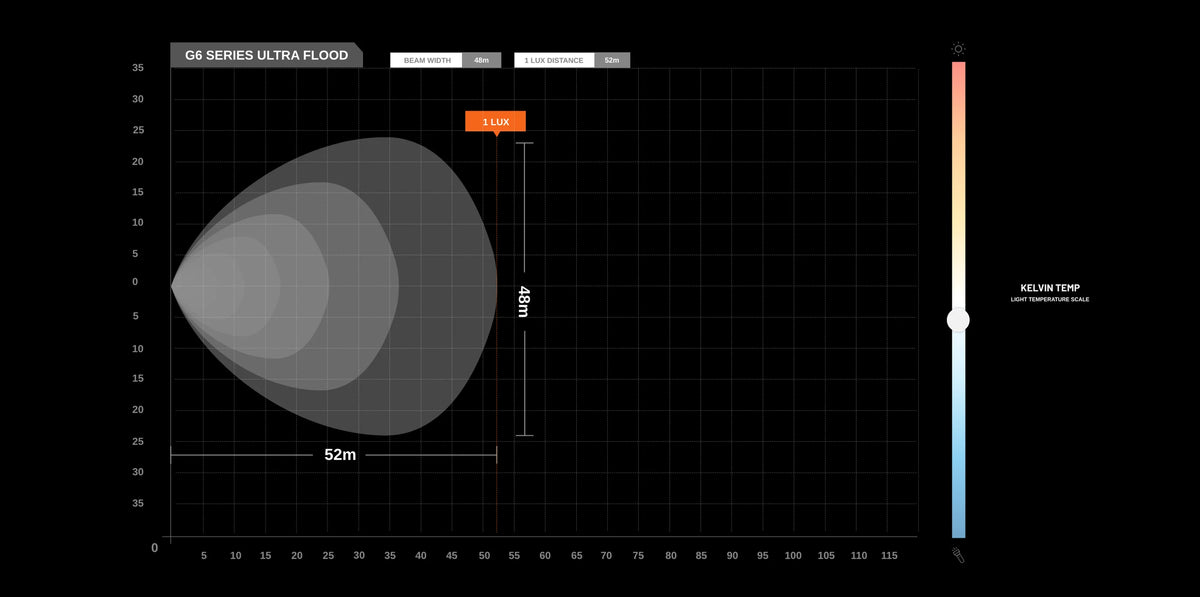

  • STEDI G6 Work Light Ultra Flood beam pattern
1 5

Stedi

STEDI G6 Work Lights

STEDI G6 Work Lights

R 4,199.00
R 4,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Beam Pattern

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI G6 Work Lights sit between the G4 and G9 in STEDI’s work light range, with an ultra-diffused 80° flood pattern for wide lateral and vertical coverage on worksites, canopies and machinery. They’re also available in a 60° standard Flood pattern.

Built with a die-cast aluminium housing and rated to IP68 and IP69K, they’re shock tested to 30Gs and vibration tested to 5Gs with CISPR 25 Class 3 electromagnetic shielding, backed by a 50,000 hour LED lifespan.

Key Features

Brand STEDI
Model G6
LEDs 6 x CREE XP-L2, 10W each
Total Wattage 60W
Raw Lumens 6,000lm
Tested Lumens 4,600lm
Amp Draw 4.8A @ 13.5V
Voltage 12V & 24V compatible
IP Rating IP68 & IP69K
CISPR Rating 25 Class 3
Colour Temperature 5700K
Beam Distance 52m length; 48m width (1 lux)
Housing Die-cast aluminium
Lens Polycarbonate
Shock / Vibration Tested 30Gs shock; 5Gs vibration
Lifespan 50,000 hours
Weight 1.10kg

Highlights

  • Choice of Flood (60°) or Ultra Flood (80° diffused) beam pattern
  • 6,000lm raw / 4,600lm tested output from 6 x CREE XP-L2 LEDs
  • IP68 & IP69K rated for dust and high-pressure water jets
  • CISPR 25 Class 3 electromagnetic shielding
  • Compact 1.10kg weight for canopy, trailer and machinery mounting
  • 50,000 hour LED lifespan

Materials & care

Die-cast aluminium housing with a polycarbonate lens and stainless steel mounting hardware. Wipe down with a soft cloth and mild soap; avoid abrasive cleaners on the lens.

Sizing & fit

Weight: 1.10kg. Compact enough to mount on canopies, trailers and machinery via the included bracket.

Compatibility

Compatible with 12V and 24V electrical systems via a 2-pin connector. CISPR 25 Class 3 rated, making it suitable for use near sensitive vehicle electronics.

How to use

  • Mount using the included stainless steel bracket and bolts.
  • Aim the light to suit your worksite, canopy or machinery position.
  • Connect via the 2-pin connector to a switched 12V/24V feed.
  • Fit the included black cover when not in use to protect the lens.

What's included

  • STEDI G6 Work Light (Flood or Ultra Flood)
  • Black protective cover
  • Stainless steel bolts and bracket
  • 2-pin connector

Frequently asked questions

What’s the difference between Flood and Ultra Flood?

Flood uses a standard 60° pattern, while Ultra Flood spreads light across an 80° diffused pattern for wider area coverage.

How does the G6 compare to the G9?

The G6 uses 6 LEDs (60W, 6,000lm raw) versus the G9’s 9 LEDs (90W, 9,000lm raw) — a lighter, lower-output option for smaller worksites or where weight matters.

Is the G6 waterproof?

Yes. It’s rated IP68 and IP69K, so it handles dust, submersion and high-pressure water jets.
