STEDI G1 Work Lights

STEDI G1 Work Lights

R 1,699.00
R 1,699.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Mount

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

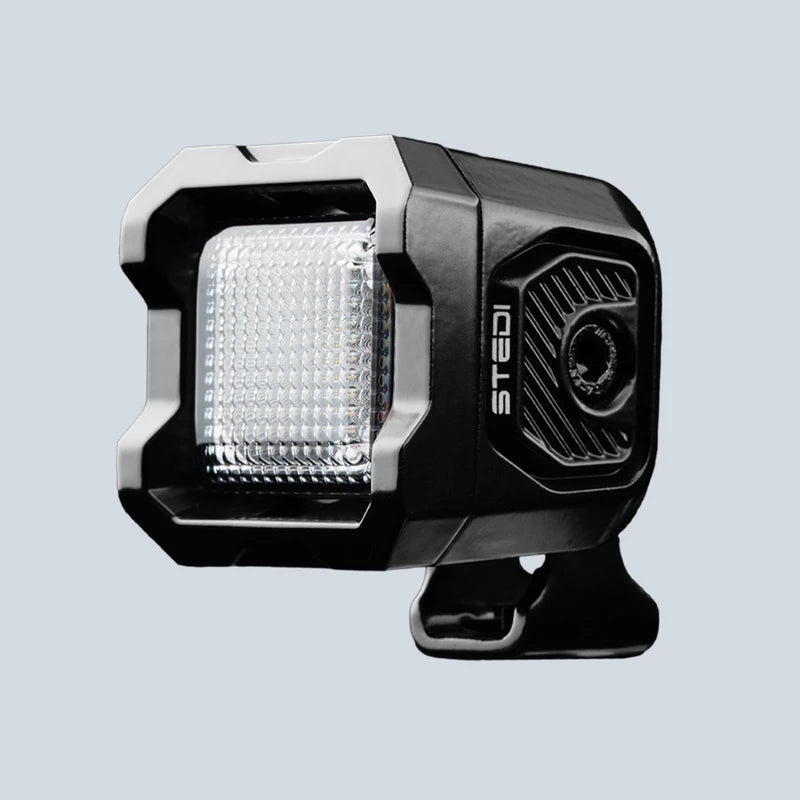

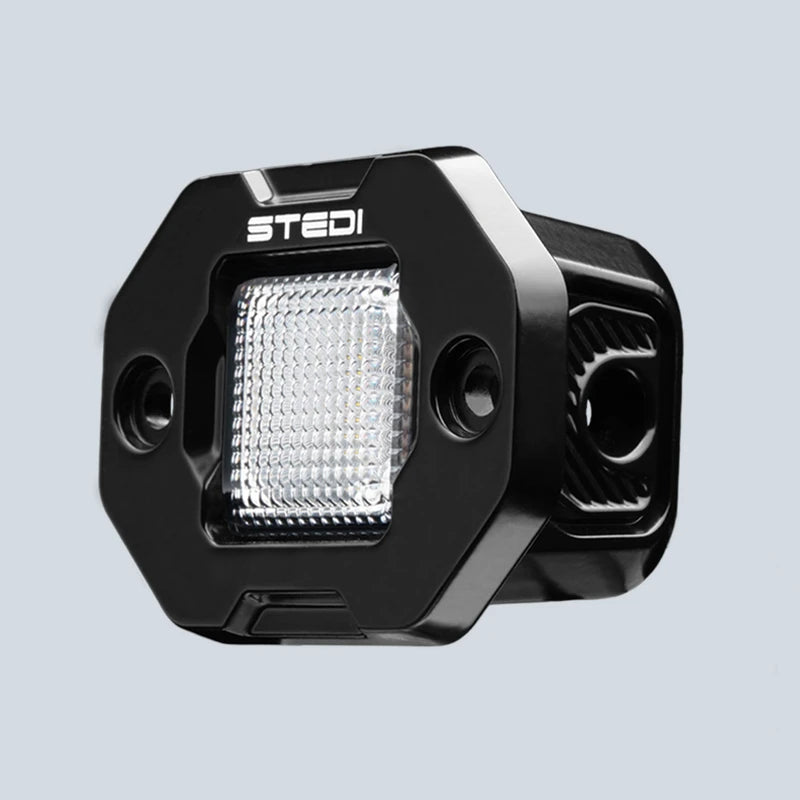

The STEDI G1 Work Lights are STEDI's smallest work light - compact enough to tuck into tight spaces on a canopy, bull bar or machinery, but still built on the same CREE XP-L2 LED and die-cast aluminium platform as the rest of the G-series. Choose standard Flood or the Flush Mount Flood for a lower-profile install.

At just 0.29kg, a single 10W CREE XP-L2 LED delivers 1,000lm raw (750lm tested) output while drawing only 0.8A, making it an easy add-on anywhere extra spot illumination is needed.

Key Features

Brand STEDI
Model G1 Work Light
LEDs 1 x CREE XP-L2, 10W
Lumens 1,000lm raw / 750lm tested
Amp Draw 0.8A @ 13.5V
Voltage 12V & 24V compatible
Colour Temperature 5700K
1 Lux Range 18m length / 21m width
IP Rating IP68 & IP69K
Housing Die-cast aluminium, polycarbonate lens
Connector 2-pin male
Weight 0.29kg
Lifespan 50,000 hours

Highlights

  • STEDI's smallest work light - fits where bigger lights can't
  • Choice of standard Flood or low-profile Flush Mount Flood
  • IP68 & IP69K sealed against dust and water
  • 12V and 24V compatible
  • 50,000 hour LED lifespan

Materials & care

Die-cast aluminium housing with a polycarbonate lens. Wipe clean with a soft cloth; avoid abrasive cleaners on the lens.

Sizing & fit

Weight: 0.29kg. Supplied with a stainless steel bracket and hardware; the Flush Mount Flood variant sits lower profile for a cleaner install.

Compatibility

12V and 24V electrical systems - suited to 4x4s, canopies, trailers and machinery. Wired via a 2-pin male connector; STEDI wiring looms and switches (sold separately) are compatible.

How to use

  • Mount using the supplied stainless steel bracket and hardware.
  • Connect via the 2-pin male connector to a 12V or 24V supply, ideally through a relay/switch harness.
  • Fit the black cover (standard mount only) when the light isn't in use to protect the lens.

What's included

  • 1 x G1 flood light
  • Black cover (standard mount only)
  • Stainless steel hardware & bracket
  • 2-pin male connector

Frequently asked questions

What's the difference between the Flood and Flush Mount Flood?

Both use the same LED and housing. The Flush Mount Flood sits lower profile for a cleaner surface-mounted install, and doesn't include the black protective cover supplied with the standard model.

Is the G1 waterproof?

Yes, it's rated IP68 and IP69K, so it handles dust, submersion and high-pressure wash-downs.

Will it run on a 24V truck system?

Yes, the G1 is compatible with both 12V and 24V electrical systems.
