STEDI Curved 50.8" ST2K Super Drive 20 LED Light Bar
STEDI Curved 50.8" ST2K Super Drive 20 LED Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.
The STEDI Curved 50.8" ST2K Super Drive 20 LED Light Bar uses STEDI’s higher-output "Super Drive" LED configuration for extra punch on a curved bar, delivering a lateral spot beam that’s 90m wide at approximately 250m distance for strong mid-to-long-range illumination.
It’s built in the same durable curved 6063 aluminium housing as the rest of the ST2K range, rated to IP68 and carrying E-Mark R10 and CE certification for reliable, road-legal off-road performance.
Key Features
| Brand | STEDI |
| Model | ST2K-20L Super Drive |
| Length | 50.8" (approx. 1,290mm) |
| LEDs | 20 x 15W rearward-facing |
| Lumens | 20,000lm |
| Amp Draw | 20.7A @ 13.2V |
| Voltage | 12V & 24V compatible |
| Beam Pattern | Lateral spot beam — approx. 90m wide at 250m |
| IP Rating | IP68 |
| Housing | Curved 6063 aluminium extrusion |
| Lens | Optical grade, hard-coated Lexan |
| Operating Temperature | -40°C to +150°C |
| Lifespan | 50,000 hours |
| Connectors | Weatherproof Deutsch DT2 |
| Weight | 5.79kg |
| Certifications | E-Mark R10, CE |
Highlights
- Super Drive LED configuration for extra mid-to-long-range punch
- 20,000lm from 20 x 15W rearward-facing LEDs
- Lateral spot beam 90m wide at approximately 250m
- Curved 6063 aluminium housing for a tight, factory-look fit
- IP68 rated with E-Mark R10 and CE certification
- 50,000 hour LED lifespan
Materials & care
Curved 6063 aluminium extrusion housing with an optical grade, hard-coated Lexan lens. Wipe down with a soft cloth and mild soap; avoid abrasive cleaners or solvents on the lens.
Sizing & fit
Length: 50.8" / approx. 1,290mm (curved). Weight: 5.79kg. The curved profile is designed to sit flush against curved roof racks and bull bars without needing packers.
Compatibility
Wired via a weatherproof Deutsch DT2 connector with a high-beam wiring harness and HB3/H4 adapters, compatible with both 12V and 24V electrical systems.
How to use
- Mount using the two supplied steel side brackets on a roof rack or bull bar.
- Secure with the included 304 stainless steel fasteners.
- Wire in using the high-beam wiring harness with HB3 and H4 adapters, following the supplied wiring instructions.

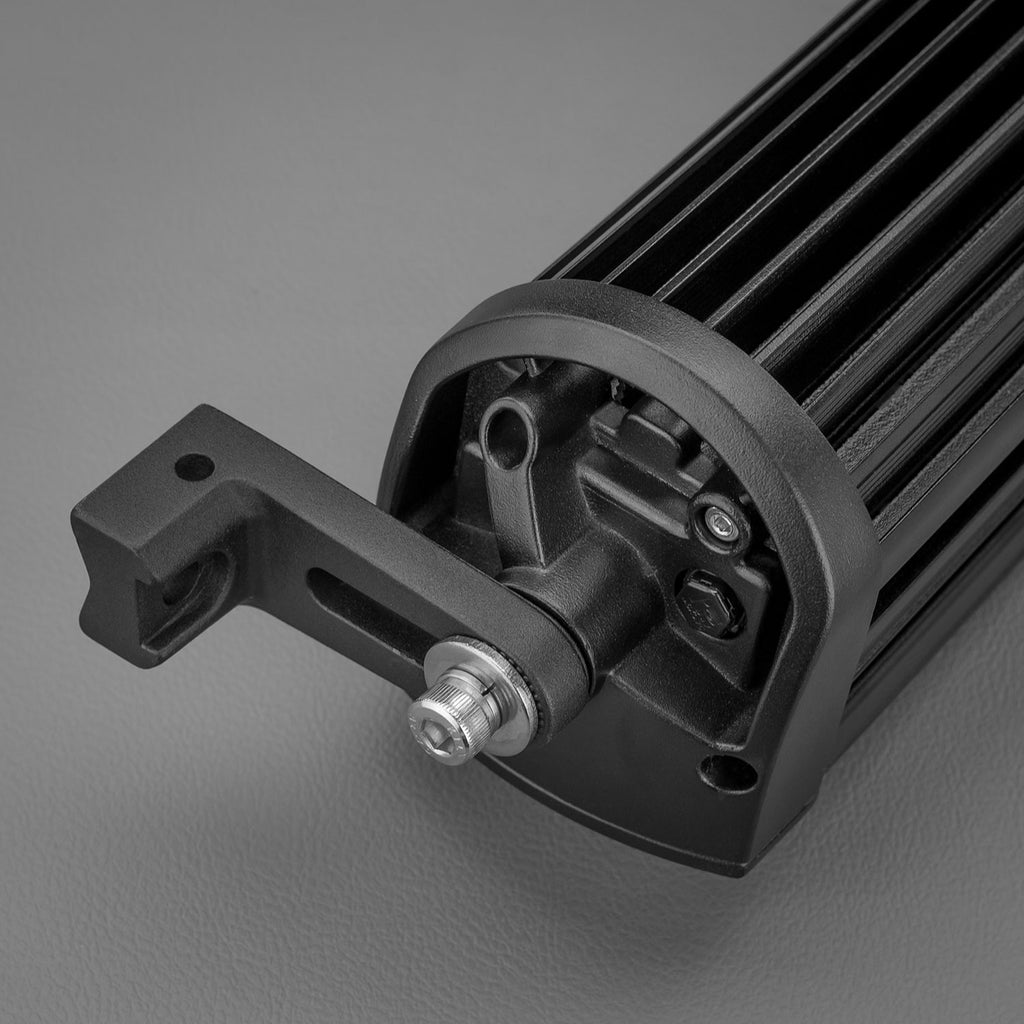

- Connect via the Deutsch DT2 connector for a sealed, weatherproof connection.
What's included
- STEDI Curved 50.8" ST2K Super Drive 20 LED Light Bar
- 2x steel side brackets
- High-beam wiring harness with HB3 & H4 adapters
- Wiring instructions
- 304 stainless steel fasteners
