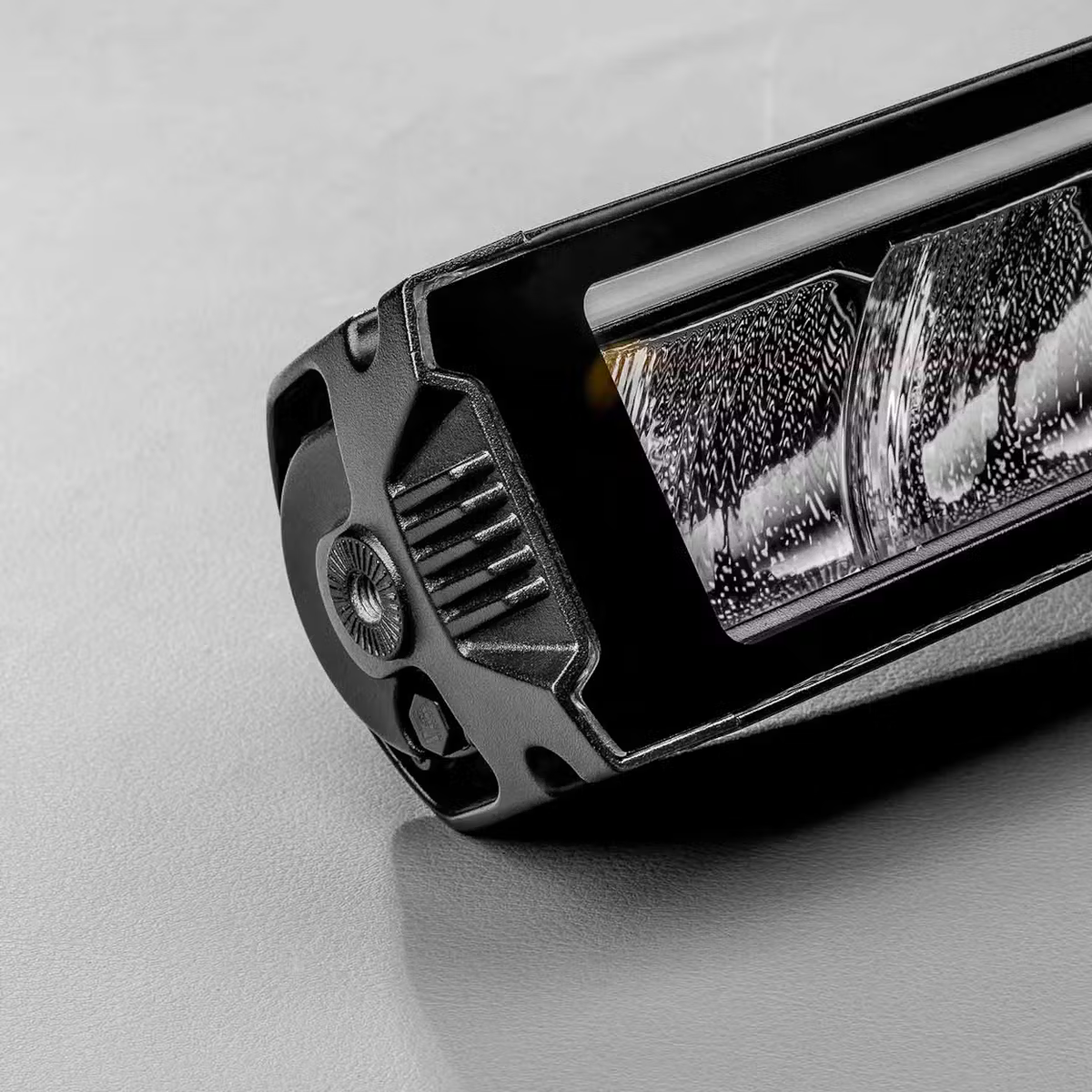

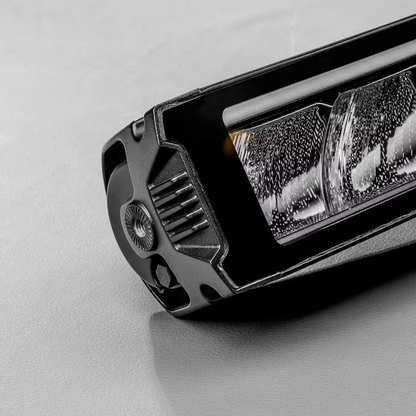

• STEDI Curved 40" ST2K Touch LED Light Bar

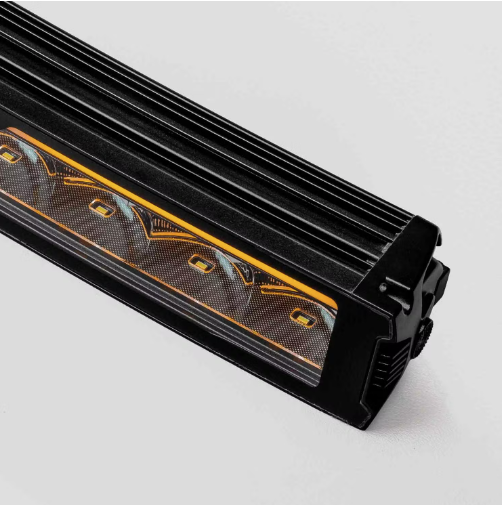

  • STEDI Curved 40 inch ST2K Touch LED Light Bar specification chart

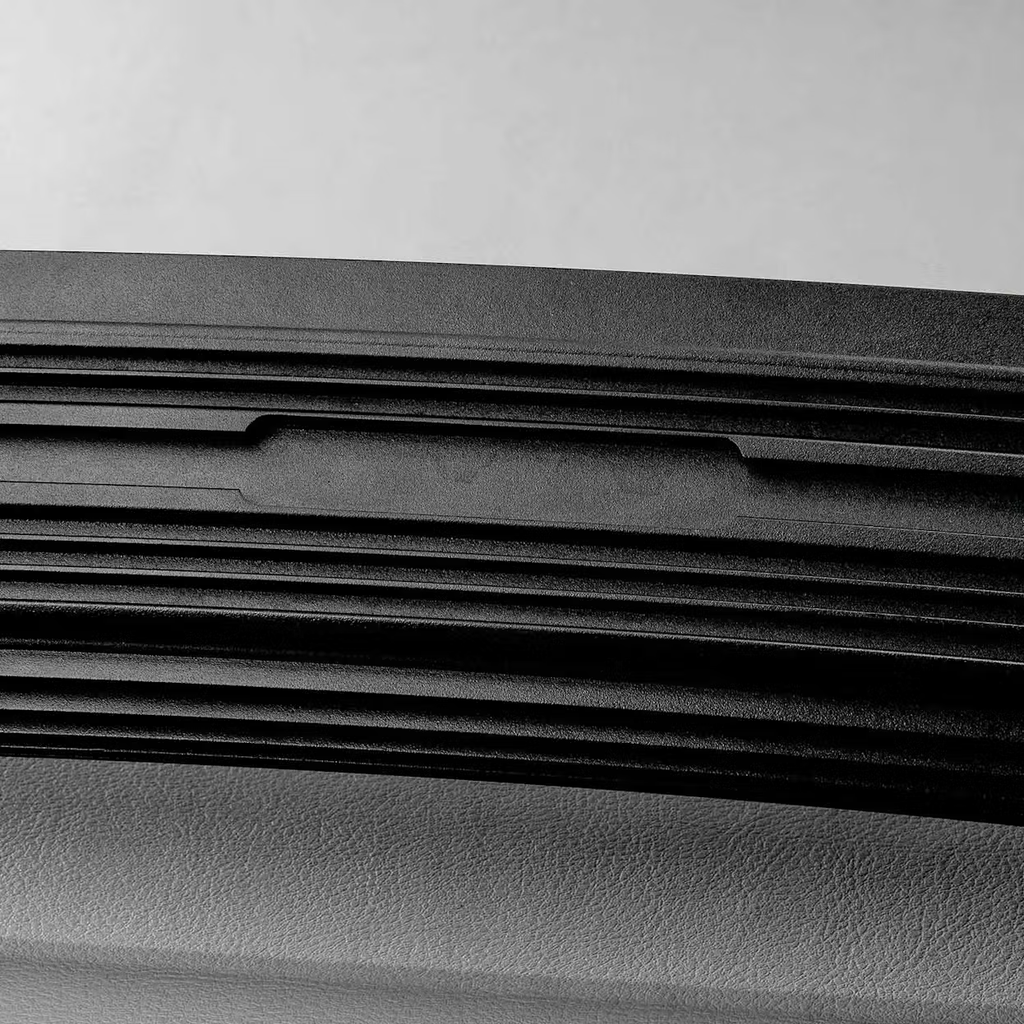

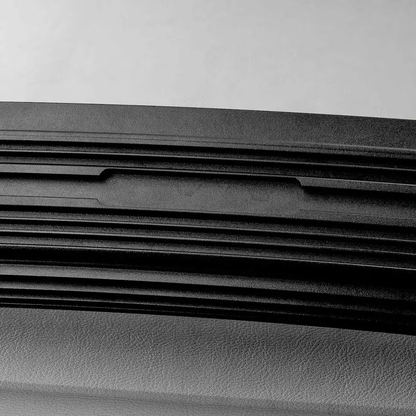

  • STEDI Curved 40 inch ST2K Touch LED Light Bar mounted

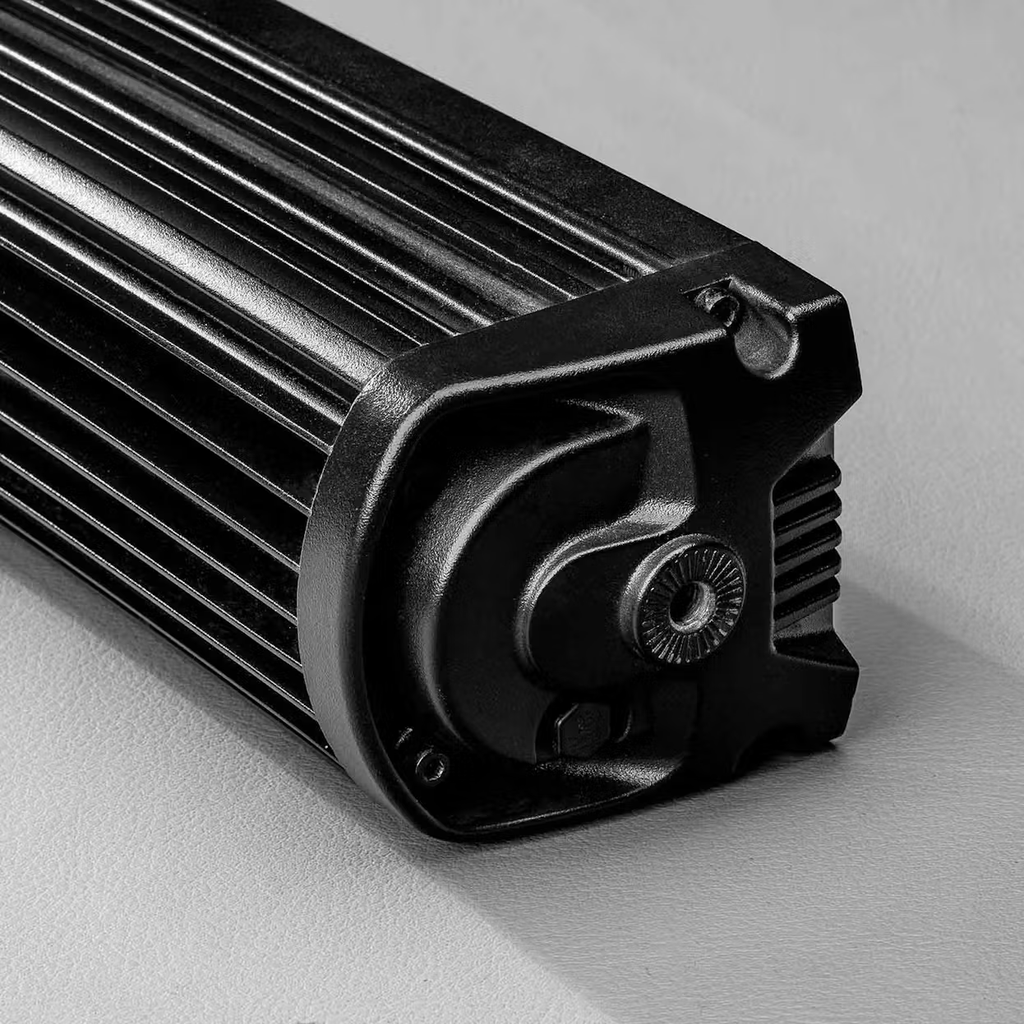

  • STEDI Curved 40 inch ST2K Touch LED Light Bar rear connector

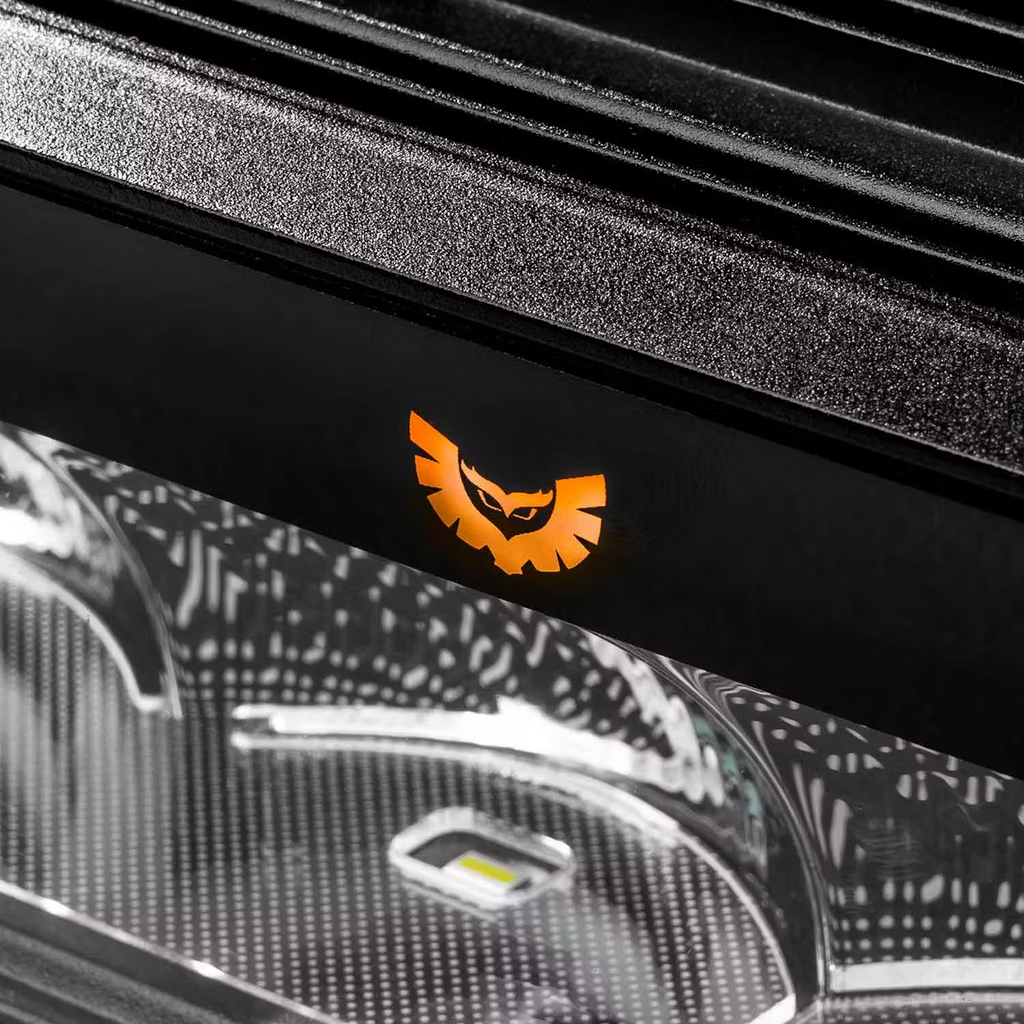

  • STEDI Curved 40 inch ST2K Touch LED Light Bar amber DRL
1 5

Stedi

STEDI Curved 40" ST2K Touch LED Light Bar

STEDI Curved 40" ST2K Touch LED Light Bar

R 17,999.00
R 17,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI Curved 40" ST2K Touch LED Light Bar is the shorter sibling in the ST2K Touch range, with the same touch-activated, colour-switching white/amber DRL built into the lens and a curved 6063 aluminium housing for a snug fit on roof racks and bull bars.

It puts out 19,000lm from 16 x 15W LEDs in a combo beam pattern, throwing light 645m down-road with a 164m lateral spread thanks to its curved reflector design, and carries STEDI’s IP68 waterproof rating for reliable off-road use.

Key Features

Brand STEDI
Model ST2K Touch
Length 40"
LEDs 16 x 15W
Lumens 19,000lm
Amp Draw 16.1A @ 13.2V
Voltage 12V & 24V compatible
Beam Pattern Combo beam (spot + flood)
Colour Temperature Main beam 5700K; DRL 1500K (warm amber)
IP Rating IP68
Housing Curved 6063 aluminium extrusion
Lens Optical grade, hard-coated Lexan
Weight 5.974kg
Throw Distance 645m down-road; 164m lateral spread

Highlights

  • Touch-activated white/amber DRL built directly into the lens
  • 19,000lm combo beam from 16 x 15W LEDs
  • Curved housing for a tight, factory-look fit on roof racks and bull bars
  • IP68 rated against dust and water ingress
  • 6063 aluminium extrusion housing with hard-coated Lexan lens

Materials & care

Curved 6063 aluminium extrusion housing with an optical grade, hard-coated Lexan lens. Wipe down with a soft cloth and mild soap; avoid abrasive cleaners or solvents on the lens.

Sizing & fit

Length: 40" (curved). Weight: 5.974kg. The curved profile is designed to sit flush against curved roof racks, bull bars and canopies without needing packers.

Compatibility

Wired via a relay harness with HB3/H4 piggyback adapter, allowing the light bar to trigger from the vehicle’s factory high-beam circuit. Compatible with both 12V and 24V electrical systems.

How to use

  • Mount using the supplied side brackets on a roof rack, bull bar or canopy.
  • Wire in using the relay harness and HB3/H4 piggyback adapter, or hardwire to a switched 12V/24V feed.
  • Tap the touch-sensor on the lens to switch the DRL between white and amber.
  • Activate the main beam via your wired switch or high-beam trigger.

What's included

  • STEDI Curved 40" ST2K Touch LED Light Bar
  • Relay harness
  • HB3/H4 high-beam piggyback adapter
  • Stainless steel fastener set
  • Side mounting brackets
  • Wiring and installation instructions

Frequently asked questions

Can I switch the DRL colour without rewiring?

Yes. The DRL is touch-activated directly on the lens, so you can tap to switch between white and amber without any extra wiring or switches.

How does the 40" compare to the 50" ST2K Touch?

It uses the same touch DRL technology and 6063 aluminium housing but with fewer LEDs (16 x 15W vs 20 x 15W) and a shorter 40" length, giving 19,000lm instead of 24,000lm.

Is this light bar 12V or 24V?

Both — it’s compatible with 12V and 24V vehicle electrical systems.
