STEDI Carbon Switch Panel With USB And Digital Volt Meter

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

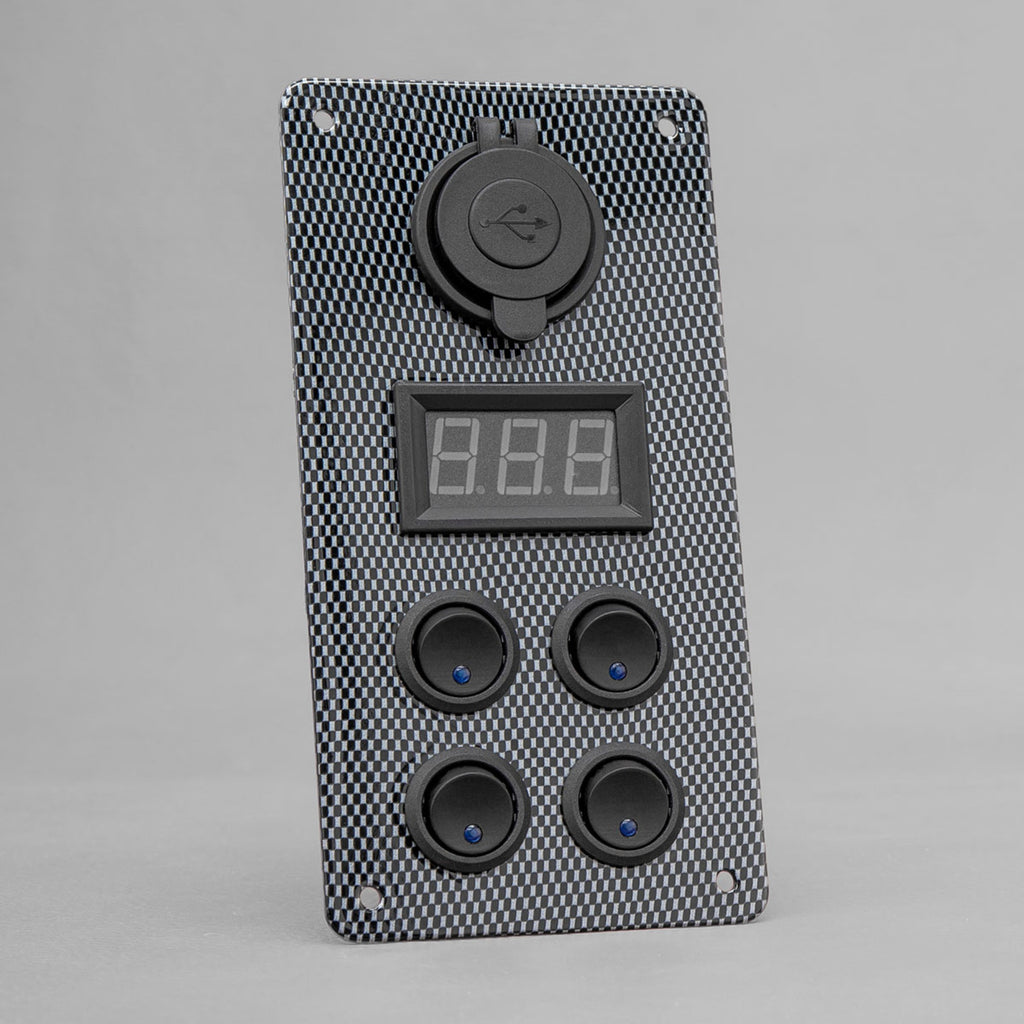

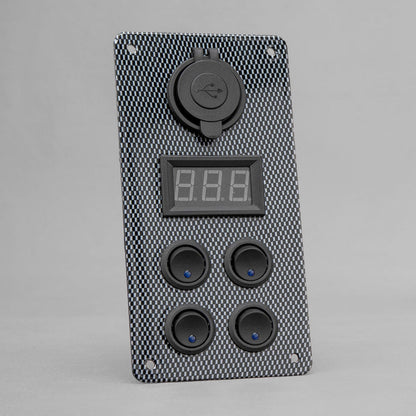

This 12V switch panel packs four dime switches, twin USB charging and a digital voltage meter into a compact, hydro-dipped carbon fibre finish panel — ideal for adding accessory control to a canopy, camper or dash.

Pre-wired connectors and pig tails make for a simpler install, and the panel suits any 4x4, caravan or camper setup rather than one specific vehicle.

Key Features

Highlights

• 4 switched circuits plus dual USB charging and a digital volt meter in one panel

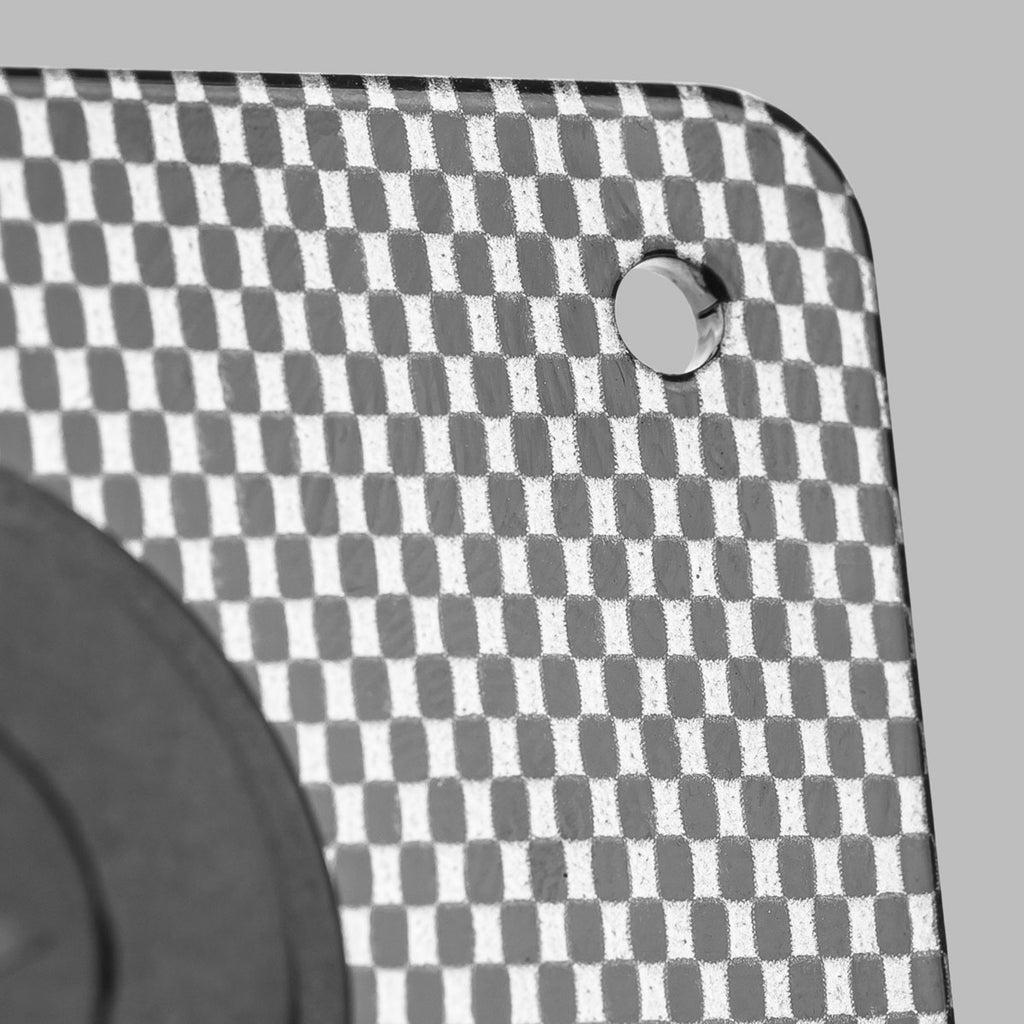

• Hydro-dipped carbon fibre finish on an aluminium panel

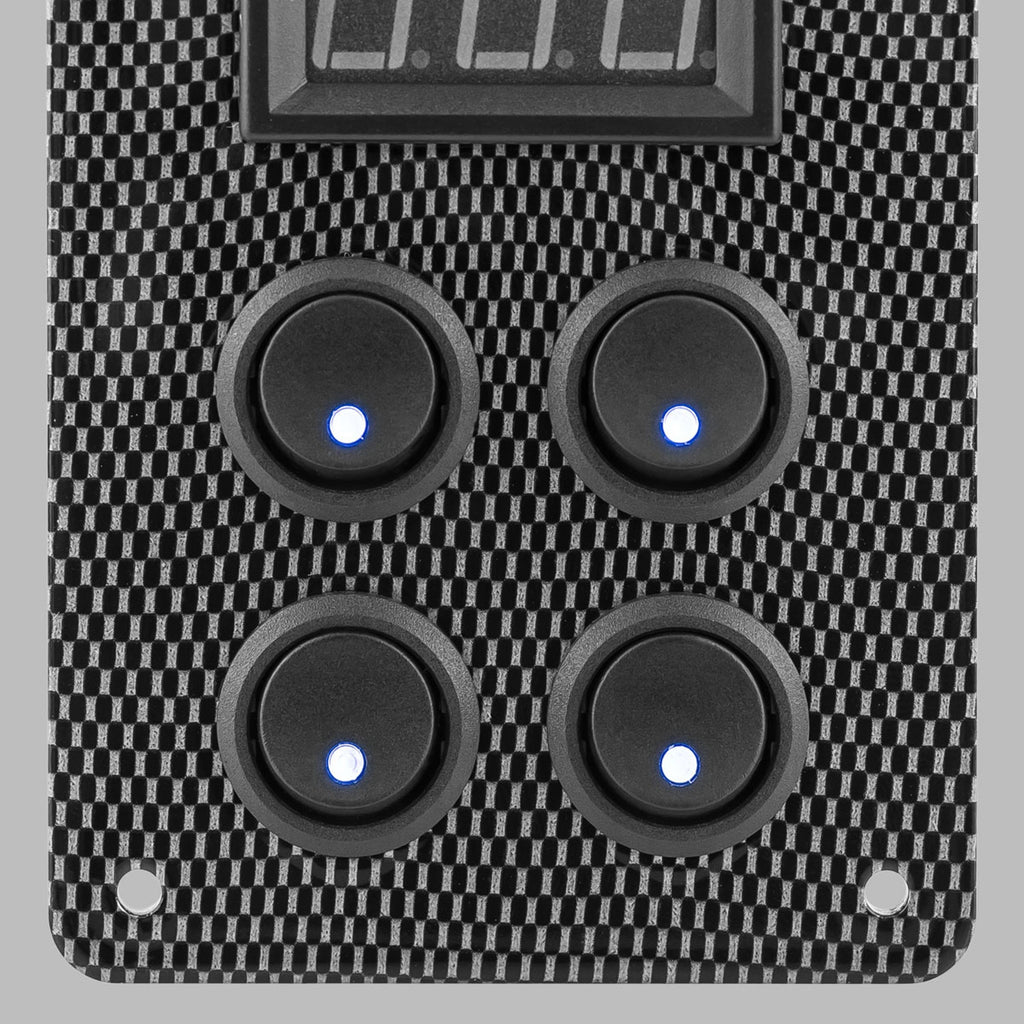

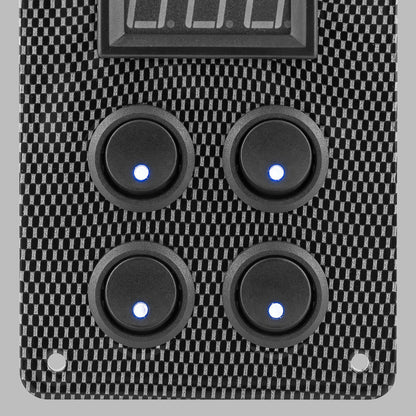

• Blue LED-illuminated dime switches, 20A rated each
• Pre-wired connectors and pig tails for a simpler install
• Compact footprint — only 60mm depth required behind the panel

Compatibility

Universal panel — suits any 12V vehicle, caravan or camper with room to mount an 82mm x 160mm panel and 60mm of depth behind it. Not vehicle-specific.

How to use

• Cut or mount an 82mm x 160mm opening with at least 60mm clearance behind the panel.
• Connect the pre-wired connectors and pig tails to your 12V accessory circuits, each switch rated to 20A.

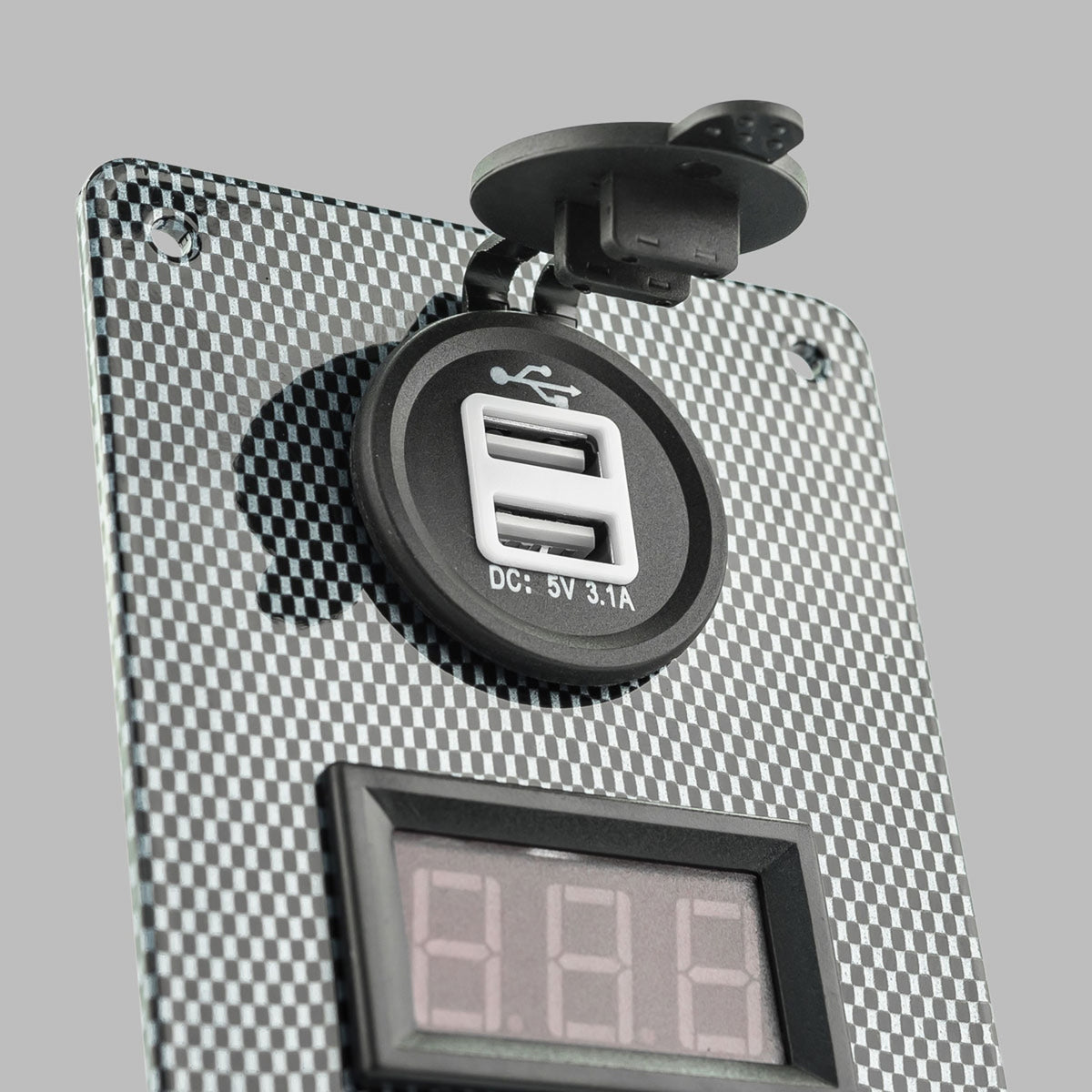

• Connect the USB pig tail to a 5V supply for the twin USB outputs.

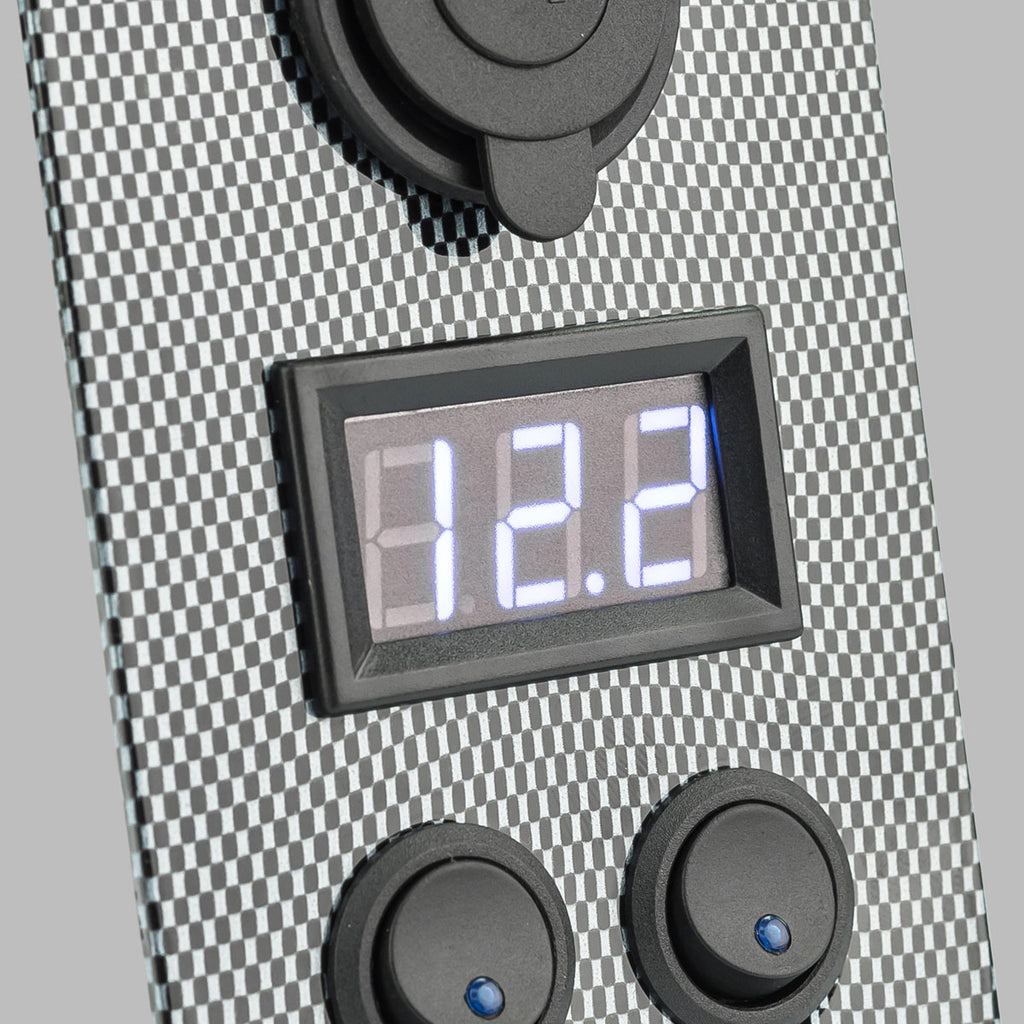

• Connect the digital volt meter to the circuit you want to monitor (0-30V range).

What's included

• 1x Carbon Switch Panel with USB and Digital Volt Meter
• Pre-wired connectors and pig tails
