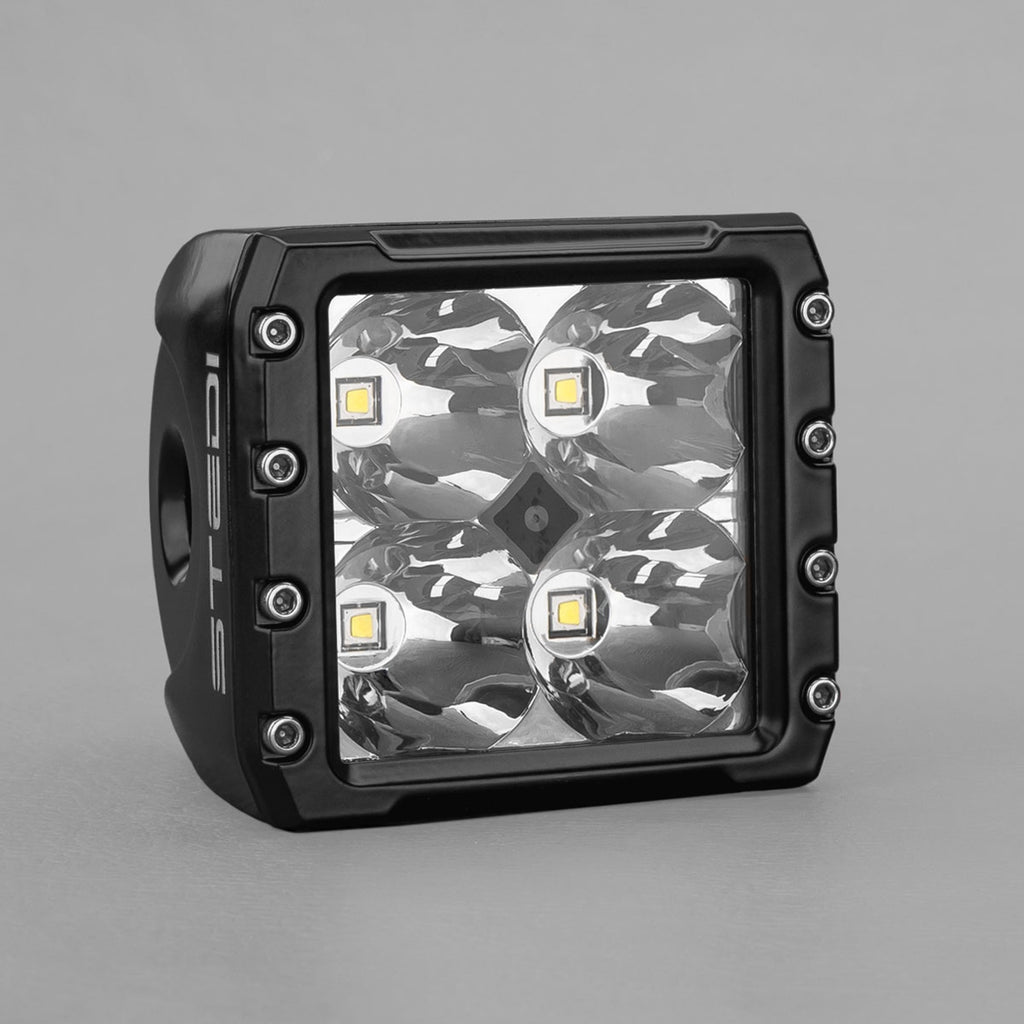

  • STEDI C-4 LED Light Cube Spot catalogue image

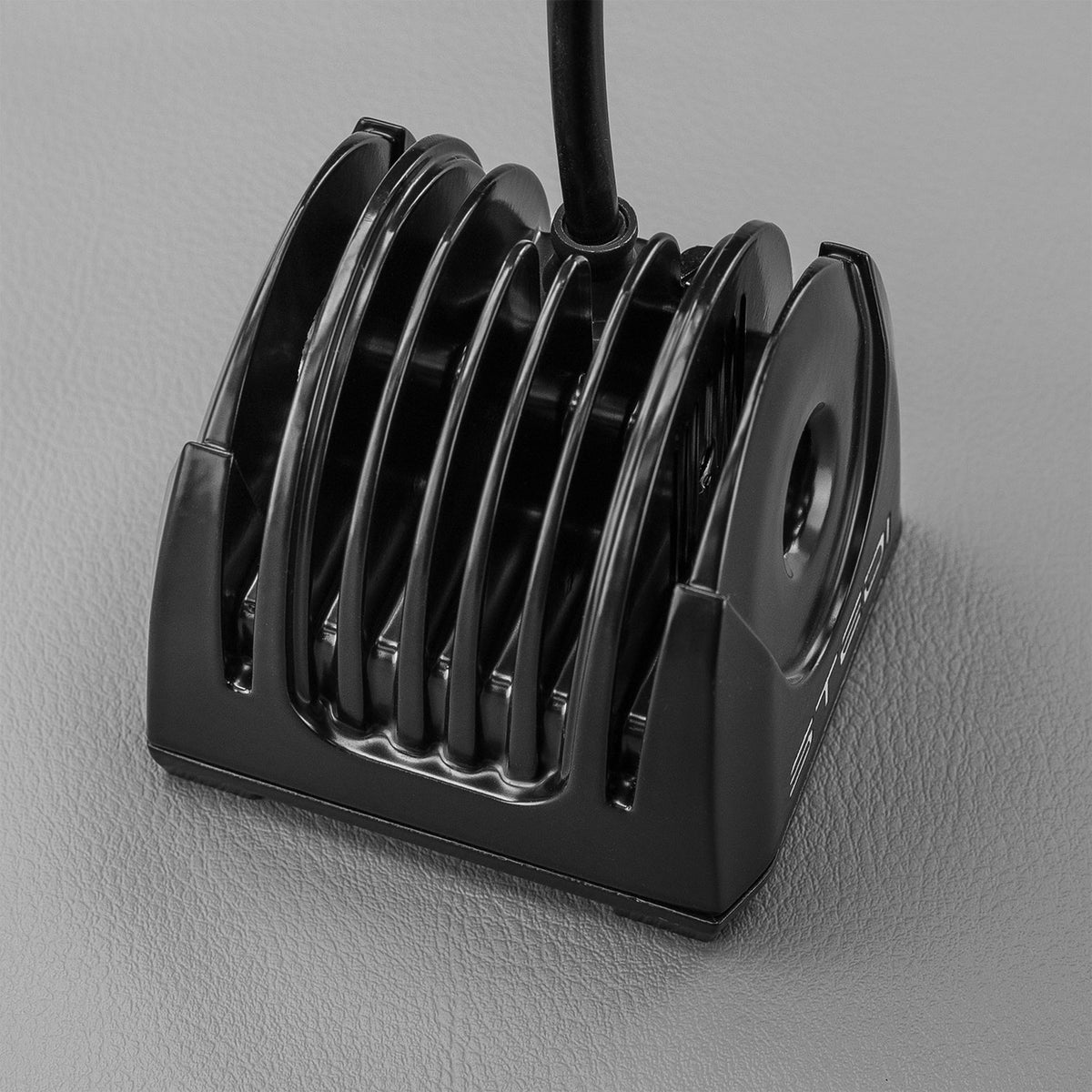

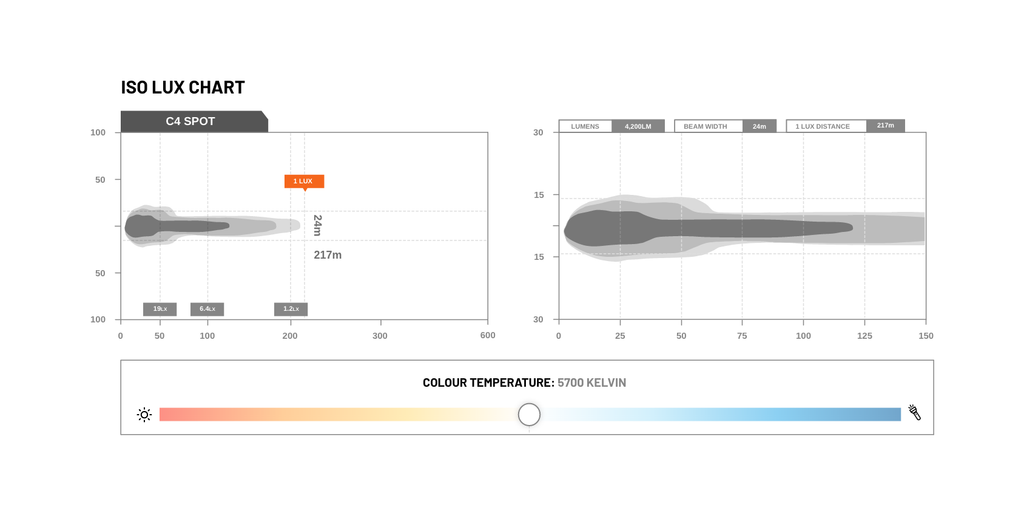

  • STEDI C-4 LED Light Cube Spot detail view

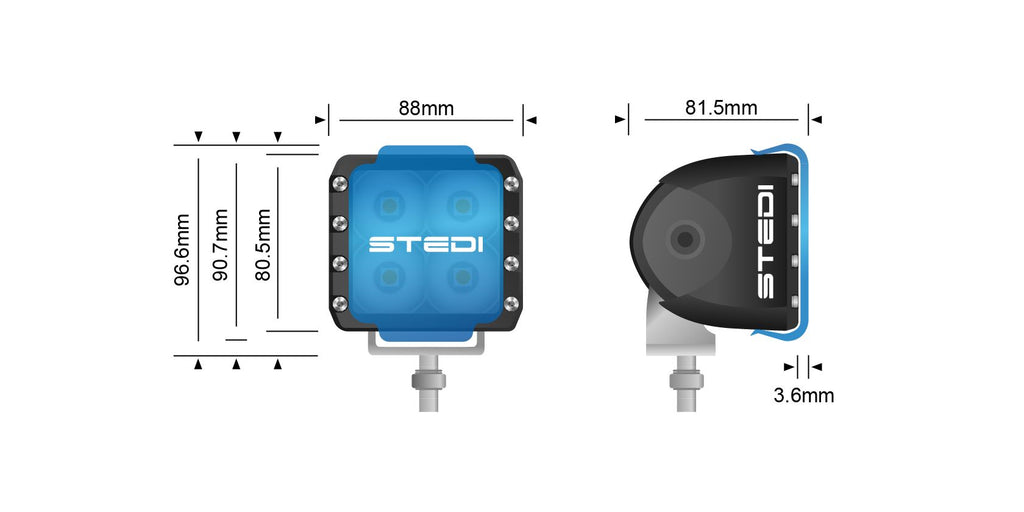

  • STEDI C-4 LED Light Cube dimensions diagram
1 5

Stedi

STEDI C-4 LED Light Cube - Spot

STEDI C-4 LED Light Cube - Spot

R 2,599.00
R 2,599.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Style

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI C-4 is a compact LED light cube built around 4x CREE XM-L2 emitters (4x10W) for 4,200 lumens in a housing small enough to mount almost anywhere - A-pillars, roof racks, bull bars or roll cages. This Spot version concentrates that output into a tight, long-throw beam for picking out detail at distance.

Choose from Black Edition, Marine or Industrial finishes - all three share the same LED engine, beam performance and IP68 submersible housing, so the choice comes down to finish and environment rather than output.

Key Features

LED 4x CREE XM-L2 (4x10W)
Lumens 4,200
Colour temperature 5700K
Beam pattern Spot
Current draw 2.1A @ 13.6V
Voltage 12V & 24V
IP Rating IP68, submersible to 3m
Lifespan 50,000 hours
Housing Die-cast aluminium
Lens Lexan optical lens
Mounting bracket Stainless steel U-bracket
Weight 0.55kg
Connector Deutsch DT-2, environmentally sealed

Highlights

  • Compact cube footprint fits tight mounting spots (A-pillar, roll cage, roof rack)
  • 4,200 lumen spot beam for long-distance detail
  • IP68 submersible housing for water crossings and dust
  • Available in Black Edition, Marine or Industrial finish
  • Snap-on colour filters included on Black Edition and Marine variants

Materials & care

Die-cast aluminium housing with a Lexan optical lens and a Gore Breather Vent that equalises internal pressure to reduce fogging. Rinse salt and mud off after use, especially on the Marine finish.

Sizing & fit

Mounts via the supplied stainless steel U-bracket with vibration dampener; weighs 0.55kg per light.

Compatibility

Shares its LED engine and mounting bracket with the Diffuse beam option on the same C-4 platform, so multiple beam patterns can be mixed on one vehicle.

How to use

  • Mount using the stainless U-bracket and vibration dampener at your chosen angle.
  • Connect via the sealed Deutsch DT-2 connector, wired through a relay and fuse.
  • Snap on a colour filter (Black Edition/Marine) if you want a different beam colour for specific conditions.
  • Check the Gore Breather Vent stays unobstructed so the housing can equalise pressure.

What's included

  • C-4 spot light unit
  • Snap-on colour filters (Black Edition & Marine)
  • Stainless steel U-bracket with vibration dampener
  • Mounting hardware
  • Male/female Deutsch DT-2 connectors

Frequently asked questions

What's the difference between the Black Edition, Marine and Industrial C-4?

All three share the same 4,200 lumen spot beam and IP68 housing - the difference is finish and hardware suited to their environment (e.g. Marine's corrosion resistance).

Can I mix Spot and Diffuse C-4 cubes on the same vehicle?

Yes, all C-4 beam patterns share the same housing and bracket, so they mount and wire the same way.

Is the C-4 submersible?

Yes, it's IP68 rated and submersible to 3m, with a Gore Breather Vent to manage internal pressure and reduce lens fogging.
