STEDI Bull Bar Tube Mounting Brackets
STEDI Bull Bar Tube Mounting Brackets
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

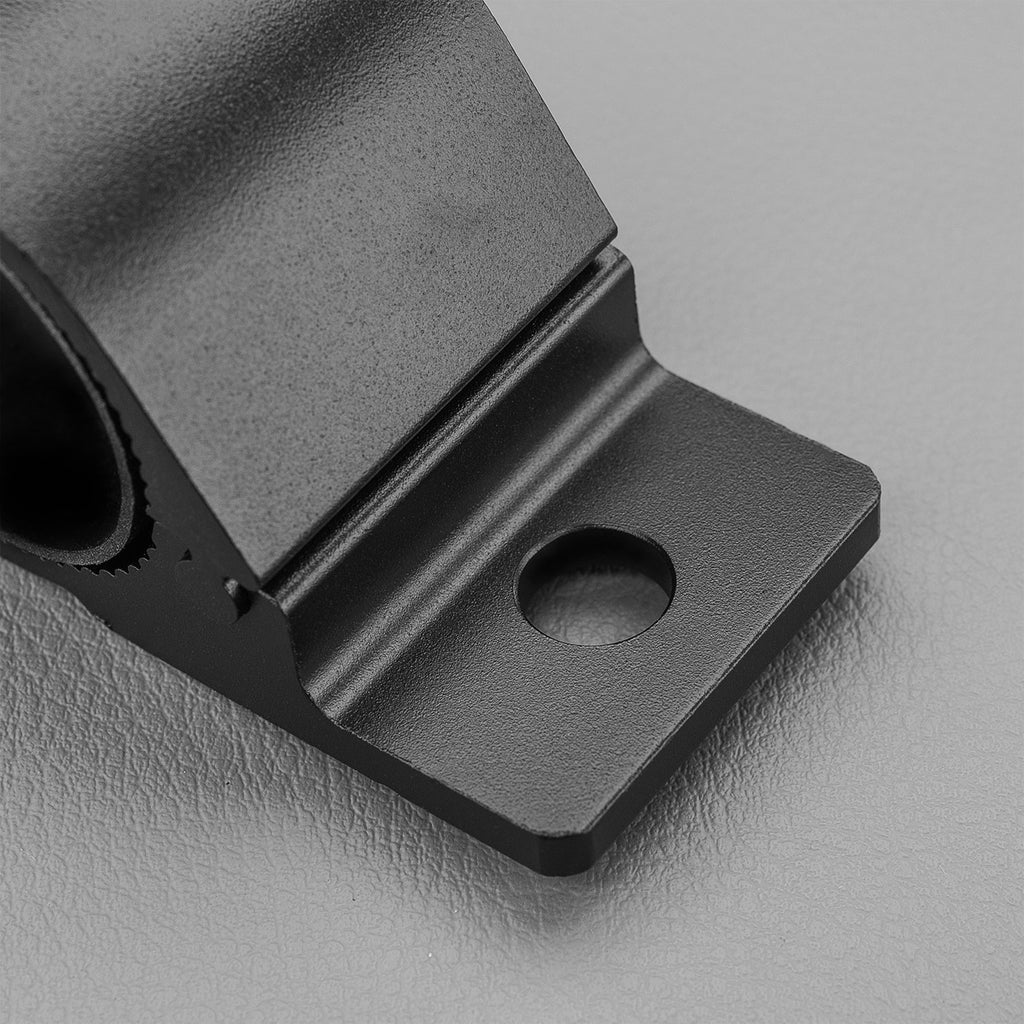

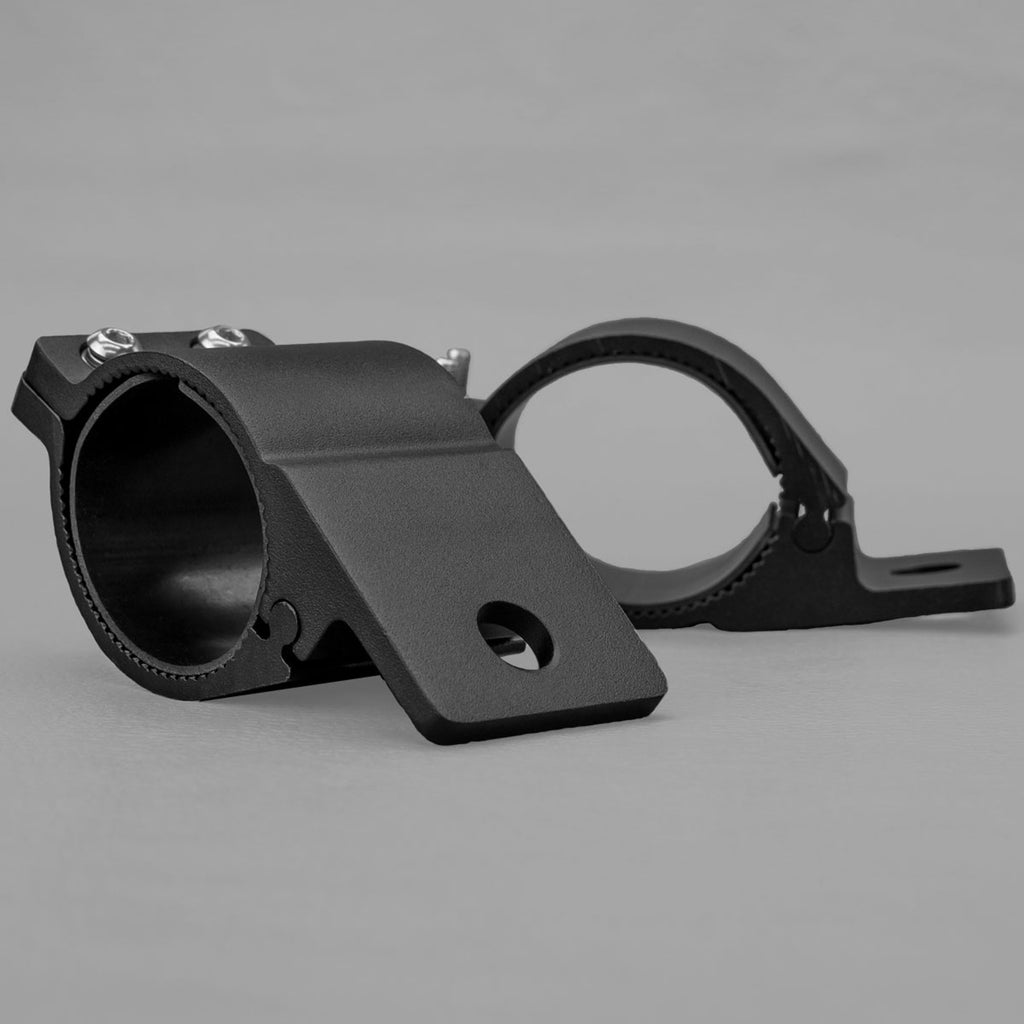

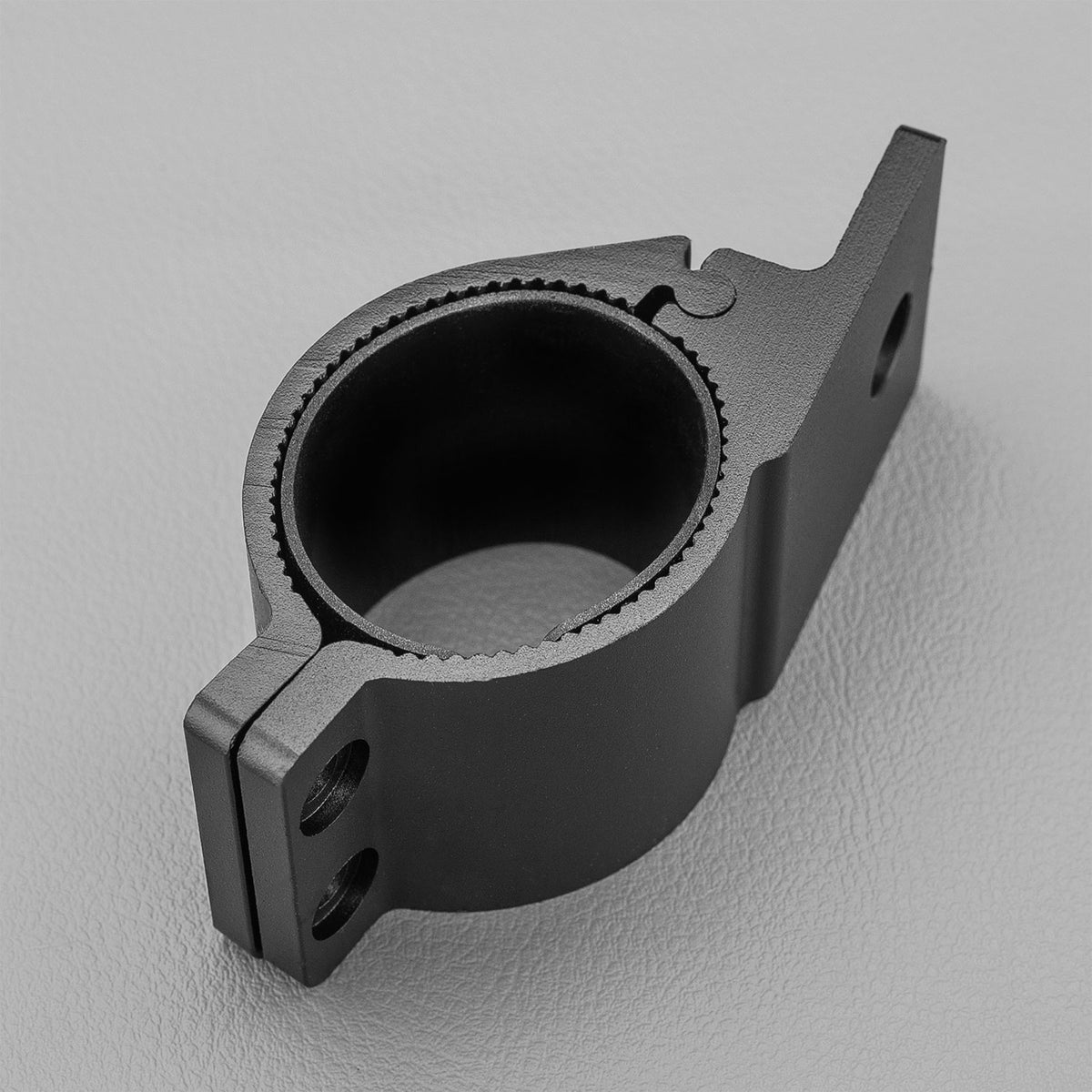

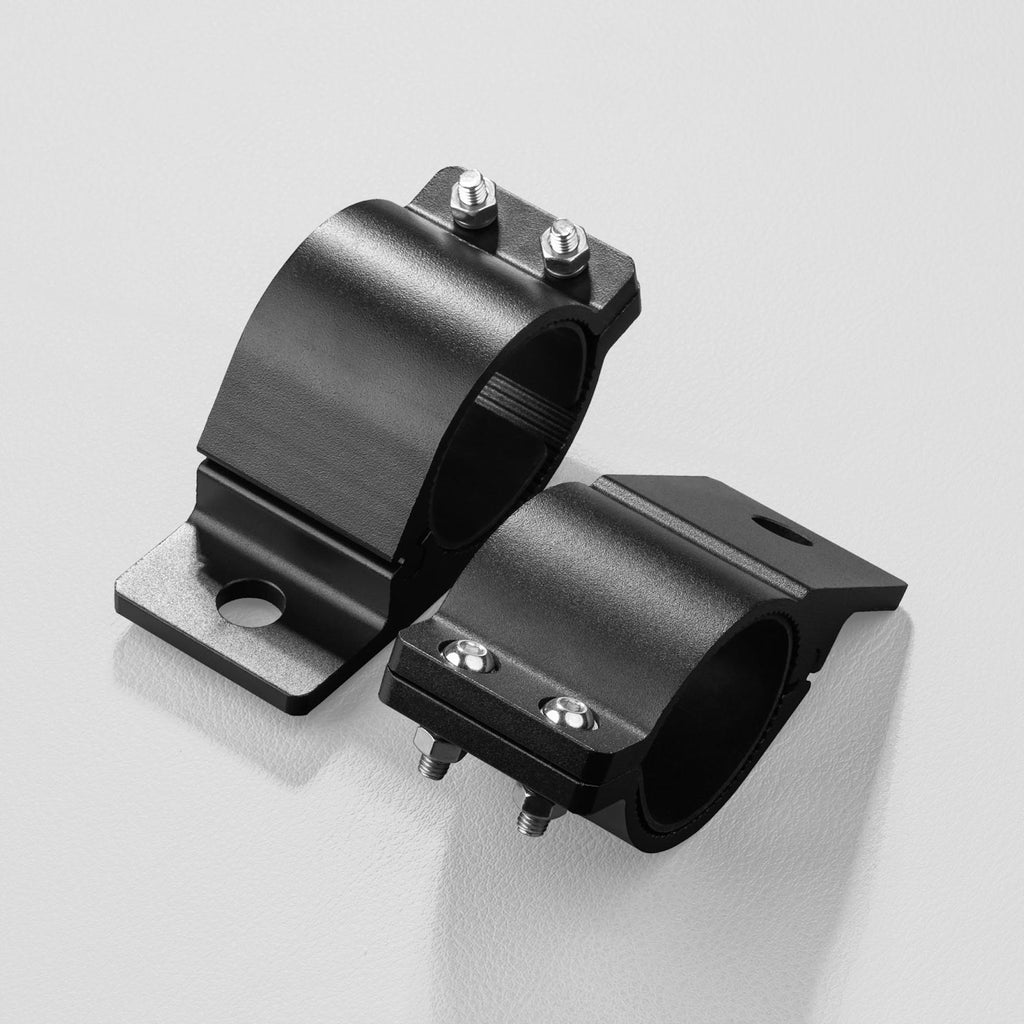

A mounting platform for bull bars and nudge bars that don't have pre-fitted mounting tabs. Cast from aluminium with stainless steel fasteners and a UV-stable polyester powder coat, it's built to handle vibration and weather without fading or corroding.
Brackets can be fitted on top of the tube or inverted underneath it, and the mounting angle can be adjusted to aim your light exactly where you need it — ideal for light bars, UHF antennas, ATVs and roof racks as well as standard driving lights.
Key Features
| Material | Cast aluminium, stainless steel fasteners, UV-stable polyester powder coat |
| Tube diameter | 28-30mm, 35mm, 40-45mm, 48-53mm, 60-65mm or 76-81mm (select at checkout) |
| Colour | Black or Silver |
| Compatible light output | STEDI LED work lights from 10W to 60W |
| Mounting | Top-mount or inverted, adjustable angle |
Highlights
- Mounts lights on bull bars/nudge bars without pre-fitted tabs
- Cast aluminium with UV-stable powder coat resists fading and corrosion
- Fits on top of the tube or inverted underneath it
- Adjustable angle to aim the light precisely
- Also popular for mounting UHF antennas, ATV lights and roof rack accessories
Materials & care
Cast aluminium bracket body with stainless steel fasteners and a UV-stable polyester powder coat finish. Rinse off mud and salt after off-road or coastal driving to protect the coating.
Sizing & fit
Select the tube diameter that matches your bull bar or nudge bar: 28-30mm, 35mm, 40-45mm, 48-53mm, 60-65mm or 76-81mm.
Compatibility
Fits round bull bar and nudge bar tubing in the listed diameter ranges. Rated for STEDI LED work lights from 10W to 60W, and also used for mounting UHF antennas, ATV lighting and roof rack accessories.
How to use
- Choose the bracket size matching your bull bar tube diameter.

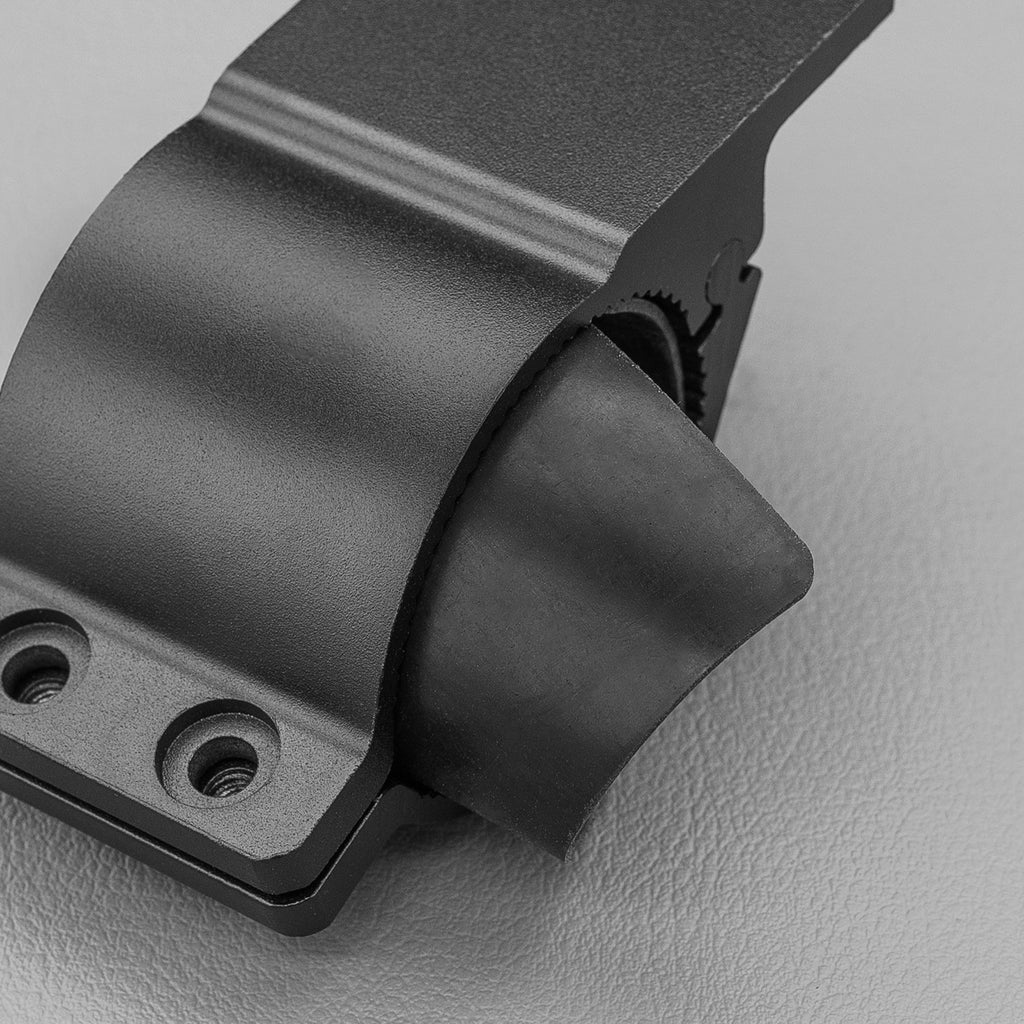

- Fit the rubber insert inside the bracket to protect the tube's finish.
- Clamp the bracket around the tube — on top or inverted underneath — and secure with the supplied stainless M6 bolts, washers and nuts.
- Adjust the angle before final tightening, then mount your light to the bracket.
What's included
- 2x bull bar brackets
- 2x rubber inserts
- 4x stainless M6 bolts
- 4x stainless nuts
- 4x flat washers
- 4x lock washers
- Instruction manual
