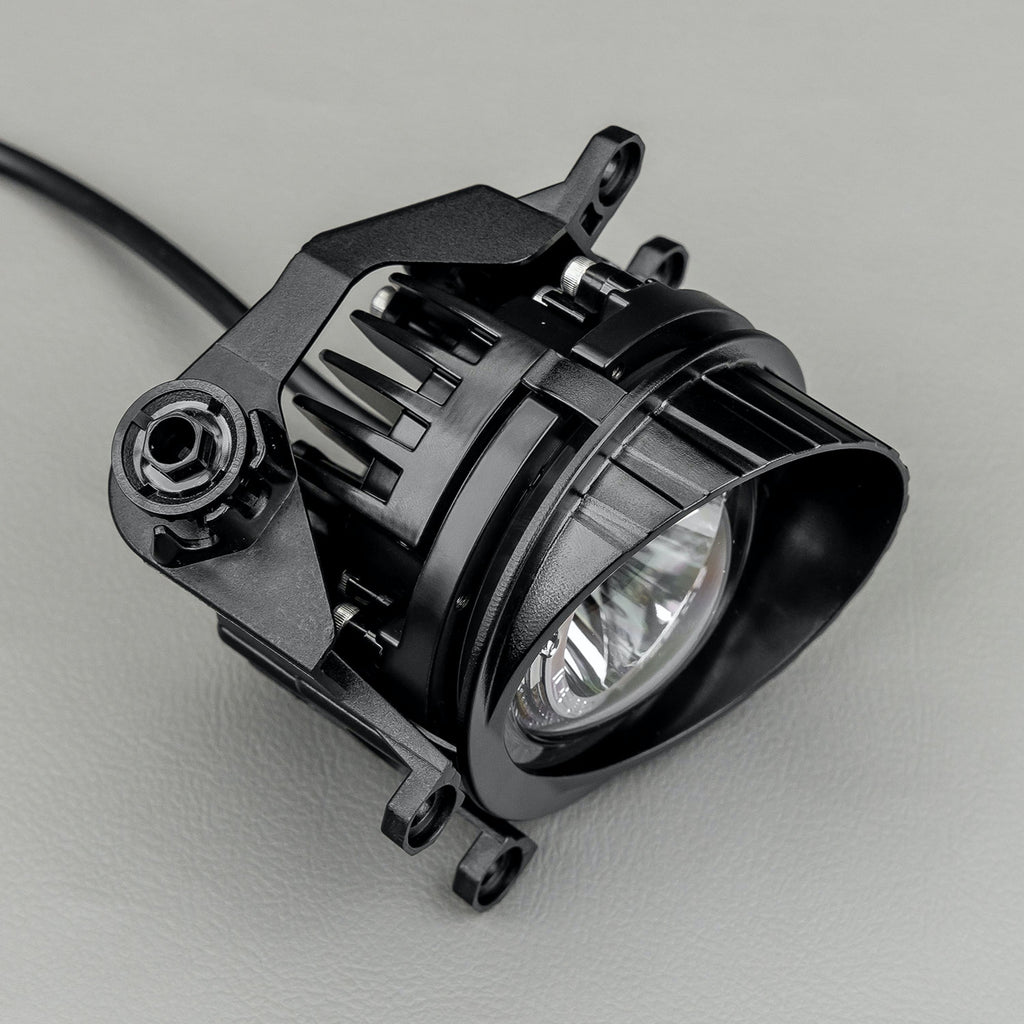

  • STEDI Boost Integrated Driving Light Type-B installed view

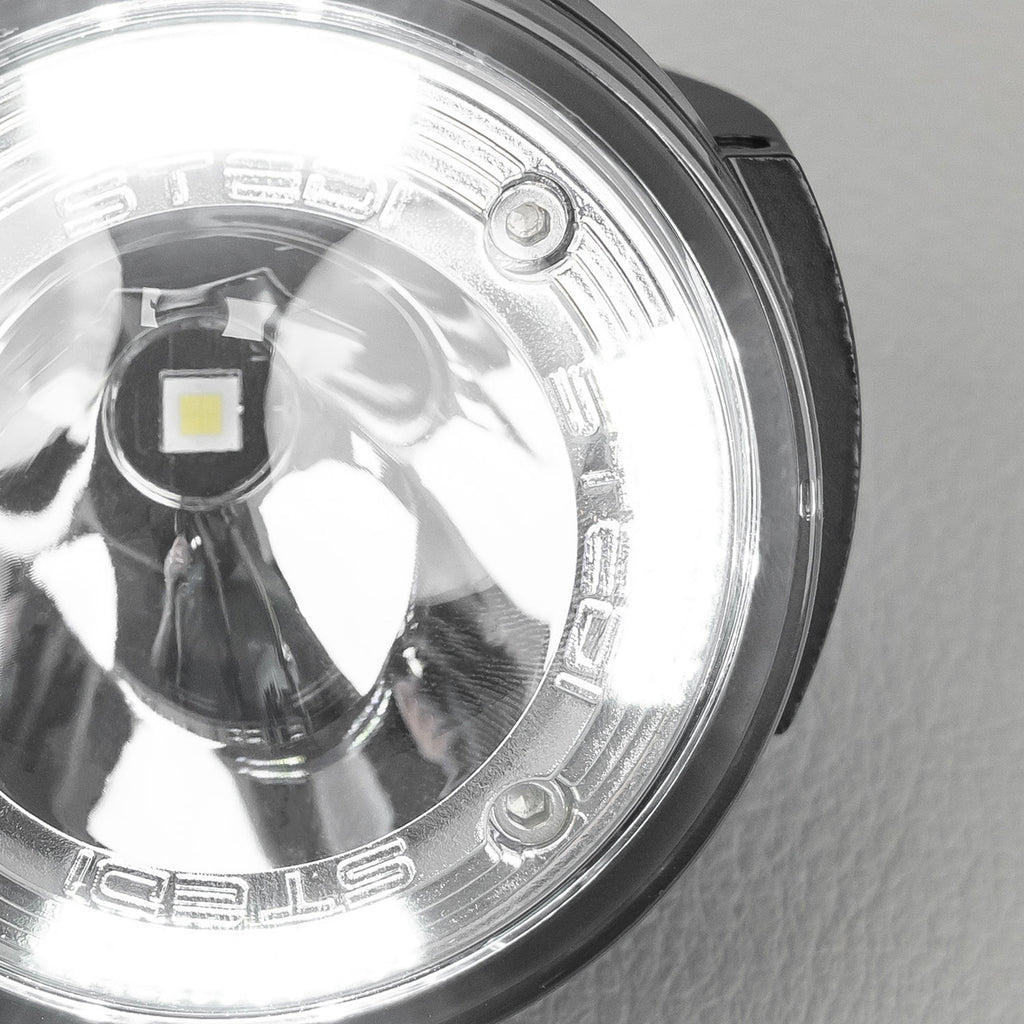

  • STEDI Boost Integrated Driving Light Type-B bracket and connector

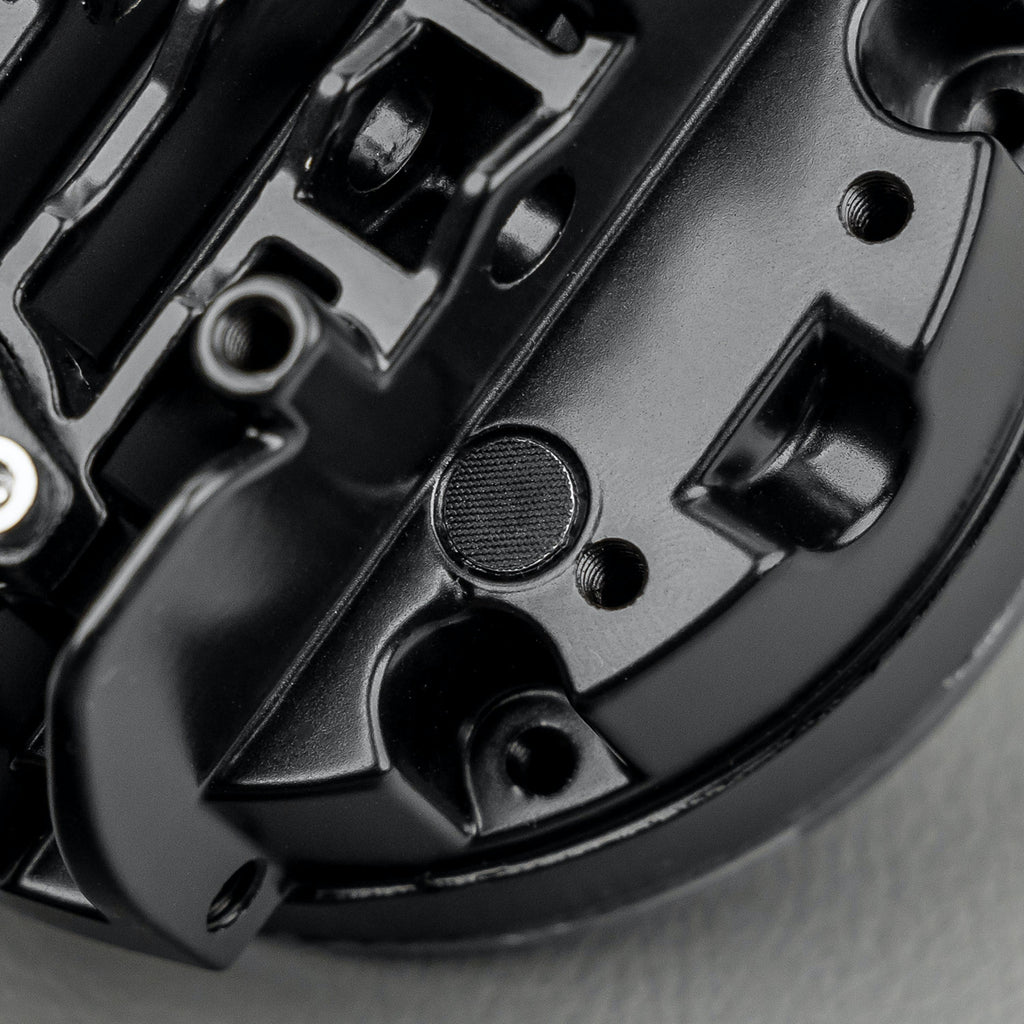

  • STEDI Boost Integrated Driving Light Type-B fitted in factory housing

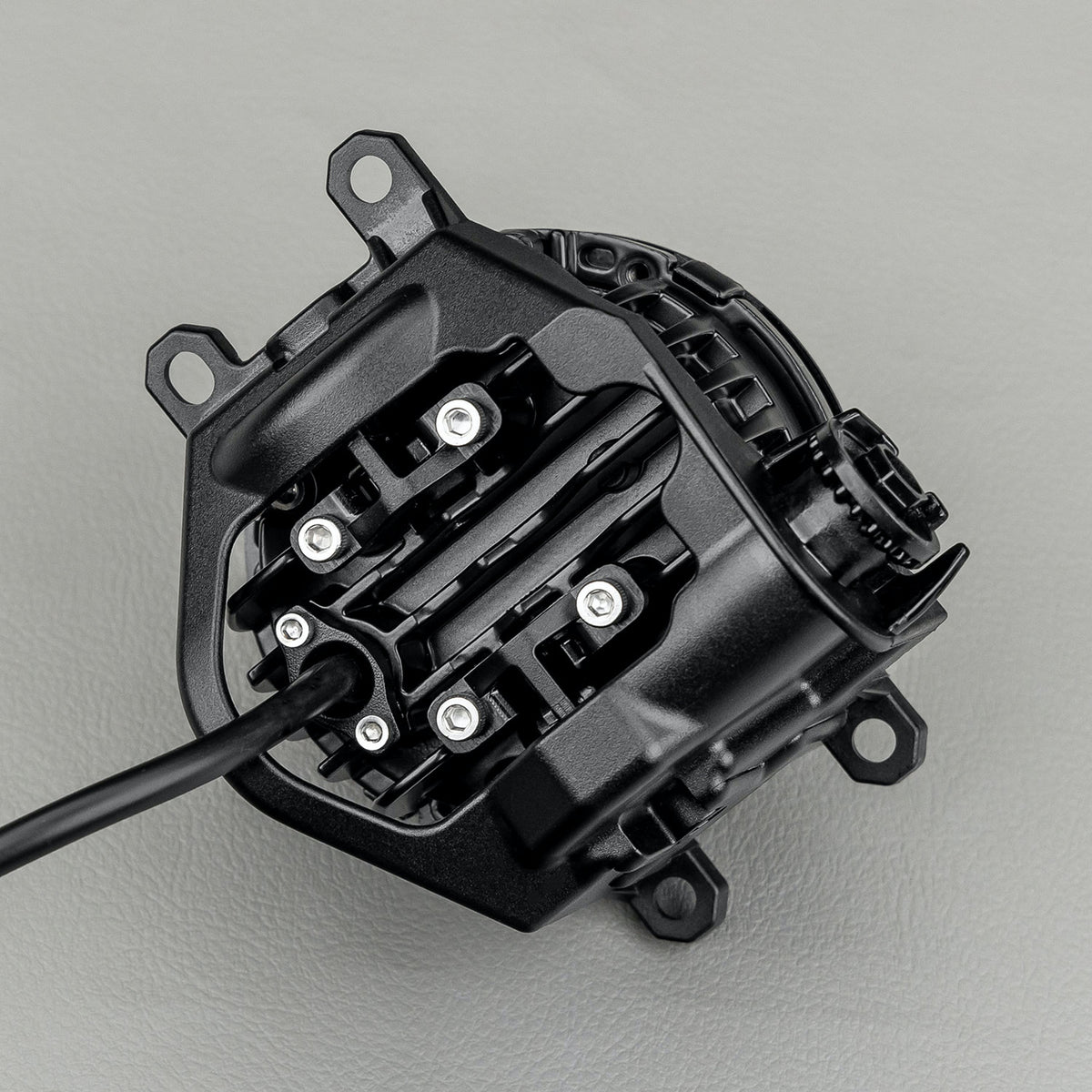

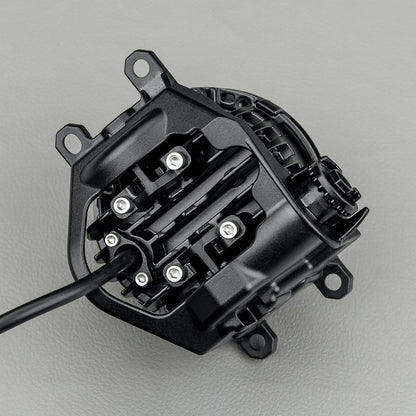

  • STEDI Boost Integrated Driving Light Type-B unit
1 6

Stedi

STEDI Boost Integrated Driving Light Type-B LED Fog Light Upgrade

STEDI Boost Integrated Driving Light Type-B LED Fog Light Upgrade

R 5,999.00
R 5,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

An integrated driving light that bolts straight into your vehicle's factory fog light mount, hidden in the factory housing rather than bolted on top. Each unit uses a single 18W CREE XHP50 emitter to produce a proper spot driving beam — not the lateral wide-beam of a standard fog lamp — with a built-in daytime running light function.

Type-B fits select Toyota and Lexus models (2006-2020) including Hilux N70/N80, Landcruiser Prado 150, Landcruiser 200, 4Runner, Fortuner, and select Lexus LX/RX/GS models, with limited Peugeot 206 compatibility. Confirm exact fitment for your specific vehicle before ordering.

Key Features

Brand STEDI
Model Boost Integrated Driving Light Type-B
LED Type 1 x 18W CREE XHP50 per unit
Raw / Tested Lumens 2,000 / 1,400 lumens per unit
Beam Pattern Spot
Beam Throw (1 Lux) 311m
Colour Temperature 5700K
Power / Current Draw 15W main beam (1.25A @ 12V); 3W DRL (0.25A @ 12V)
Weight 0.35kg per unit
Operating Temperature -40°C to 60°C
Lumen Maintenance 30,000 hours
Connector Deutsch DT (environmentally sealed)
Warranty 24 months
IP Rating IP68

Highlights

  • Hidden, factory-look installation — no visible bolt-on light bar
  • True spot driving beam instead of a standard wide fog beam
  • Built-in daytime running light function
  • Deutsch DT sealed connectors with RFI/EMI suppression circuitry
  • Pressure equalisation vent to eliminate internal condensation

Sizing & fit

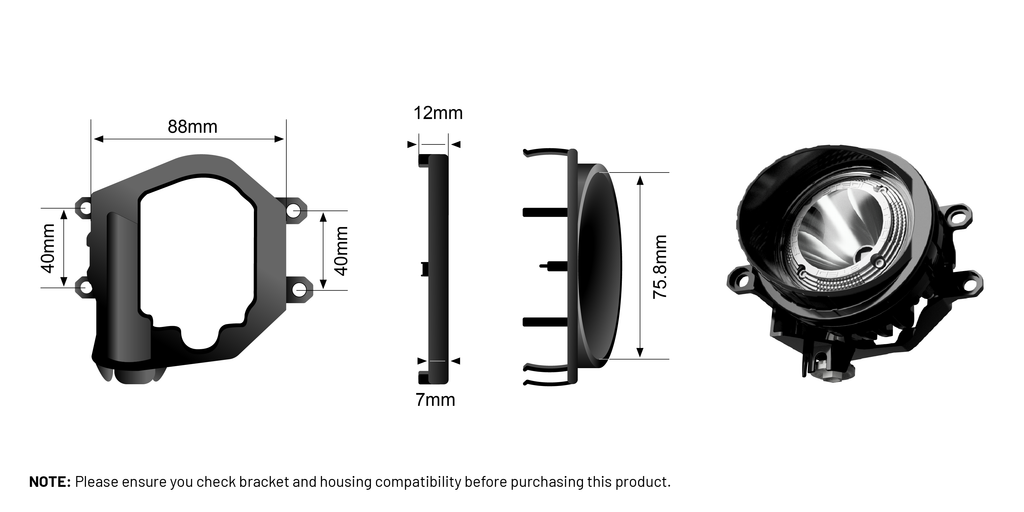

Weight: 0.35kg per unit (0.7kg for the pair). Designed to fit directly into the factory fog light housing on compatible models — no visible external light body.

Compatibility

Type-B fits select Toyota and Lexus models built 2006-2020, including Hilux N70/N80, Landcruiser Prado 150, Landcruiser 200, 4Runner and Fortuner, plus select Lexus LX/RX/GS models, with limited Peugeot 206 compatibility. Always confirm exact fitment for your model and year via WhatsApp before ordering.

How to use

  • Remove your factory fog light and fit the STEDI Boost unit into the existing housing using the supplied Type-B bracket.
  • Connect via the sealed Deutsch DT connector — no additional wiring modifications needed on compatible models.
  • Adjust the tilt-adjust spring mount to set beam alignment before night driving.
  • The built-in DRL function activates automatically once wired per the supplied instructions.

What's included

  • 2x STEDI Boost integrated driving lights
  • 2x Type-B mounting brackets
  • Mounting hardware

Frequently asked questions

Will the Type-B bracket fit my vehicle?

Type-B fits select Toyota and Lexus models from 2006-2020, including Hilux N70/N80, Prado 150, Landcruiser 200, 4Runner and Fortuner, plus select Lexus LX/RX/GS models. Send us your exact model and year via WhatsApp to confirm before ordering.

How is this different to a standard fog light?

Standard fog lamps produce a wide, lateral beam for low-visibility conditions. The STEDI Boost fits the same location but produces a genuine spot driving beam (311m throw @ 1 lux) for actual night driving distance, plus a DRL function.

What's the warranty on the Boost Type-B?

STEDI backs the Boost Type-B with a 24-month warranty per the supplier's listing.
