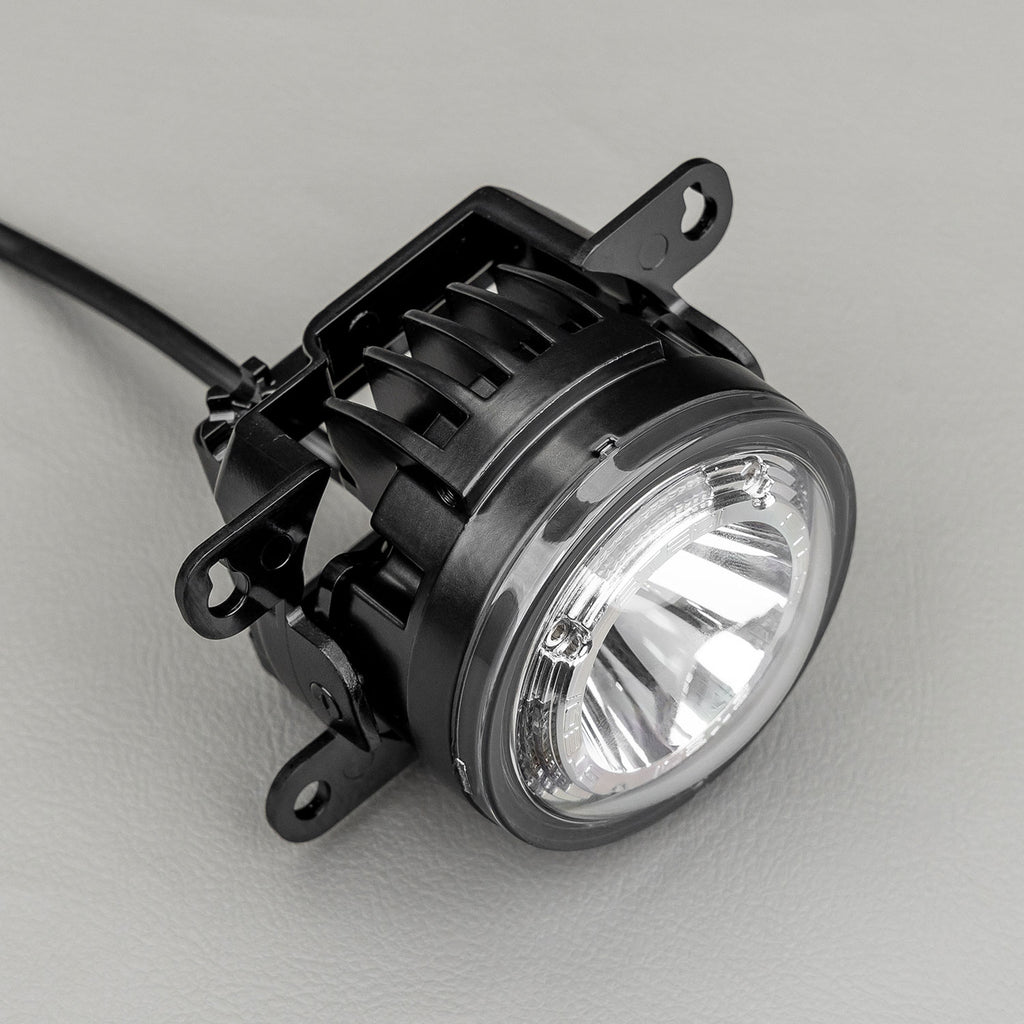

  • STEDI Boost Type-A integrated driving light

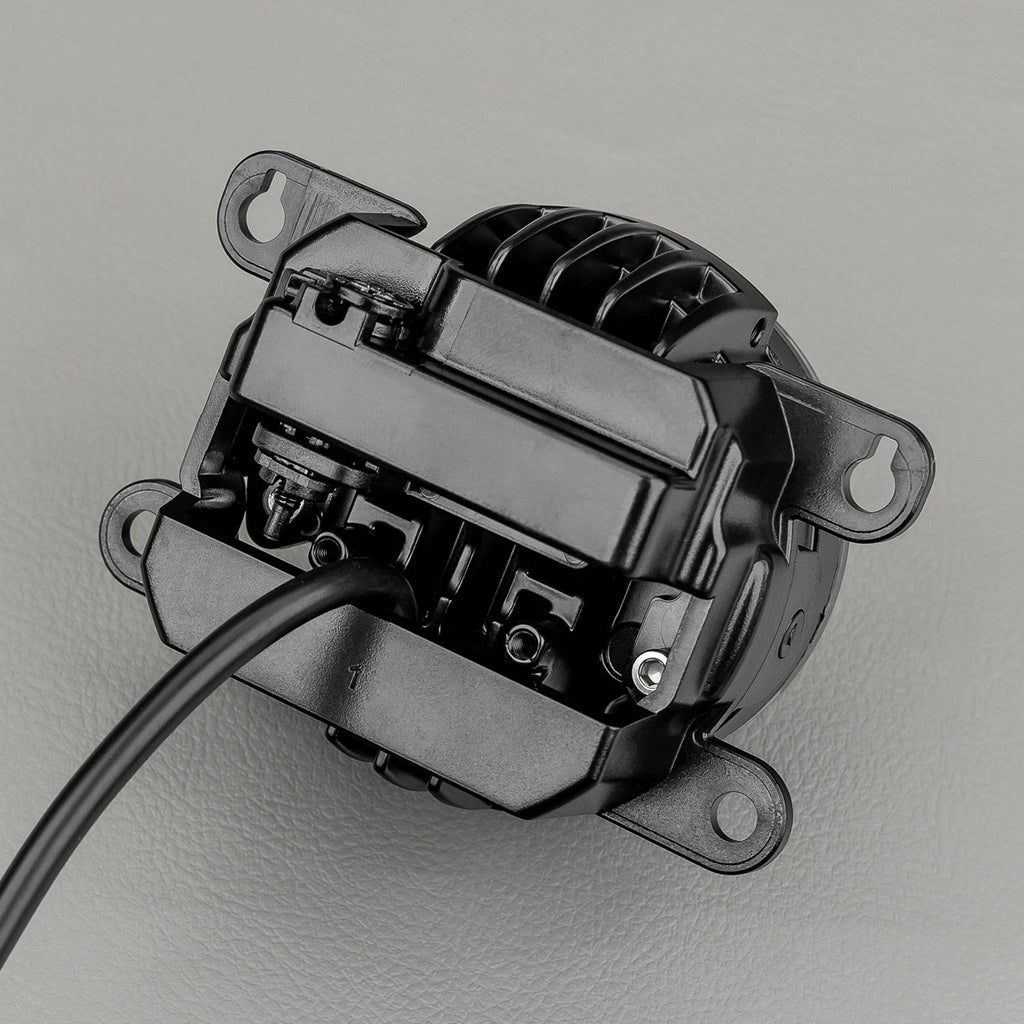

  • STEDI Boost Type-A fitted in factory fog light housing
  • STEDI Boost Type-A pair of driving lights
1 5

Stedi

STEDI Boost Integrated Driving Light Type-A LED Fog Light Upgrade

STEDI Boost Integrated Driving Light Type-A LED Fog Light Upgrade

R 5,999.00
R 5,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI Boost Type-A is an integrated driving light that fits inside your vehicle's factory fog light housing instead of bolting on top of the bumper, keeping the factory look while adding a genuine long-range driving beam. Built around a single 18W CREE XHP50 LED per unit, it also runs as a daytime running light, so one unit does the job of a fog light upgrade and a DRL.

Because it shares its core engine with STEDI's Type-B Boost kit but uses a different bracket profile, Type-A suits a different range of factory fog light mounts. Please confirm your vehicle application with us via WhatsApp before ordering.

Key Features

LED 1x 18W CREE XHP50 per light
Lumens 1,400 tested / 2,000 raw
Beam pattern Spot (driving beam, not a lateral fog spread)
Colour temperature 5700K

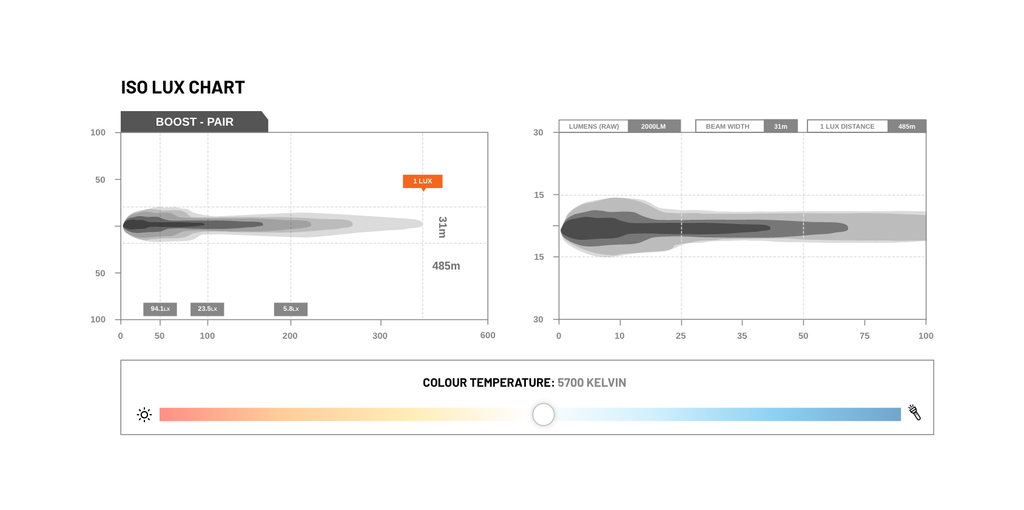

Peak beam throw 311m @ 1 lux
Current draw 1.25A @ 12V (main beam), 0.25A @ 12V (DRL)
Voltage 12V
IP Rating IP67/IP68
Operating temperature -40°C to +60°C
Lens UV-stable automotive-grade polycarbonate
Housing All-alloy outer casing
Connector Sealed Deutsch DT
EMC certification CISPR 25 Class 3
Lifespan 30,000-50,000 hours
Weight 0.35kg per unit
Warranty 24 months

Highlights

  • Tucks into the factory fog light housing for a factory-look upgrade
  • Doubles as a daytime running light
  • Genuine driving beam, not a wide fog spread
  • Sealed Deutsch DT connectors and IP67/IP68 rating for weatherproofing
  • CISPR 25 Class 3 rated for clean electronics compatibility

Materials & care

Die-cast alloy housing with a UV-stable polycarbonate lens. Wipe the lens clean with a soft cloth and check the Deutsch connectors are fully seated and free of corrosion periodically.

Sizing & fit

Fits into factory fog light mounts using the Type-A bracket profile - a different bracket to the Type-B kit. Please confirm your vehicle fitment with us before ordering.

Compatibility

Uses the same Boost core LED engine as STEDI's Type-B kit, so light output is identical - only the mounting bracket profile differs between the two kits.

How to use

  • Confirm your factory fog light mount uses the Type-A bracket profile before ordering.
  • Remove the factory fog light insert and fit the Boost unit using the supplied Type-A bracket and hardware.
  • Connect via the sealed Deutsch DT connector to your existing fog light wiring.
  • Wire the DRL function according to your local road rules for daytime running lights.

What's included

  • 2x STEDI Boost lights
  • 2x Type-A brackets
  • Mounting hardware
  • User manual

Frequently asked questions

What's the difference between Type-A and Type-B Boost kits?

They use the same 18W CREE XHP50 LED engine and output, but different mounting bracket profiles - Type-A and Type-B fit different ranges of factory fog light housings.

Does the Boost Type-A work as a daytime running light too?

Yes, alongside its 1,400 lumen tested driving beam it has a built-in DRL function drawing 0.25A @ 12V.

How do I know if Type-A fits my vehicle?

The supplier's listing doesn't specify exact Type-A vehicle fitment, so please send us a WhatsApp message with your vehicle details before ordering so we can confirm compatibility.
