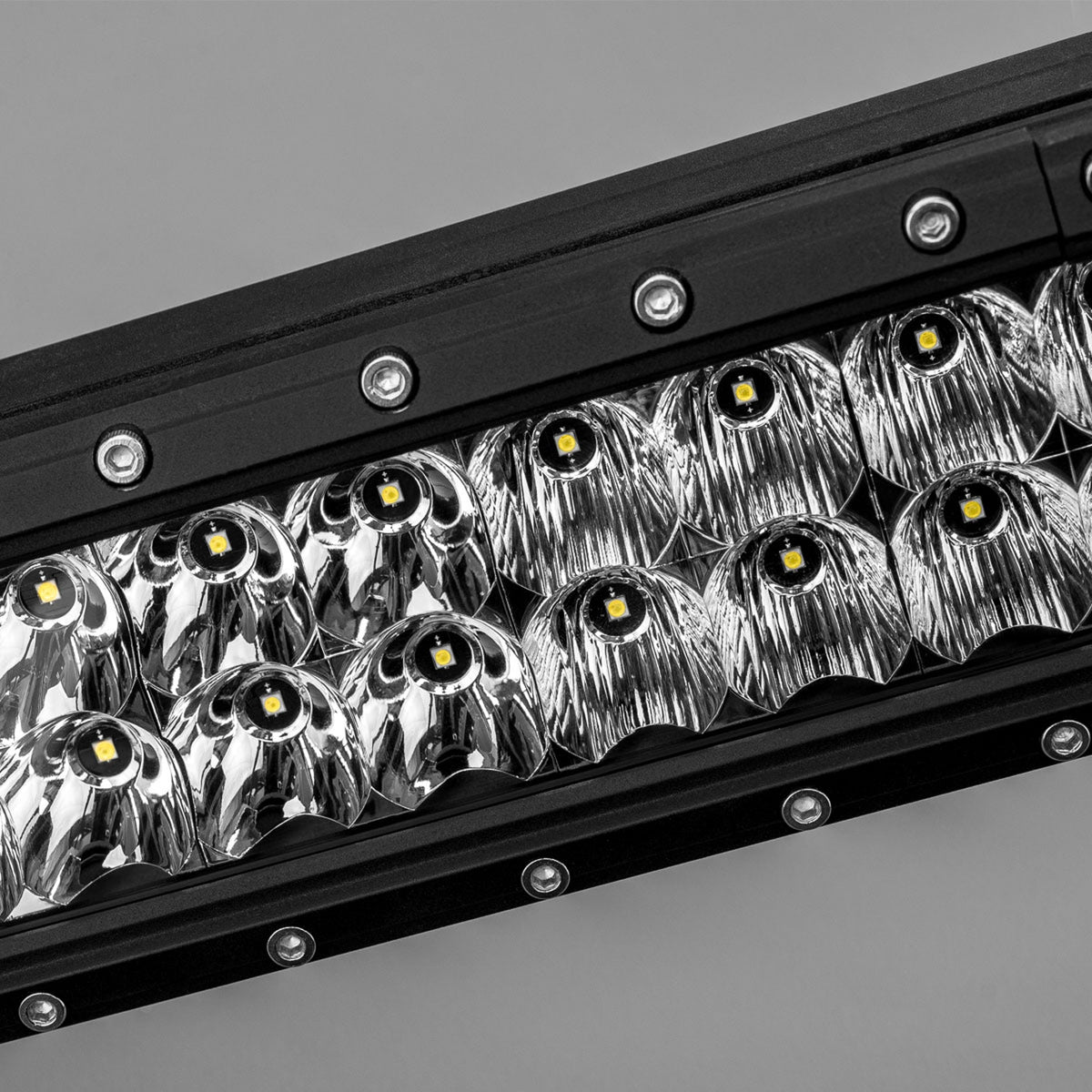

• STEDI 8 inch ST4K 12 LED Double Row Light Bar
  • STEDI 8" ST4K 12 LED Double Row Light Bar

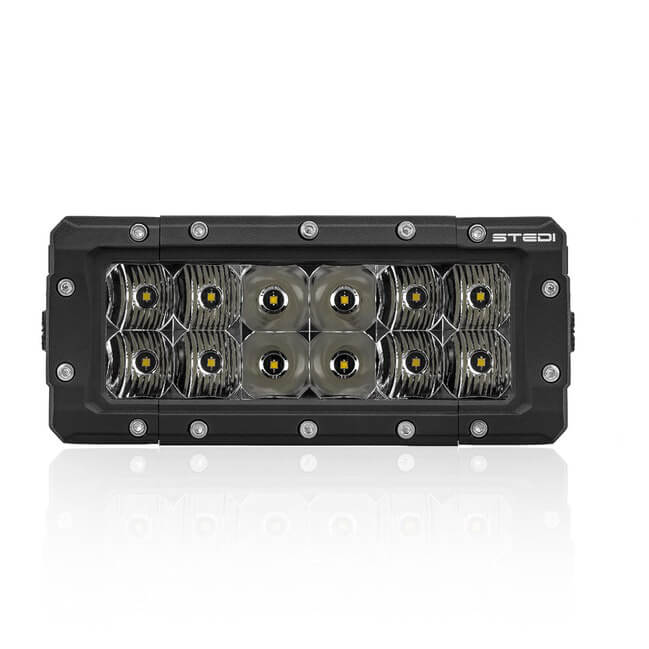

  • STEDI 8 inch ST4K 12 LED Double Row Light Bar front view

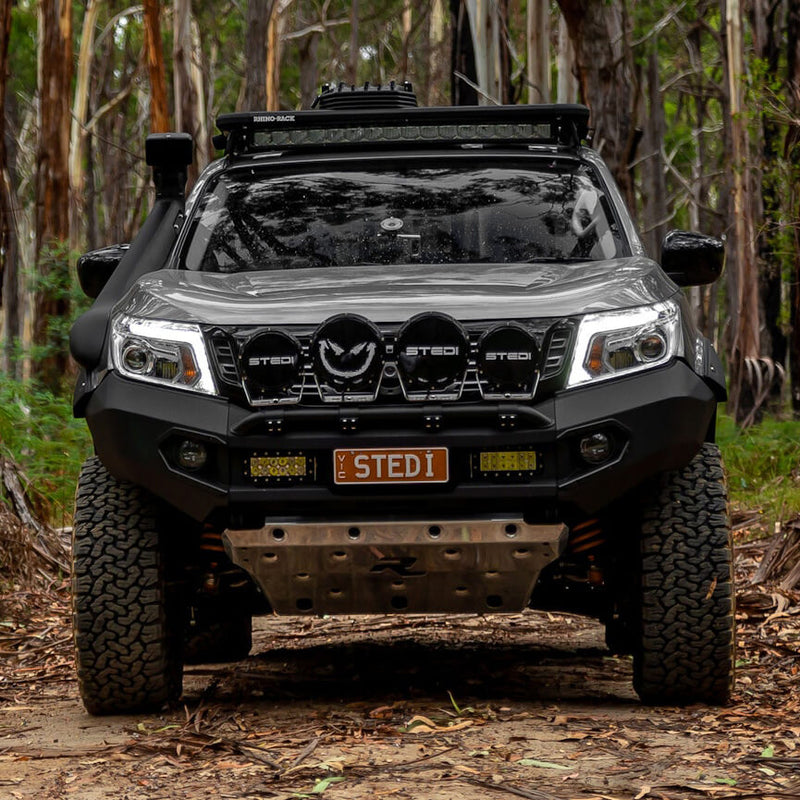

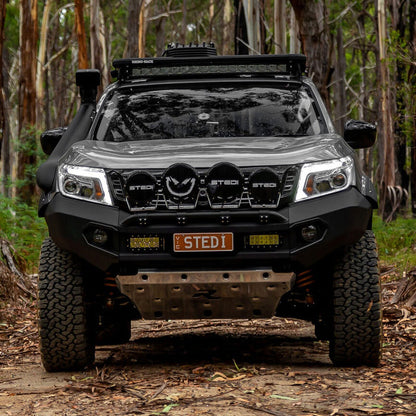

  • STEDI 8 inch ST4K 12 LED Double Row Light Bar angle view

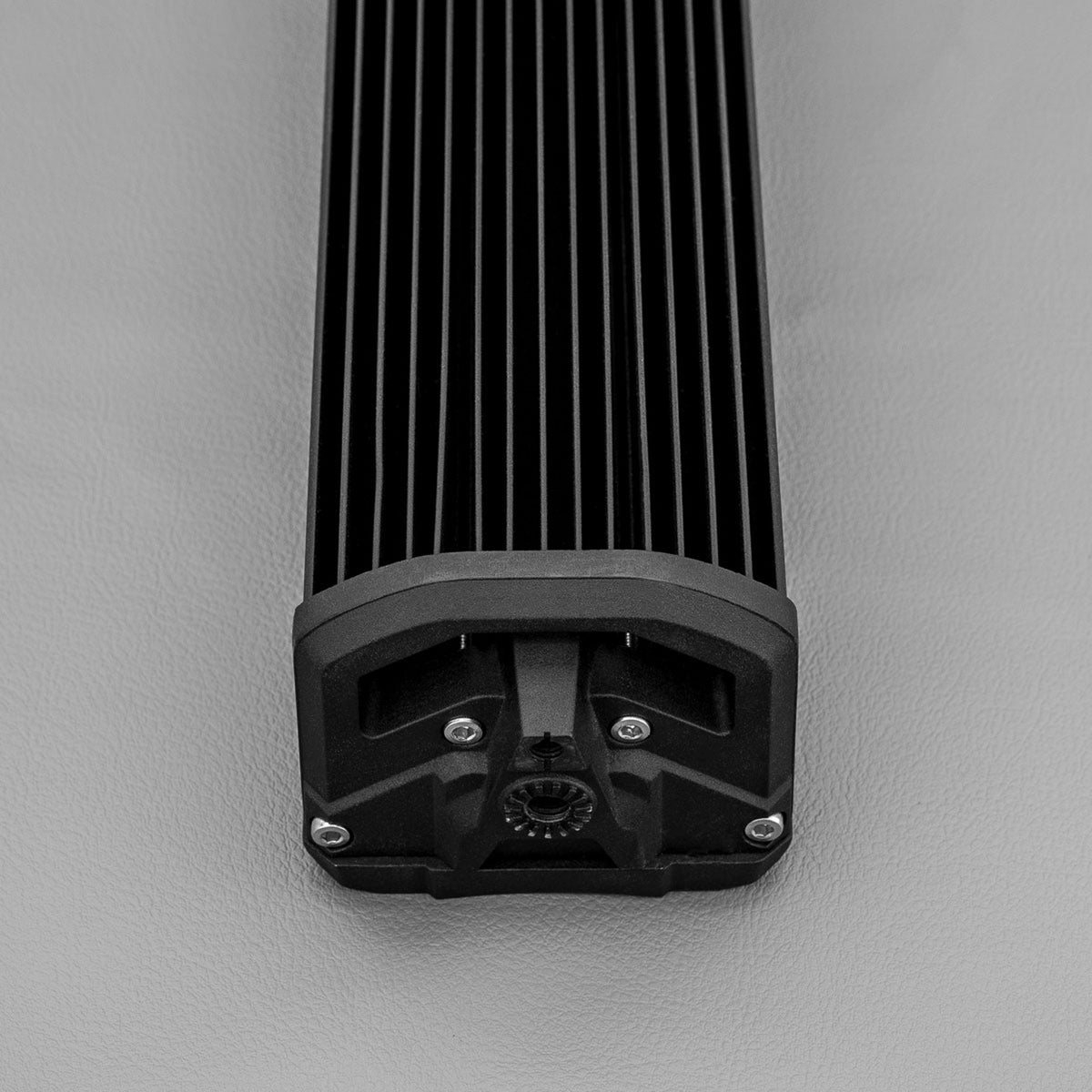

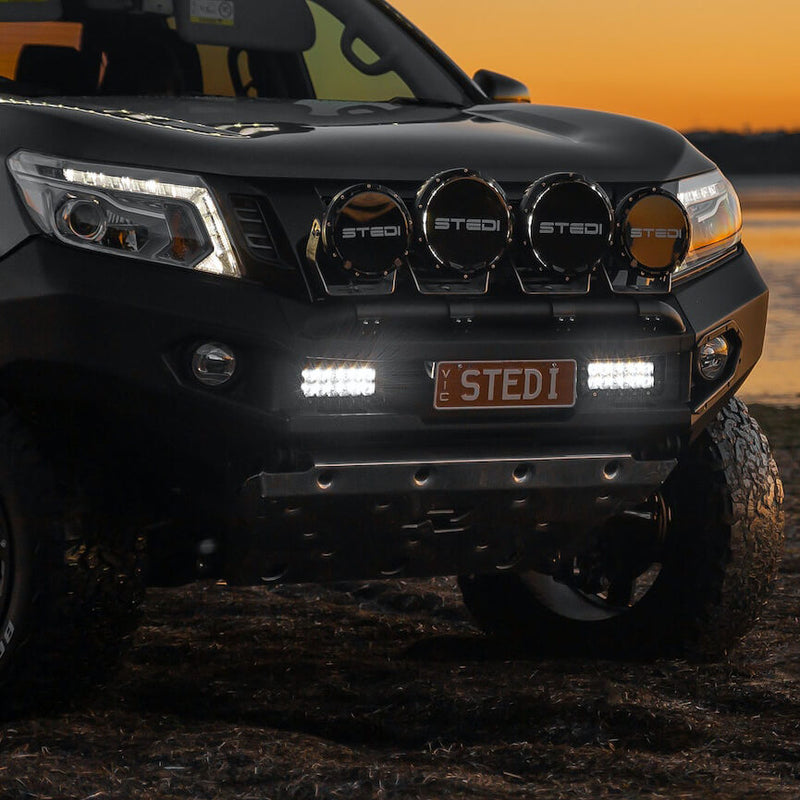

  • STEDI 8 inch ST4K 12 LED Double Row Light Bar rear view

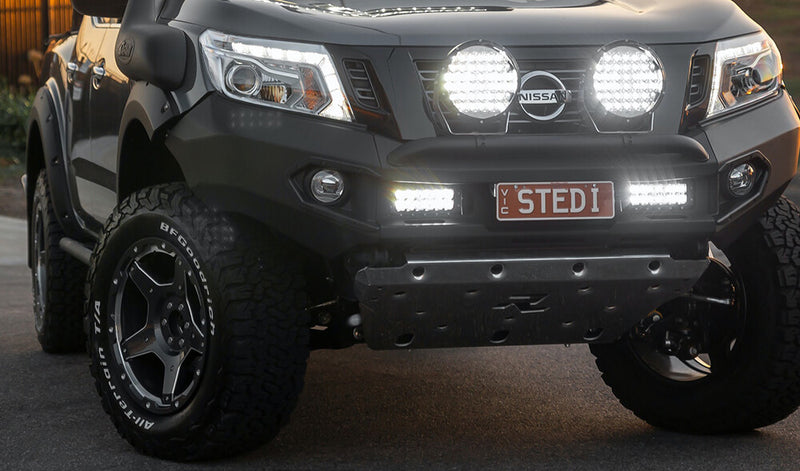

  • STEDI 8 inch ST4K 12 LED Double Row Light Bar mounting brackets
1 6

Stedi

STEDI 8" ST4K 12 LED Double Row Light Bar

STEDI 8" ST4K 12 LED Double Row Light Bar

R 3,899.00
R 3,899.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI 8" ST4K 12 LED Double Row Light Bar is the smallest bar in STEDI's ST4K double-row range, combining spot and flood reflector distributions in a compact package, built with 12 OSRAM OSLON® LEDs and STEDI's PURE Drive™ technology.

A cast face plate with an extruded aluminium heat sink and a hard-coated optical-grade Lexan lens give this bar an IP68 rating, backed by a 5-year replacement warranty — ideal where space is tight but you still want double-row output.

Key Features

Brand STEDI
Model ST4K 8" Double Row
LED count 12 x OSRAM OSLON® LEDs
Lumens 2,880 LM
Peak intensity 132,480 candela
Beam pattern 50° flood / 5.8° spot
Beam throw 363m maximum distance
Colour temperature Crystal White 5700K
Voltage 12V & 24V
Current draw 2.5A @ 13.6V / 1.1A @ 24V
IP rating IP68
Operating range -40°C to 60°C
Lifespan 50,000 hours
Weight 1.020kg
Housing / lens Cast face plate, extruded aluminium heat sink; hard-coated optical-grade Lexan lens
Warranty 5-year replacement

Highlights

  • The most compact bar in the ST4K double-row range
  • PURE Drive™ technology delivers 97% of input power to the LEDs
  • IP68 rated for reliable use in dust and rain
  • Low current draw of just 2.5A, ideal for smaller vehicles or as a pair
  • 5-year replacement warranty for peace of mind

Materials & care

Cast aluminium face plate with an extruded aluminium heat sink, finished in UV and abrasion-resistant powder coat. Lens is hard-coated, optical-grade Lexan. Rinse with clean water after driving through mud, salt or dust.

Sizing & fit

8" overall length, just 1.020kg — small enough to mount in pairs on a bumper, roll bar or as fog/driving lights where a full-size bar won't fit.

Compatibility

Runs on 12V and 24V vehicle electrical systems. Easy-Fit high beam wiring kit includes HB3/H4 adapters for common factory high-beam connectors. STEDI ST4K blackout/amber covers are available separately to fit this size.

How to use

  • Mount using the supplied side brackets and sliding brackets in your chosen position.
  • Wire using the Easy-Fit high beam wiring kit with HB3/H4 adapters, running a fused feed from the battery.
  • Aim the bar so the beam sits level with or slightly below the horizon to avoid dazzling oncoming traffic.
  • Fit a STEDI ST4K cover when driving on public roads if required for compliance in your area.

What's included

  • STEDI 8" ST4K 12 LED Double Row Light Bar
  • Side brackets
  • Adjustable sliding brackets
  • Easy-Fit high beam wiring kit with HB3/H4 adapters

Frequently asked questions

What is this small light bar best used for?

At 8" and just over 1kg it suits tight mounting spots such as bumpers, roll bars or nudge bars, or being run in pairs where a full-size bar won't fit.

How much current does it draw?

Just 2.5A at 13.6V (or 1.1A at 24V), so it's an easy add-on even on a smaller vehicle electrical system.

What warranty does it carry?

STEDI backs this light bar with a 5-year replacement warranty.
