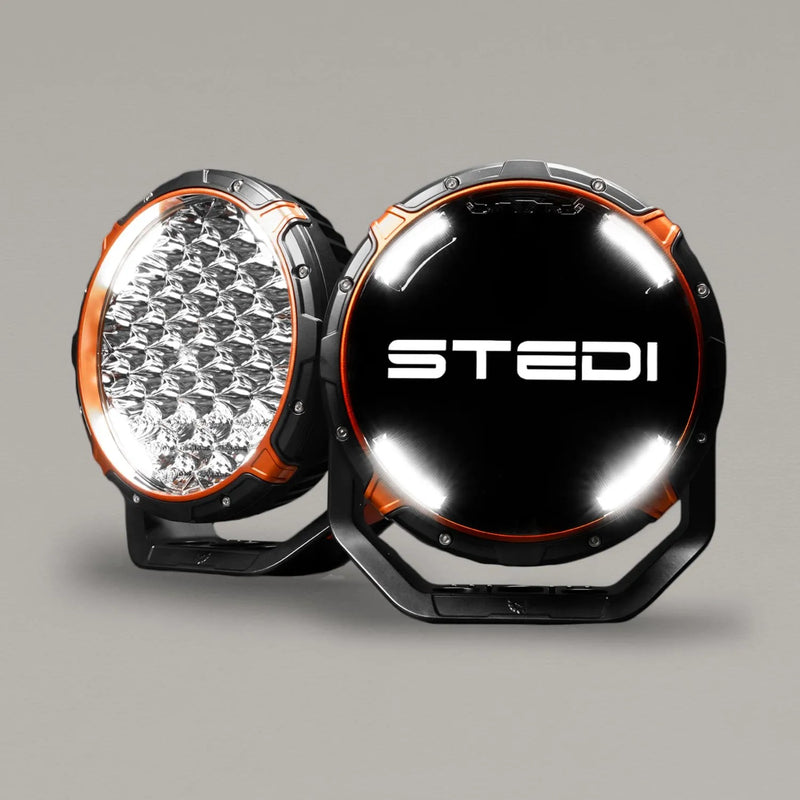

• STEDI 7 inch Type-X Pro Plus DRL Kit
  • STEDI 7" Type-X Pro Plus DRL Kit (Pair)

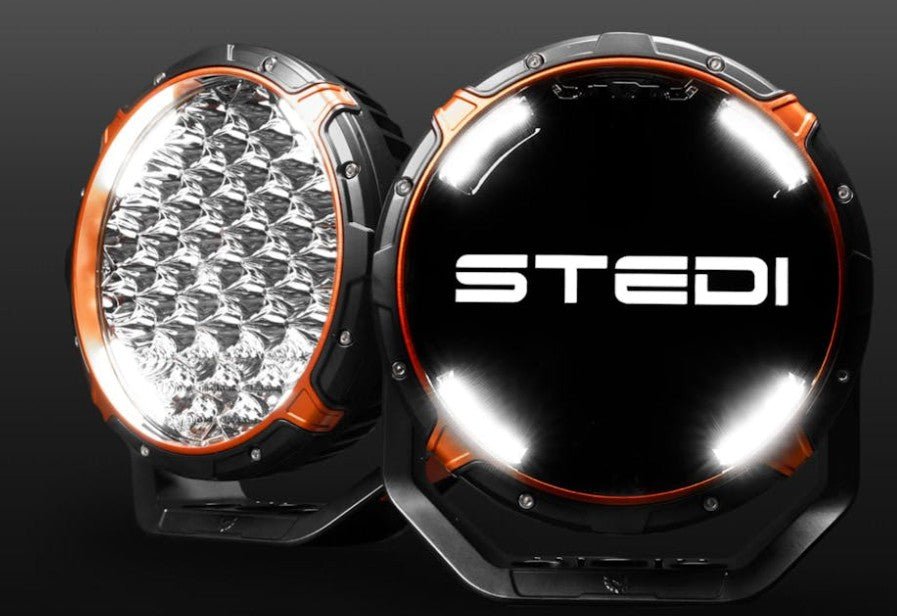

  • STEDI Type-X Pro Plus DRL Kit driving light front view

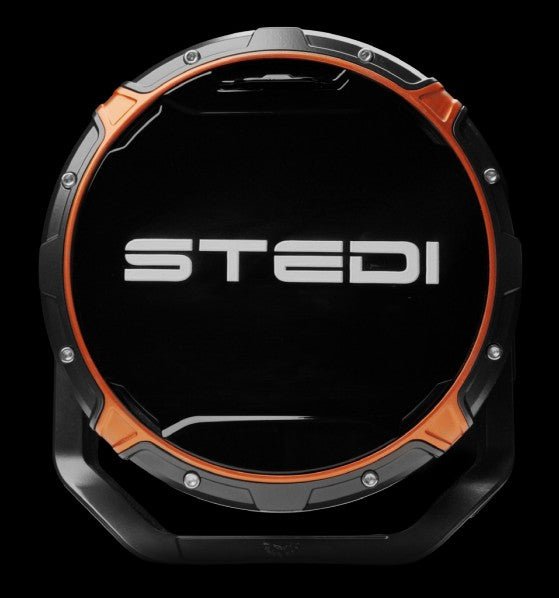

  • STEDI Type-X Pro Plus DRL Kit driving light angled view

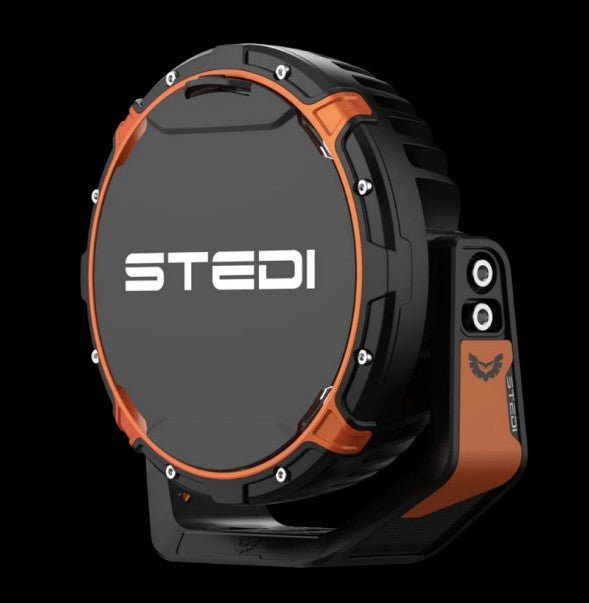

  • STEDI Type-X Pro Plus DRL Kit driving light mounted on vehicle
1 5

Stedi

STEDI 7" Type-X Pro Plus DRL Kit (Pair)

STEDI 7" Type-X Pro Plus DRL Kit (Pair)

R 17,700.00
R 17,999.00 R 17,700.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

A pre-configured, ready-to-install pairing of classic Type-X Pro looks with Pro Plus LED technology, in a rugged-styled fascia. The combo beam mixes dedicated spot, flood and DRL reflectors for both long-range throw and a daytime running light function triggered off your high beam. Comes pre-assembled — no build-your-own customisation needed.

Note: STEDI's official Type-X Pro Plus specification sheet lists this platform as an 8.5" light; we could not independently confirm separate published specs for a 7" Pro Plus housing, so the figures below reflect the confirmed Pro Plus DRL platform data — worth a quick WhatsApp check if the exact housing diameter matters for your fitment.

Key Features

Brand STEDI
Model Type-X Pro Plus DRL Kit
LED Type 33 x CREE XP20 + 12 x CREE XPP + 24 x Flood MY3030 (each)
Tested Lumens 29,664lm (pair)
Candela 1,846,240cd (pair)
Beam Pattern Combo (36 Spot | 9 Flood | 4 DRL)
Beam Distance (1 Lux) 1,540m (pair)
Colour Temperature 5000K
Current Draw 7.98A @ 24V
Voltage 10-30V DC
Weight 3.65kg per light
Operating Temperature -40°C to 60°C
Lumen Maintenance 50,000 hours (LM-80)
IP Rating IP68 — submersible to 3m

Highlights

  • Ready-to-fit pair — no build-your-own assembly required
  • Combo beam covers both long-range spot throw and close flood coverage
  • Built-in DRL reflectors triggered off your high beam wiring
  • Rugged fascia styling available in multiple colour options
  • Long-range touring and technical trail driving in one light

Sizing & fit

Weight: 3.65kg per light (7.3kg for the pair). Supplied pre-assembled as a matched pair — check mounting bracket clearance before purchase.

Compatibility

Wired for 10-30V DC systems, covering both 12V and 24V vehicle electrical platforms. Designed for auxiliary mounting (bull bar, roof rack or under-bumper) with a high-beam triggered harness for the DRL function.

How to use

  • Have the lights professionally wired through a relay and fuse, using the supplied high-beam triggered harness for the DRL function.
  • Mount using the supplied bracket hardware and check beam alignment before driving at night.
  • The DRL reflectors activate automatically once wired into your high-beam circuit.
  • Only operate the driving beam on high beam / off-road use in line with local road rules.

What's included

  • 1x pair (2x) STEDI Type-X Pro Plus DRL Kit driving lights, pre-assembled
  • High-beam triggered wiring harness
  • Rugged fascia (colour as selected)
  • Mounting hardware

Frequently asked questions

Does this kit include the daytime running light function?

Yes. The combo beam includes 4 dedicated DRL reflectors per pair alongside 36 spot and 9 flood reflectors, triggered off your high-beam wiring via the supplied harness.

Do I need to assemble anything?

No. Unlike the Build Your Own Pro Plus option, this DRL Kit ships pre-assembled and ready to mount and wire.

Is it waterproof for river crossings?

Yes, it carries an IP68 rating and is submersible to 3m.
View full details
