STEDI 52" ST4K 100 LED Double Row Light Bar
STEDI 52" ST4K 100 LED Double Row Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

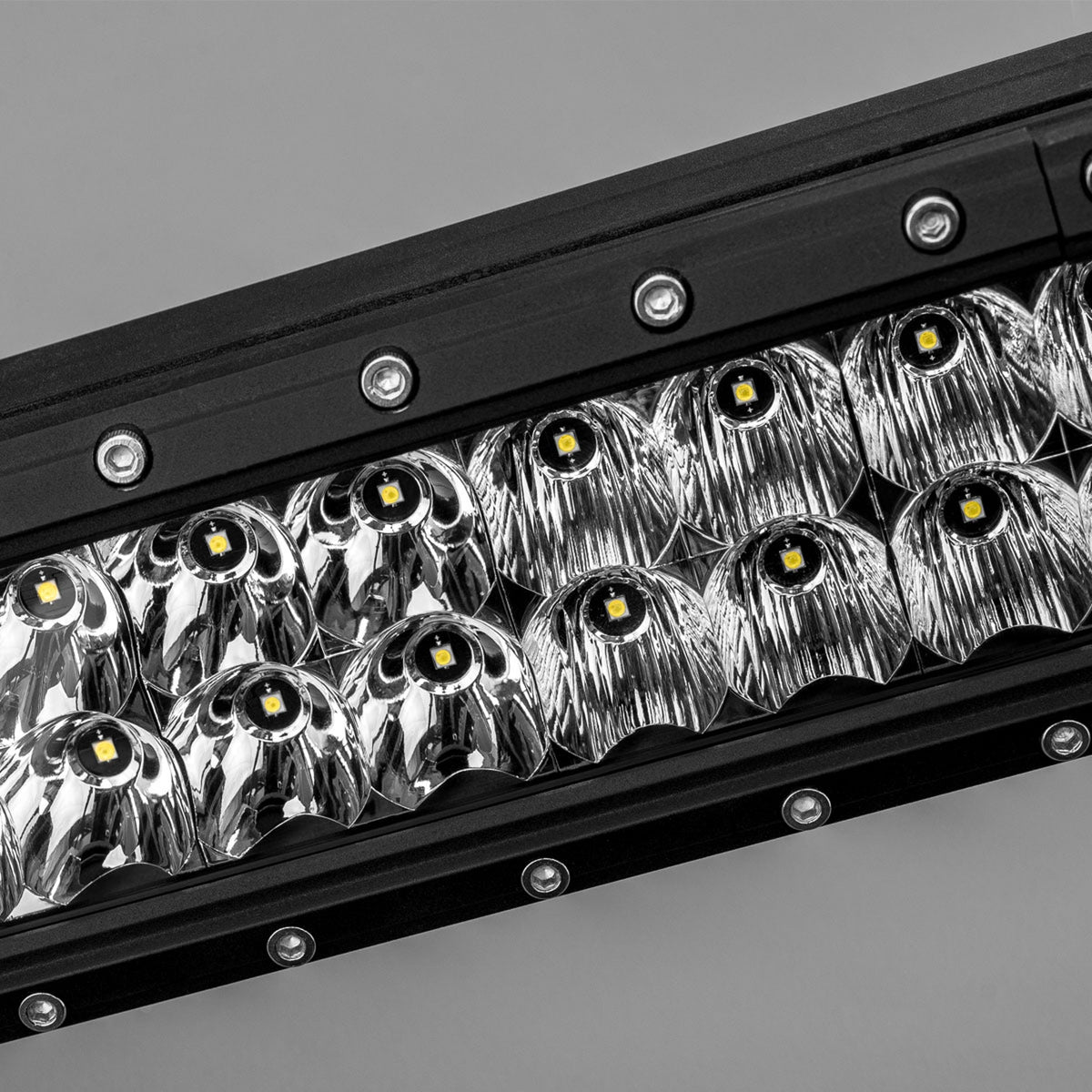

The STEDI 52" ST4K 100 LED Double Row Light Bar is the largest and most powerful bar in STEDI's ST4K double-row range, combining spot and flood reflector distributions for maximum all-terrain coverage. It's built with 100 OSRAM OSLON® LEDs and STEDI's PURE Drive™ technology, which directs 97% of input power to the LEDs rather than wasting it as heat.
A cast A360.0 aluminium face plate with an extruded heat sink and a hard-coated optical-grade Lexan lens give this bar an IP68 rating, backed by an environmentally sealed Deutsch® DTP connector and a 5-year replacement warranty — built for serious long-range touring and overland vehicles that need maximum output.
Key Features
| Brand | STEDI |
| Model | ST4K 52" Double Row |
| LED count | 100 x OSRAM OSLON® LEDs |
| Lumens | 24,000 LM |
| Peak intensity | 1,104,000 candela |
| Beam pattern | 50° flood / 5.8° spot |
| Beam throw | 1,050m @ 1 lux; 55m side flood coverage on each side |
| Colour temperature | Crystal White 5700K |
| Voltage | 12V & 24V |
| Current draw | 23.4A @ 13.6V |
| IP rating | IP68 |
| Operating range | -40°C to 60°C |
| Lifespan | 50,000 hours |
| Weight | 6.620kg |
| Housing / lens | A360.0 cast aluminium face plate, extruded aluminium heat sink; hard-coated optical-grade Lexan lens |
| Connector | Deutsch® DTP, environmentally sealed |
| Warranty | 5-year replacement (per supplier) |
Highlights
- The largest, highest-output bar in the STEDI ST4K double-row range
- PURE Drive™ technology delivers 97% of input power to the LEDs
- Long-range spot beam reaching 1,050m at 1 lux plus wide flood coverage
- IP68 rated for reliable use in dust and rain
- OSRAM OSLON® LEDs rated for 50,000 hours of use
- 5-year replacement warranty for peace of mind
Materials & care
A360.0 cast aluminium face plate with an extruded aluminium heat sink, finished in UV and abrasion-resistant polyester powder coat. Lens is hard-coated, optical-grade Lexan. Rinse with clean water after driving through mud, salt or dust.
Sizing & fit

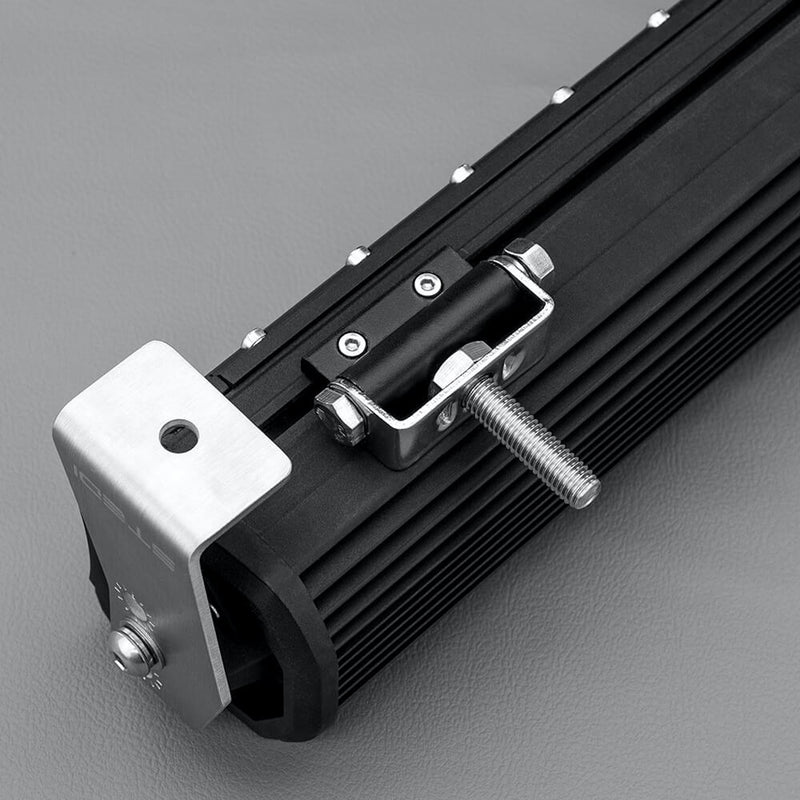

52" overall length, 6.620kg. Supplied with stainless steel side brackets (±15mm height adjustment) and sliding brackets to suit a range of bull bars and roof mounts — the largest and heaviest bar in the ST4K range, so check clearance and mounting strength before fitting.
Compatibility
Runs on 12V and 24V vehicle electrical systems. Easy-Fit high beam wiring kit includes HB3/H4 adapters for common factory high-beam connectors. STEDI ST4K blackout/amber covers are available separately to fit this size.
How to use
- Mount using the supplied stainless steel side brackets (±15mm adjustment) and sliding brackets, checking the mounting point can support the bar's weight.
- Wire using the Easy-Fit high beam wiring kit with HB3/H4 adapters, running a fused feed sized for the 23.4A draw.
- Aim the bar so the beam sits level with or slightly below the horizon to avoid dazzling oncoming traffic.
- Fit a STEDI ST4K cover when driving on public roads if required for compliance in your area.
What's included
- STEDI 52" ST4K 100 LED Double Row Light Bar
- Stainless steel side brackets (±15mm adjustment)
- Adjustable sliding brackets
- Easy-Fit high beam wiring kit with HB3/H4 adapters
- Cable ties and fitting instructions
