STEDI 32" ST4K 60 LED Double Row Light Bar
STEDI 32" ST4K 60 LED Double Row Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

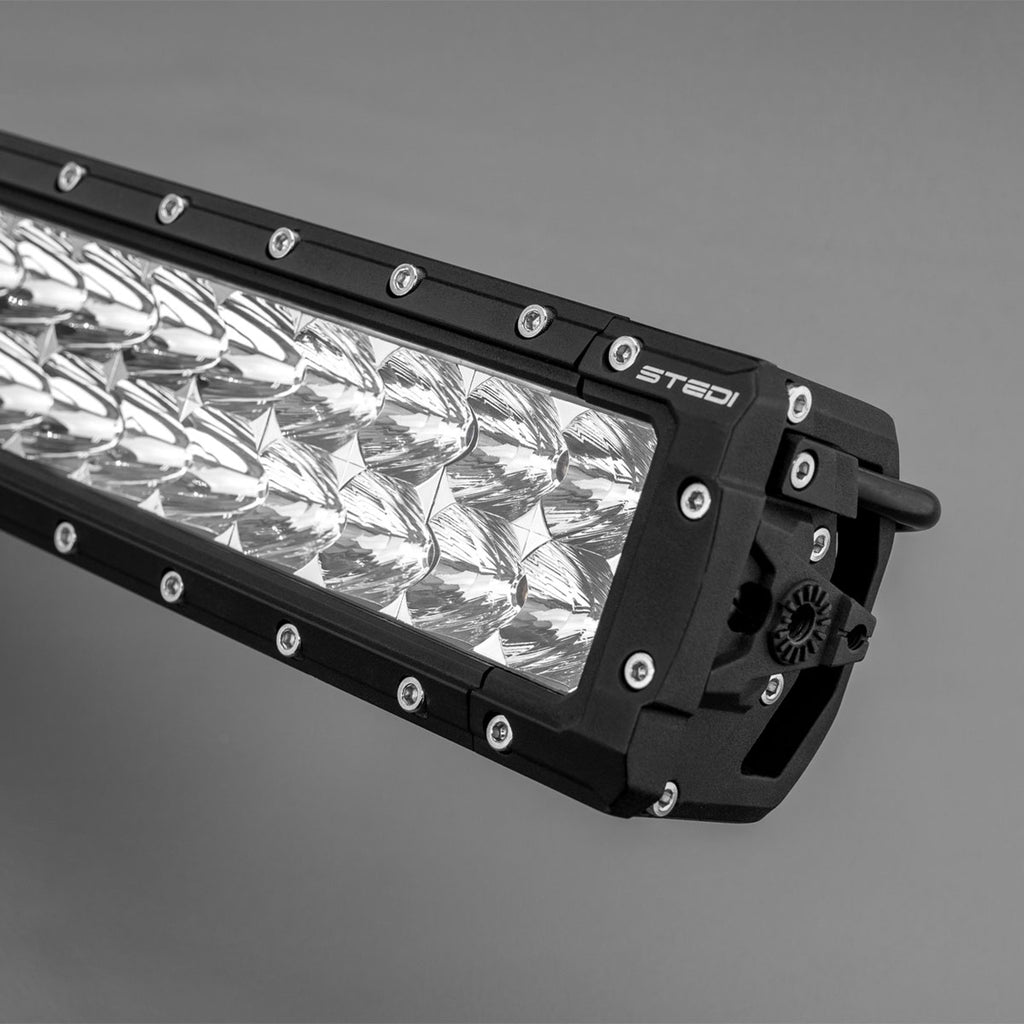

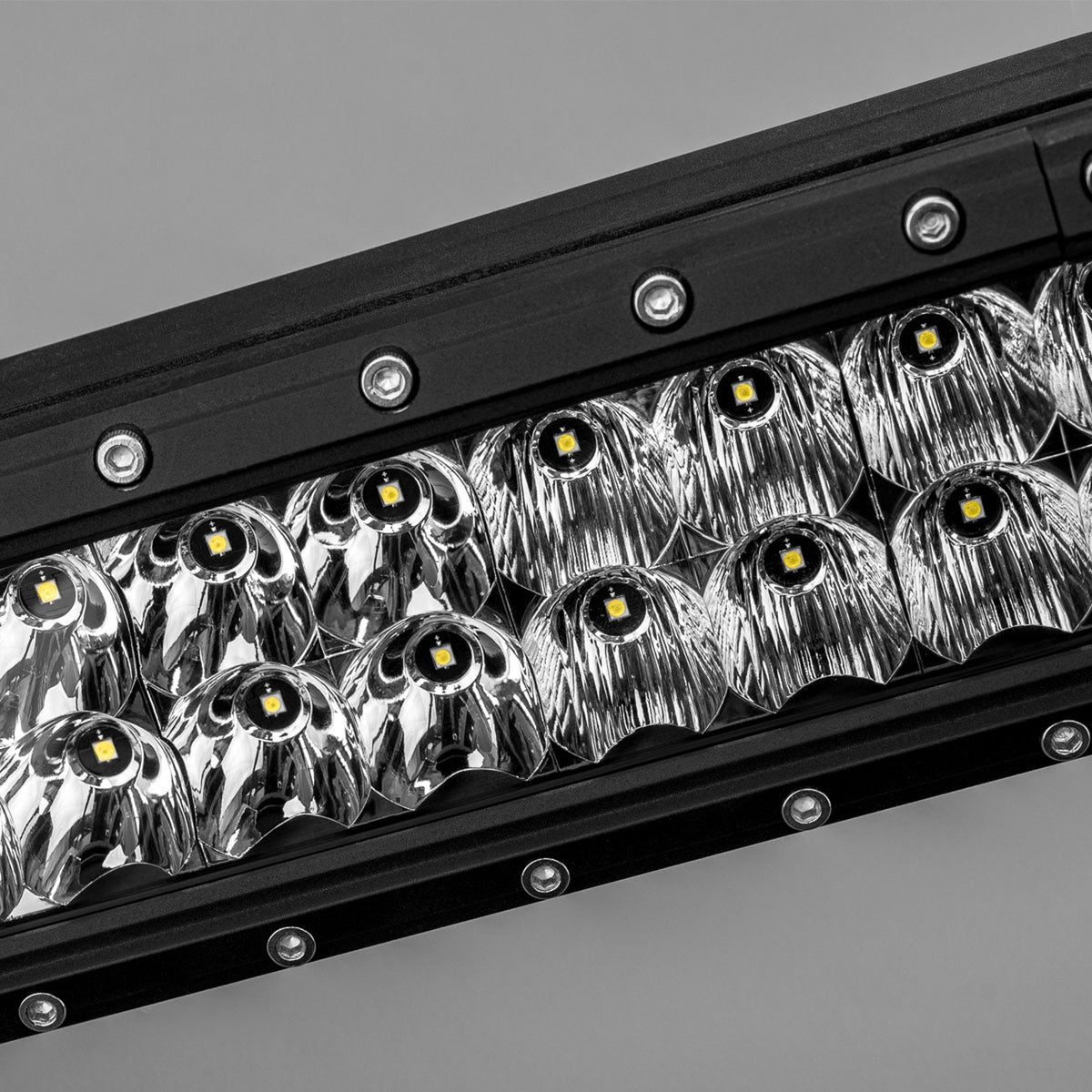

The STEDI 32" ST4K combines 60 OSRAM OSLON® LEDs in a flood-spot-flood reflector layout, giving you wide peripheral coverage plus a focused long-range spot beam from a single bar. PURE Drive™ technology sends 97% of input power straight to the LEDs, while the sealed A360.0 cast aluminium housing is rated IP68 for genuine off-road durability.
At 14,400 lumens and a beam that reaches out to 810m, the 32" ST4K suits mid-size bakkies and SUVs that need a serious upgrade over factory lighting without the bulk of the largest bars in the range.
Key Features
| Brand | STEDI |
| Model | ST4K 60 LED Double Row Light Bar (32") |
| LED Count | 60x OSRAM OSLON® LEDs |
| Colour Temperature | Crystal White 5700K |
| Lumens | 14,400 lm |
| Peak Intensity | 662,400 candela |
| Beam Pattern | 8 Flood + 44 Spot + 8 Flood - 50° flood, 5.8° spot |
| Beam Distance | 810m @ 1 lux, 55m side coverage (flood) |
| Voltage | 12V & 24V |
| Current Draw | 13.5A @ 13.6V |
| IP Rating | IP68 (dust & waterproof to 3m) |
| Operating Temperature | -40°C to 60°C |
| Lifespan | 50,000 hours |
| Weight | 4.150kg |
| Warranty | 5-year replacement |
Highlights
- Mid-size bakkies, SUVs and 4x4s wanting a big lighting upgrade without a full-size bar
- Farm roads, gravel routes and night-time touring
- Roof racks, bull bars and nudge bar mounting points sized for 32" bars
- Dual 12V/24V compatibility for both bakkies and light trucks
Materials & care
A360.0 cast aluminium face plate with an extruded aluminium heat sink, hard-coated optical-grade Lexan lens, and an environmentally sealed Deutsch® DT connector. Wipe down with a soft cloth and clean water; avoid abrasive cleaners on the lens.
Sizing & fit

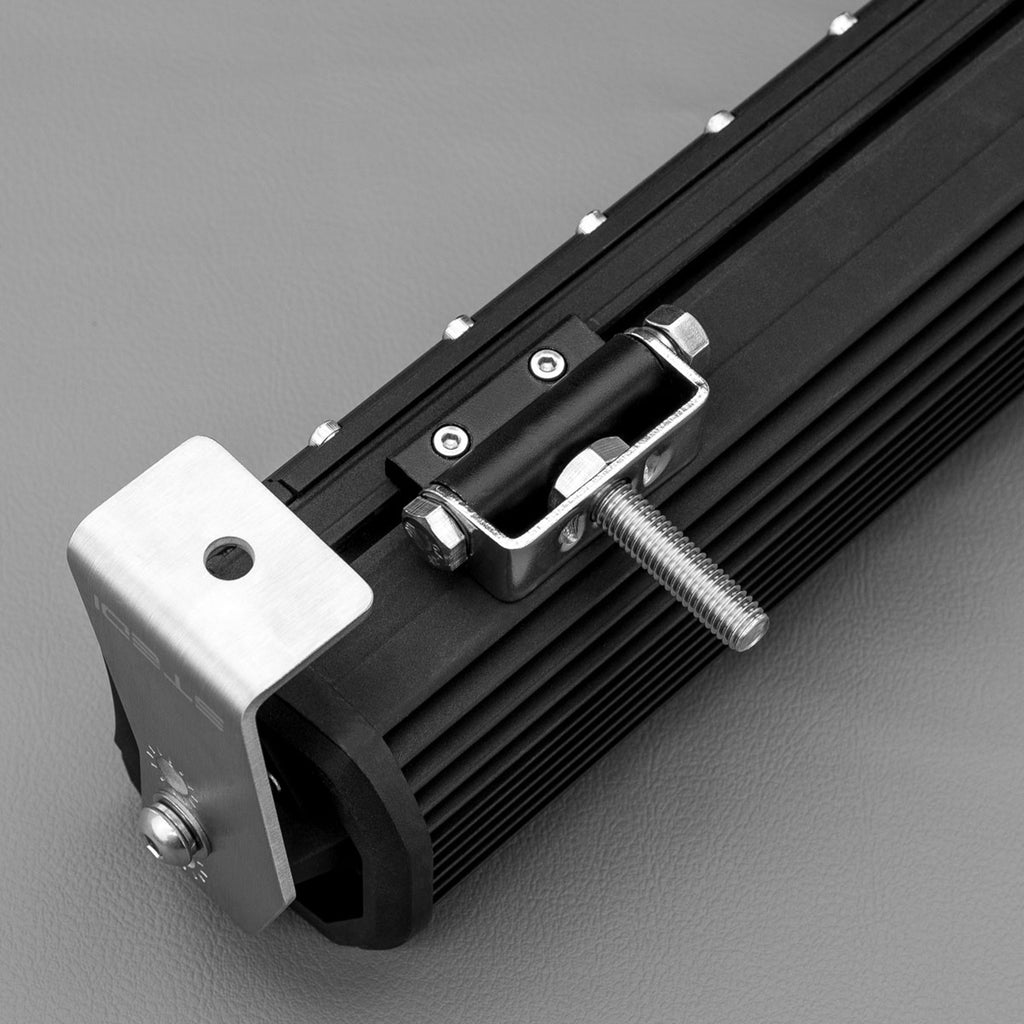

32" double-row light bar weighing 4.150kg. Supplied with stainless steel side brackets and adjustable sliding brackets so it can be positioned to suit roof racks, bull bars or bumper mounts.
Compatibility
Runs on both 12V and 24V electrical systems, making it suitable for petrol/diesel bakkies as well as light trucks. Wiring is via the included Easy-Fit high beam harness with HB3 and H4 piggyback adapters.
How to use
- Mount using the supplied stainless steel side brackets and adjustable sliding brackets, positioned so the bar doesn't obstruct your factory headlights.
- Wire in using the Easy-Fit high beam harness and HB3/H4 adapters, run through a relay, and fuse close to the battery.
- Aim the bar with the vehicle on level ground, checking the flood spread and spot beam throw are aligned before tightening brackets fully.
- Use as an auxiliary off-road light and switch off when driving on public roads unless legally permitted in your area.
What's included
- ST4K 60 LED light bar
- 2x brushed stainless steel side brackets
- 3x adjustable sliding brackets

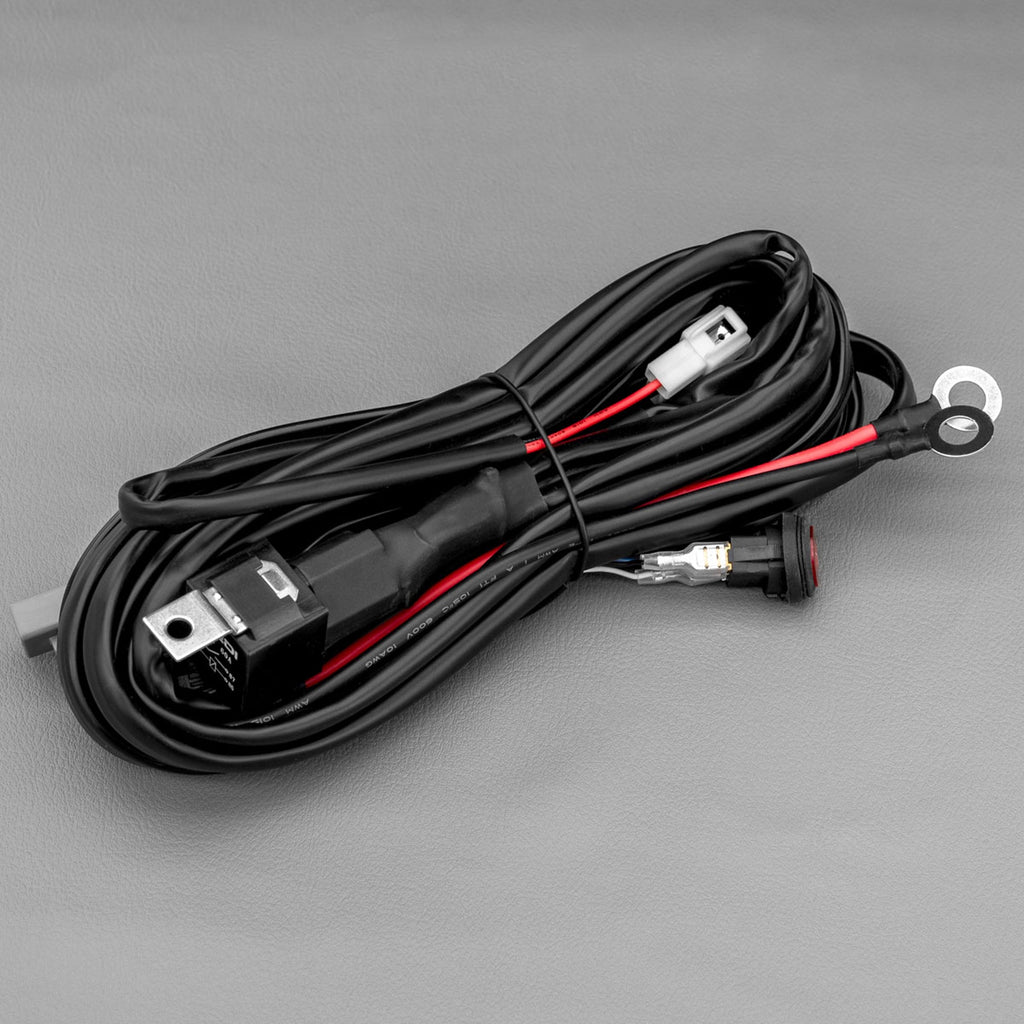

- Easy-Fit high beam wiring harness with HB3 & H4 adapters
- Cable ties and wiring instructions
