Stedi

STEDI 28" 52 LED ST4K Double Row Light Bar

Name: STEDI 28" 52 LED ST4K Double Row Light Bar
Brand: Stedi
Price: 8999.00 ZAR
Availability: InStock

R 8,999.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

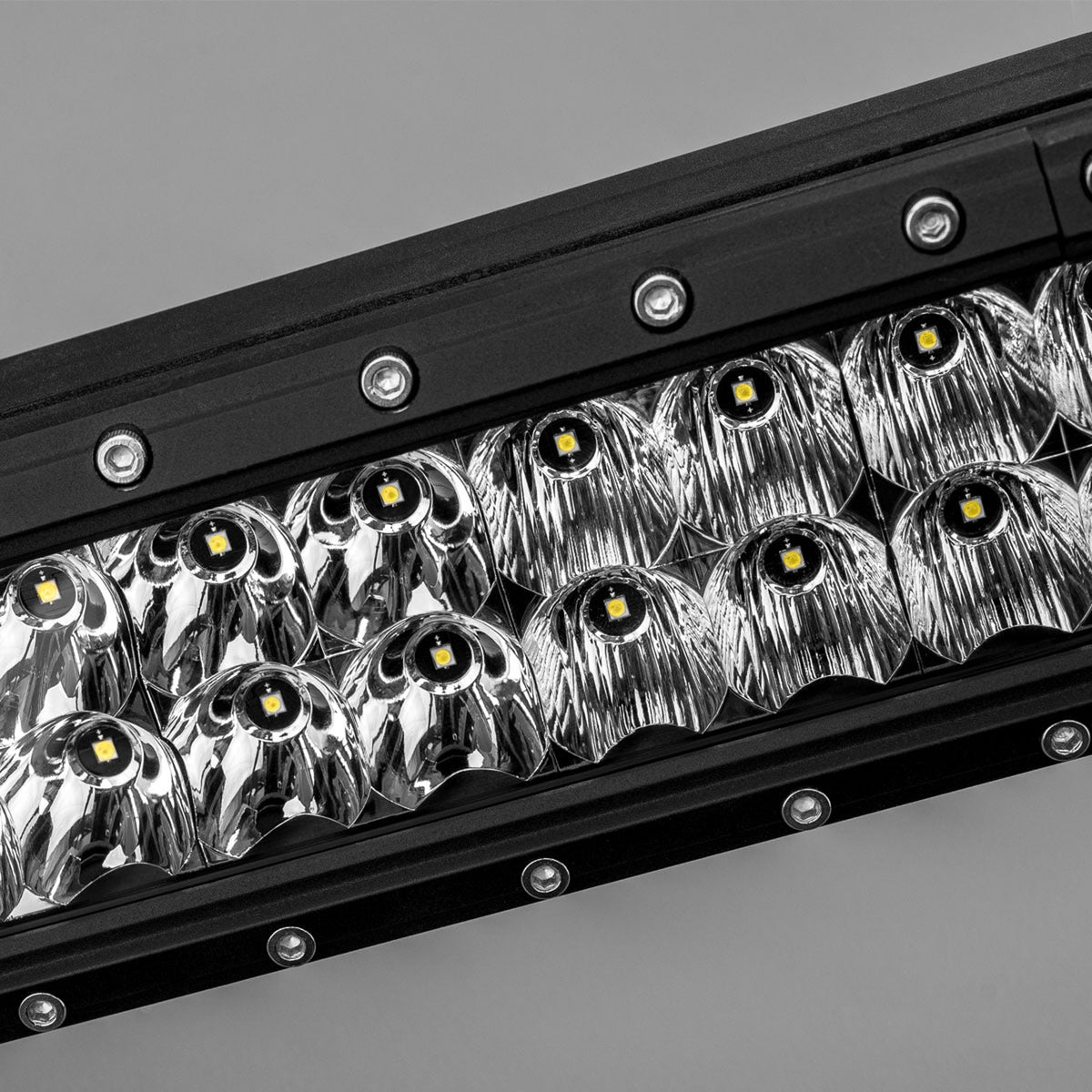

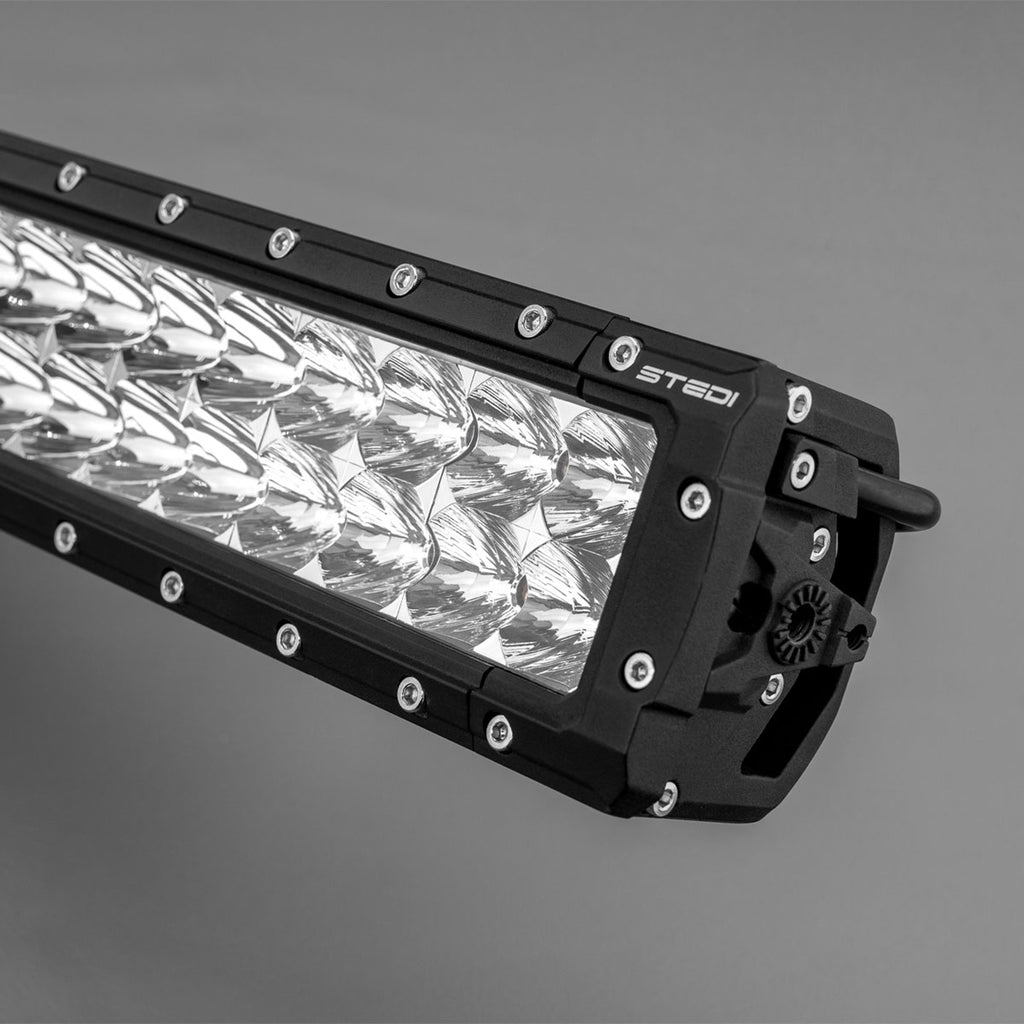

The STEDI 28" 52 LED ST4K Double Row Light Bar combines spot and flood reflector distributions for versatile all-terrain illumination, built with 52 OSRAM OSLON® LEDs and STEDI's PURE Drive™ technology, which directs 97% of input power to the LEDs rather than wasting it as heat.

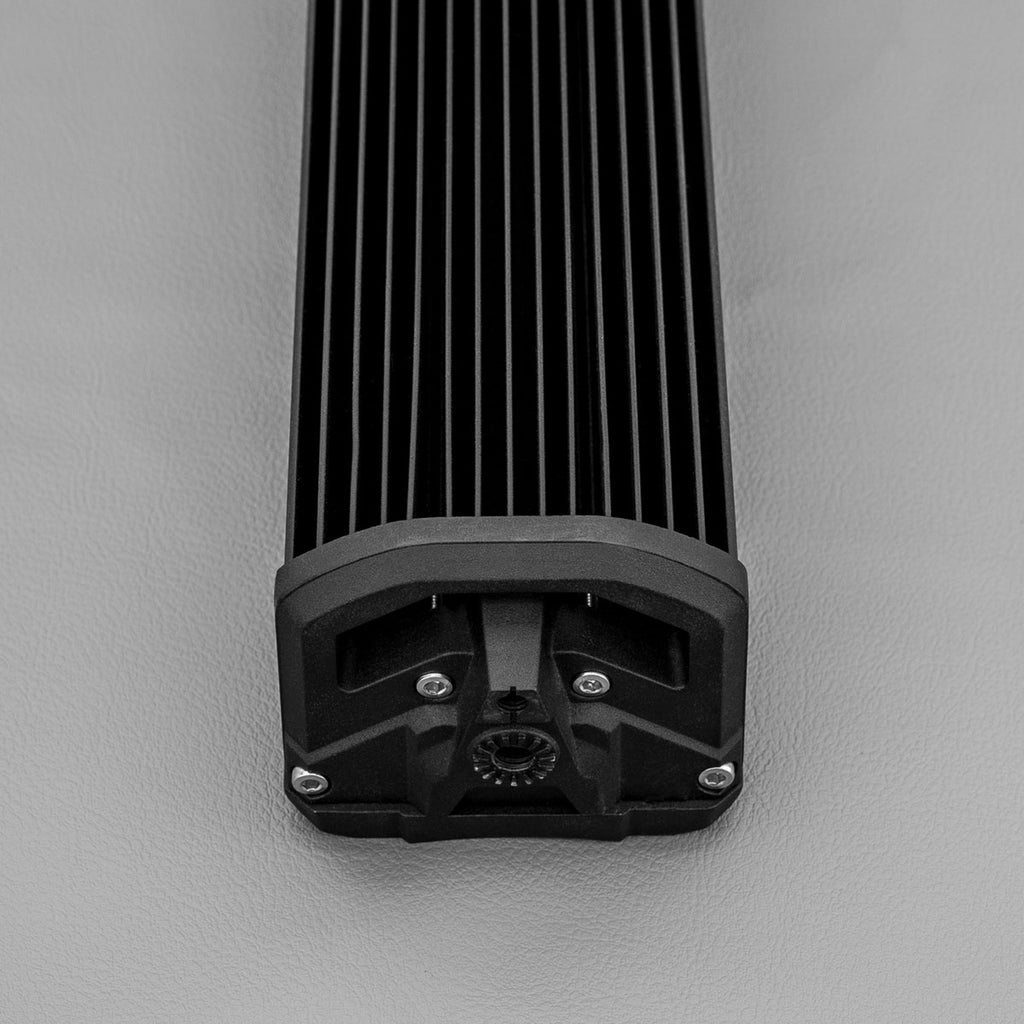

A cast A360.0 aluminium face plate with an extruded heat sink and a hard-coated optical-grade Lexan lens give this bar an IP68 waterproof rating to 3m, backed by a 5-year replacement warranty.

Key Features

Brand	STEDI
Model	ST4K 28" Double Row
LED count	52 x OSRAM OSLON® LEDs
Lumens	12,480 LM
Peak intensity	574,080 candela
Beam pattern	8 Flood + 36 Spot + 8 Flood; 50° flood / 5.8° spot
Beam throw	755m @ 1 lux
Colour temperature	Crystal White 5700K
Voltage	12V & 24V
Current draw	11.5A @ 13.6V
IP rating	IP68 (waterproof to 3m)
Operating range	-40°C to 60°C
Lifespan	50,000 hours
Weight	3.66kg
Housing / lens	A360.0 cast face plate, aluminium heat sink; hard-coated optical-grade Lexan lens
Warranty	5-year replacement (per supplier)

Highlights

Combined spot and flood beam for both distance and peripheral vision
PURE Drive™ technology delivers 97% of input power to the LEDs
IP68 waterproof to 3m for stream crossings and heavy rain
OSRAM OSLON® LEDs rated for 50,000 hours of use
5-year replacement warranty for peace of mind

Materials & care

A360.0 cast aluminium face plate with an extruded aluminium heat sink, finished in UV and abrasion-resistant polyester powder coat. Lens is hard-coated, optical-grade Lexan. Rinse with clean water after driving through mud, salt or dust.

Sizing & fit

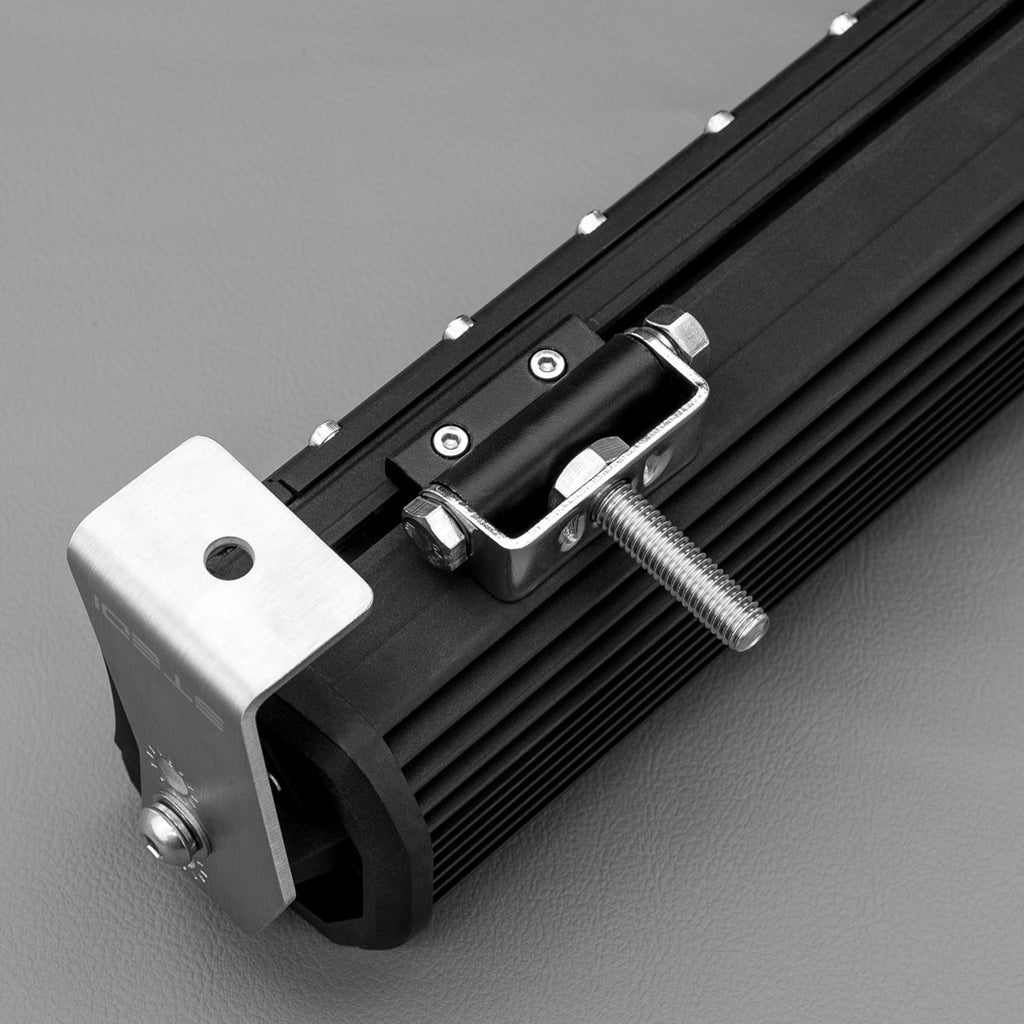

28" overall length, 3.66kg. Supplied with stainless steel side brackets offering ±15mm height adjustment plus sliding brackets to suit a range of bull bars and roof mounts.

Compatibility

Runs on 12V and 24V vehicle electrical systems. Easy-Fit high beam wiring kit includes HB3/H4 adapters for common factory high-beam connectors. STEDI ST4K blackout/amber covers are available separately to fit this size.

How to use

Mount using the supplied stainless steel side brackets (±15mm adjustment) and sliding brackets.
Wire using the Easy-Fit high beam wiring kit with HB3/H4 adapters, running a fused feed from the battery.
Aim the bar so the beam sits level with or slightly below the horizon to avoid dazzling oncoming traffic.
Fit a STEDI ST4K cover when driving on public roads if required for compliance in your area.

What's included

STEDI 28" 52 LED ST4K Double Row Light Bar
2 x stainless steel side brackets (±15mm adjustment)
2 x adjustable sliding brackets
Easy-Fit high beam wiring kit with HB3/H4 adapters
Cable ties and fitting instructions

Frequently asked questions

What's the difference between the spot and flood sections?

The outer LEDs use a 50° flood pattern for wide, close-range peripheral vision, while the centre LEDs use a narrow 5.8° spot pattern for long-distance throw — together giving 755m of beam reach at 1 lux.

Is this bar submersible?

It's rated IP68, meaning it's dust-tight and waterproof to 3m depth, making it suitable for water crossings and heavy rain, though it isn't designed for permanent submersion.

What warranty does it carry?

STEDI backs the ST4K range with a 5-year replacement warranty per the supplier.
