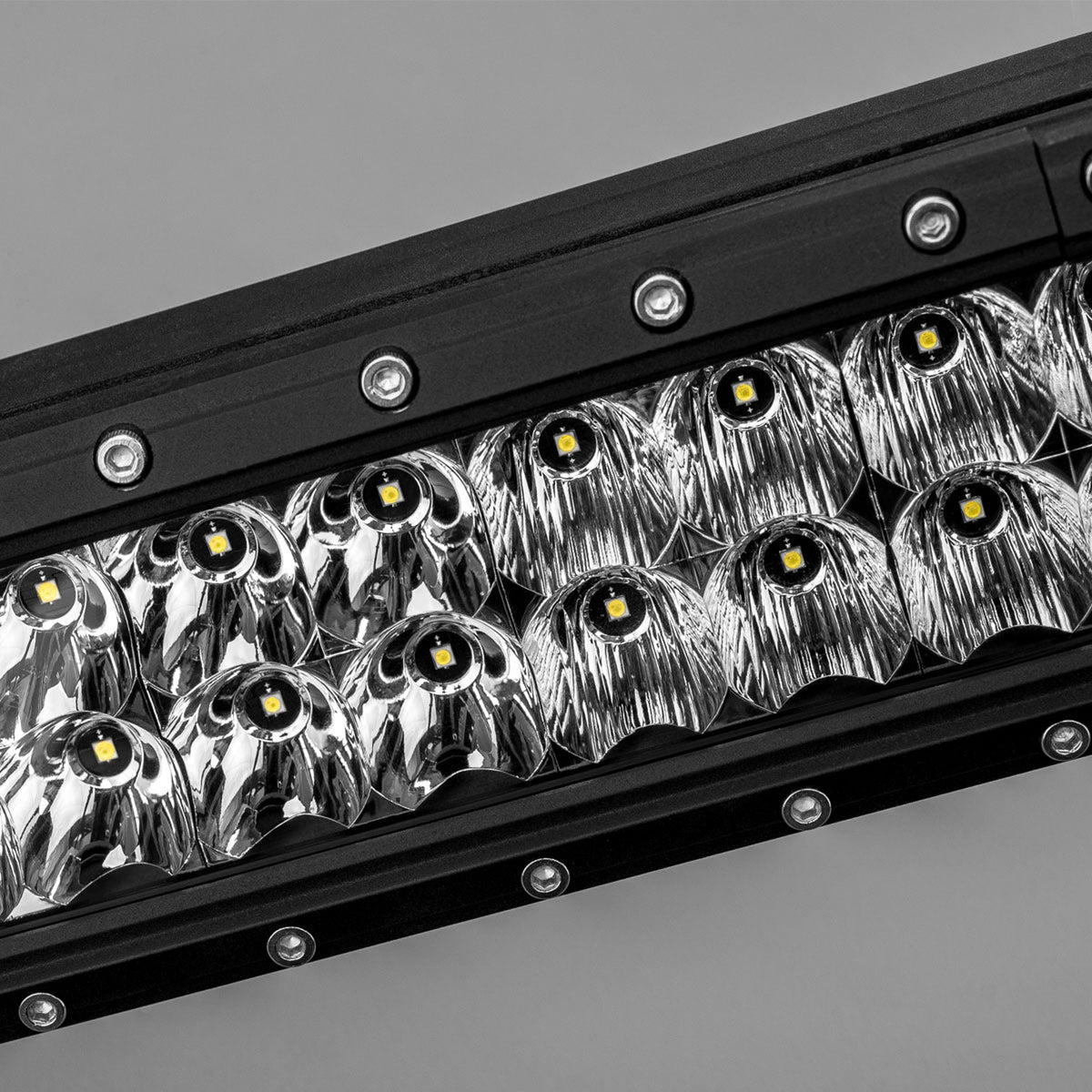

  • STEDI 22 inch ST4K 40 LED Double Row Light Bar front view

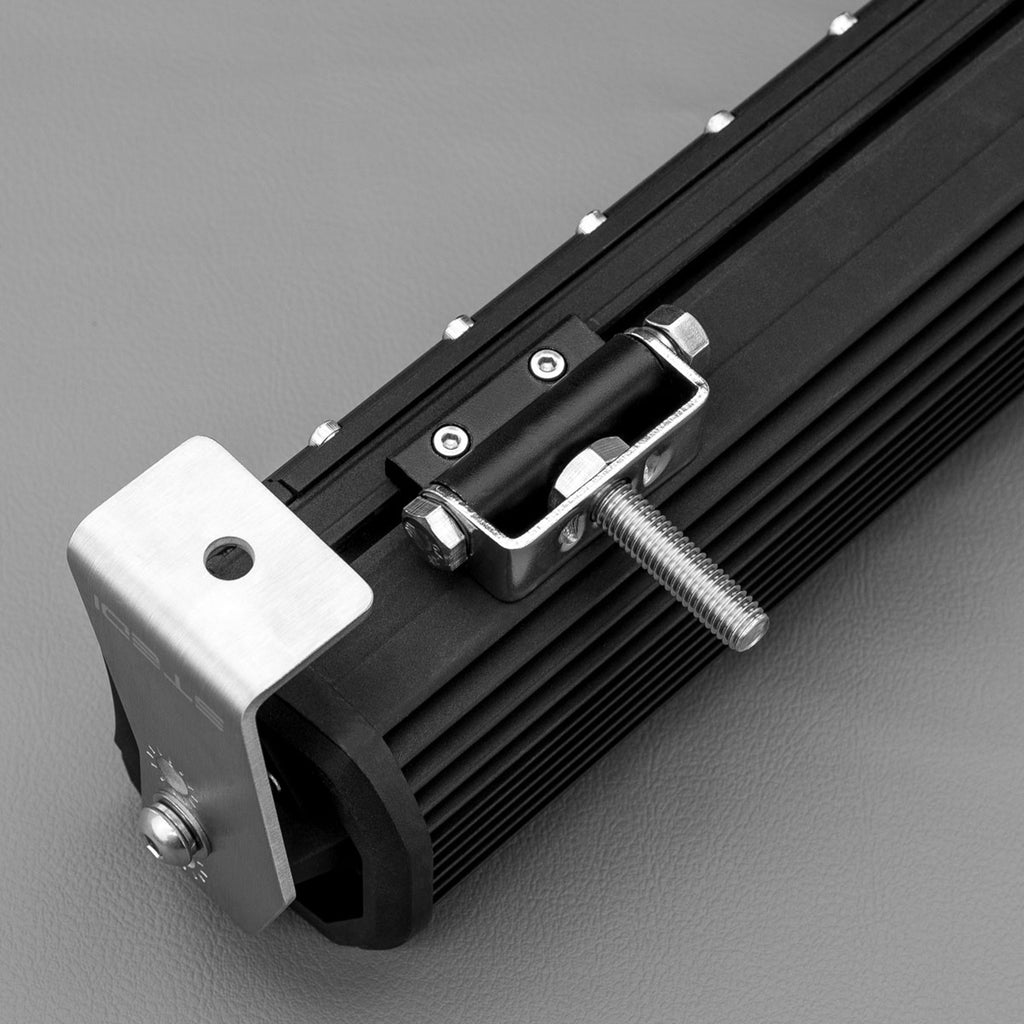

  • STEDI 22 inch ST4K 40 LED Double Row Light Bar angle view

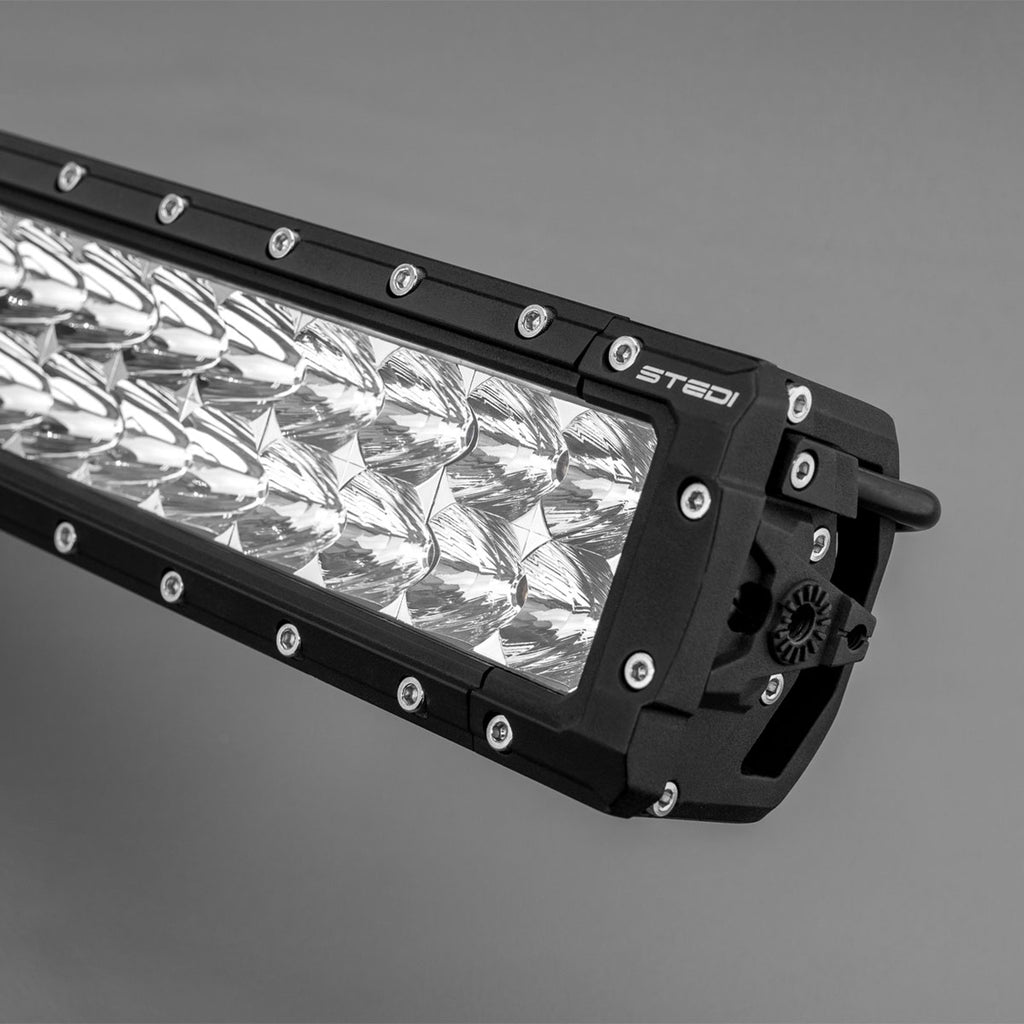

  • STEDI 22 inch ST4K 40 LED Double Row Light Bar rear view

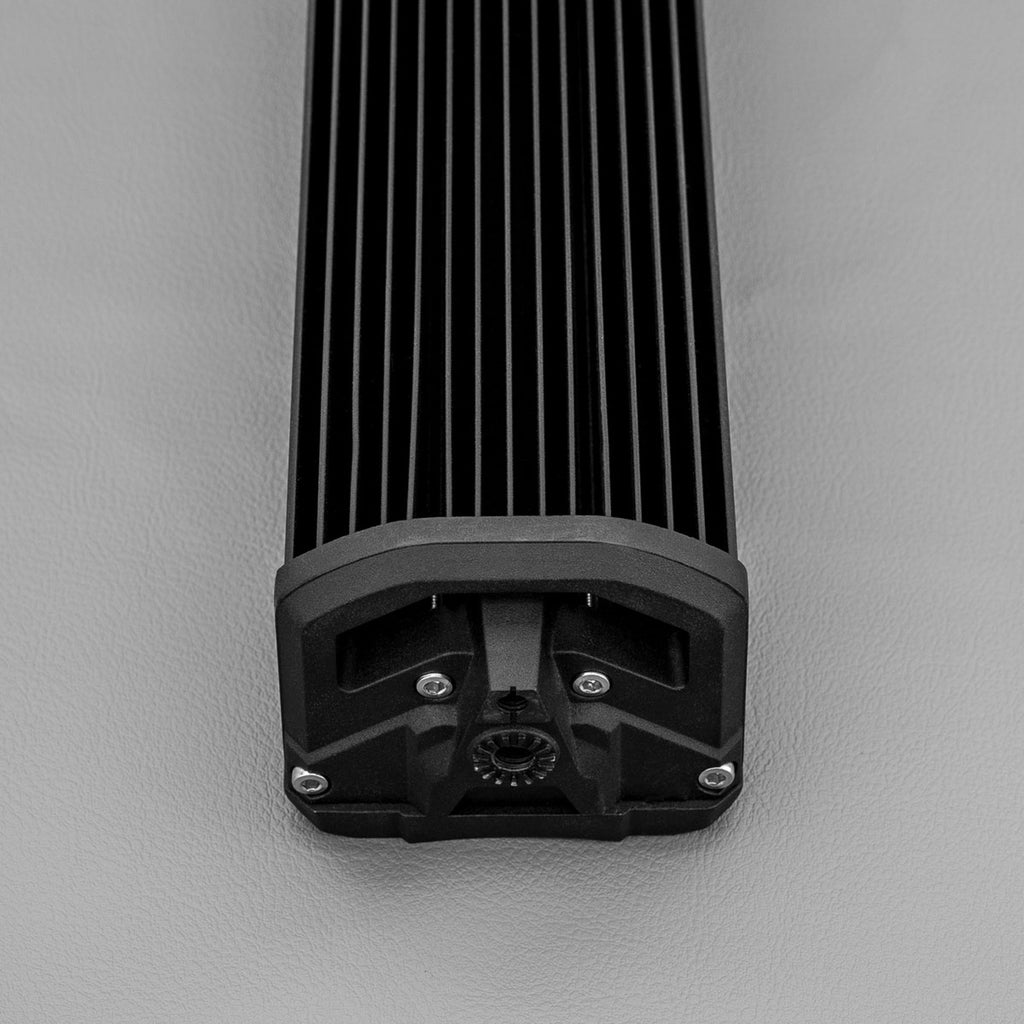

  • STEDI 22 inch ST4K 40 LED Double Row Light Bar mounting brackets
1 6

Stedi

STEDI 22" ST4K 40 LED Double Row Light Bar

STEDI 22" ST4K 40 LED Double Row Light Bar

R 8,199.00
R 8,199.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

The STEDI 22" ST4K 40 LED Double Row Light Bar combines spot and flood reflector distributions for versatile all-terrain illumination, built with 40 OSRAM OSLON® LEDs and STEDI's PURE Drive™ technology, which directs 97% of input power to the LEDs rather than wasting it as heat.

A cast A360.0 aluminium face plate with an extruded heat sink and a hard-coated optical-grade Lexan lens give this bar an IP68 waterproof rating, backed by a 5-year replacement warranty.

Key Features

Brand STEDI
Model ST4K 22" Double Row
LED count 40 x OSRAM OSLON® LEDs
Lumens 9,600 LM
Peak intensity 441,600 candela
Beam pattern 50° flood / 5.8° spot
Beam throw 663m @ 1 lux; 55m side flood coverage
Colour temperature Crystal White 5700K
Voltage 12V & 24V
Current draw 8.9A @ 13.6V
IP rating IP68
Operating range -40°C to 60°C
Lifespan 50,000 hours
Weight 2.880kg
Housing / lens A360.0 cast aluminium face plate, aluminium heat sink; hard-coated optical-grade Lexan lens
Warranty 5-year replacement

Highlights

  • Combined spot and flood beam for both distance and peripheral vision
  • PURE Drive™ technology delivers 97% of input power to the LEDs
  • IP68 rated for reliable use in dust and rain
  • OSRAM OSLON® LEDs rated for 50,000 hours of use
  • 5-year replacement warranty for peace of mind

Materials & care

A360.0 cast aluminium face plate with an extruded aluminium heat sink, finished in UV and abrasion-resistant polyester powder coat. Lens is hard-coated, optical-grade Lexan. Rinse with clean water after driving through mud, salt or dust.

Sizing & fit

22" overall length, 2.880kg. Supplied with stainless steel side brackets and sliding brackets to suit a range of bull bars and roof mounts.

Compatibility

Runs on 12V and 24V vehicle electrical systems. Easy-Fit high beam wiring kit includes HB3/H4 adapters for common factory high-beam connectors. STEDI ST4K blackout/amber covers are available separately to fit this size.

How to use

  • Mount using the supplied stainless steel side brackets and sliding brackets.
  • Wire using the Easy-Fit high beam wiring kit with HB3/H4 adapters, running a fused feed from the battery.
  • Aim the bar so the beam sits level with or slightly below the horizon to avoid dazzling oncoming traffic.
  • Fit a STEDI ST4K cover when driving on public roads if required for compliance in your area.

What's included

  • STEDI 22" ST4K 40 LED Double Row Light Bar
  • Stainless steel side brackets
  • Adjustable sliding brackets
  • Easy-Fit high beam wiring kit with HB3/H4 adapters

Frequently asked questions

How does the 22" compare to the 28" and 42" bars in the range?

It sits between the 14" and 28" models with 40 LEDs and 9,600 lumens, giving a middle-ground option between compact bumper-mount bars and full-size roof bars.

Is this bar submersible?

It's rated IP68, meaning it's dust-tight and waterproof, suitable for water crossings and heavy rain.

What warranty does it carry?

STEDI backs this light bar with a 5-year replacement warranty.
