Stedi

STEDI 22" EVO Light Bar

STEDI 22" EVO Light Bar

R 15,799.00
R 15,999.00 R 15,799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

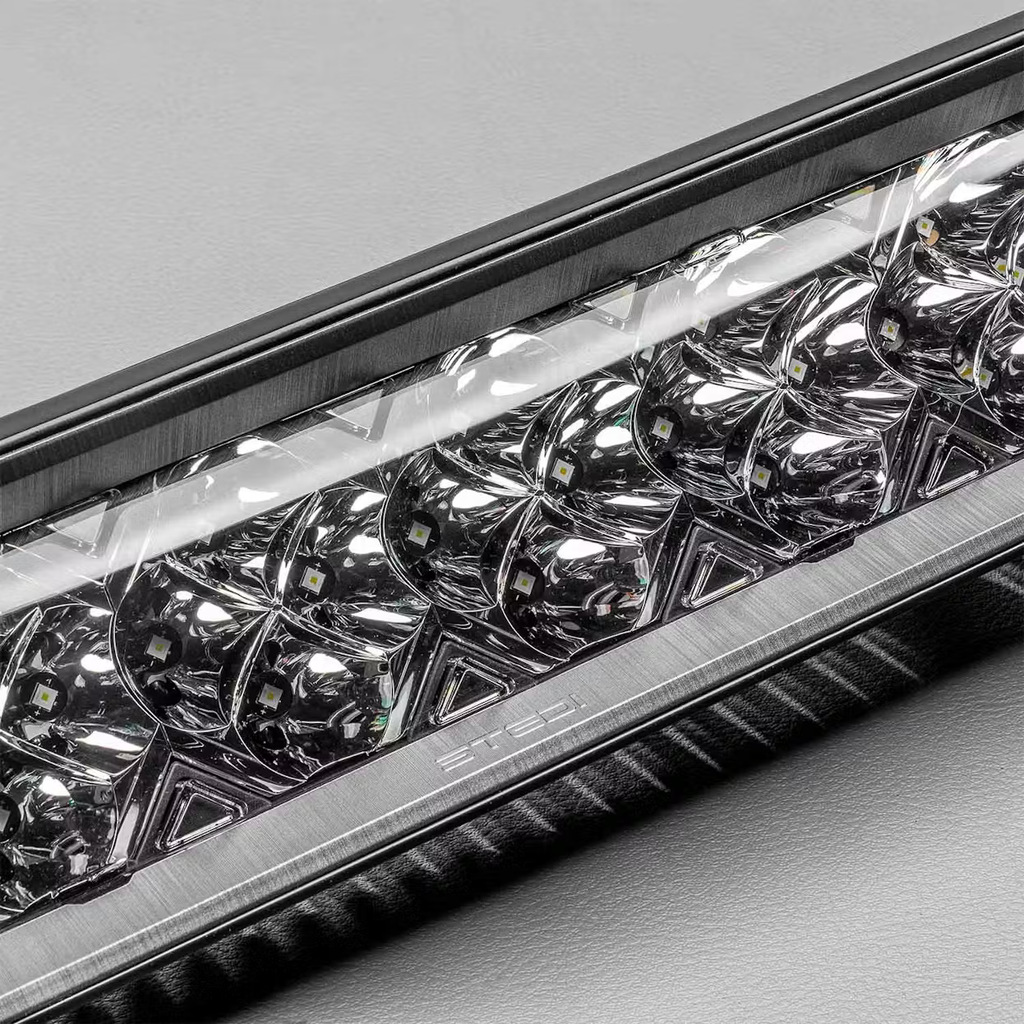

The STEDI 22" EVO Light Bar is the latest evolution of STEDI's EVO family, running 36 CREE LEDs for 20,000 lumens and a combo beam (flood + spot combined) that throws up to 960m. It's built with a brushed stainless steel fascia, polycarbonate lens and stainless steel side mounting brackets for a light bar that looks as good as it performs.

Side DRLs are available as an add-on for this platform if you want daytime running light functionality built into the same bar.

Key Features

LED 36x CREE XPP
Tested lumens 20,000
Power consumption 250W
Beam pattern Combo (Flood & Spot)
Beam throw @ 1 lux 960m
Colour temperature 5000K
Current draw 20.8A @ 12V / 10.4A @ 24V
Voltage range 10-30V DC
IP Rating IP68, submersible to 3m
Operating temperature -40°C to 60°C
Weight 6.44kg
Construction Brushed stainless steel fascia, polycarbonate lens, stainless steel side brackets

Highlights

  • 20,000 lumens and 960m combo beam throw
  • Brushed stainless steel fascia for a premium finish
  • IP68 submersible housing for serious off-road use
  • Stainless steel side mounting brackets and smart harness included
  • Interchangeable orange and charcoal grey colour fascias
  • Side DRL add-on available on this platform

Materials & care

Brushed stainless steel fascia with a polycarbonate lens and stainless steel side brackets. Rinse mud and salt off after off-road or coastal driving to preserve the stainless finish.

Sizing & fit

Weighs 6.44kg, mounted via the supplied stainless steel side brackets.

How to use

  • Mount using the supplied stainless steel side brackets, checking clearance and bonnet/roof line before drilling.
  • Wire through the supplied smart harness with a relay and fuse rated for the bar's 250W draw - do not wire directly off a switch.
  • Aim the combo beam slightly below the horizon for maximum useable throw without dazzling oncoming traffic.
  • Swap between the orange and charcoal grey colour fascias to suit your vehicle, and add the side DRL kit separately if you want integrated daytime running lights.

What's included

  • STEDI 22" EVO Light Bar
  • Black Out Cover
  • Orange and charcoal grey colour fascias

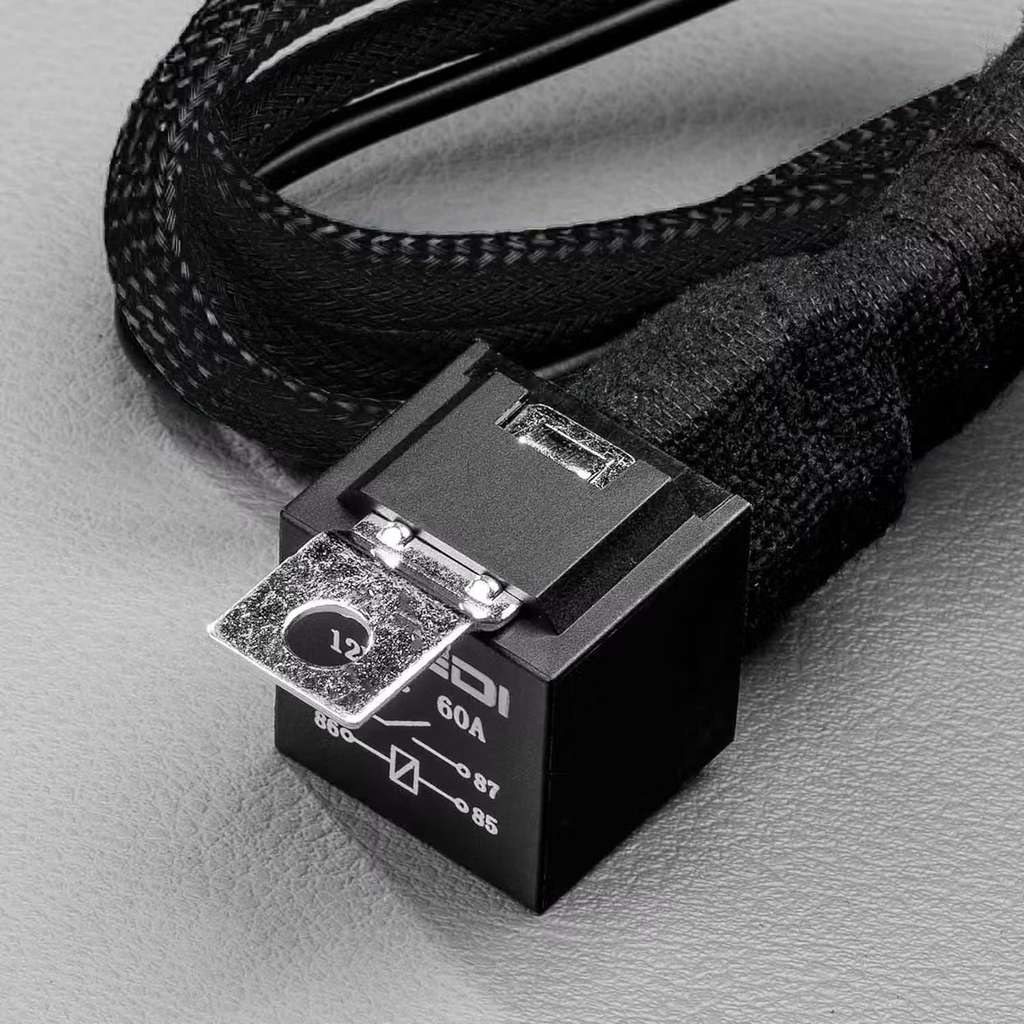

  • Smart harness

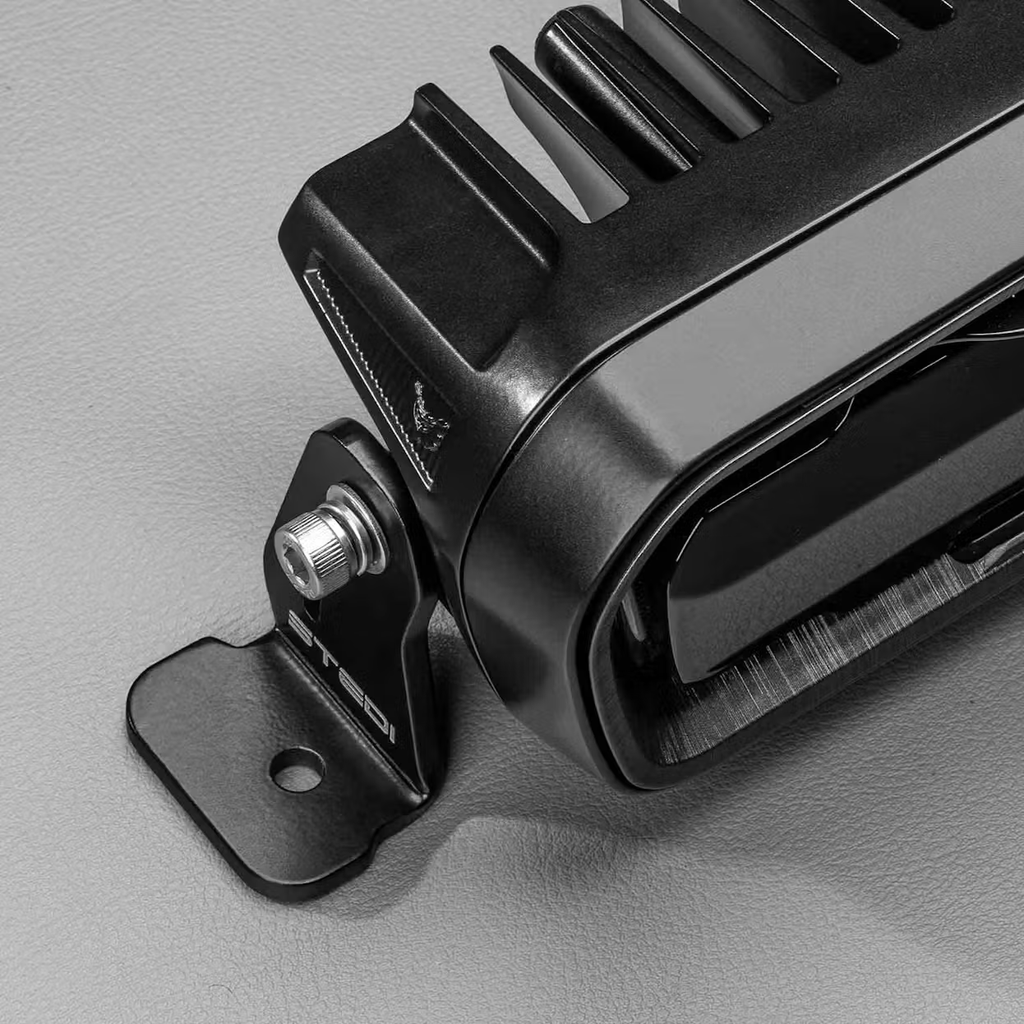

  • Stainless steel side mounting brackets
  • Hardware
  • User manual

Frequently asked questions

What does "combo beam" mean on the EVO 22"?

It combines flood and spot optics in one bar, giving both wide area coverage and long-range throw (up to 960m) from a single light bar.

How much current does the EVO 22" draw?

20.8A at 12V or 10.4A at 24V (250W), so it needs a relay and the supplied smart harness rather than being run directly off a switch.

Can I add DRLs to this light bar?

Yes, side DRLs are available as an add-on for the EVO platform if you want daytime running light functionality built in.
