STEDI 14" ST4K 24 LED Double Row Light Bar
STEDI 14" ST4K 24 LED Double Row Light Bar
Couldn't load pickup availability
*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

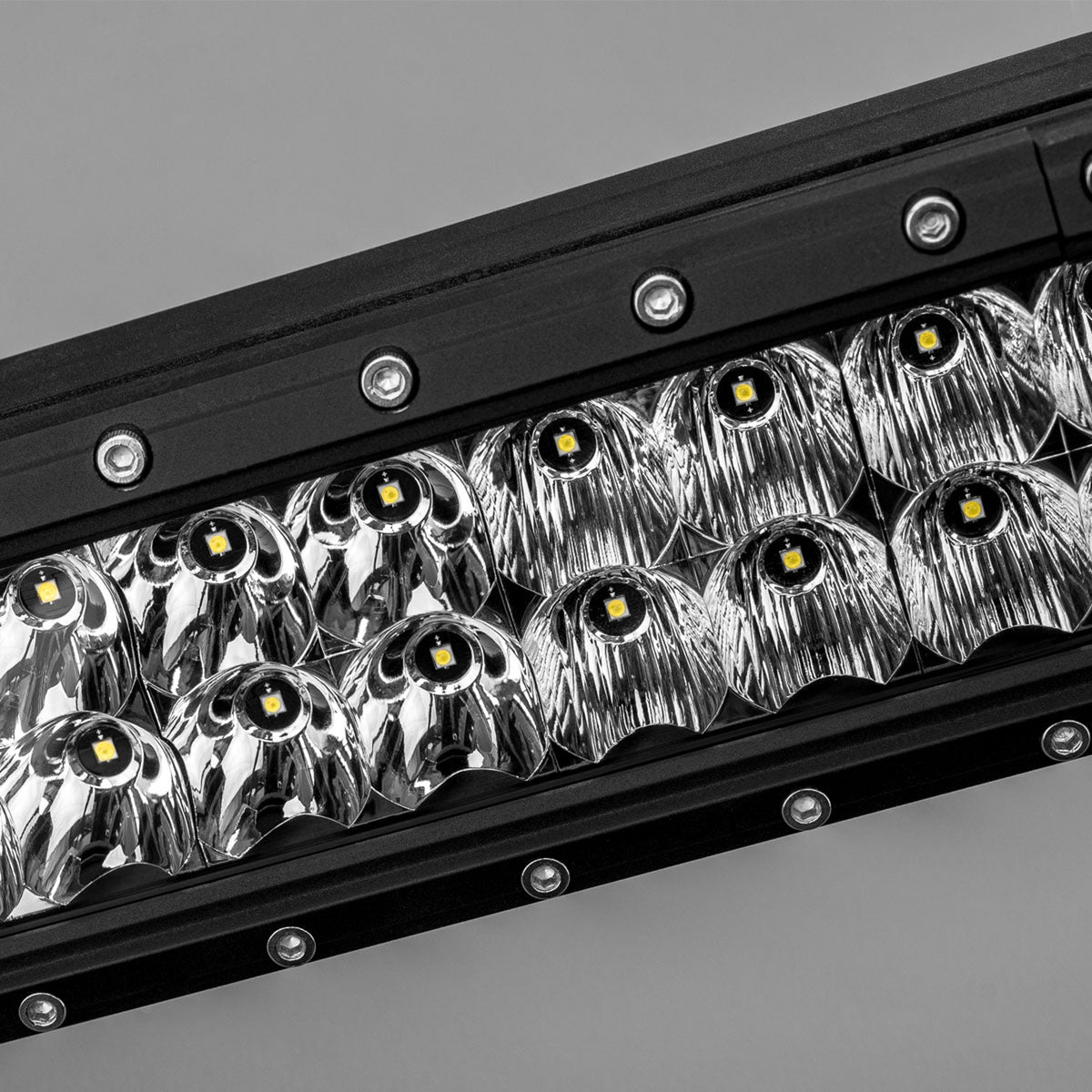

The STEDI 14" ST4K 24 LED Double Row Light Bar is a compact double-row bar combining spot and flood reflector distributions, built with 24 OSRAM OSLON® LEDs and STEDI's PURE Drive™ technology, which directs 97% of input power to the LEDs rather than wasting it as heat.
A cast A360.0 aluminium face plate with an extruded heat sink and a hard-coated optical-grade Lexan lens give this bar an IP69K rating, backed by a Gore® membrane pressure vent and Deutsch® DT connector for reliable sealing in a compact footprint.
Key Features
| Brand | STEDI |
| Model | ST4K 14" Double Row |
| LED count | 24 x OSRAM OSLON® LEDs |
| Lumens | 5,760 LM |
| Peak intensity | 264,960 candela |
| Beam pattern | 4 Flood + 16 Spot + 4 Flood; 50° flood / 5.8° spot |
| Beam throw | 514m @ 1 lux |
| Colour temperature | Crystal White 5700K |
| Voltage | 12V & 24V |
| Current draw | 4.9A @ 13.6V |
| IP rating | IP69K (dust and water-tight to 3m) |
| Operating range | -40°C to 60°C |
| Lifespan | 50,000 hours |
| Weight | 1.875kg |
| Housing / lens | A360.0 cast aluminium face plate, aluminium heat sink; hard-coated optical-grade Lexan lens |
| Connector | Deutsch® DT |
Highlights
- Compact size for bull bars, roof edges and tight mounting spots
- PURE Drive™ technology delivers 97% of input power to the LEDs
- IP69K rated for the toughest dust and water exposure
- OSRAM OSLON® LEDs rated for 50,000 hours of use
- Low current draw of just 4.9A for smaller electrical systems
Materials & care
A360.0 cast aluminium face plate with an extruded aluminium heat sink, finished in UV and abrasion-resistant polyester powder coat. Lens is hard-coated, optical-grade Lexan. Rinse with clean water after driving through mud, salt or dust.
Sizing & fit
14" overall length, 1.875kg — a compact option for smaller bull bars, roof edges or as a pair mounted low on a bumper.
Compatibility
Runs on 12V and 24V vehicle electrical systems. Easy-Fit high beam wiring kit includes HB3/H4 adapters for common factory high-beam connectors. STEDI ST4K blackout/amber covers are available separately to fit this size.
How to use

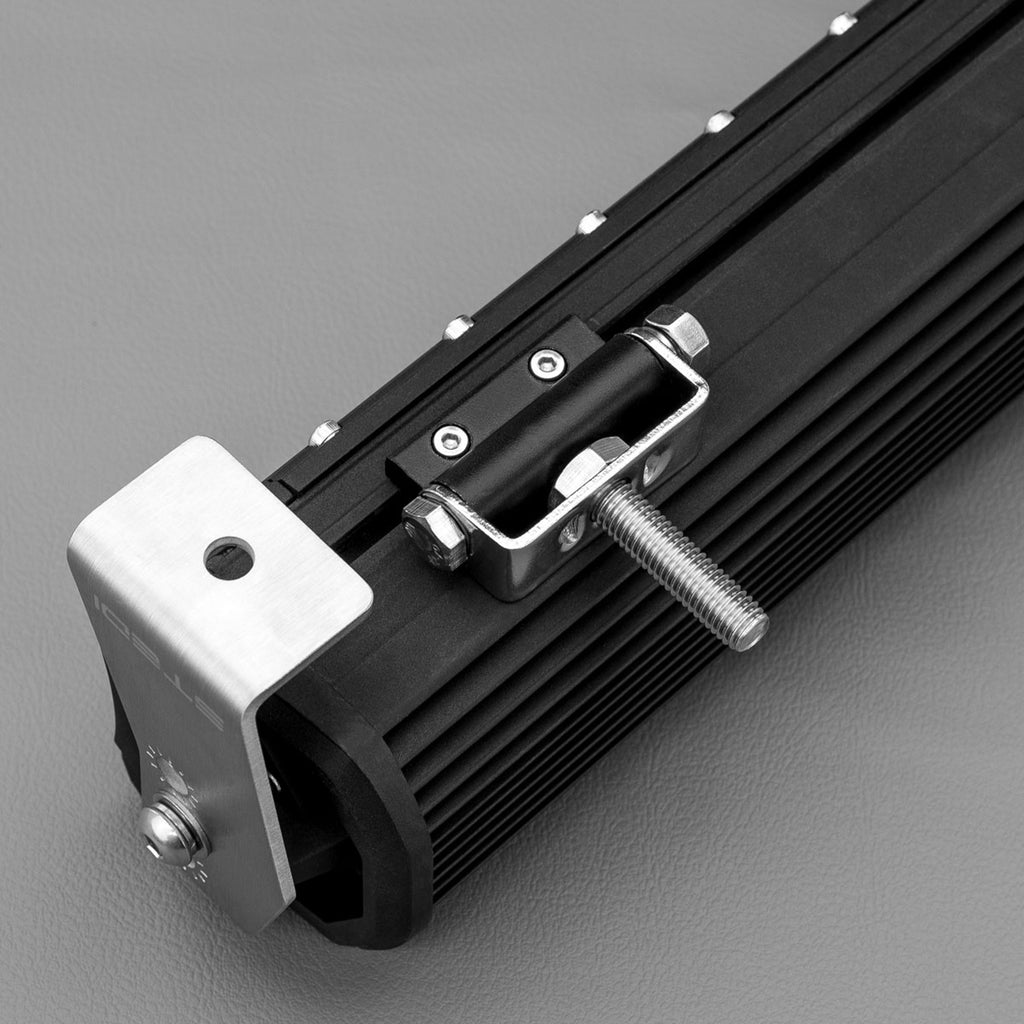

- Mount using the supplied stainless steel side brackets and sliding brackets.
- Wire using the Easy-Fit high beam wiring kit with HB3/H4 adapters, running a fused feed from the battery.
- Aim the bar so the beam sits level with or slightly below the horizon to avoid dazzling oncoming traffic.
- Fit a STEDI ST4K cover when driving on public roads if required for compliance in your area.
What's included
- STEDI 14" ST4K 24 LED Double Row Light Bar
- Stainless steel side brackets
- Adjustable sliding brackets
- Easy-Fit high beam wiring kit with HB3/H4 adapters
