Stedi

STEDI 12" ST4K 20 LED Double Row Light Bar

Name: STEDI 12" ST4K 20 LED Double Row Light Bar
Brand: Stedi
Price: 5199.00 ZAR
Availability: InStock

R 5,199.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

*Please note, this product are mostly special ordered. Delivery time can vary between approx 1 to 3 weeks.
*Send us a quick Whatsapp to check if immediately available 0722745134
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

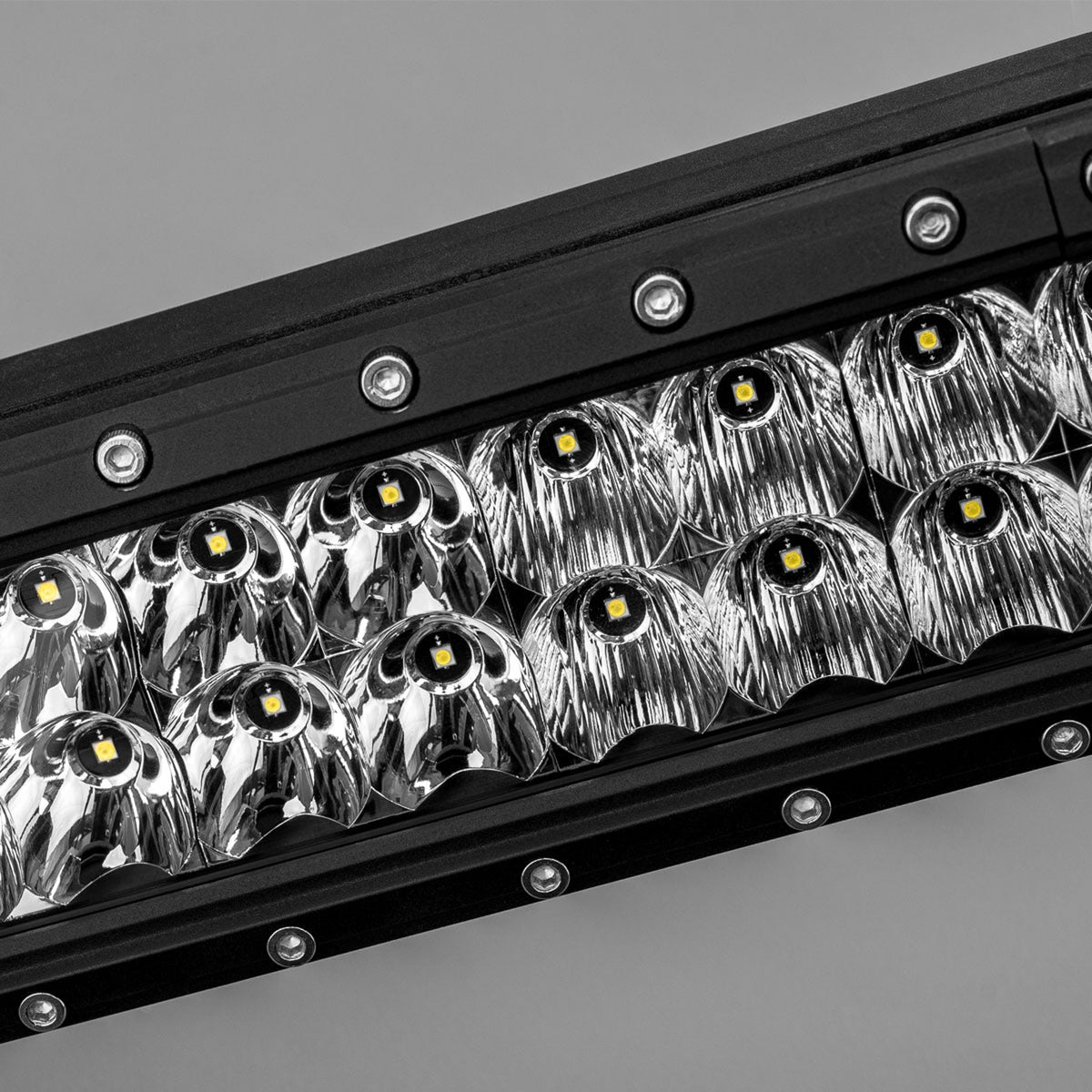

The STEDI 12" ST4K is the compact double-row bar in the ST4K range, packing 20 OSRAM OSLON® LEDs into a flood-spot-flood layout for a wide, useable beam from a small footprint. PURE Drive™ technology sends 97% of input power straight to the LEDs, and the sealed A360.0 cast aluminium housing is rated IP68 for genuine off-road durability.

At 4,800 lumens, this bar suits tight mounting spots - roof rack ends, bull bar corners, and roll cage uprights - where you still want a real light bar rather than a small spotlight.

Key Features

Brand	STEDI
Model	ST4K 20 LED Double Row Light Bar (12")
LED Count	20x OSRAM OSLON® LEDs
Colour Temperature	Crystal White 5700K
Lumens	4,800 lm
Peak Intensity	220,800 candela
Beam Pattern	4 Flood + 12 Spot + 4 Flood - 50° flood, 5.8° spot
Voltage	12V & 24V
Current Draw	4.2A @ 13.6V
IP Rating	IP68 (dust & waterproof to 3m)
Operating Temperature	-40°C to 60°C
Lifespan	50,000 hours
Weight	1.610kg
Warranty	5-year replacement

Highlights

Compact bakkies, SUVs and roll-cage mounted setups where space is tight
Bull bar corners, roof rack ends and mirror-arm mounting
Reversing and side-illumination duty on larger vehicles running bigger primary bars
Dual 12V/24V compatibility for both bakkies and light trucks

Materials & care

A360.0 cast aluminium face plate with an extruded aluminium heat sink, finished in 100% polyester UV- and abrasion-resistant powder coat. The lens is hard-coated optical-grade Lexan and the wiring uses a sealed Deutsch® DT connector. Wipe down with a soft cloth and clean water; avoid abrasive cleaners on the lens.

Sizing & fit

12" double-row light bar weighing 1.610kg. Supplied with stainless steel side brackets and adjustable sliding brackets so it can be positioned to suit roof racks, bull bars or bumper mounts.

Compatibility

Runs on both 12V and 24V electrical systems, making it suitable for petrol/diesel bakkies as well as light trucks. Wiring is via the included Easy-Fit high beam wiring kit with HB3 and H4 piggyback adapters.

How to use

Mount using the supplied stainless steel side brackets and adjustable sliding brackets, positioned so the bar doesn't obstruct your factory headlights.
Wire in using the Easy-Fit high beam wiring kit and HB3/H4 adapters, run through a relay, and fuse close to the battery.
Aim the bar with the vehicle on level ground, checking the flood spread and spot beam throw are aligned before tightening brackets fully.
Use as an auxiliary off-road light and switch off when driving on public roads unless legally permitted in your area.

What's included

ST4K 20 LED light bar
2x brushed stainless steel side brackets
2x adjustable sliding brackets

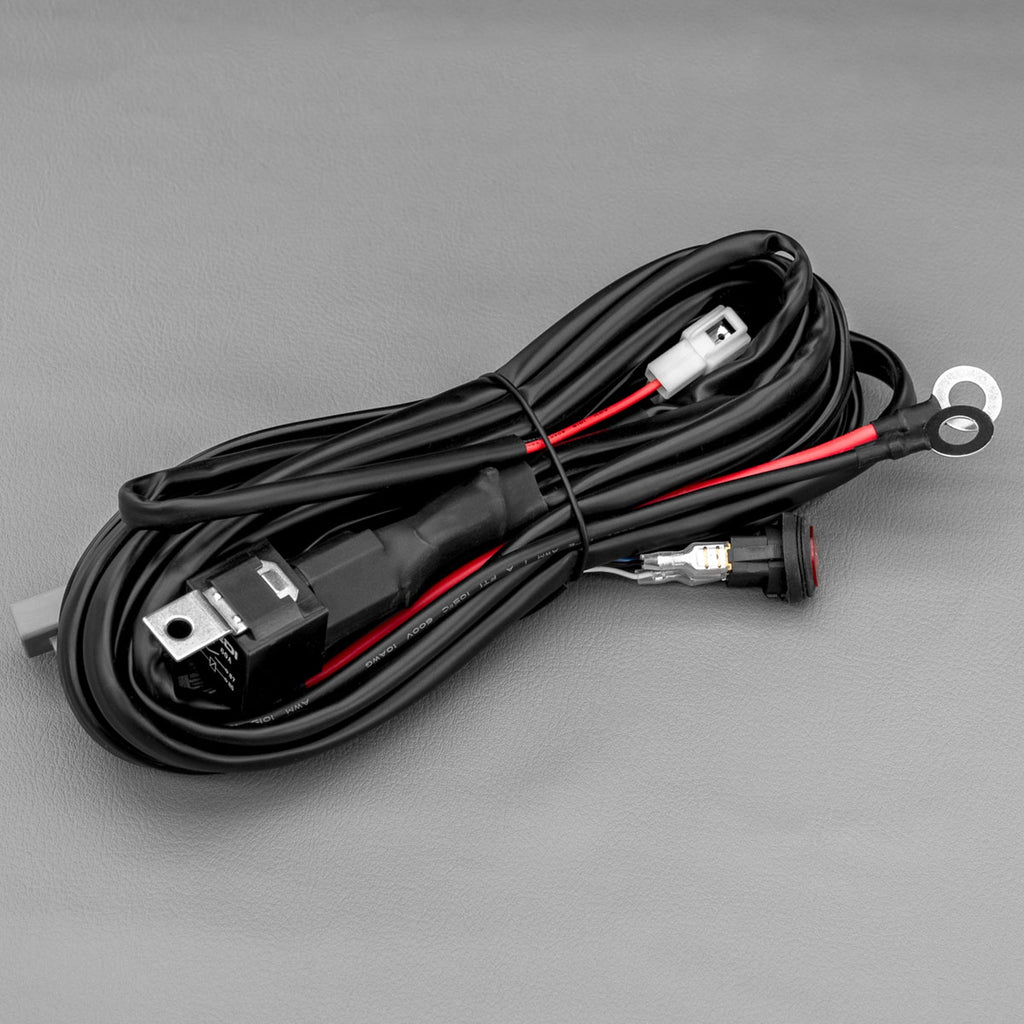

Easy-Fit high beam wiring kit with HB3 & H4 adapters

Frequently asked questions

Is 4,800 lumens enough for a primary driving light?

It's a great option as a secondary or side-fill light, or as the primary bar on smaller vehicles with limited mounting space. For maximum forward throw on larger 4x4s, pair it with a longer ST4K bar or step up in size.

Will this light bar work on a 24V truck?

Yes. The ST4K 20 is rated for both 12V and 24V systems, so it suits diesel bakkies as well as 24V commercial trucks.

How long is the warranty?

STEDI backs the ST4K 20 with a 5-year replacement warranty against manufacturing defects.
