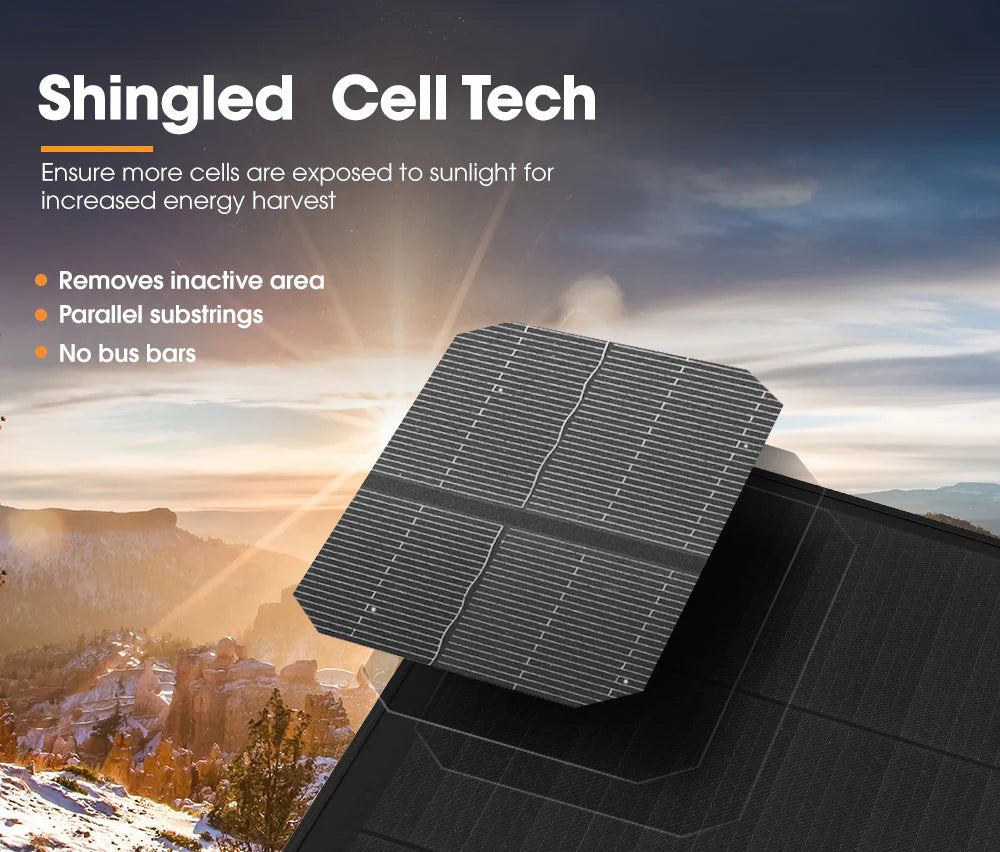

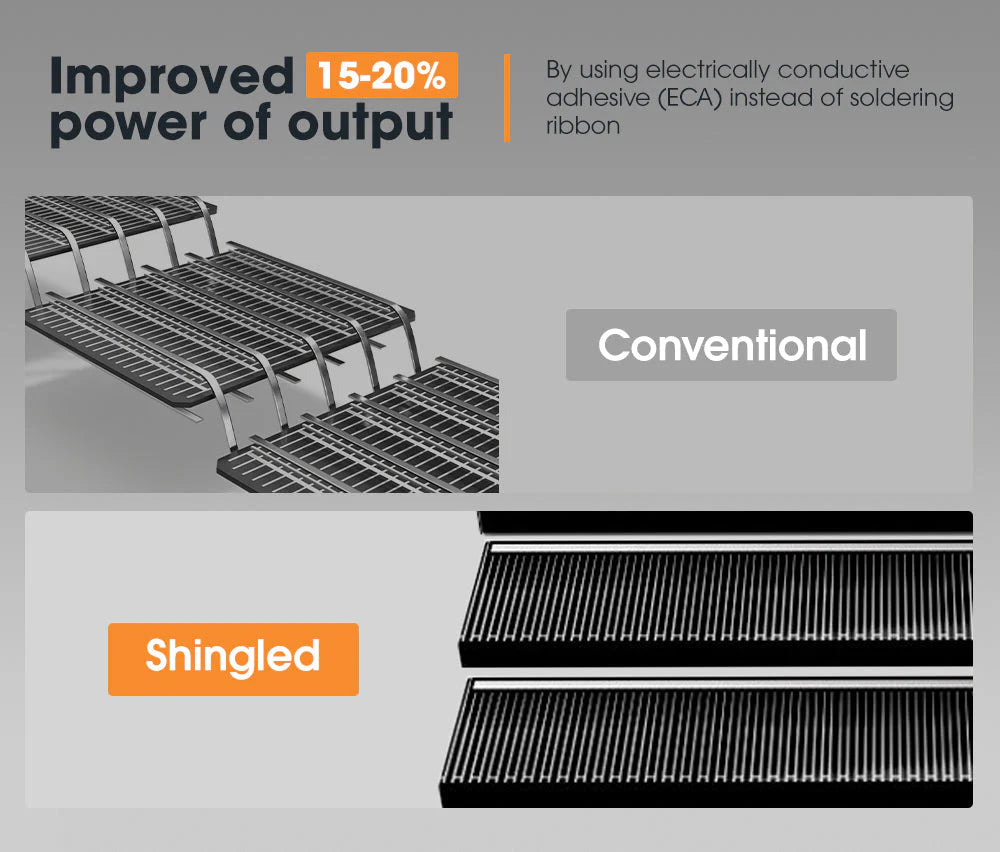

San Hima's shingled cell technology does away with the busbars, ribbons and soldered joints found in conventional panels — cells are sliced into strips and bonded with electrically conductive adhesive (ECA), delivering up to 15-20% more output than traditional panels while minimising shading losses and hotspots.
Key Features
Brand
San Hima
Cell Type
Shingled cells, black
Maximum Power
200W
Voc / Vmp / Isc / Imp
24.8V / 19.8V / 10.8A / 10.1A
Max System Voltage
1000V
Max Series Fuse Rating
15A
Waterproof Rating
IP68
Operating Temperature
-40°C to 85°C
Power Tolerance
±3%
Product Size
126 x 89 x 3cm
Gross Weight
15.65kg
Warranty
5 years
Highlights

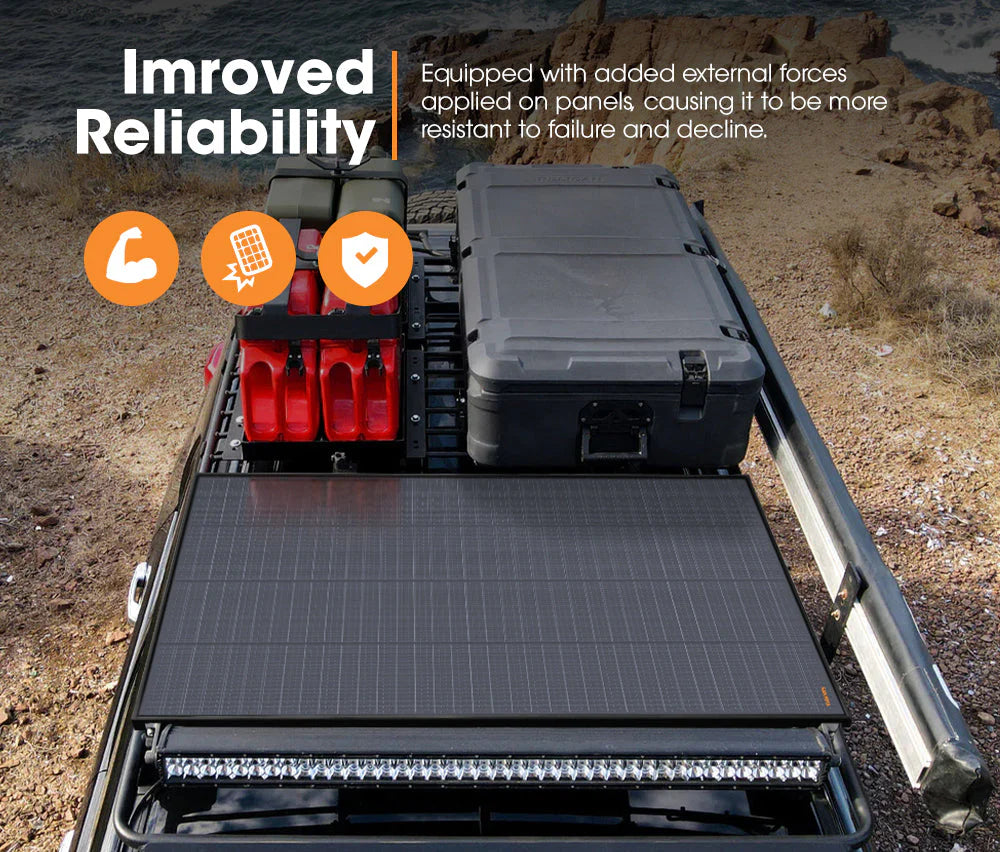

Shingled cell tech eliminates busbars, ribbons and soldered joints for higher reliability

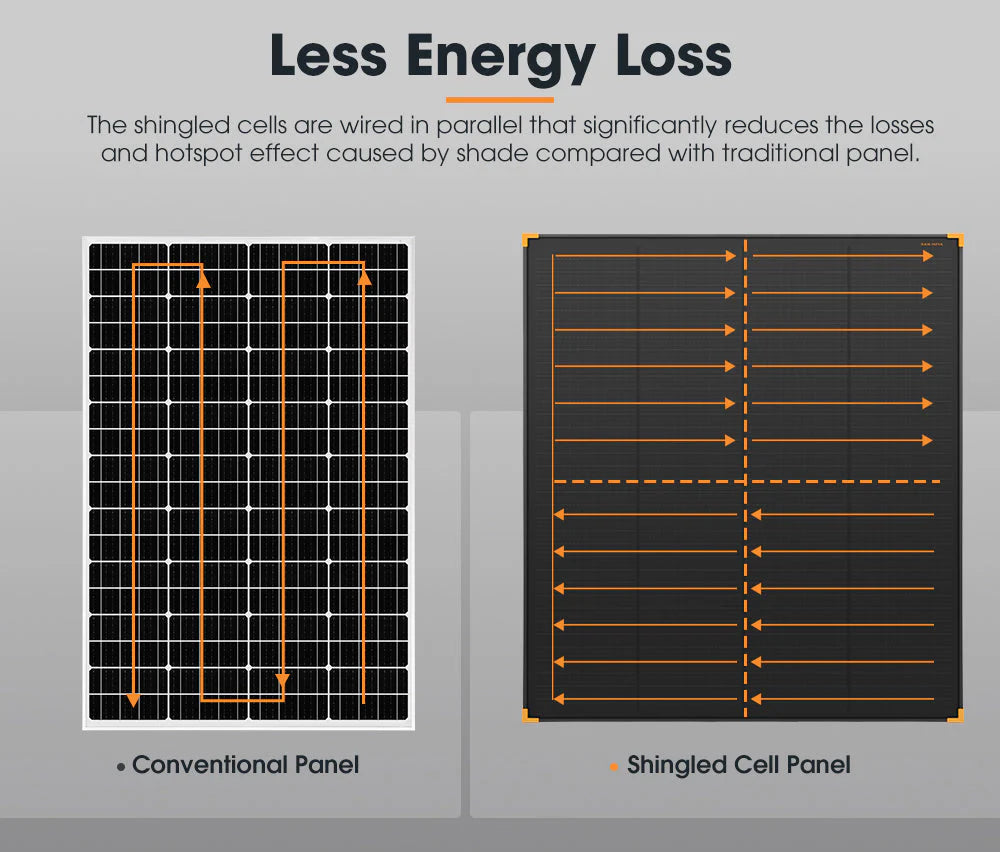

15-20% more output than traditional panels with lower hotspot risk

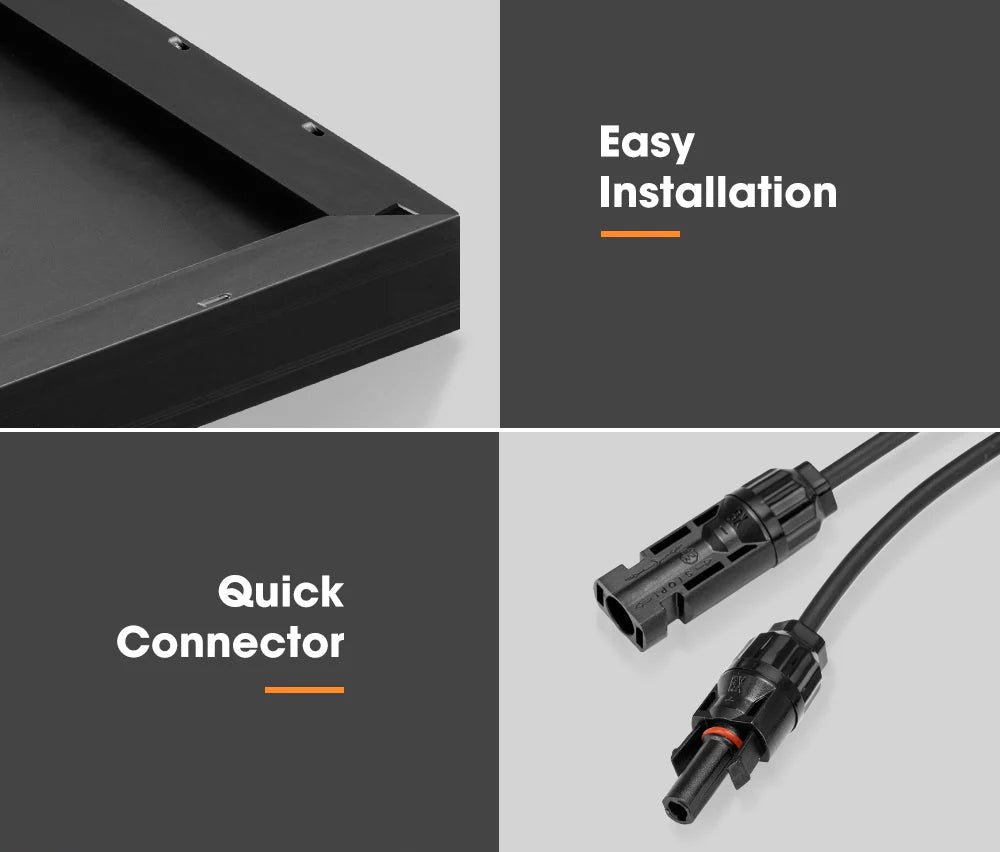

Sturdy aluminium frame and thick tempered glass for durability
IP68 rated against dust and water
Broad battery compatibility: AGM, GEL, flooded, lithium-ion and LiFePO4
Sizing & fit

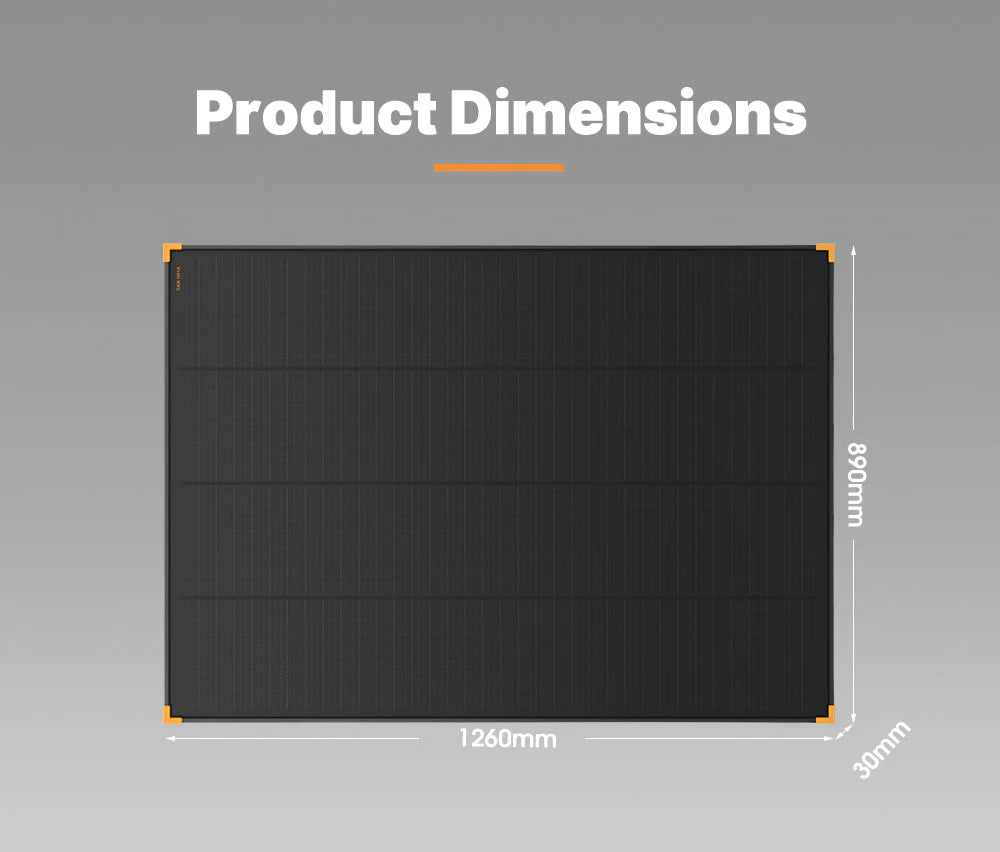

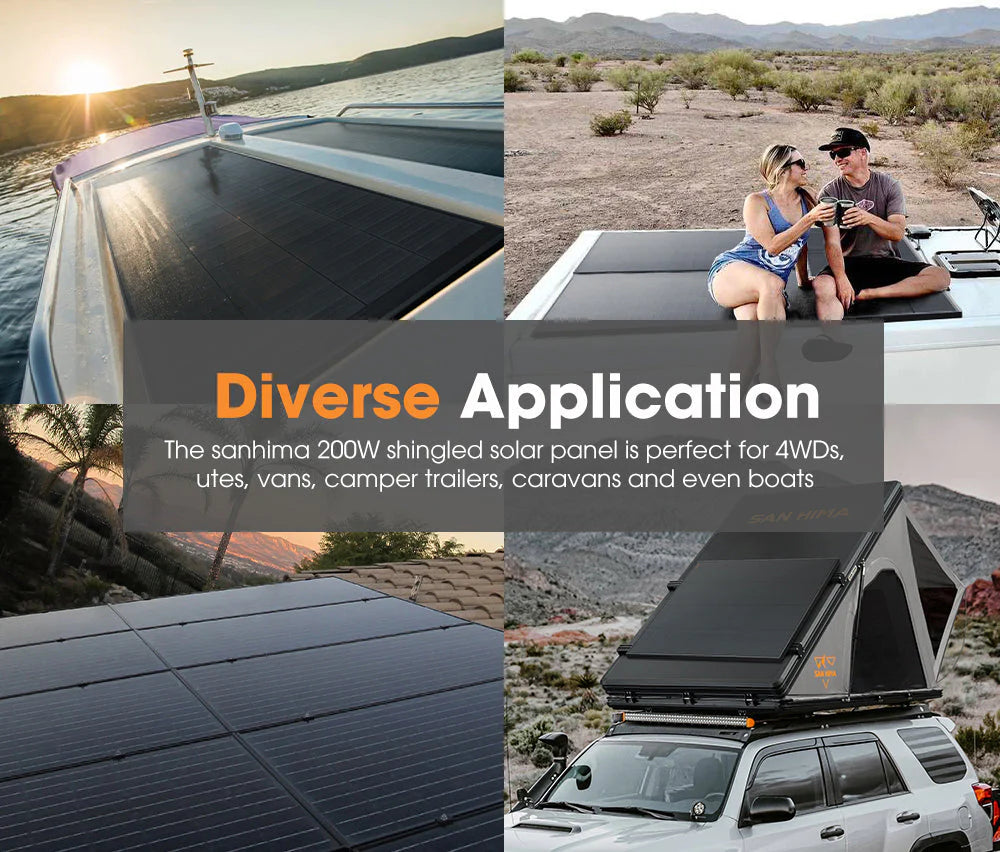

126cm x 89cm x 3cm, gross weight 15.65kg — sized for roof mounting on a 4WD, trailer, caravan or boat.
Compatibility
Works seamlessly with mainstream deep-cycle batteries: AGM, GEL, flooded, lithium-ion and LiFePO4, via a compatible charge controller.
How to use
Mount fixed to the roof of your 4WD, trailer, caravan or boat.
Wire to a compatible solar charge controller suited to your battery chemistry.
Monitor charge status via your charge controller's display.
What's included

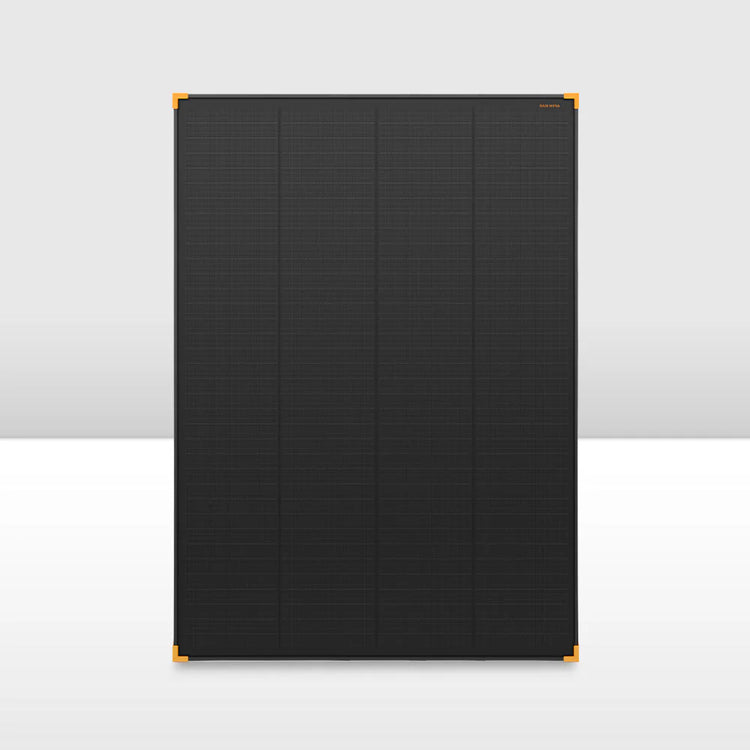

1 x San Hima 200W Shingled Solar Panel
1 x User Manual
Frequently asked questions
What makes shingled cells different from standard solar cells?
Shingled cells are sliced into strips and bonded with electrically conductive adhesive instead of busbars, ribbons and solder joints — this reduces failure points, improves shock resistance, and increases output by 15-20% over conventional panels.
