Lightfox

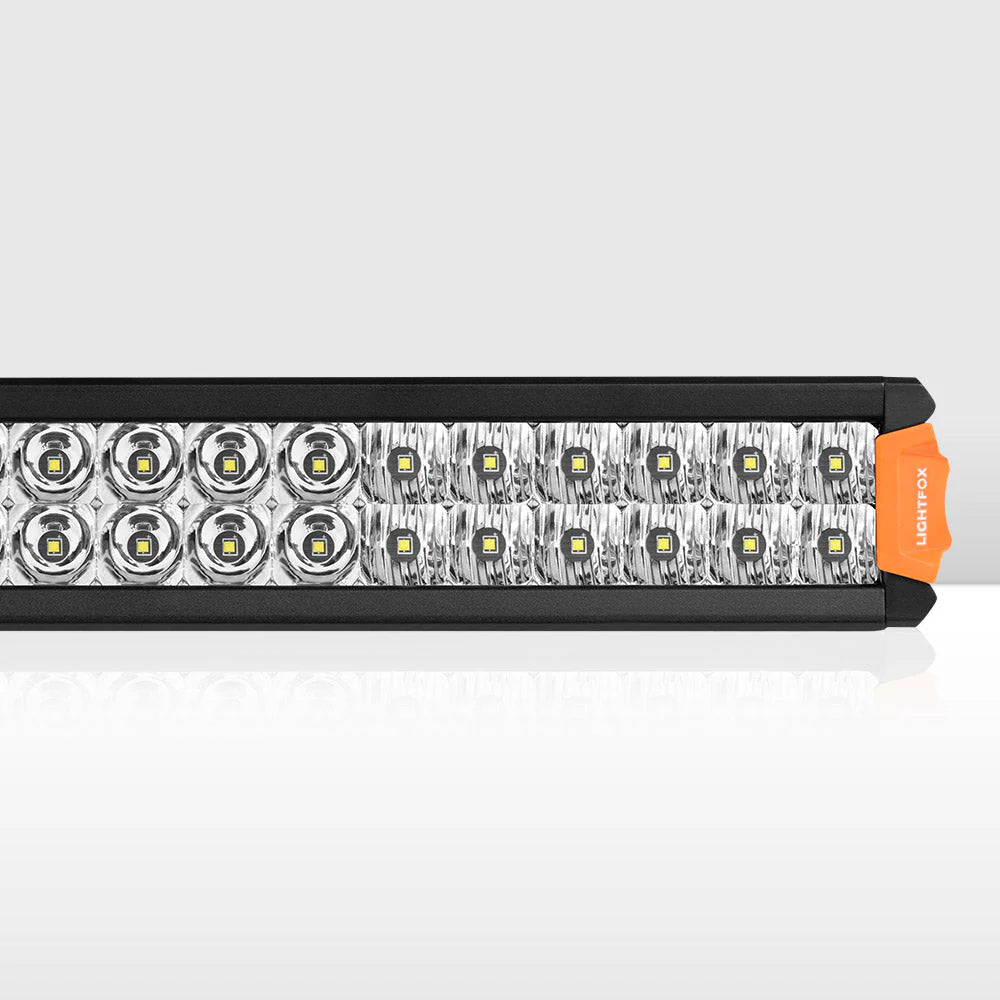

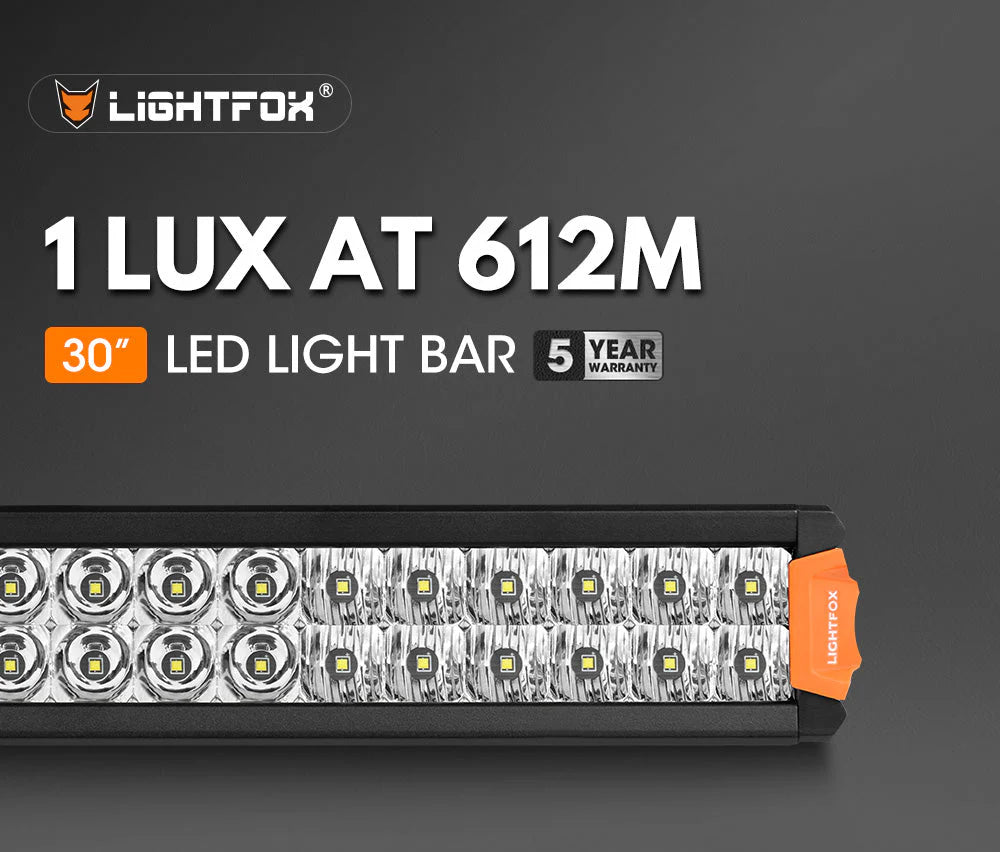

Lightfox Rigel Series 30inch Osram LED Light Bar 1Lux @ 612m 22,644 Lumens

Lightfox Rigel Series 30inch Osram LED Light Bar 1Lux @ 612m 22,644 Lumens

Regular price R 4,990.00
Regular price Sale price R 4,990.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Wiring Harness
Quantity

*Delivery:  2 to 5 working days from payment clearing, product type and stock levels dependant.

*Order, payment, sale, refund and returns, Terms and Conditions Apply.

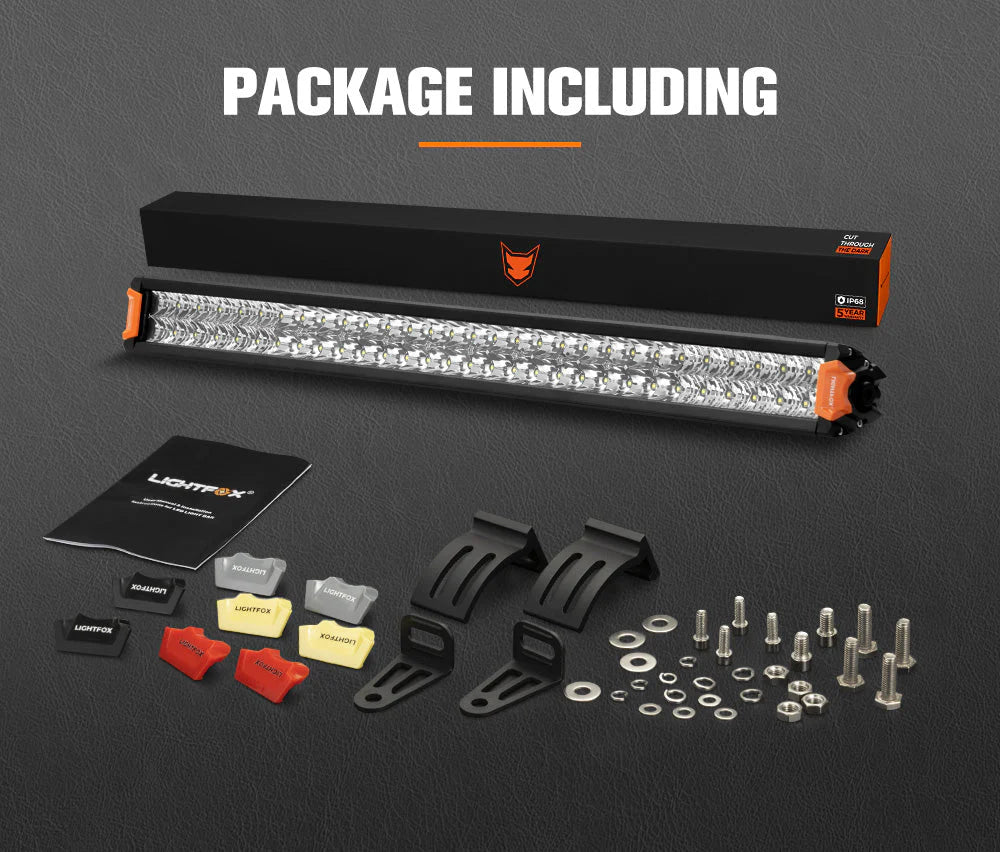

Package Includes:

  • 1 x Lightfox 30" LED Light Bar
  • 2 x Side Mounts
  • 2 x Bottom Mounts
  • 1 Set Of Mounting Hardware
  • 4 Pairs Colour Caps
  • 1 x User Manual

Warranty:

5 Years Warranty



The Lightfox Rigel Series 30-inch Osram LED Light Bar delivers exceptional illumination for off-road and outdoor enthusiasts who require dependable, high-performance lighting. Combining a sharp 13° spot beam with a wide 90° flood beam, this dual-row light bar ensures broad and focused visibility in challenging conditions. Powered by OSRAM OSLON® LEDs, it emits a powerful 22,644 lumens output with a reach of 1Lux at 612 metres, perfect for night-time driving and rugged adventures.

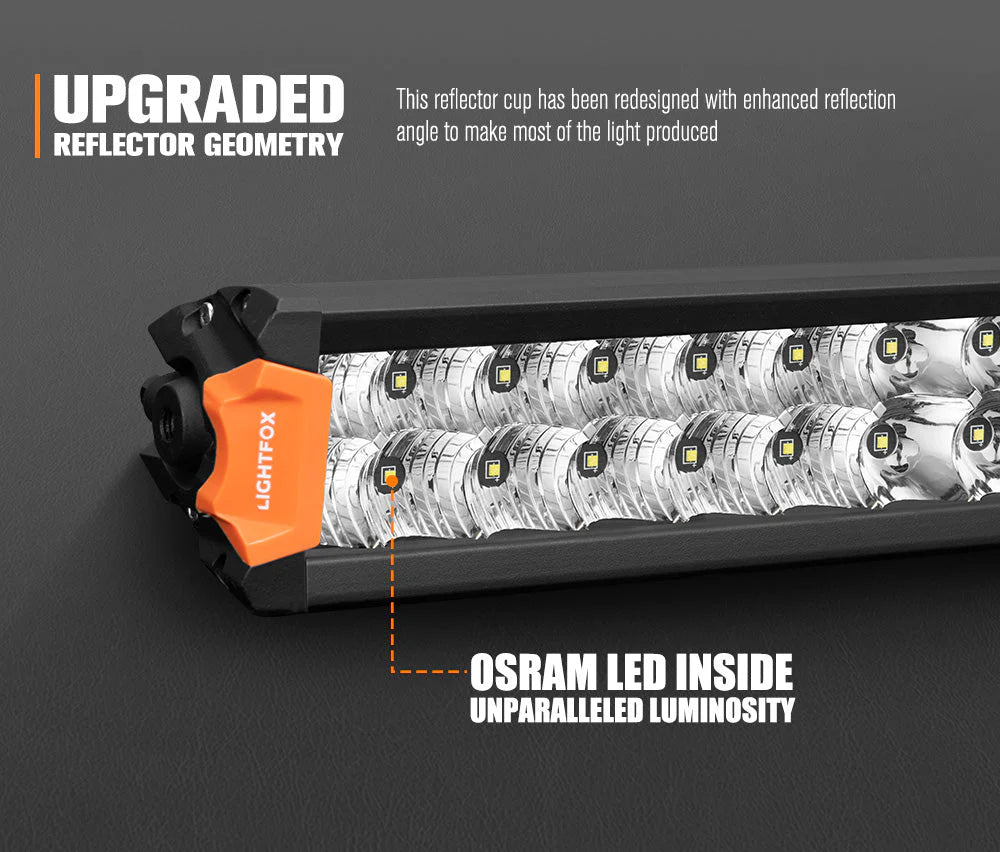

  • Vision Drive Technology – Utilises curved and metalised reflectors to create smooth, evenly distributed light beams
  • Dual Beam Setup – Integrated 13° spot and 90° flood beams for comprehensive coverage on trails and highways
  • High Brightness – 22,644 lumens ensures clear vision even in complete darkness
  • Comfortable 5,500K Colour Temperature – Offers bright, warm white light that minimises eye strain during extended use
  • Robust Construction – Aluminium housing coated with AkzoNobel powder for UV and corrosion resistance in harsh environments
  • IP68 Waterproof Rating – Screwless UV resin front frame protects against dust, water, and extreme weather

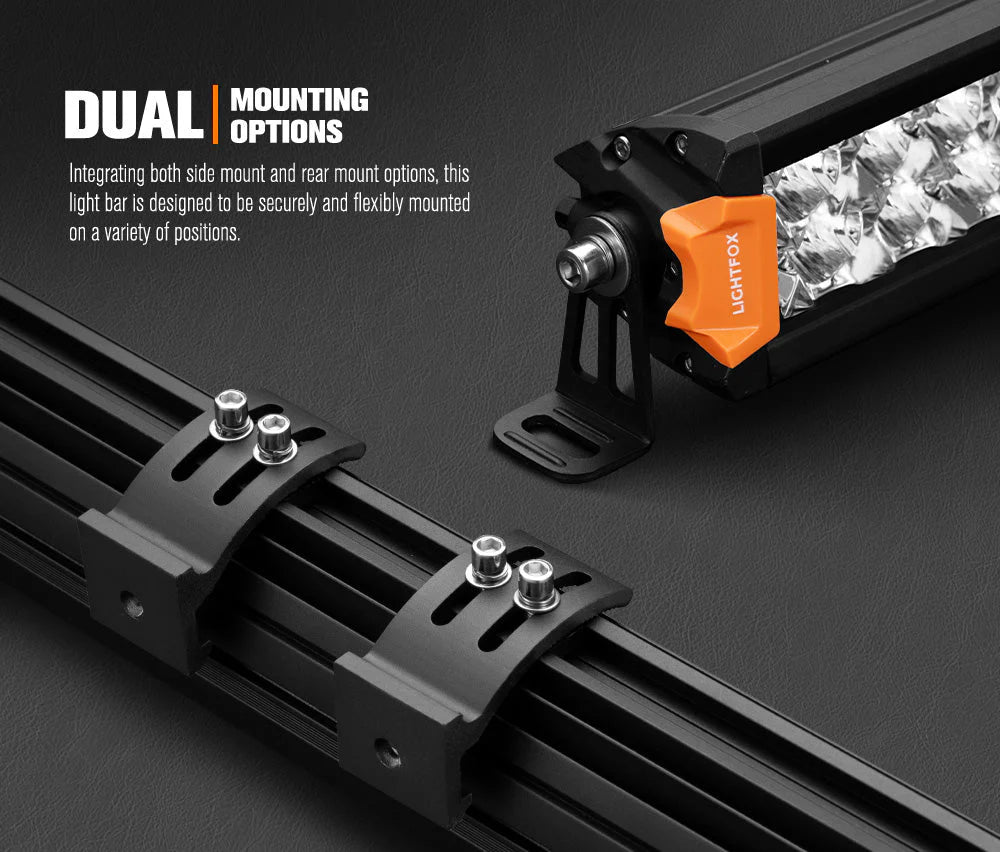

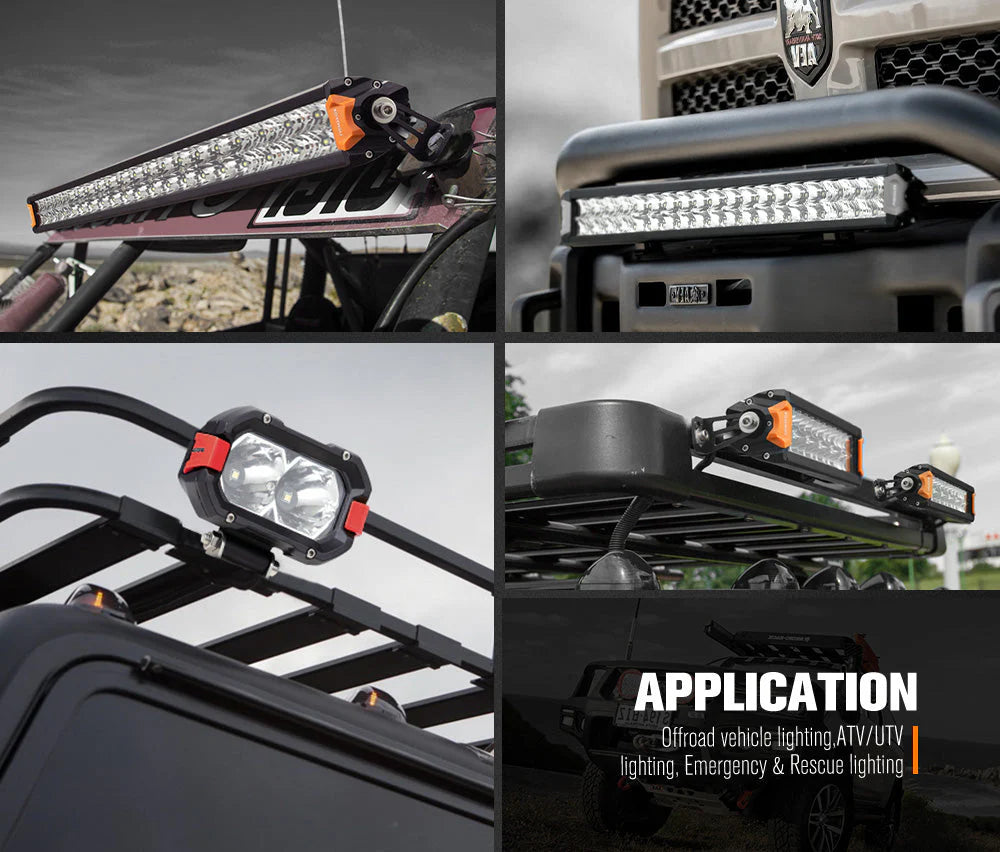

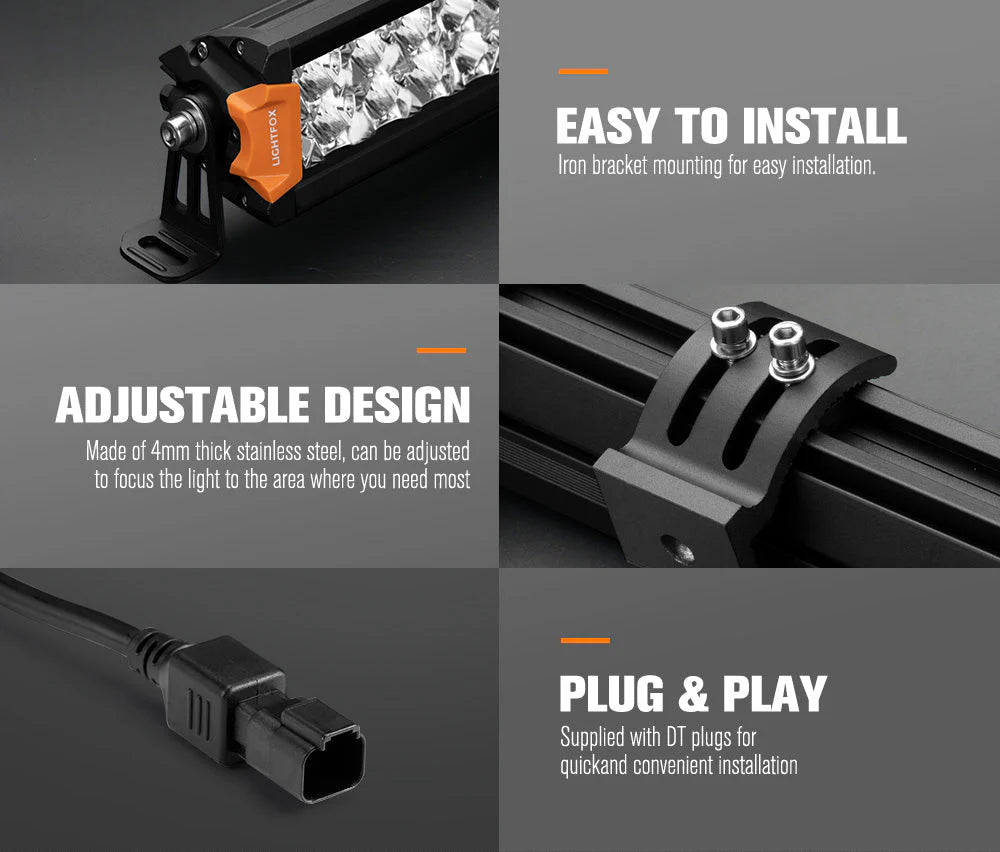

  • Versatile Mounting Options – Side and bottom mounts fit various setups including 4x4 bull bars, roof racks, and UTV roofs
  • Electrical Safeguards – Built-in breather and circuitry protect against condensation, flicker, and reverse polarity

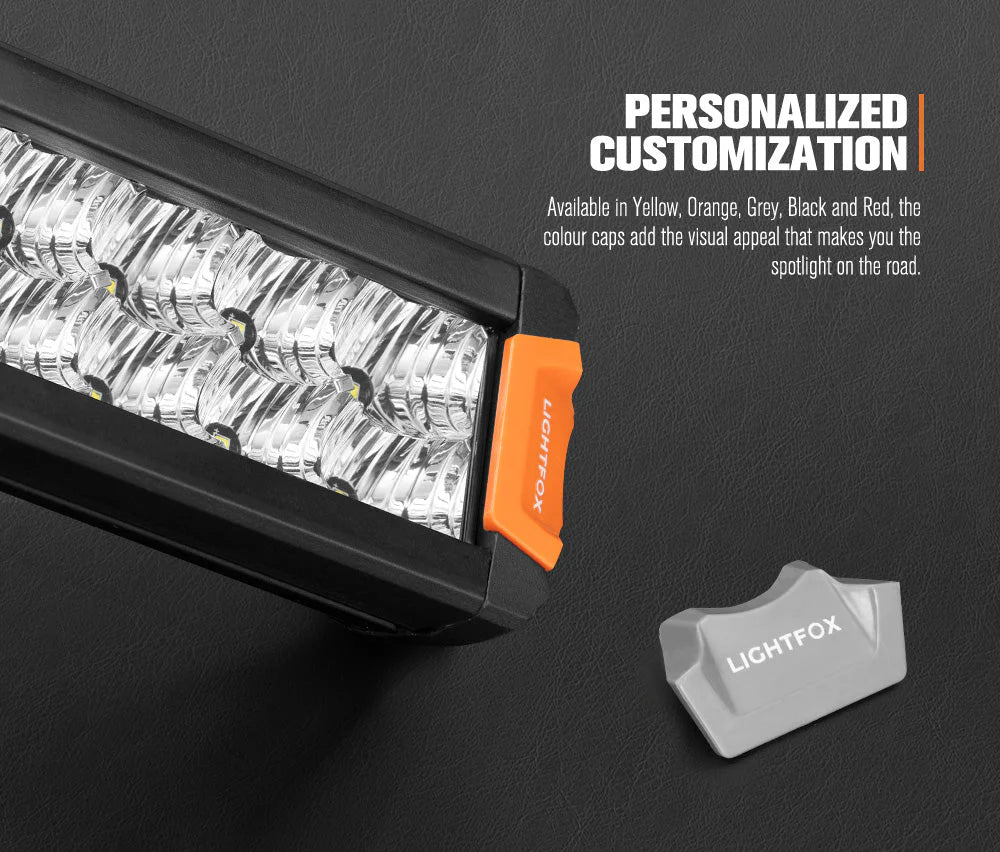

  • Customisable Design – Multiple colour caps (Yellow, Orange, Grey, Black, Red) for personalising your vehicle’s look



Bulb Type: LED
Chip: 3W* 60 OSRAM OSLON
Theoretical Output: 180W
Housing & Heat Sinks: Aluminum
Lens: Strengthened PC
Coating: AkzoNobel Powder
Sealing Material: UV Resin
Side Bracket: Forged Iron
Bottom Bracket: Aluminum
Raw Lumens: 22,644LM

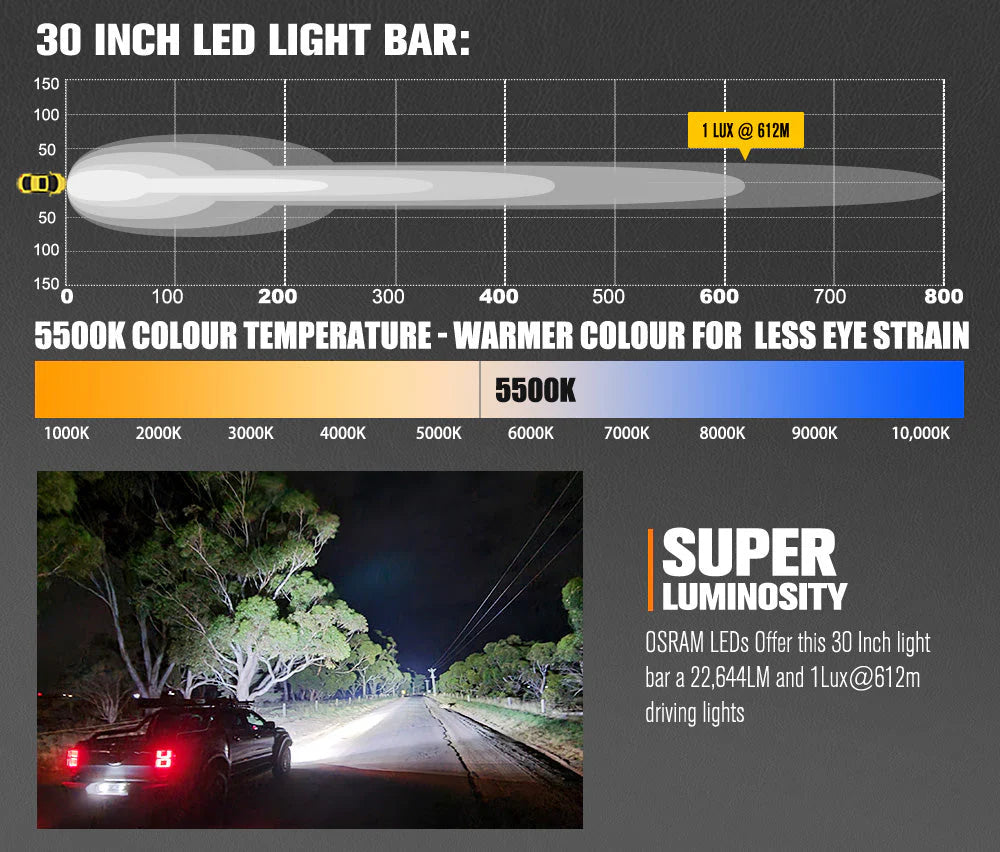

Lux Rating: 1Lux@612m
Color Temperature: 5,500K
Reflector Distribution: 12 Flood + 36 Spot +12 Flood
Spot Beam: 13°
Flood Beam: 90°
Amp Draw: 9.6A@12V
Expected Lifespan: 50,000 Hours
Relative Light Intensity: 78% (150°C)
Operating Temperature Range: -40°C (-40°F) ~ 150°C (302°F)
Waterproof: IP-68 Rating
Package Size: 83 x 10 x 10cm
Gross Weight: 2.72kg
