Atem Power 12V 30A DC to DC Battery Charger System Kit Isolator Dual Battery

*Delivery: 2 to 5 working days from payment clearing, product type and stock levels dependant.
*Order, payment, sale, refund and returns, Terms and Conditions Apply.

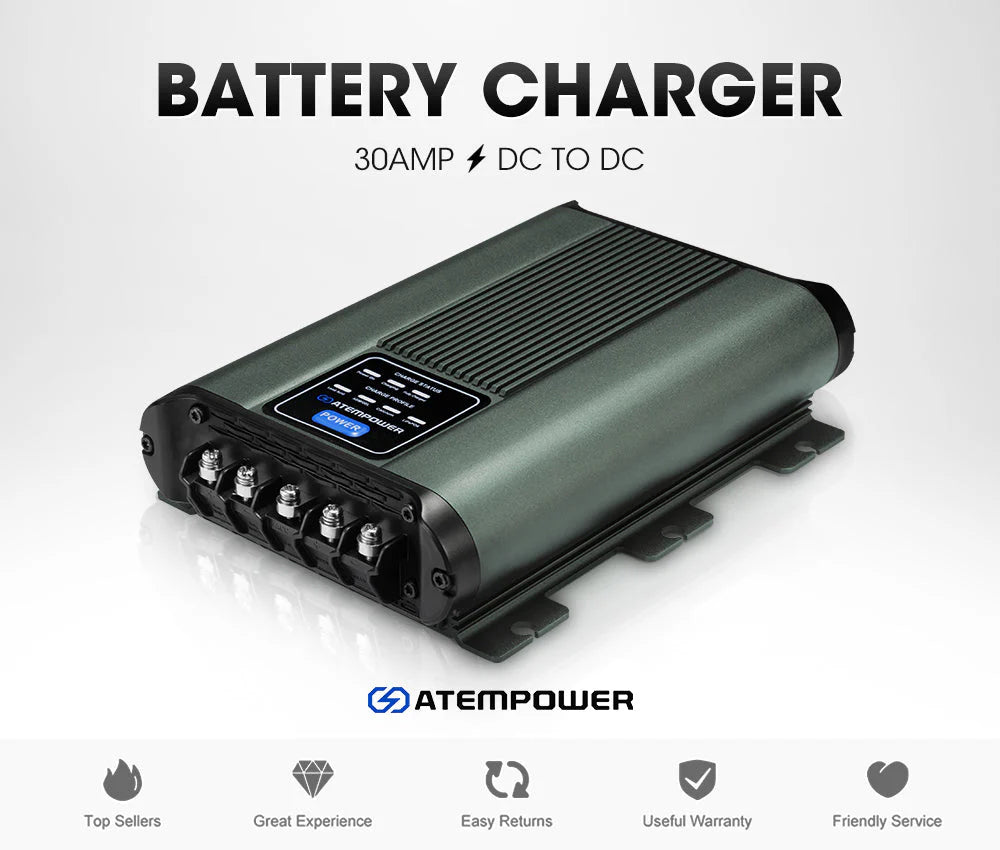

The ATEM POWER 12V 30A DC to DC Battery Charger keeps a second battery charged off-grid, drawing from your vehicle's alternator and stepping through a six-stage multi-stage charge profile — standby, pre-charge, constant current, constant voltage, full charge and re-charge. Select the profile that matches your battery (Lead Acid, AGM, Gel, Calcium or LiFePO4) and it applies the correct charging voltages automatically. Reverse polarity, overcharge, short circuit and over-temperature protection are built in.

Key Features

Highlights

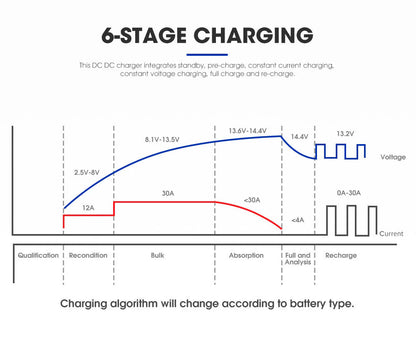

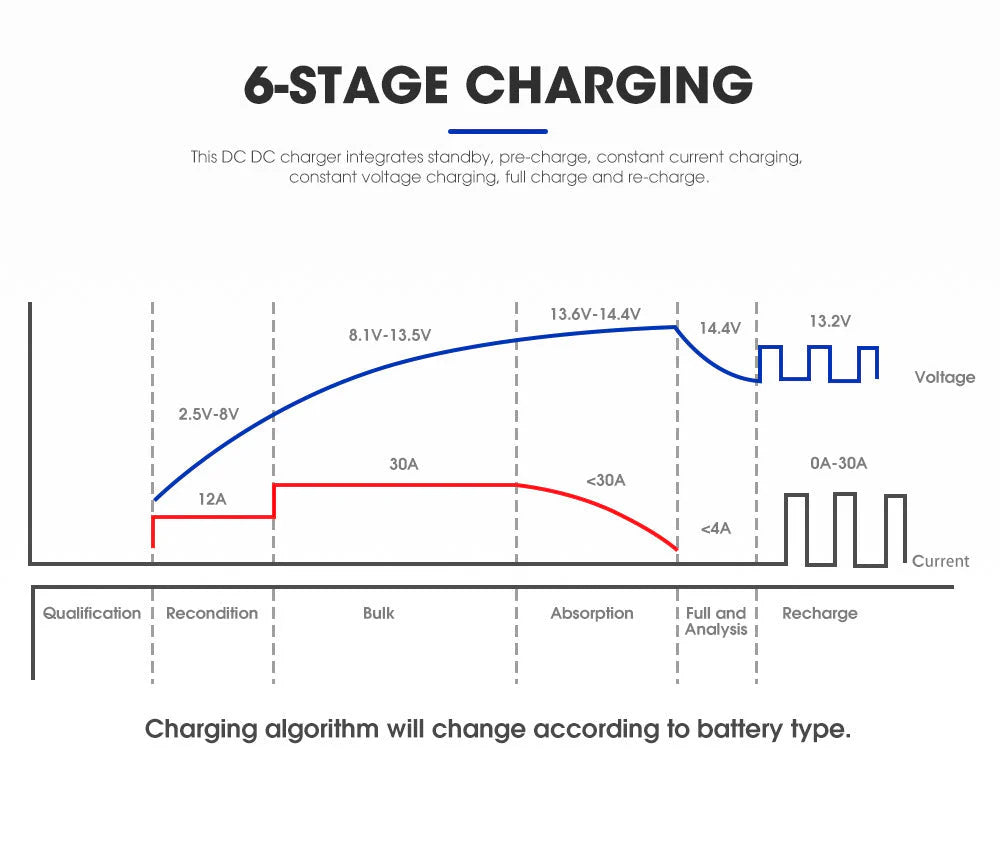

• Six-stage charging: standby, pre-charge, constant current, constant voltage, full charge, re-charge

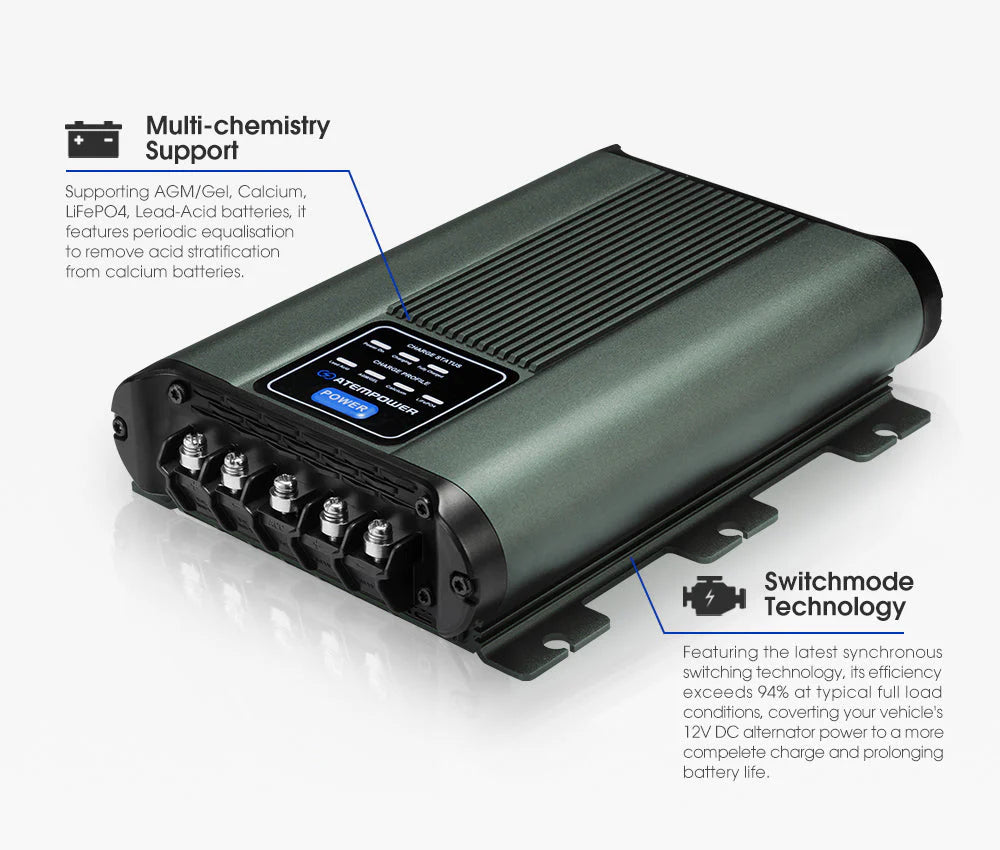

• Selectable profiles for Lead Acid, AGM, Gel, Calcium and LiFePO4 batteries

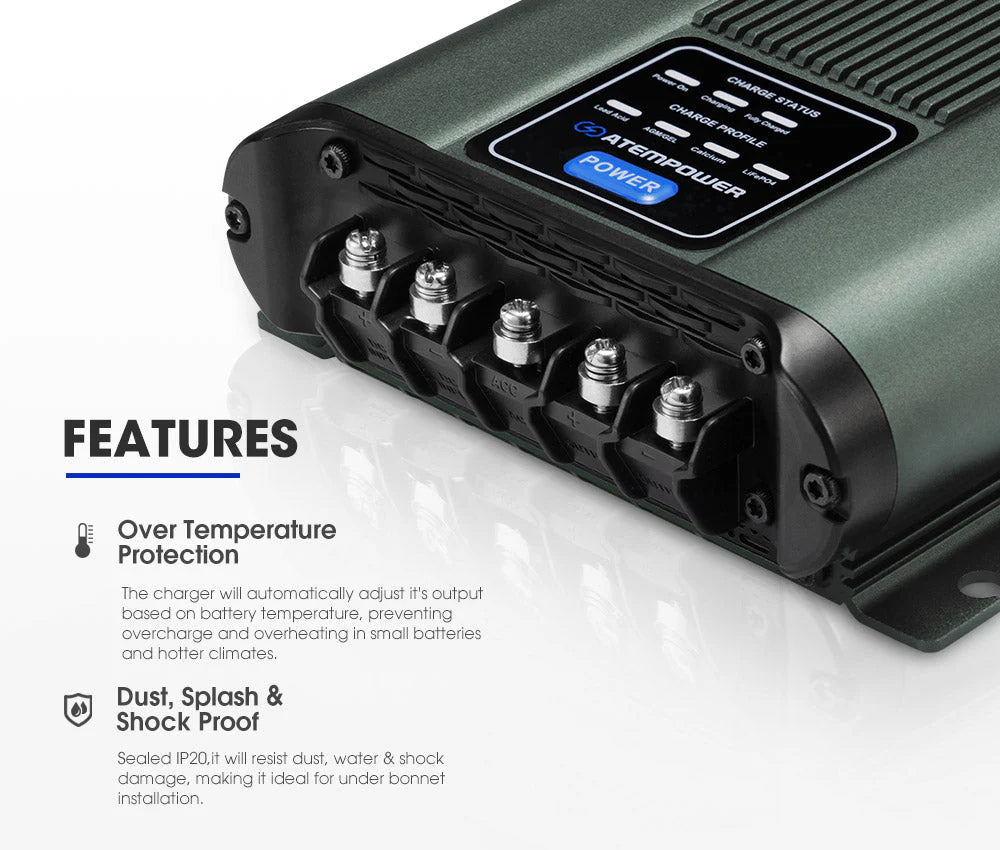

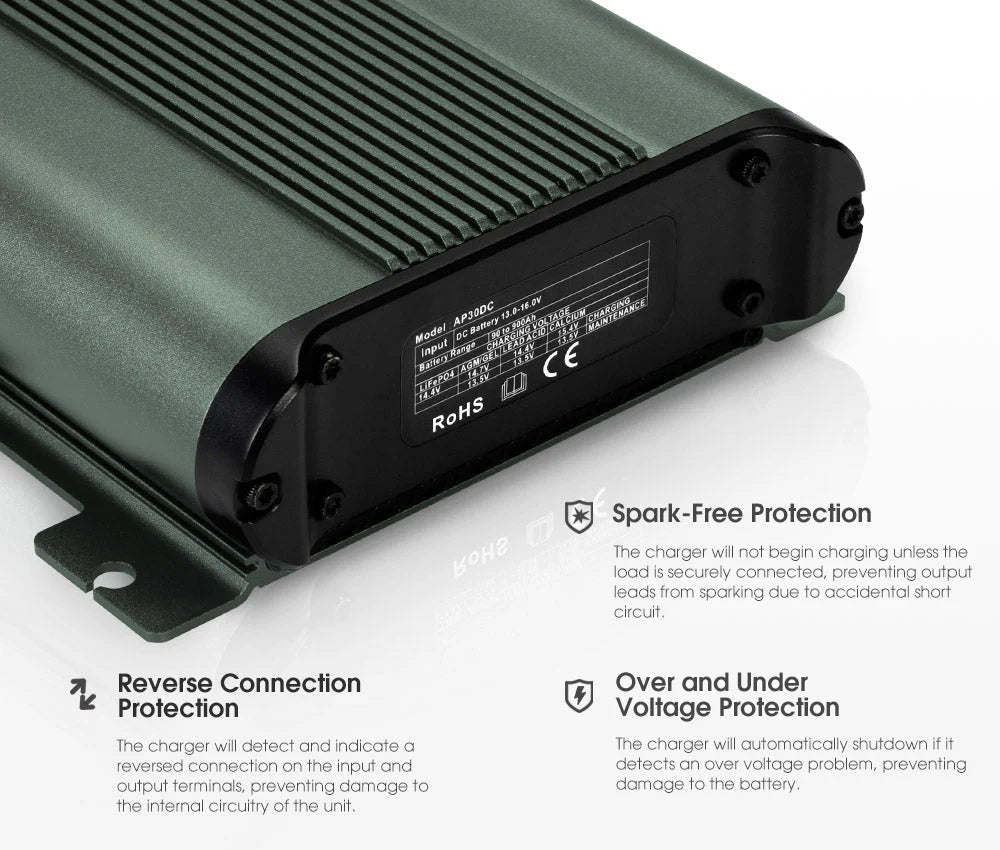

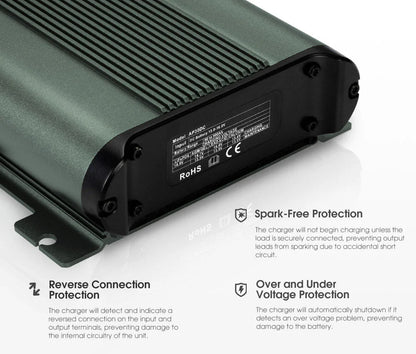

• Reverse polarity, short circuit, over-temperature and overcharge protection built in
• ACC line connection enables lower input voltage operation for smart-alternator vehicles

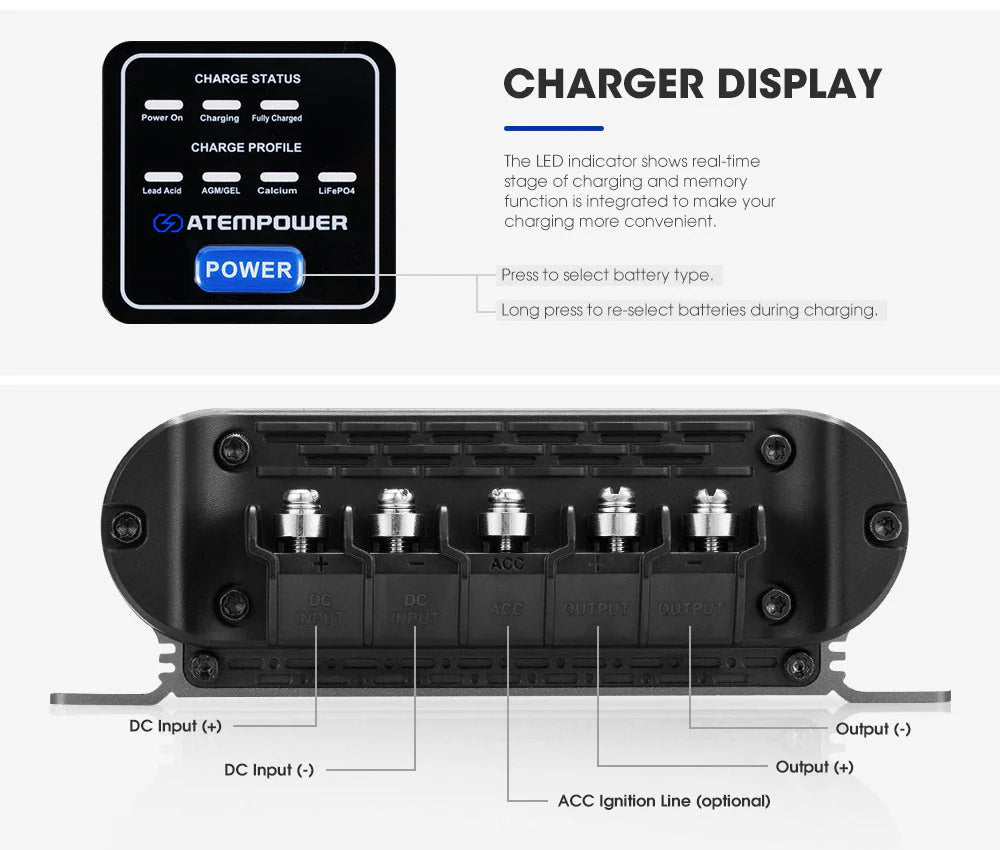

• Re-selection Ready — hold the power key to change battery type mid-charge
• Suitable for boats, trucks, 4WDs, caravans, RVs, campers and trailers

Compatibility

Works with Lead Acid, AGM, Gel, Calcium and LiFePO4 battery chemistries between 90–900Ah, and with smart/variable-voltage alternators via the ACC line.

How to use

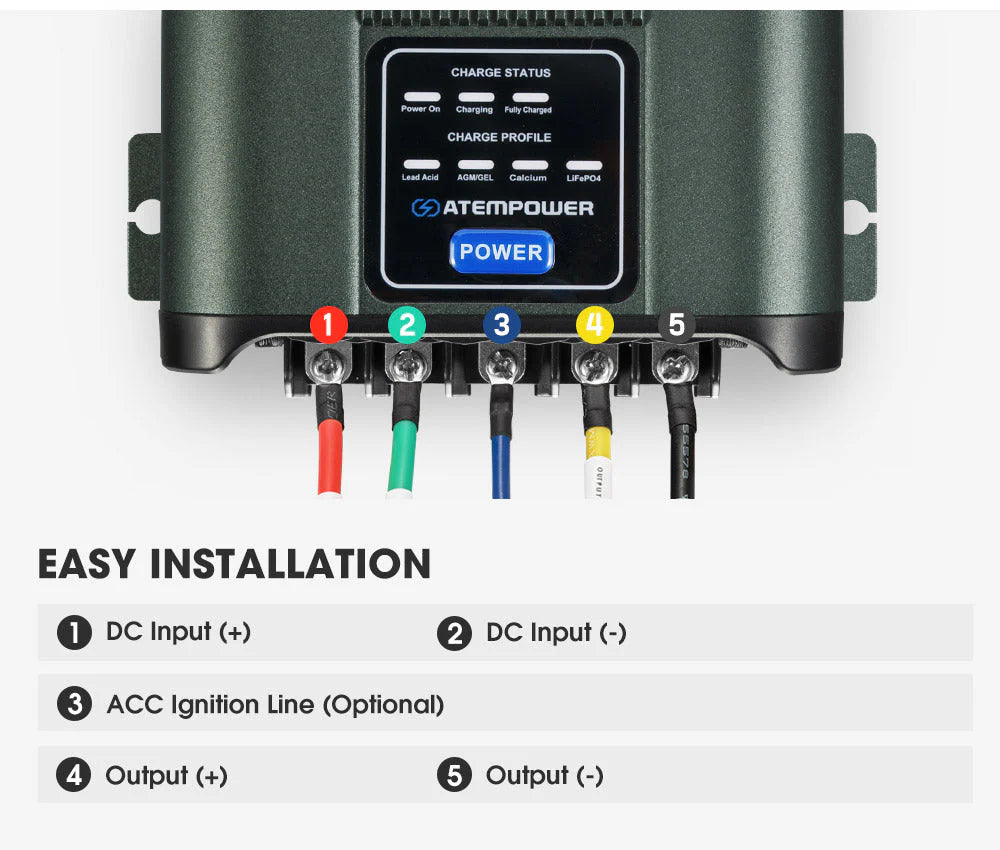

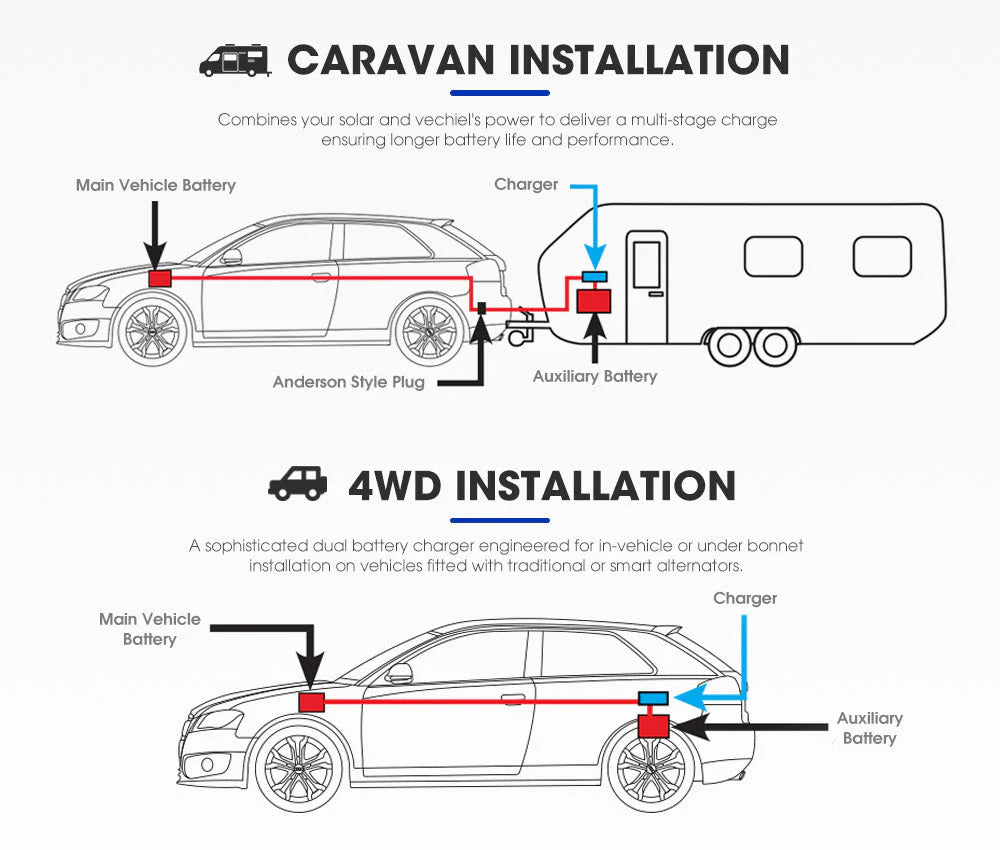

• Wire the charger between your starter battery and auxiliary battery using the included 10AWG cables.
• Select the battery profile that matches your auxiliary battery — Lead Acid, AGM, Gel, Calcium or LiFePO4.
• On smart-alternator vehicles, connect the ACC line to the ignition to enable lower input voltage operation.
• Use 10AWG cable for runs under 1m, 8AWG for 1–5m, and 6AWG for runs over 5m.

What's included

• 1 x ATEM POWER 30A DC-DC Charger
• 4 x 10AWG Cables
• 1 x 18AWG Cable
