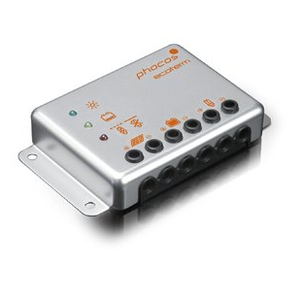

14A IP68 Ecoterm Solar Regulator by Phocos
14A IP68 Ecoterm Solar Regulator by Phocos
Couldn't load pickup availability
*Delivery: 2 to 5 working days from payment clearing, product type and stock levels dependant.
*Order, payment, sale, refund and returns, Terms and Conditions Apply.
A compact PWM solar charge controller designed for lead acid battery systems. This unit features IP68 waterproof casing and integrates seamlessly with Namib solar panels. Manufactured to German engineering standards and backed by a 2-year warranty. RoHS compliant.
Key Features
| Brand | Phocos (Ecoterm range) |
| Controller Type | PWM |
| System Voltage | 12V |
| Max Charge/Load Current | 14A |
| Max PV Voltage | 30Voc |
| Charge Stages (at 25°C) | Float 13.8V | Main 14.4V (0.5h daily) | Boost 14.4V (2h) |
| Battery Compatibility | Lead acid — GEL, AGM, flooded |
| Protection Rating | IP68 casing, IP21 contacts |
| Operating Range | -40°C to +60°C, up to 4,000m altitude |
| Dimensions / Weight | 100 x 61 x 20mm / 160g |
| Max Wire Cross-Section | 10mm² |
| Warranty | 2 years |
Highlights
- IP68-rated casing for reliable outdoor and vehicle-mounted installation
- German-engineered, RoHS compliant
- Built-in deep discharge, overvoltage and undervoltage protection
- Low 4mA idle consumption
Compatibility
12V lead acid battery systems only (GEL, AGM, flooded) — not suitable for LiFePO4 batteries. Compatible with panels up to 30Voc.
How to use
- Wire the regulator between your solar panel and 12V lead acid battery, respecting the maximum 30Voc panel input.
- Use cable no larger than 10mm² cross-section for the terminal connections.
- The regulator manages float, main and boost charge stages automatically — no manual adjustment needed.
